18. 4. 2024

Straight and Z-shaped magnetic conveyors

The advantage of magnetic conveyors is that they do not have any external moving parts (in contrast to the standard belt conveyors or conveyors with plastic modular belts) – that is why the transported objects do not damage the conveyor. The beltless magnetic conveyor has a closed design, so it is resistant to dust and can be used for transporting oiled parts.

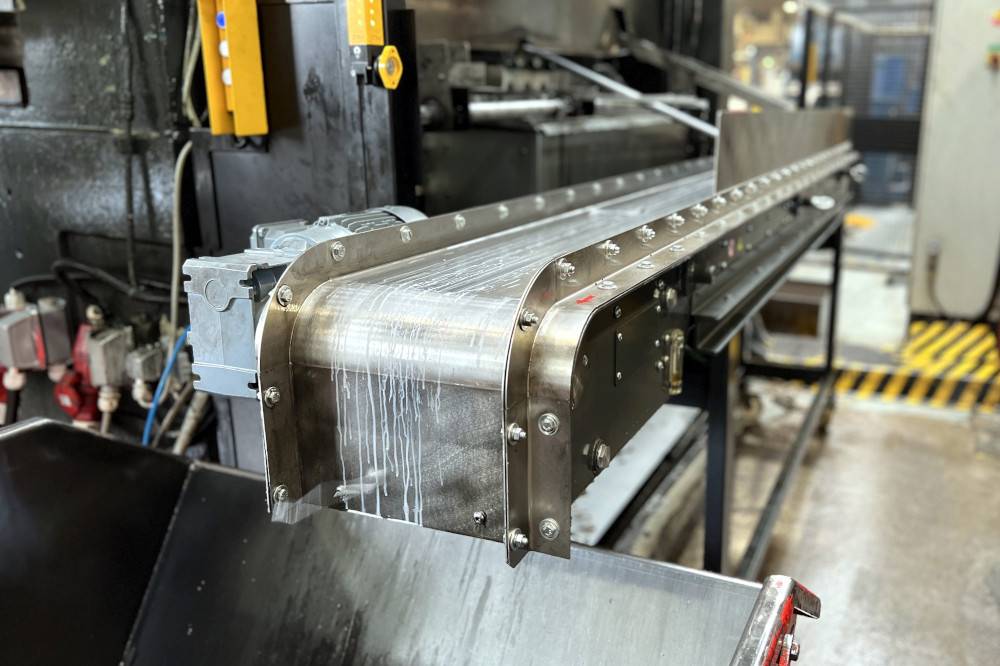

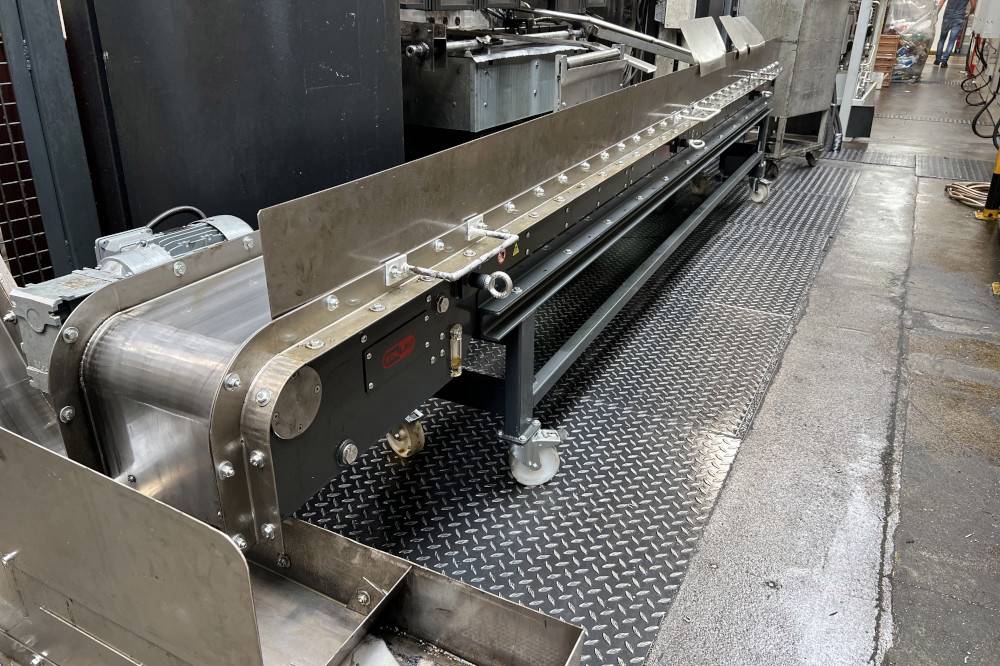

Straight magnetic conveyors

Straight magnetic conveyors are used for the horizontal transport of ferrous objects. Thanks to the design of the magnetic conveyor, we can manufacture it in practically any length.

We can also supply magnetic conveyors in a “HOT” version – i. e., for high temperatures. We select the type of the needed magnets according to the maximum temperature of the transported objects.

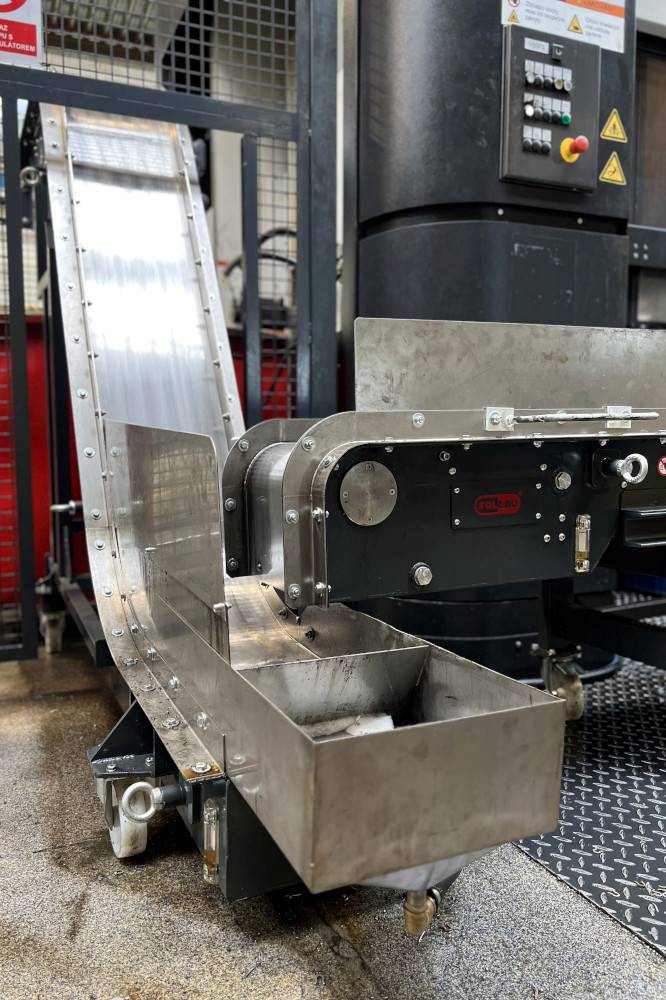

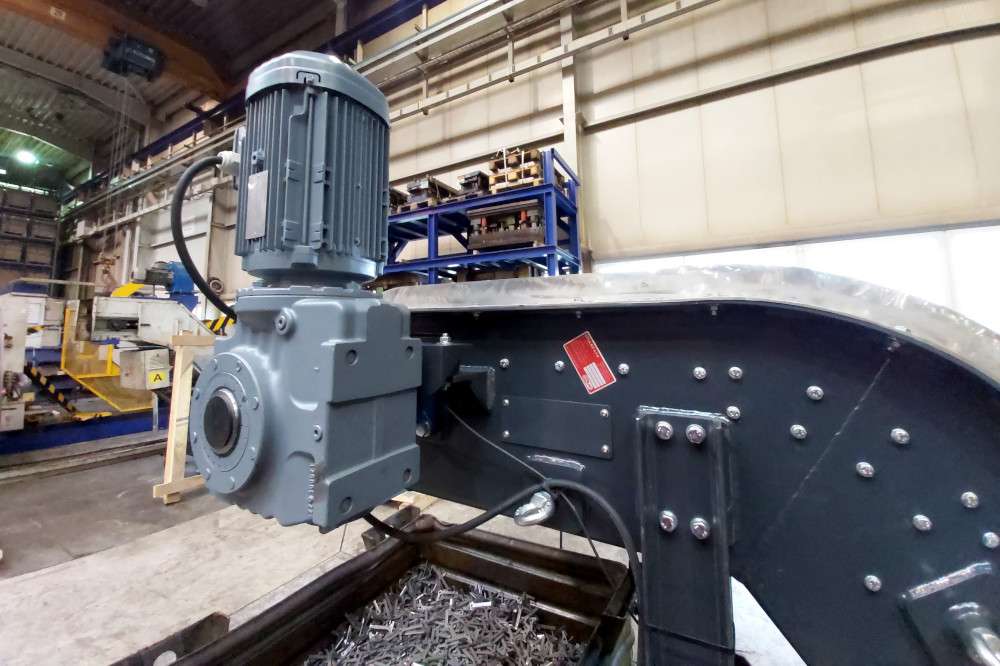

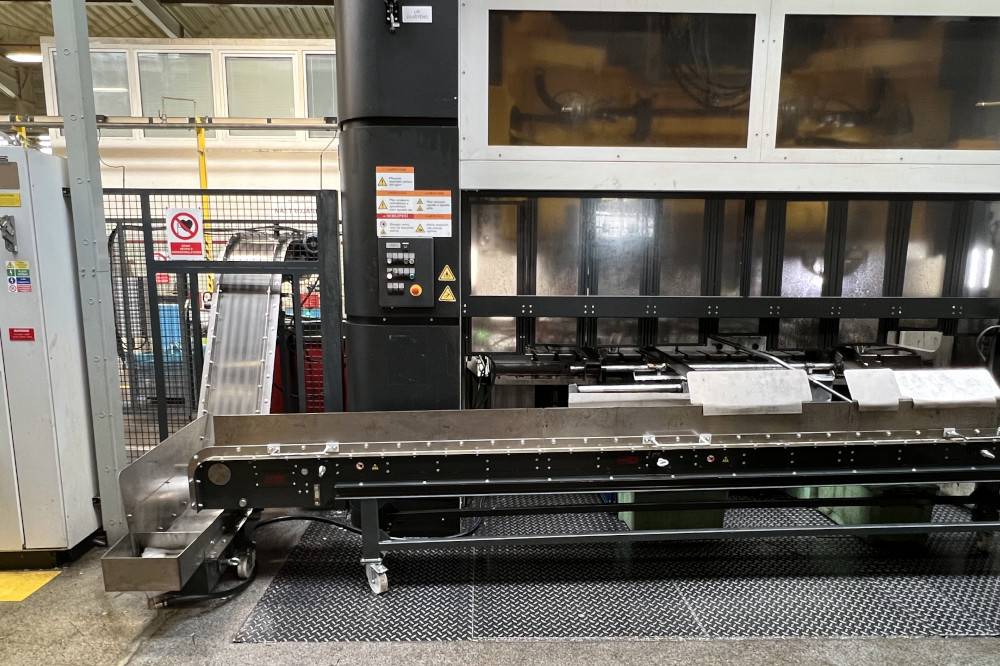

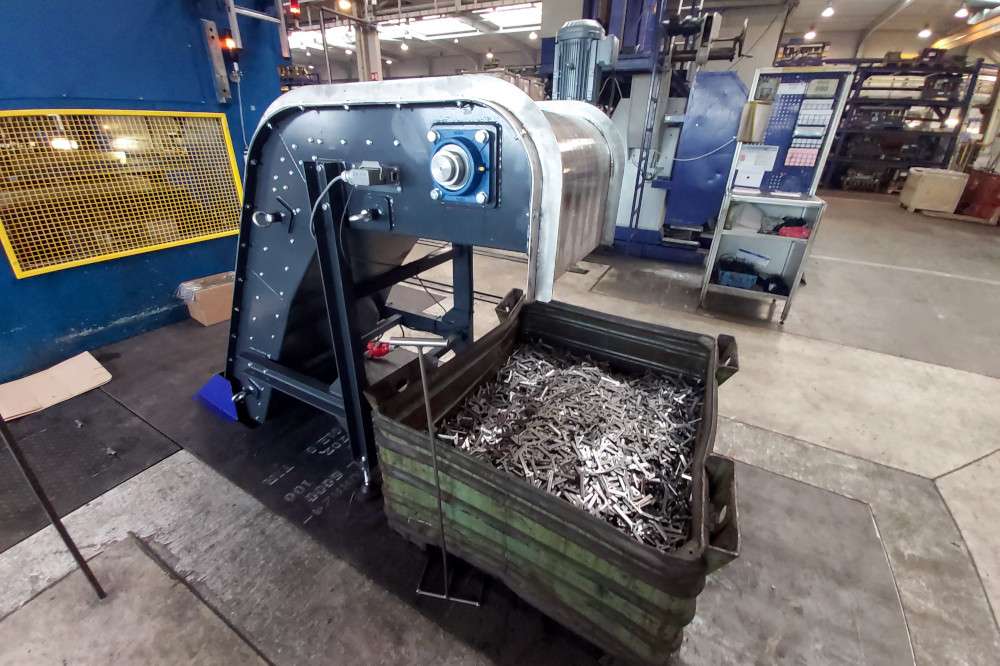

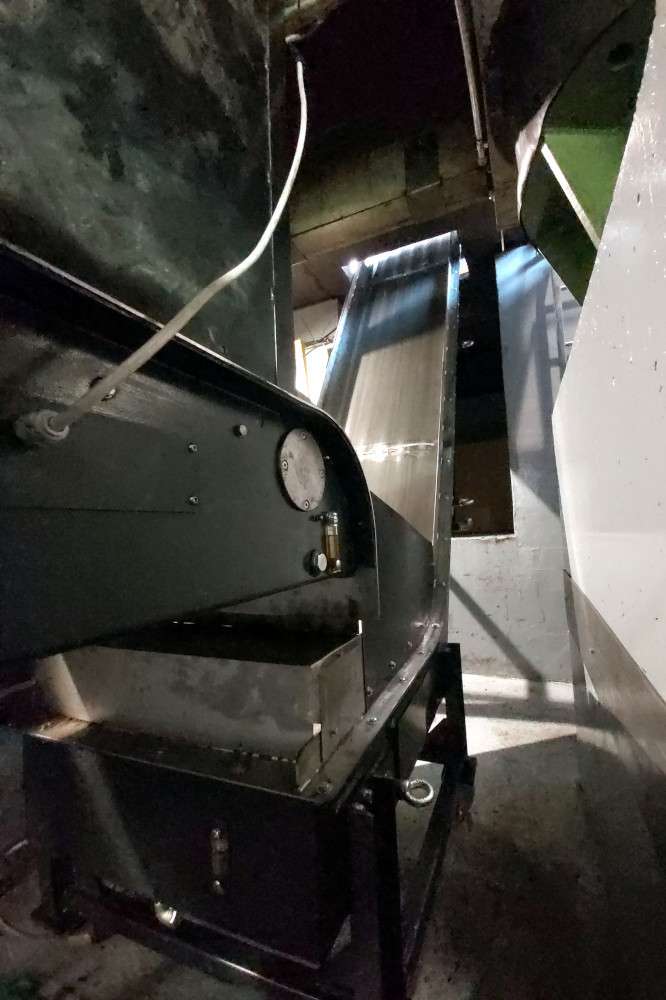

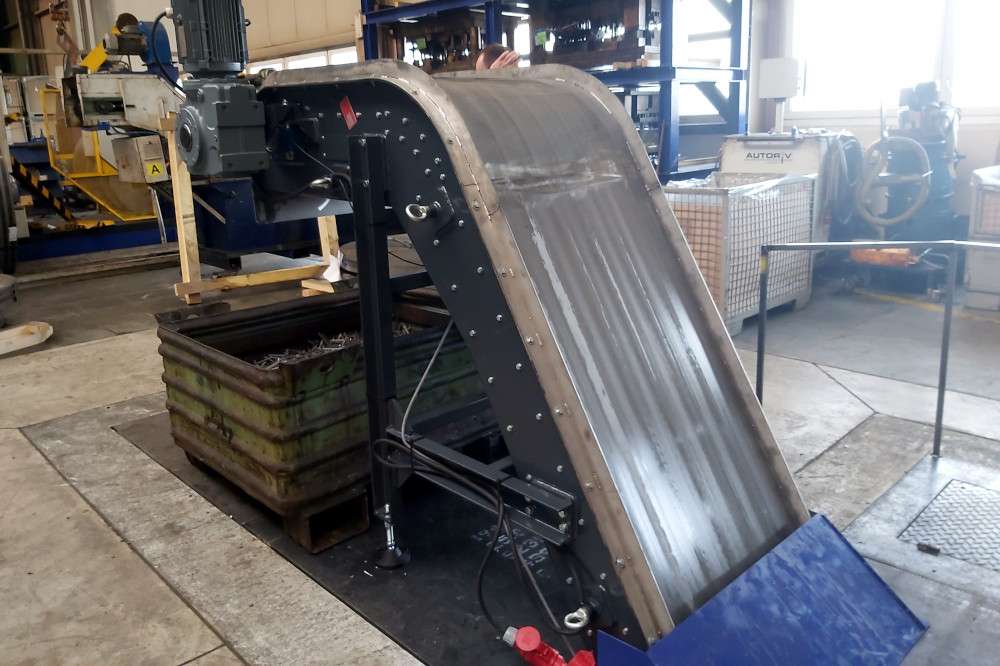

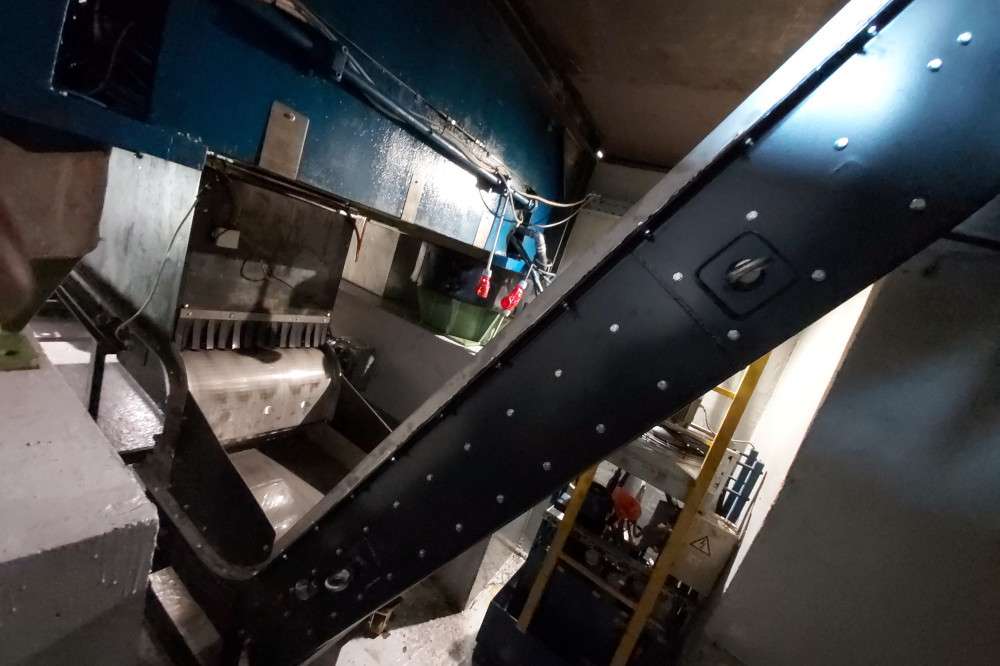

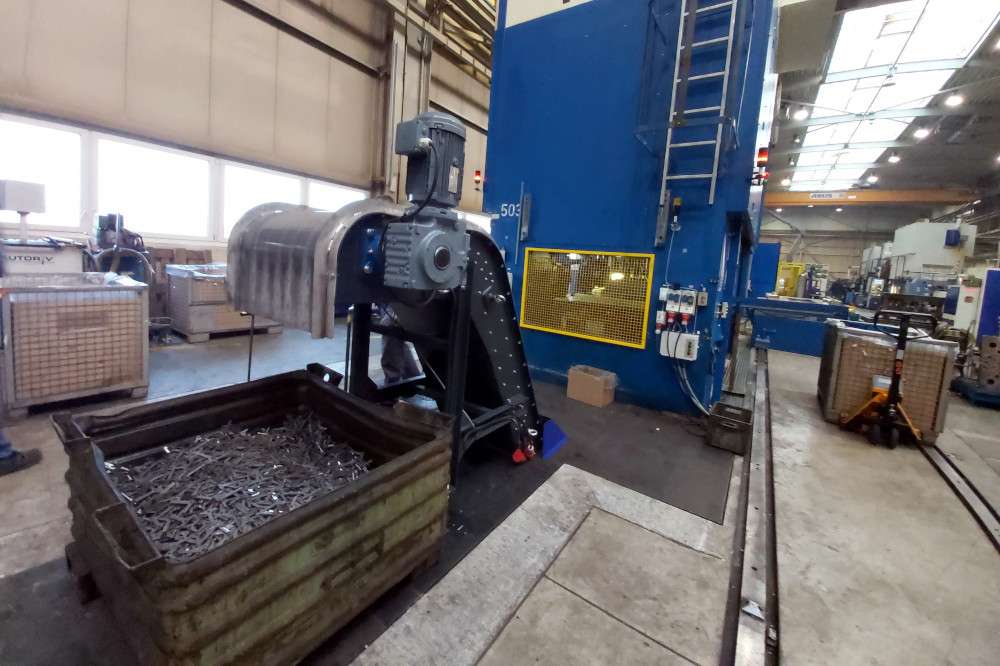

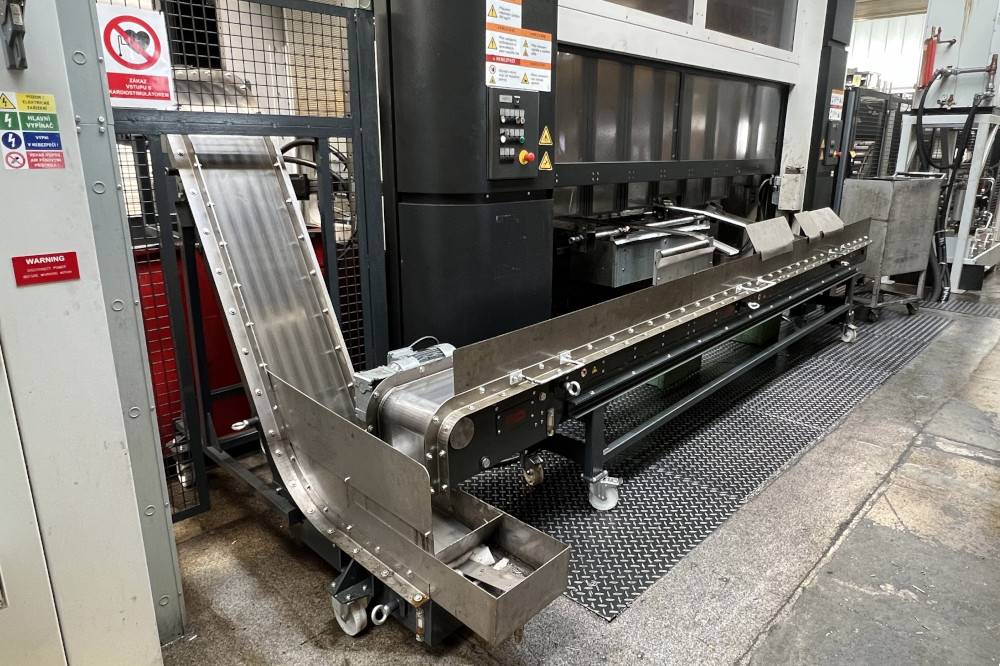

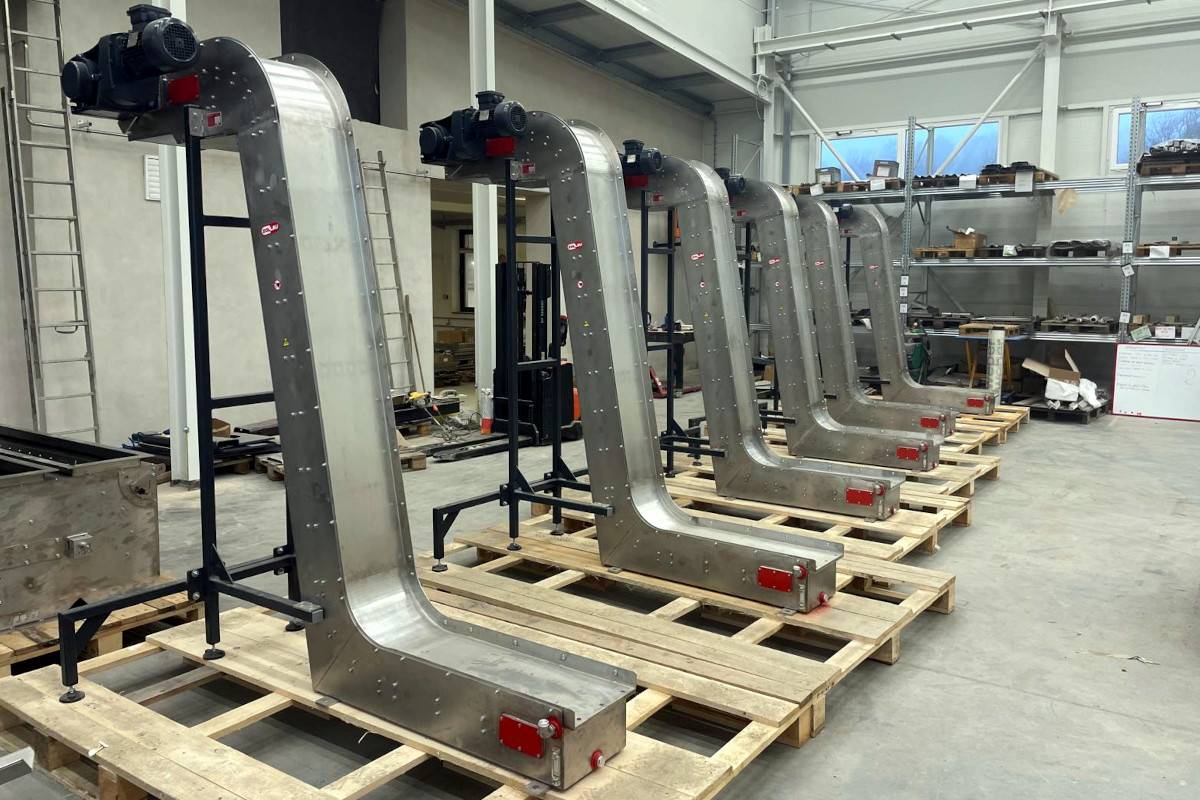

Inclined (Z-shaped) magnetic conveyors

Angled magnetic conveyors are used for the inclined or vertical transport of ferrous objects. They find their application where parts need to be transported to a height different from the starting one. For a correct specification of an inclined magnetic conveyor, we need to know not only the size, weight, and quantity of transported parts but also the starting and target height.

Angled conveyors can be supplied in the same way as straight ones:

  • They can be made in virtually any length
  • Standard widths: 200, 300, 400, 500 and 600 mm
  • In case of a specific customer's requirement, we can also produce the magnetic conveyor in other than standard widths
  • They are equipped with ferrite (weaker) or neodymium (stronger) magnets
  • We can also supply them in a “HOT” version – i. e., for high temperatures
