Magnets for technological liquids TL

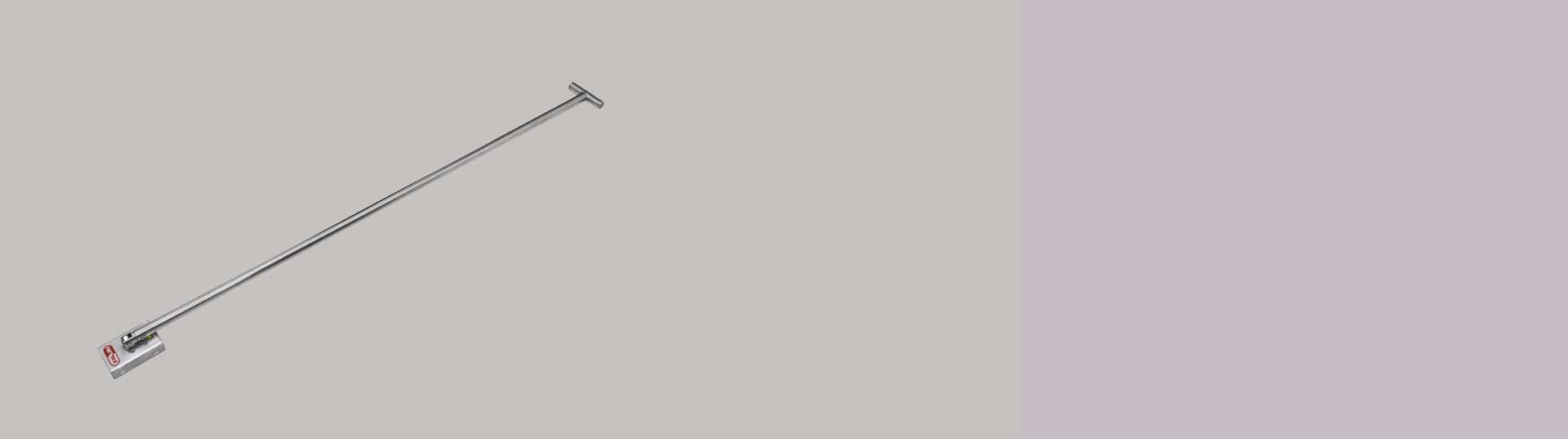

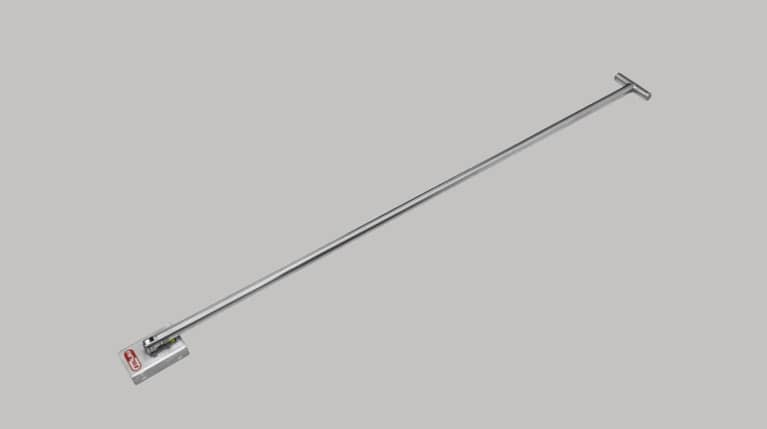

Magnet for technological liquids TL is designed for handling parts immersed in various technological solutions - galvanizing or oil bath, paint shop, etc. The location of the magnet on a bar with a handle allows to reach even harder to reach places and and heavier parts.
If you need a lower pulling force of the magnet, we also produce a magnet for technological baths equipped with a weaker ferrite magnet.

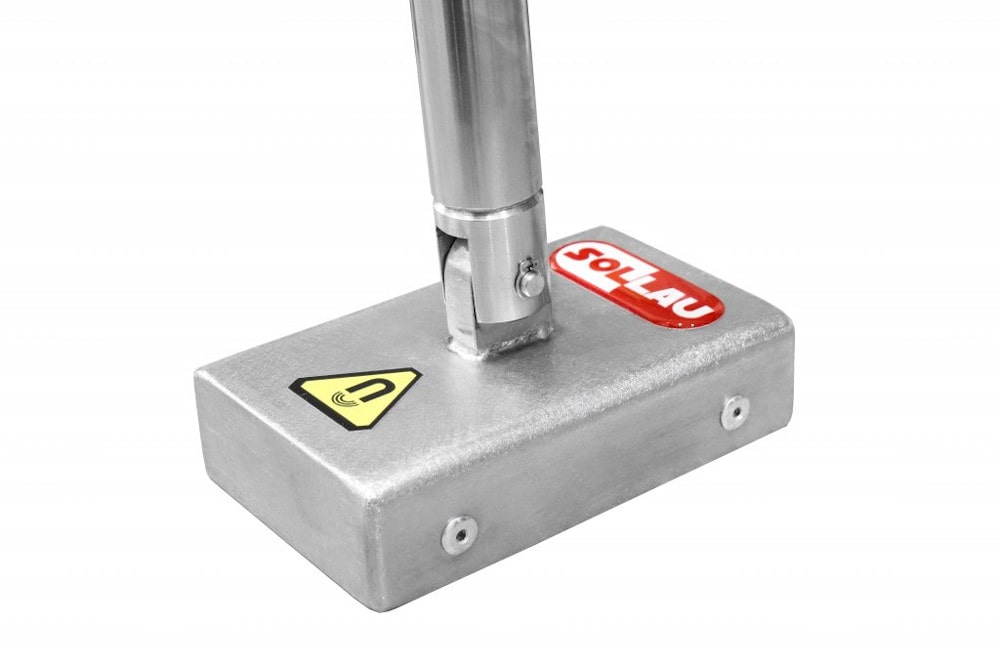

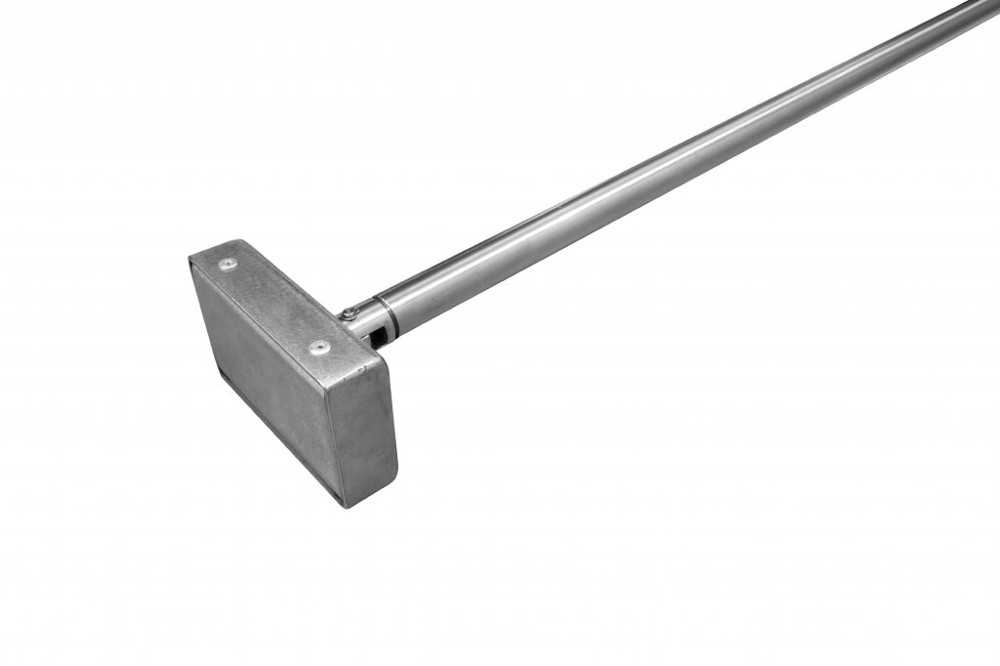

The handling rod with a standard length of 1.25 m is equipped with a pivoting joint at the end of the magnet, so that the part can be gripped over the entire surface of the magnet and thus use its maximum pulling force. On request, we can produce a rod in any length.

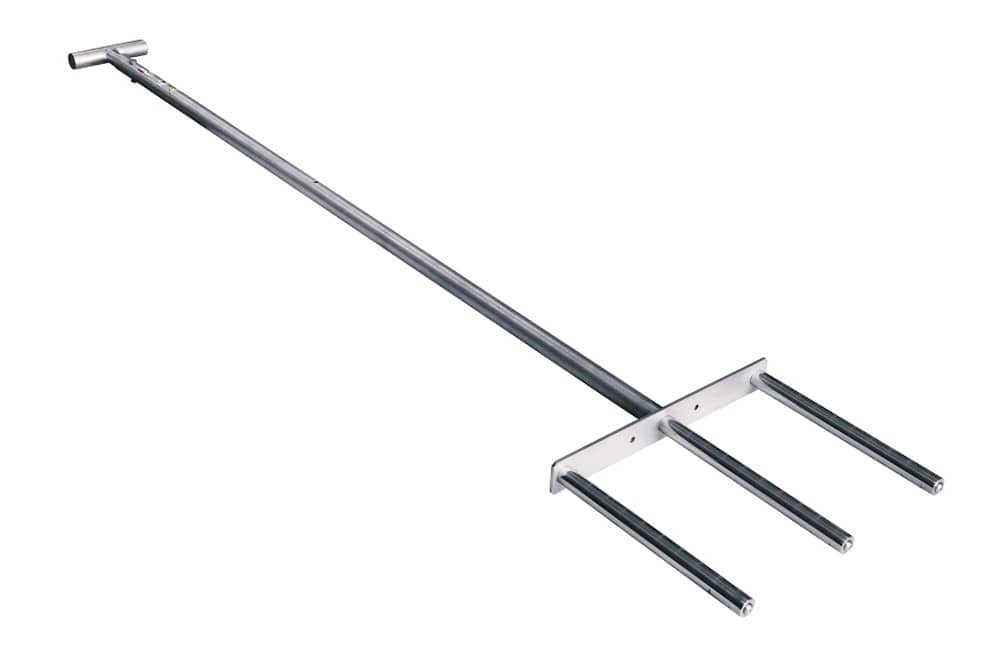

Magnet for painting shops TL 3/300 N - new type
The magnetic cores are firmly enclosed in stainless steel rods. The surface of the magnetic rods is easy to maintain and washable. There is no risk of damage to the magnetic cores.- Magnetic cores are made of strong neodymium magnets
- The magnetic induction on the surface of the rods is 11,500 G.
- Polished surface of magnetic rods
- Heat resistance of magnets up to 80 °C in standard design
- Stainless steel DIN 1.4301
- We produce magnets for galvanizing plants with three or four rods
Easy placing an order in e-shop
| Cat. number | Type | A (mm) | B (mm) | C (mm) | H (mm) |
|---|---|---|---|---|---|
| TL01N-S | Neodym NdFeB | 110 | 27 | 65 | 1277 |
| TL02F-S | Ferit FeB | 110 | 27 | 65 | 1277 |
| Model | L (mm) | Number of bars | Weight (kg) | Magnetic induction | Surface treatment of the magnetic part | Working temperature |
|---|---|---|---|---|---|---|
| TL 3/300 N | 1830 | 3 | 6,6 | 11 500 G | polishing | up to 80 °C |
| TL 4/300 N | 1830 | 4 | 7,8 | 11 500 G | polishing | up to 80 °C |
| TL P 3/300 N | 2420 | 3 | 7,2 | 11 500 G | polishing | up to 80 °C |
| TL P 4/300 N | 2420 | 4 | 8,4 | 11 500 G | polishing | up to 80 °C |
It depends on what you need to handle and where. For manually collecting chips, screws and small metal parts from floors or hard-to-reach spots, metal shavings manual magnetic collectors MTL are the right solution. For loading and unloading sheet metal and ferromagnetic parts at presses and machines, magnetic manipulators RM are designed for this purpose. For work in galvanising, oil or lacquering baths, we offer magnets for technological liquids TL. For lifting heavy loads by crane, choose permanent (SLM, GP250), battery-powered (BM, BMP) or electropermanent lifting magnets (NEO EP). Tell us your application parameters and we will recommend the right type.
The MTL collector is a handheld tool with a deep magnetic field that attracts metal chips, screws, nails and other small ferromagnetic objects from floors, gaps, mats and hard-to-reach places. It features a stainless steel design and easy release of collected material — simply pull the handle upward. It is suitable wherever the workplace needs to be kept free of loose metal contaminants, particularly in machining shops, workshops or warehouses. Collectors are in stock and available in the e-shop.
TL magnets are designed for handling parts submerged in galvanising, oil or lacquering baths. The all-stainless-steel design in DIN 1.4301 grade steel ensures resistance to chemical solutions, and the magnets can be safely immersed in the bath. The NdFeB magnetic cores are firmly enclosed inside stainless steel rods with a polished, easy-to-clean surface — the magnetic flux density on the rod surface reaches 11,500 G. The thermal resistance of the magnets is up to 80 °C. The standard length of the handling rod with a swivel joint is 1.25 m; we manufacture any length on request.
Permanent lifting magnets (SLM, GP250, NEO-HV) require no energy — they are activated by a lever handle and are always ready to use. They are maintenance-free with load capacities from 150 to 2,000 kg. Battery-powered magnets (BM, BMP) are remote-controlled up to 10 metres and are suitable for operations where the operator does not have direct access to the load. Electropermanent magnets (NEO EP) are activated by a short electrical pulse in 0.8 seconds; once activated they require no current and can be integrated into automated operations. The right type depends on load weight, control method and level of automation.
Permanent lifting magnets SLM are available with load capacities from 150 to 2,000 kg and handle both flat and cylindrical material (round bar, pipes). The GP250 model is specifically designed for handling steel sheets and plates in both horizontal and vertical positions — it lifts from 3 mm thickness and from 4 mm thickness separates a single sheet from a bundle. The NEO-HV model with an arm allows workpiece rotation by 90° and facilitates handling at horizontal machining centres and lathes. All crane magnets are tested with a safety factor of 3 or more.
These two functions are available on battery-powered lifting magnets of the BM range. The Variable Force function allows smooth adjustment of the magnet's force — it enables precise control of how many sheets the magnet lifts from a bundle without attracting the entire stack. The Tip-Off function provides gradual release of part of the load, so-called fanning, where sheets are separated one by one. Both functions increase precision and safety during handling, especially when processing thin sheet metal. The BMP magnets also handle circular and other profiles.
After delivery, we provide installation, commissioning and operator training. To maintain safety, we recommend regular annual measurement of lifting force — after a successful test, we issue a measurement certificate confirming that the magnet lifts the declared load. SOLLAU SLM crane permanent magnets carry a 5-year warranty on the magnetic system. We provide authorised service for all equipment throughout its service life. For specific requirements — atypical loads, integration into an automated line or non-standard environments — contact us directly.
