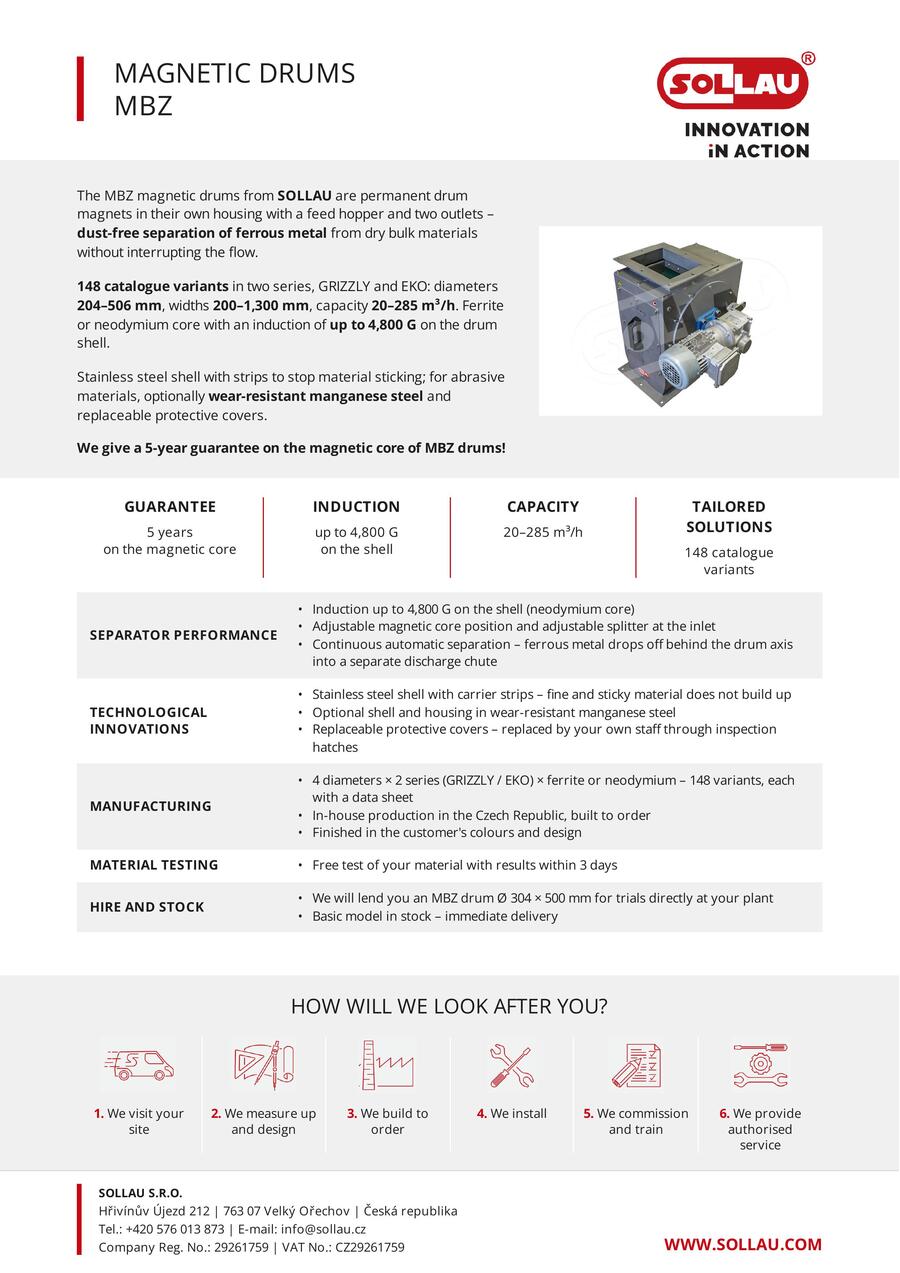

Advantages of the magnetic drum MBZ

  • Automatic cleaning even without a need of interruption of the flow of material
  • Manufacturing of a made-to-measure separator
  • Convenient also for the materials highly contaminated by Fe particles
  • 5-year warranty
  • Wide scale of applications
  • Interception of fine and middle-sized Fe particles
  • Material testing

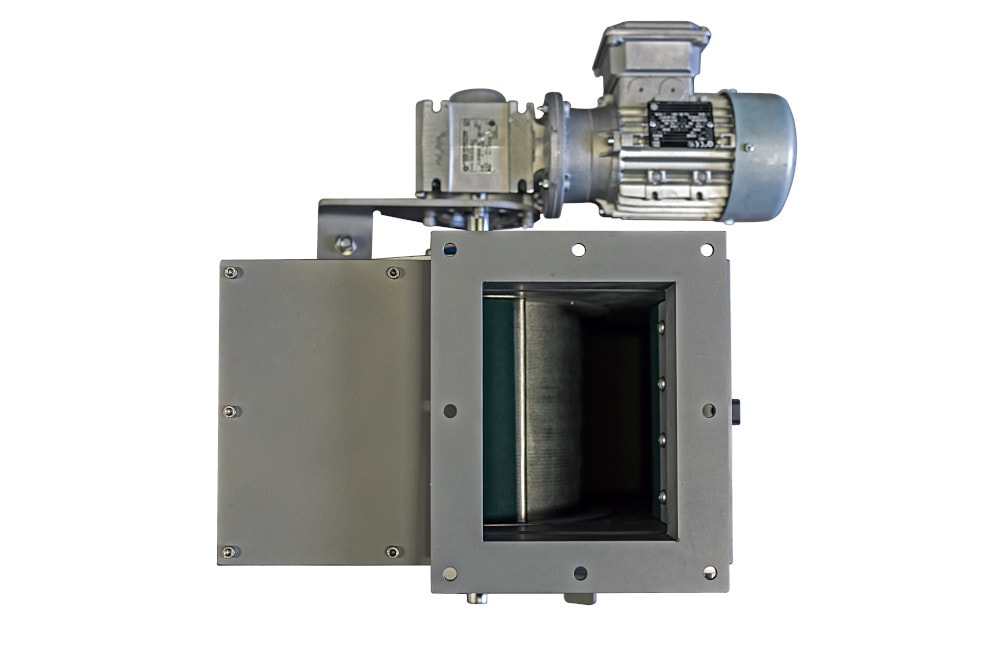

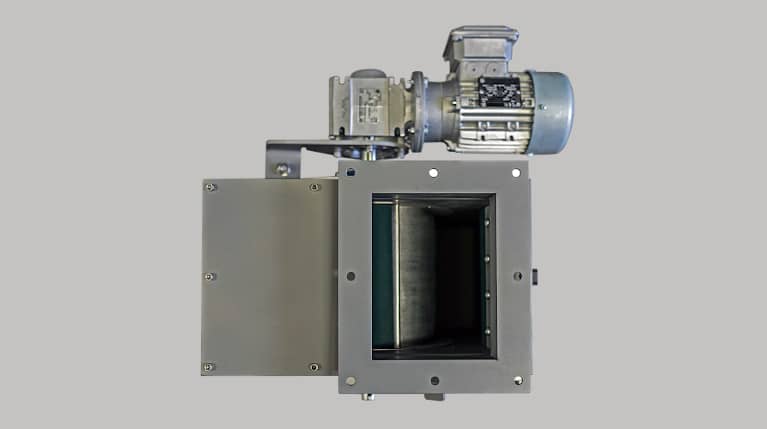

Magnetic drums MBZ

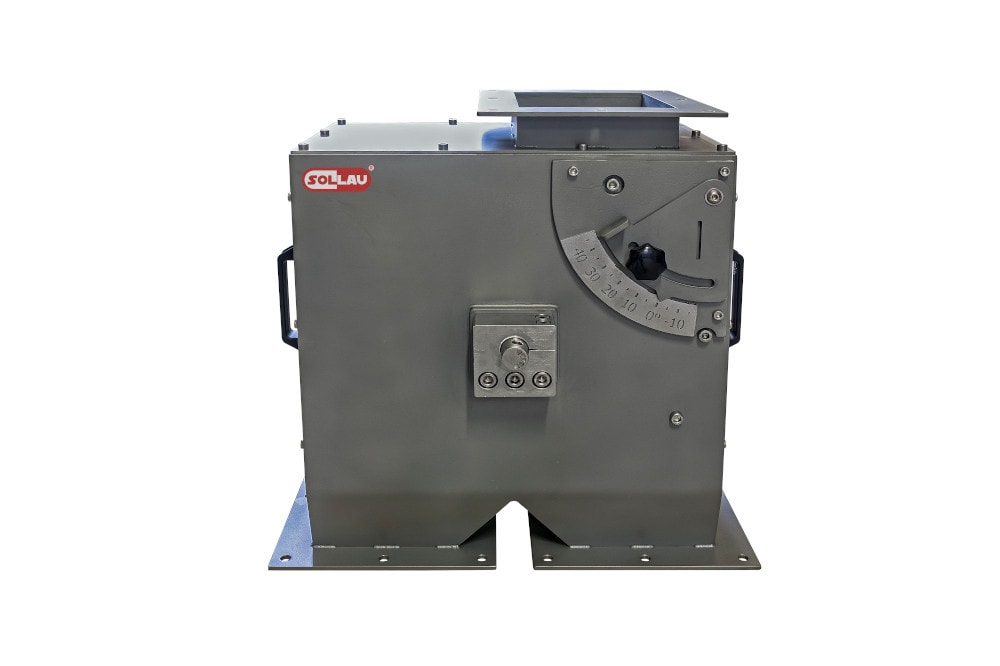

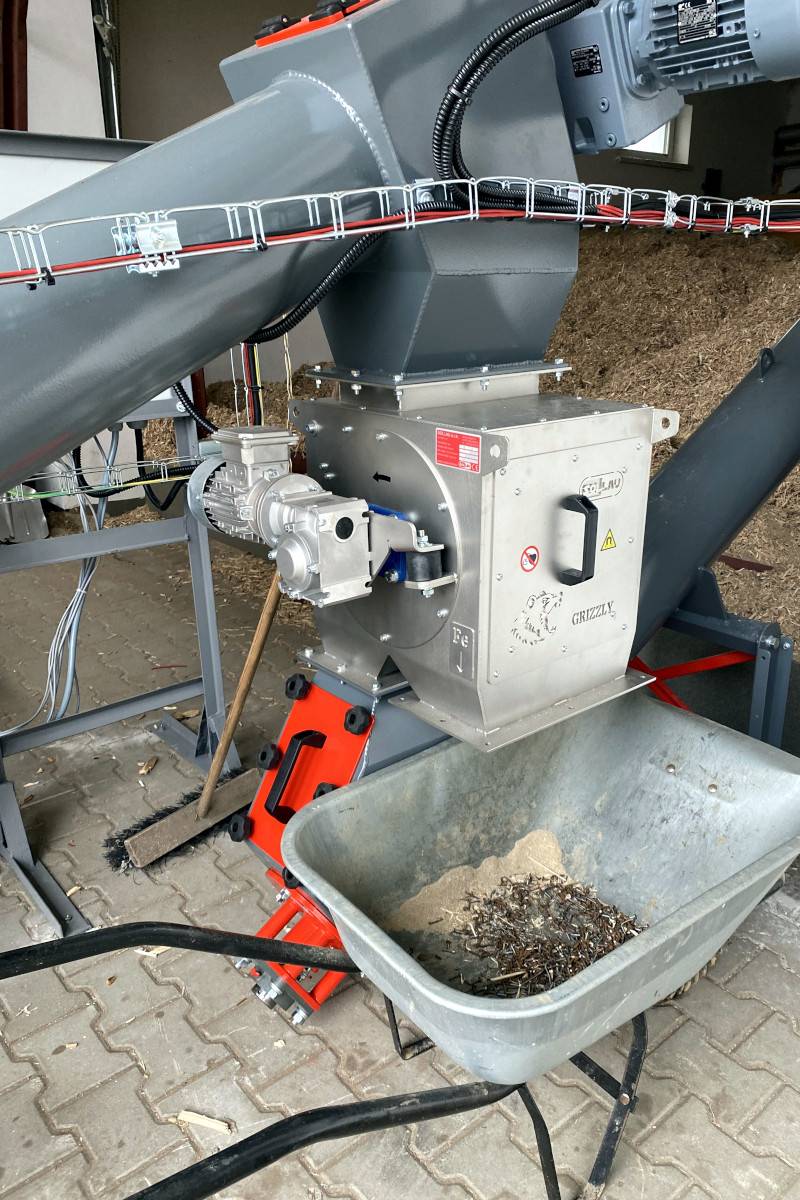

Sheltered magnetic drum MBZ GRIZZLY

Housed separating drums serve to the continuous and automatic separation of ferromagnetic particles coming from dry materials and preserves against the damage of the machine and appliance that process the cleaned material sunsequently.

Benefits of using the separator

  • Material free of ferromagnetic adulterants
  • Permanent preservation of the technological appliance
  • Fluent production operation
  • During the cleaning there is no need of interrupting the flow of material
  • Unmanned appliance

Záruka 5 let / 5 year warrantySOLLAU 5 year warranty

We can vouch for the quality of our magnetic separators and that is why why we provide a 5 year warranty on them! Our magnetic separators can be relied on! We are a specialist in the field of magnetic separation.

Possible replacement of the wear cover

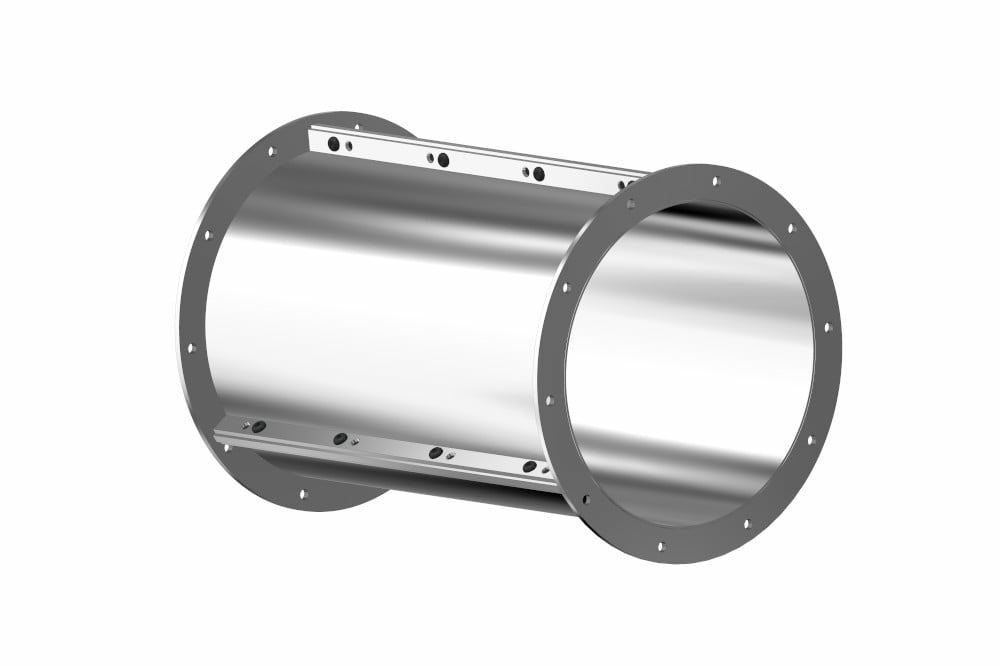

Cover of the magnetic drum

When separating abrasive materials, the drum cover may wear out. Therefore, we have modified its design so that the user can replace this cover on his own.

As a result, the lifetime of the drum and thus of the entire device will be considerably extended.

Our drum magnets generate a deep and strong magnetic field, so high separation efficiency will be achieved even when the drum is fitted with these additional wear covers.

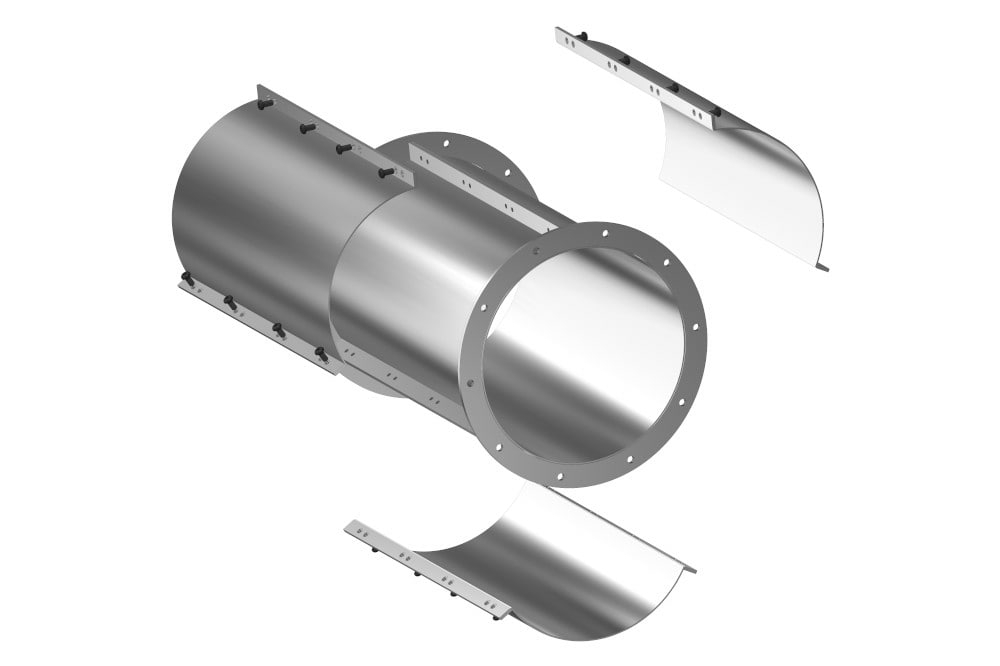

Replacement of the magnetic drum cover

Replacement of the magnetic drum coverThe magnetic drums are designed in such a way that the wear cover replacement can be carried out through the inspection hole in the drum housing, so there is no need to pull the entire drum out.

You just replace the individual cover segments successively. It's really simple!

We can also manufacture the housing in robust manganese steel, which will extend several times the service life of the housing even in the most demanding conditions.



We guarantee tests withing three daysWe guarantee tests withing three days!

Make sure that our device perfectly meets your expectations!
We will provide tests of your material on our magnetic separators for FREE!

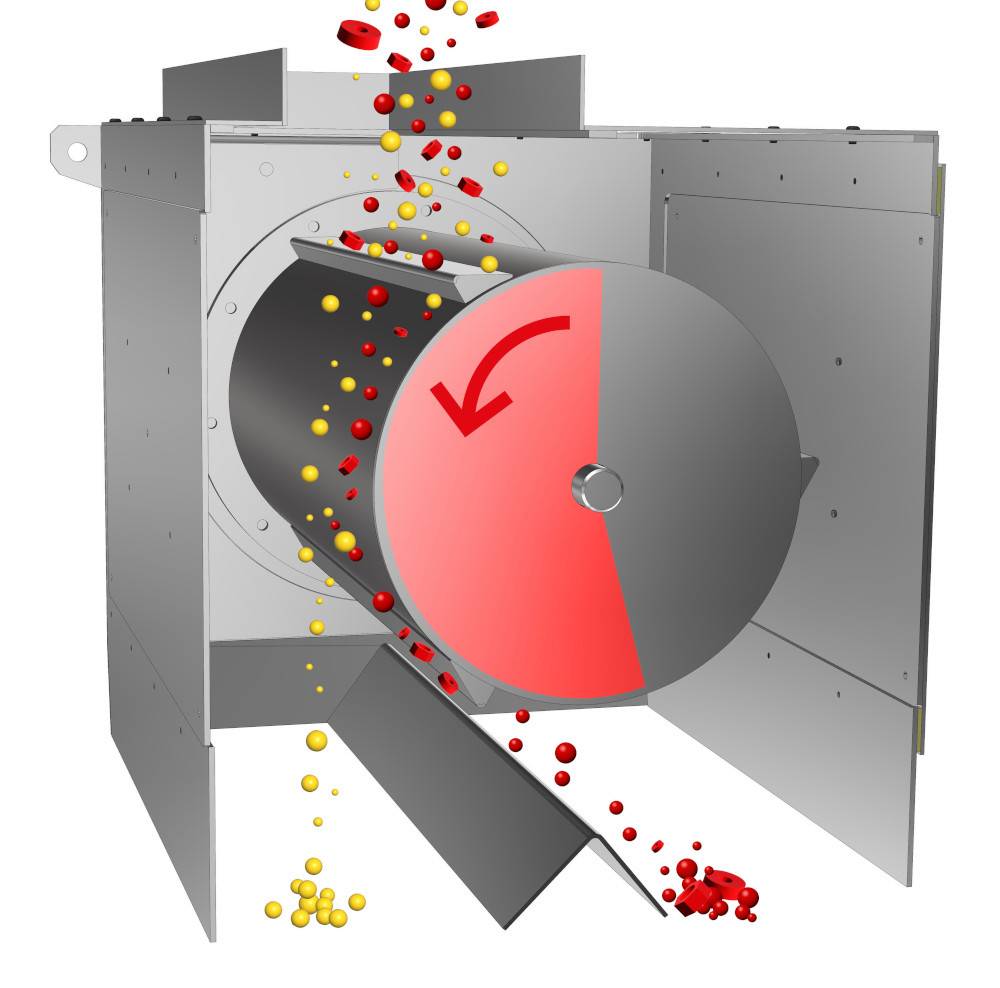

The system of permanent magnets makes the segregation of the magnetic metal particles without a need of interruption of the production cycle easier and at the same time it preserves the subsequent engineering devices (e. g. pressers, grinders, mills, shredders) against the damage. The heart of the magnetic drum is a set of magnetic cores in the shape of half-moon that an external part of the drum (made of stainless steel) turns with ledgelike tenons around.

Cleaning of the housed drum magnet

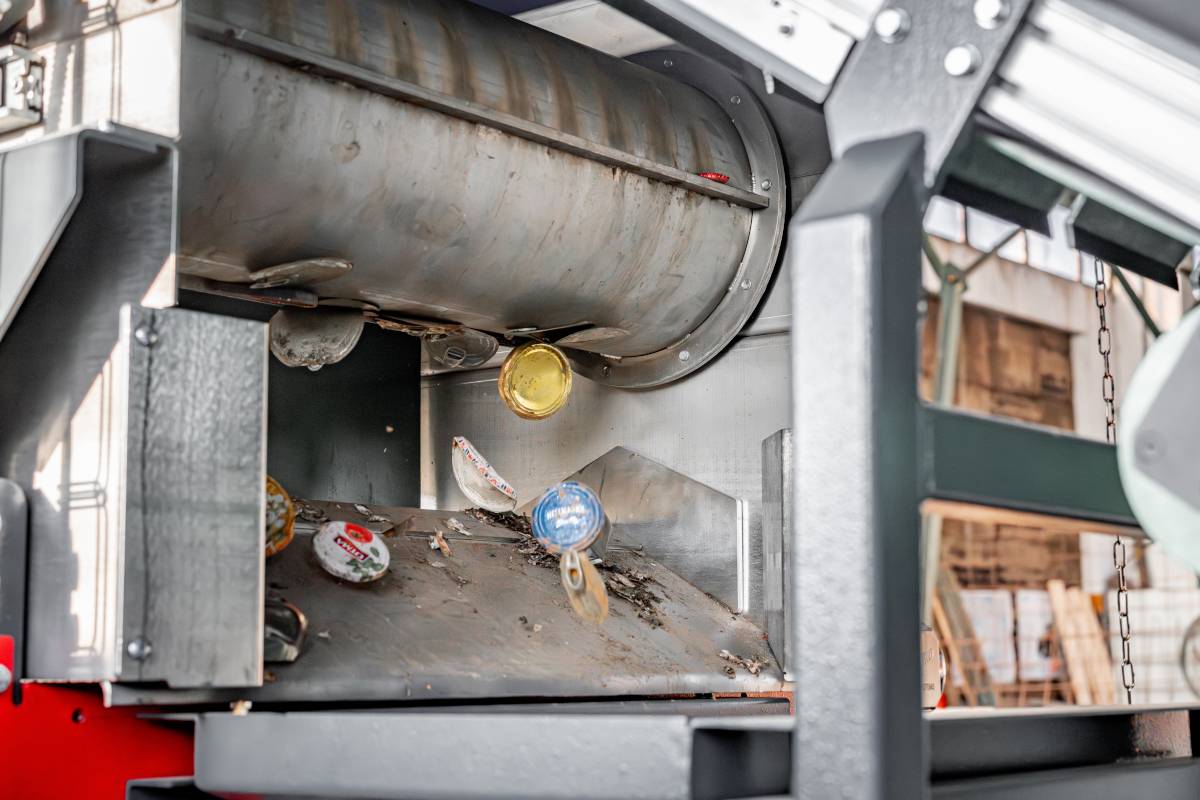

The ferrous particles are caught on the surface of the drum and they fall off only behind the axis of the drum into the discharge hopper for ferromagnetic contaminants.

Certificate TESYDOSOLLAU – our products are welded by real professionals!

SOLLAU certifications:
Authorization to perform welding on pressure equipment according to PED 2014 / 68 / EU
Pressure welder certificate according to EN-ISO 3834 - 2, EN 1090 - 2, EN 13480 - 1 to 5, EN 13445 - 1 to 5

Model family MBZ GRIZZLY

  • Automatic cleaning without a need of interrupting the flow of material
  • Adjustable material distributor to regulate the material input

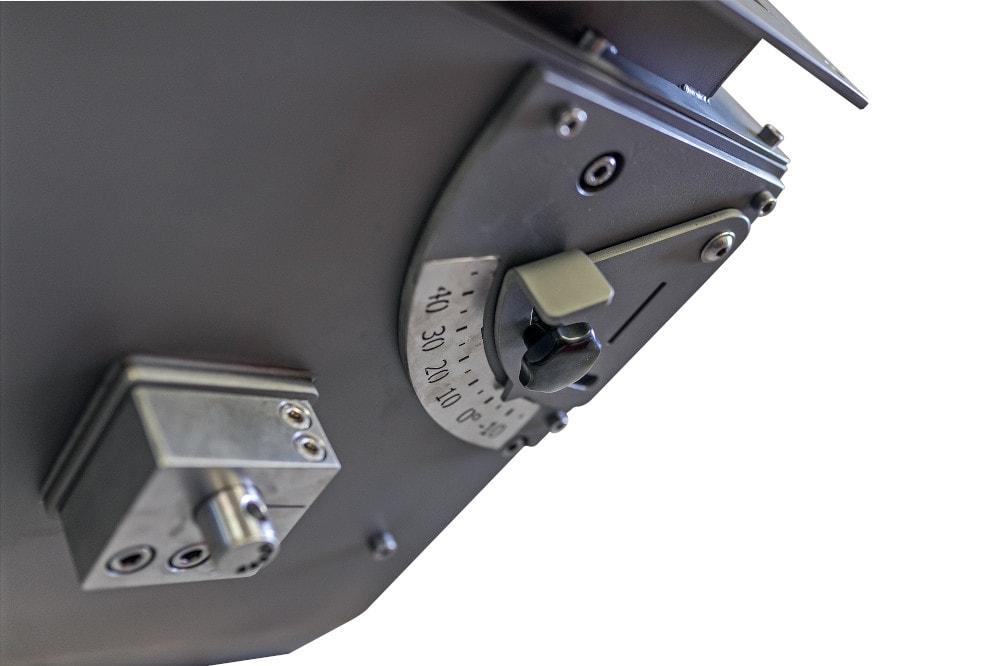

  • Variable attitude of the detacher of the cleaned material and separated contaminants
  • Blades prevent from abidance of the fine or sticky material on the surface of the drum
  • Ferrite and neodym design
  • Quick and easy change of the position of the magnetic core
  • Sophisticated structure with more access holes and service openings
  • Up to 4 800 Gauss on the drum surface
  • ATEX certificate
  • Five-year waranty for the magnetic core

MBZ 204 GRIZZLY

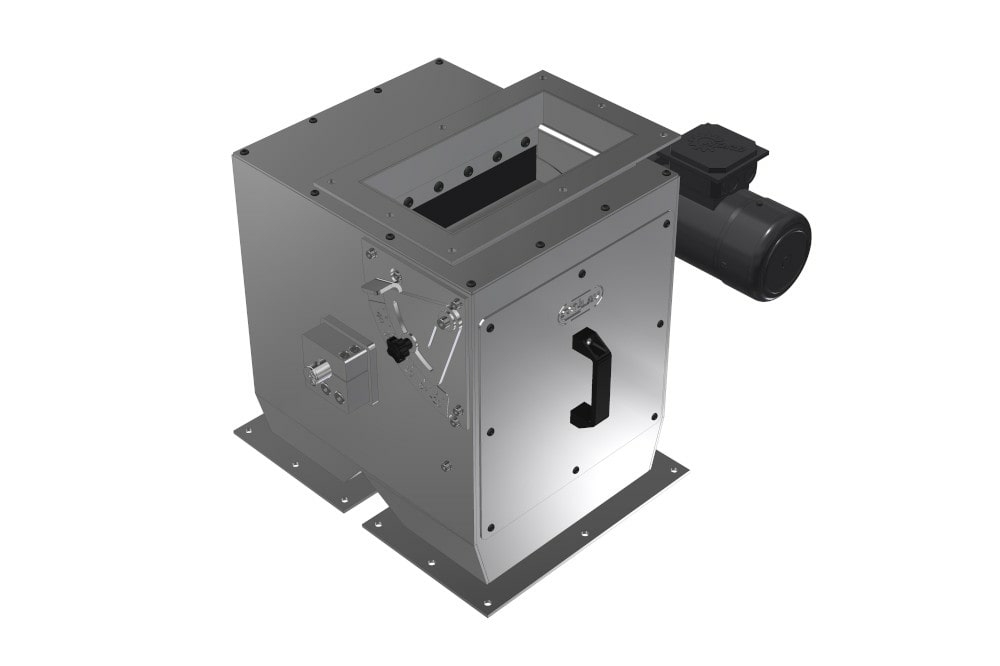

Magnetic drum in housing MBZ 204 GRIZZLY

Magnetic drum with a diameter of 204 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 204 F 200 GRIZZLY 20 210 x 150 display PDF
MBZ 204 F 300 GRIZZLY 25 310 x 150 display PDF
MBZ 204 F 400 GRIZZLY 30 410 x 150 display PDF
MBZ 204 F 500 GRIZZLY 35 510 x 150 display PDF
MBZ 204 F 600 GRIZZLY 40 610 x 150 display PDF
MBZ 204 F 700 GRIZZLY 45 710 x 150 display PDF
MBZ 204 F 800 GRIZZLY 50 810 x 150 display PDF
MBZ 204 F 900 GRIZZLY 60 910 x 150 display PDF
MBZ 204 F 1000 GRIZZLY 75 1010 x 150 display PDF


Magnetic separators in store

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 204 N 200 GRIZZLY 20 210 x 150 display PDF
MBZ 204 N 300 GRIZZLY 25 310 x 150 display PDF
MBZ 204 N 400 GRIZZLY 30 410 x 150 display PDF
MBZ 204 N 500 GRIZZLY 35 510 x 150 display PDF
MBZ 204 N 600 GRIZZLY 40 610 x 150 display PDF
MBZ 204 N 700 GRIZZLY 45 710 x 150 display PDF
MBZ 204 N 800 GRIZZLY 50 810 x 150 display PDF
MBZ 204 N 900 GRIZZLY 60 910 x 150 display PDF
MBZ 204 N 1000 GRIZZLY 75 1010 x 150 display PDF

MBZ 304 GRIZZLY

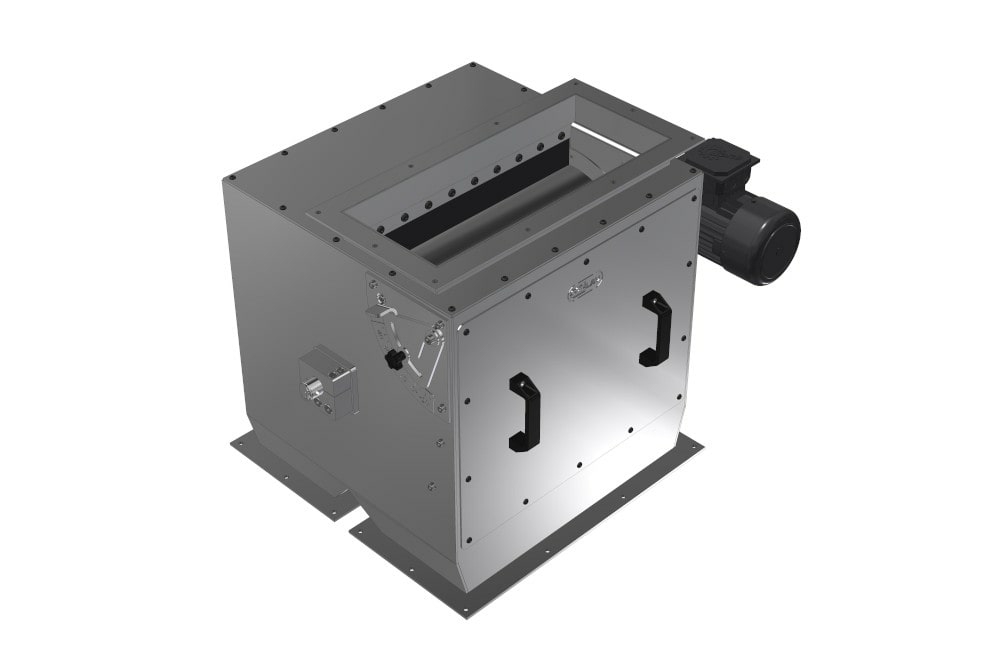

Sheltered magnetic drum MBZ 304 GRIZZLY

Magnetic drum with a diameter of 304 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 304 F 300 GRIZZLY 25 310 x 200 display PDF
MBZ 304 F 400 GRIZZLY 35 410 x 200 display PDF
MBZ 304 F 500 GRIZZLY 45 510 x 200 display PDF
MBZ 304 F 600 GRIZZLY 55 610 x 200 display PDF
MBZ 304 F 700 GRIZZLY 65 710 x 200 display PDF
MBZ 304 F 800 GRIZZLY 75 810 x 200 display PDF
MBZ 304 F 900 GRIZZLY 85 910 x 200 display PDF
MBZ 304 F 1000 GRIZZLY 95 1010 x 200 display PDF
MBZ 304 F 1100 GRIZZLY 105 1110 x 200 display PDF

Magnetic separators in store

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 304 N 300 GRIZZLY 25 310 x 200 display PDF
MBZ 304 N 400 GRIZZLY 35 410 x 200 display PDF
MBZ 304 N 500 GRIZZLY 45 510 x 200 display PDF
MBZ 304 N 600 GRIZZLY 55 610 x 200 display PDF
MBZ 304 N 700 GRIZZLY 65 710 x 200 display PDF
MBZ 304 N 800 GRIZZLY 75 810 x 200 display PDF
MBZ 304 N 900 GRIZZLY 85 910 x 200 display PDF
MBZ 304 N 1000 GRIZZLY 95 1010 x 200 display PDF
MBZ 304 N 1100 GRIZZLY 105 1110 x 200 display PDF

Magnetic separators in store

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

MBZ 406 GRIZZLY

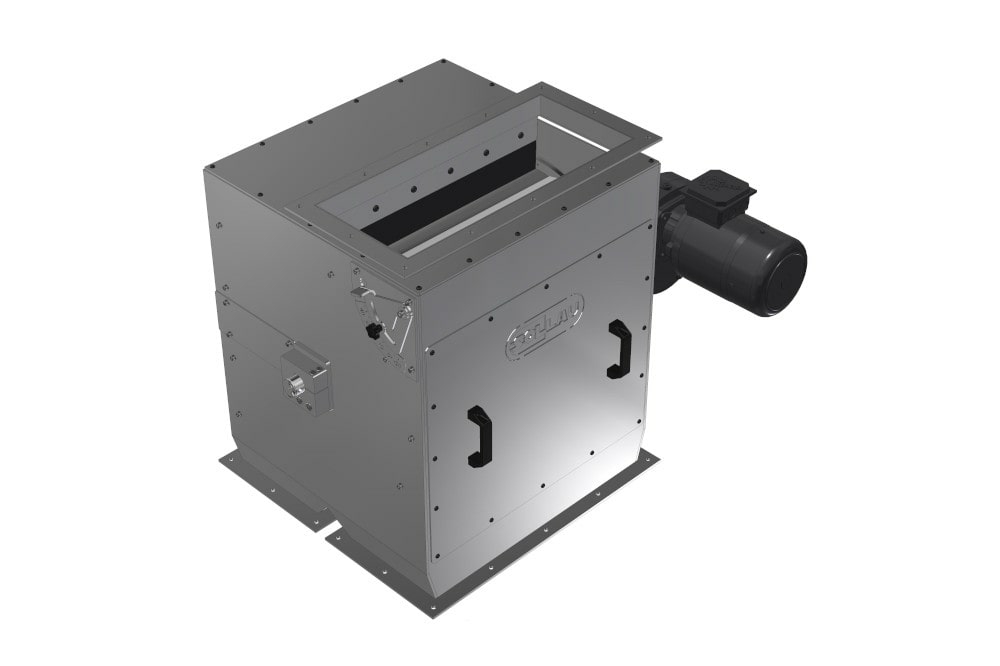

Sheltered magnetic drum MBZ 406 GRIZZLY

Magnetic drum with a diameter of 406 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 406 F 400 GRIZZLY 45 410 x 250 display PDF
MBZ 406 F 500 GRIZZLY 55 510 x 250 display PDF
MBZ 406 F 600 GRIZZLY 65 610 x 250 display PDF
MBZ 406 F 700 GRIZZLY 75 710 x 250 display PDF
MBZ 406 F 800 GRIZZLY 90 810 x 250 display PDF
MBZ 406 F 900 GRIZZLY 120 910 x 250 display PDF
MBZ 406 F 1000 GRIZZLY 140 1010 x 250 display PDF
MBZ 406 F 1100 GRIZZLY 160 1110 x 250 display PDF
MBZ 406 F 1200 GRIZZLY 180 1210 x 250 display PDF
MBZ 406 F 1300 GRIZZLY 200 1310 x 250 display PDF

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 406 N 400 GRIZZLY 45 410 x 250 display PDF
MBZ 406 N 500 GRIZZLY 55 510 x 250 display PDF
MBZ 406 N 600 GRIZZLY 65 610 x 250 display PDF
MBZ 406 N 700 GRIZZLY 75 710 x 250 display PDF
MBZ 406 N 800 GRIZZLY 90 810 x 250 display PDF
MBZ 406 N 900 GRIZZLY 120 910 x 250 display PDF
MBZ 406 N 1000 GRIZZLY 140 1010 x 250 display PDF
MBZ 406 N 1100 GRIZZLY 160 1110 x 250 display PDF
MBZ 406 N 1200 GRIZZLY 180 1210 x 250 display PDF
MBZ 406 N 1300 GRIZZLY 200 1310 x 250 display PDF

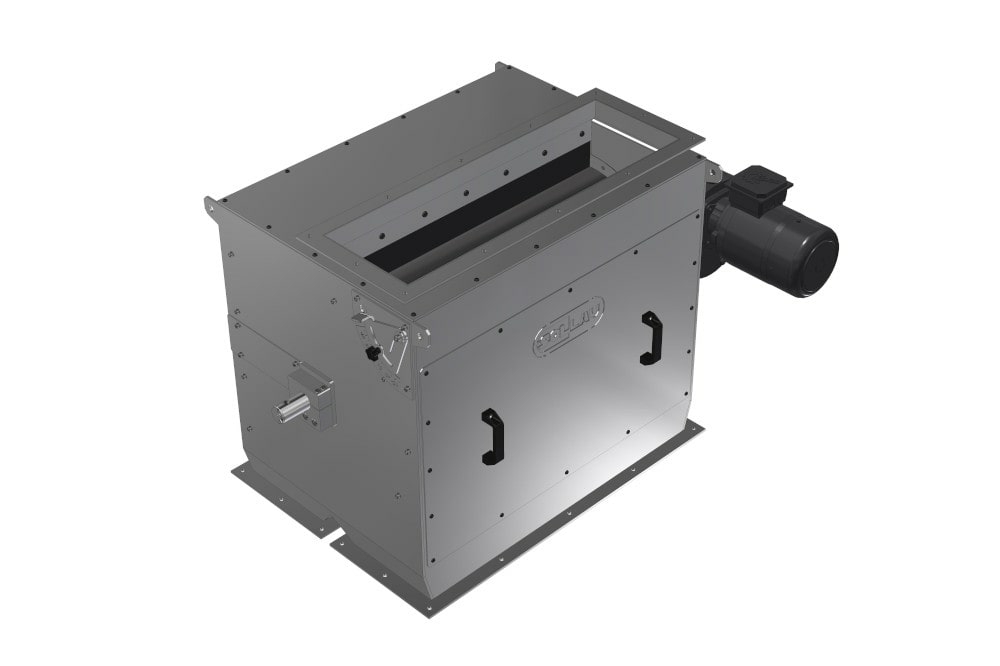

MBZ 506 GRIZZLY

Sheltered magnetic drum MBZ 506 GRIZZLY

Magnetic drum with a diameter of 506 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 506 F 500 GRIZZLY 70 510 x 300 display PDF
MBZ 506 F 600 GRIZZLY 85 610 x 300 display PDF
MBZ 506 F 700 GRIZZLY 105 710 x 300 display PDF
MBZ 506 F 800 GRIZZLY 125 810 x 300 display PDF
MBZ 506 F 900 GRIZZLY 145 910 x 300 display PDF
MBZ 506 F 1000 GRIZZLY 180 1010 x 300 display PDF
MBZ 506 F 1100 GRIZZLY 215 1110 x 300 display PDF
MBZ 506 F 1200 GRIZZLY 250 1210 x 300 display PDF
MBZ 506 F 1300 GRIZZLY 285 1310 x 300 display PDF

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ 506 N 500 GRIZZLY 70 510 x 300 display PDF
MBZ 506 N 600 GRIZZLY 85 610 x 300 display PDF
MBZ 506 N 700 GRIZZLY 105 710 x 300 display PDF
MBZ 506 N 800 GRIZZLY 125 810 x 300 display PDF
MBZ 506 N 900 GRIZZLY 145 910 x 300 display PDF
MBZ 506 N 1000 GRIZZLY 180 1010 x 300 display PDF
MBZ 506 N 1100 GRIZZLY 215 1110 x 300 display PDF
MBZ 506 N 1200 GRIZZLY 250 1210 x 300 display PDF
MBZ 506 N 1300 GRIZZLY 285 1310 x 300 display PDF

Model family MBZ EKO

  • Automatic cleaning without a need of interrupting the flow of material
  • Very attractive ratio "price/performance"
  • Blades prevent from abidance of the fine or sticky material on the surface of the drum
  • Ferrite and neodym design
  • Simplified structure
  • Up to 4 800 Gauss on the drum surface
  • ATEX certificate
  • Five-year waranty for the magnetic core

MBZ EKO 204

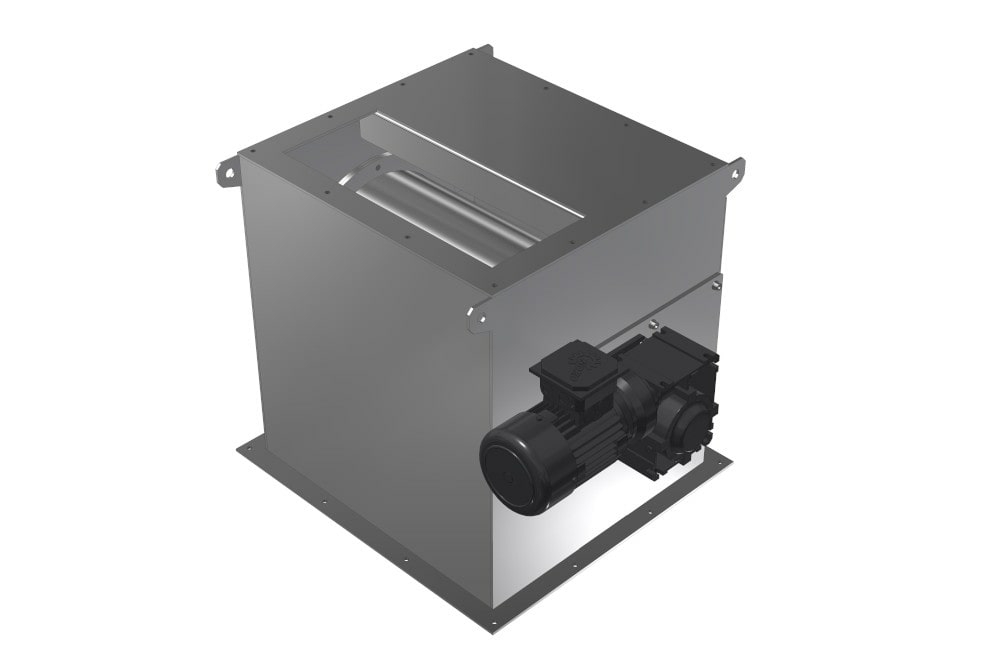

Sheltered magnetic drum MBZ EKO

Magnetic drum with a diameter of 204 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 204 F 200 20 170 x 150 display PDF
MBZ EKO 204 F 300 25 270 x 150 display PDF
MBZ EKO 204 F 400 30 370 x 150 display PDF
MBZ EKO 204 F 500 35 470 x 150 display PDF
MBZ EKO 204 F 600 40 570 x 150 display PDF
MBZ EKO 204 F 700 45 570 x 150 display PDF
MBZ EKO 204 F 800 50 770 x 150 display PDF
MBZ EKO 204 F 900 60 870 x 150 display PDF
MBZ EKO 204 F 1000 75 970 x 150 display PDF

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 204 N 200 20 170 x 150 display PDF
MBZ EKO 204 N 300 25 270 x 150 display PDF
MBZ EKO 204 N 400 30 370 x 150 display PDF
MBZ EKO 204 N 500 35 470 x 150 display PDF
MBZ EKO 204 N 600 40 570 x 150 display PDF
MBZ EKO 204 N 700 45 670 x 150 display PDF
MBZ EKO 204 N 800 50 770 x 150 display PDF
MBZ EKO 204 N 900 60 870 x 150 display PDF
MBZ EKO 204 N 1000 75 970 x 150 display PDF

MBZ EKO 304

Sheltered magnetic drum MBZ EKO

Magnetic drum with a diameter of 304 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 304 F 300 25 270 x 200 display PDF
MBZ EKO 304 F 400 35 370 x 200 display PDF
MBZ EKO 304 F 500 45 470 x 200 display PDF
MBZ EKO 304 F 600 55 570 x 200 display PDF
MBZ EKO 304 F 700 65 670 x 200 display PDF
MBZ EKO 304 F 800 75 770 x 200 display PDF
MBZ EKO 304 F 900 85 870 x 200 display PDF
MBZ EKO 304 F 1000 95 970 x 200 display PDF
MBZ EKO 304 F 1100 105 1070 x 200 display PDF

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 304 N 300 25 270 x 200 display PDF
MBZ EKO 304 N 400 35 370 x 200 display PDF
MBZ EKO 304 N 500 45 470 x 200 display PDF
MBZ EKO 304 N 600 55 570 x 200 display PDF
MBZ EKO 304 N 700 65 670 x 200 display PDF
MBZ EKO 304 N 800 75 770 x 200 display PDF
MBZ EKO 304 N 900 85 870 x 200 display PDF
MBZ EKO 304 N 1000 95 970 x 200 display PDF
MBZ EKO 304 N 1100 105 1070 x 200 display PDF

MBZ EKO 406

Sheltered magnetic drum MBZ EKO

Magnetic drum with a diameter of 406 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 406 F 400 45 370 x 250 display PDF
MBZ EKO 406 F 500 55 470 x 250 display PDF
MBZ EKO 406 F 600 65 570 x 250 display PDF
MBZ EKO 406 F 700 75 670 x 250 display PDF
MBZ EKO 406 F 800 90 770 x 250 display PDF
MBZ EKO 406 F 900 120 870 x 250 display PDF
MBZ EKO 406 F 1000 140 970 x 250 display PDF
MBZ EKO 406 F 1100 160 1070 x 250 display PDF
MBZ EKO 406 F 1200 180 1170 x 250 display PDF
MBZ EKO 406 F 1300 200 1270 x 250 display PDF

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 406 N 400 45 410 x 250 display PDF
MBZ EKO 406 N 500 55 510 x 250 display PDF
MBZ EKO 406 N 600 65 610 x 250 display PDF
MBZ EKO 406 N 700 75 710 x 250 display PDF
MBZ EKO 406 N 800 90 810 x 250 display PDF
MBZ EKO 406 N 900 120 910 x 250 display PDF
MBZ EKO 406 N 1000 140 1010 x 250 display PDF
MBZ EKO 406 N 1100 160 1110 x 250 display PDF
MBZ EKO 406 N 1200 180 1210 x 250 display PDF
MBZ EKO 406 N 1300 200 1310 x 250 display PDF

MBZ EKO 506

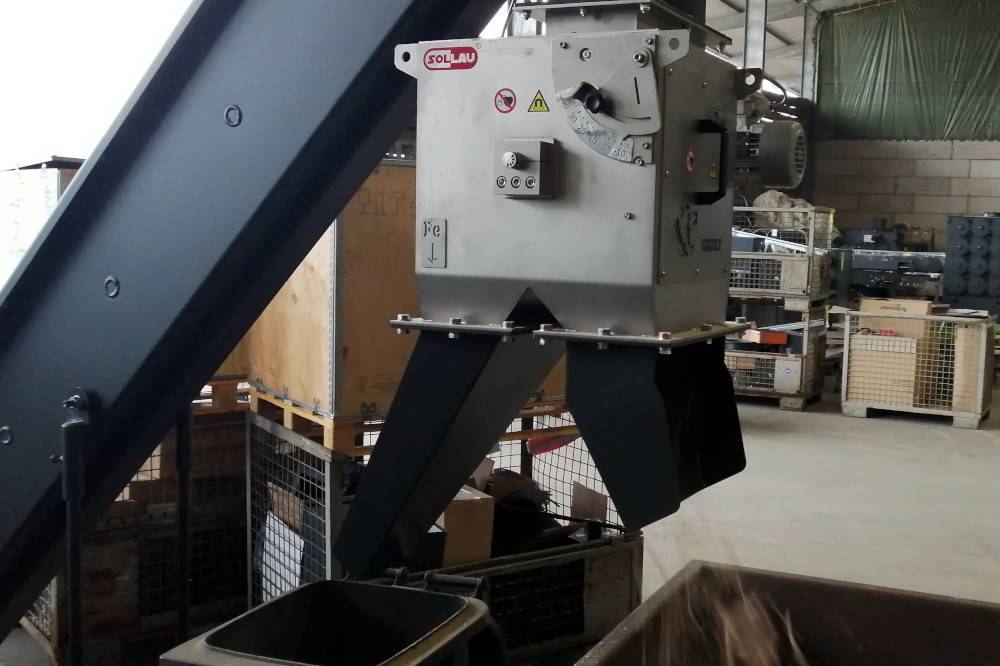

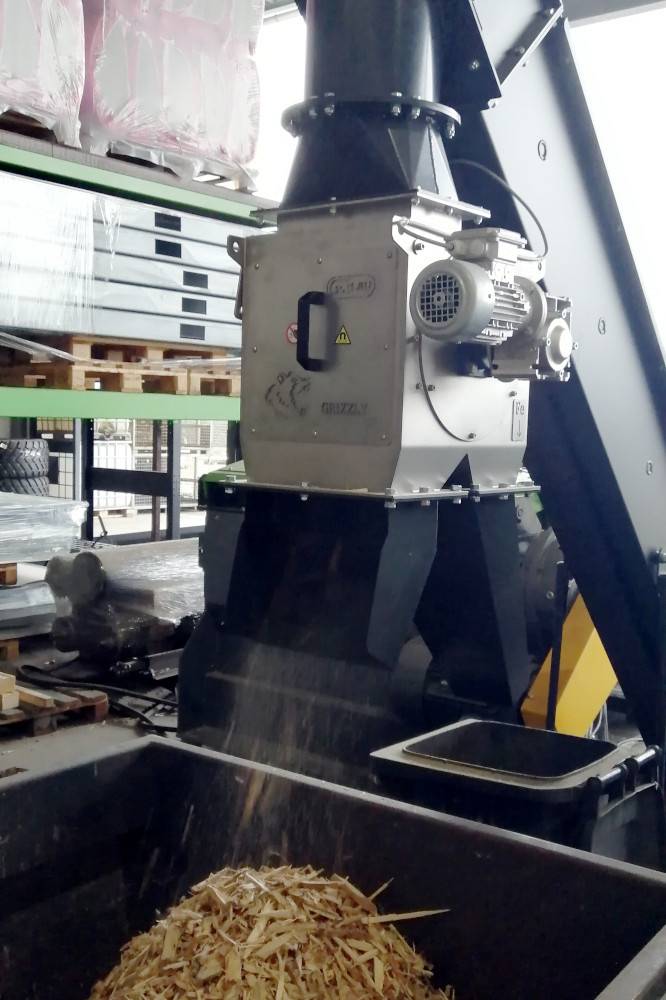

Sheltered magnetic drum MBZ EKO

Magnetic drum with a diameter of 506 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

Ferrite version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 506 F 500 70 470 x 300 display PDF
MBZ EKO 506 F 600 85 570 x 300 display PDF
MBZ EKO 506 F 700 105 670 x 300 display PDF
MBZ EKO 506 F 800 125 770 x 300 display PDF
MBZ EKO 506 F 900 145 870 x 300 display PDF
MBZ EKO 506 F 1000 180 970 x 300 display PDF
MBZ EKO 506 F 1100 215 1070 x 300 display PDF
MBZ EKO 506 F 1200 250 1170 x 300 display PDF
MBZ EKO 506 F 1300 285 1270 x 300 display PDF

Neodymium version

ProductMaximum capacity (m3/h)Dimension of input/output (mm)Datasheet
MBZ EKO 506 N 500 70 470 x 300 display PDF
MBZ EKO 506 N 600 85 570 x 300 display PDF
MBZ EKO 506 N 700 105 670 x 300 display PDF
MBZ EKO 506 N 800 125 770 x 300 display PDF
MBZ EKO 506 N 900 145 870 x 300 display PDF
MBZ EKO 506 N 1000 180 970 x 300 display PDF
MBZ EKO 506 N 1100 215 1070 x 300 display PDF
MBZ EKO 506 N 1200 250 1170 x 300 display PDF
MBZ EKO 506 N 1300 285 870 x 300 display PDF


Which industrial branches can the housed magnetic drum be used in?

The magnetic drums find use in recycling and mining as well as in wood, plastic, ceramic, glass and food industry.

Related products

Top
