Grid magnets MR-K

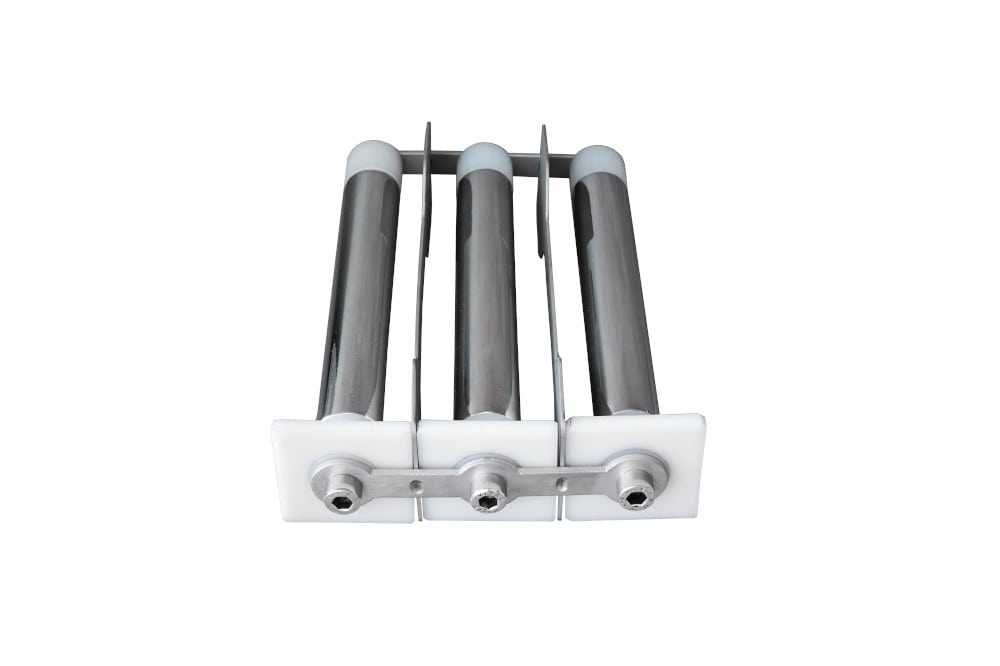

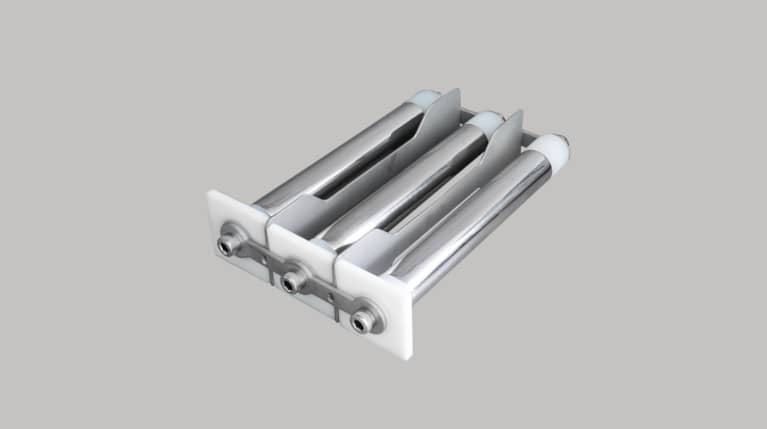

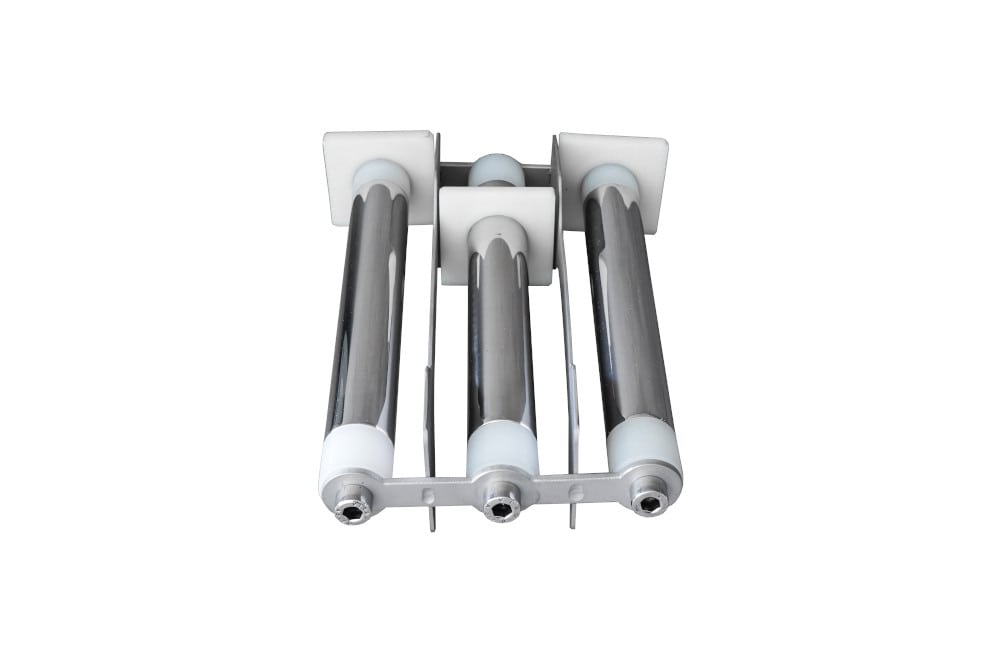

The grate magnet MR-K is a simple separator serving to catching ferromagnetic particles both from loose compounds and from liquids. Stainless grate, in which there are stainless cores closed hermetically, is polished and disposes of a system of cleaning via wiping segments.
This version of a magnetic grid is equipped with neodymium magnets of the biggest power generating an extremely high magnetic induction (approximately 12 000 G) thanks to which it is able to catch even the partially magnetic metal particles e. g. weakly magnetic stainless steel.
Customer care
Your project will be taken care of by us from beginning up to the very end. It does not end with the order placed at us. We will provide the full support for all the time of the use of the separator.
1. We will come
2. We will align and design
3. We will make a made-to-measure product
4. We will install
5. We will put into operation and school in
6. We will provide authorized service
We guarantee tests withing three days!
Make sure that our device perfectly meets your expectations!
We will provide tests of your material on our magnetic separators for FREE!
MR-K
- Made-to-measure separators
- Diameter of the magnetic tubes: 25 mm
- High pull strength
- Waterproof design
- Zero operating costs
MR-K magnetic separator is a simple separator serving to catching ferromagnetic particles coming from liquids.
| Product | Dimension (mm) | Datasheet |
|---|---|---|
| MR-K 176x250 N | 176 x 250 | display PDF |
| MR-K 236x250 N | 236 x 250 | display PDF |
| MR-K 296x300 N | 296 x 300 | display PDF |
| MR-K 356x350 N | 356 x 350 | display PDF |
| MR-K 416x400 N | 416 x 400 | display PDF |
The MR-K is a simple separator for capturing ferromagnetic particles from both bulk mixtures and liquids. We supply it in a waterproof design, so it can be used directly in liquids. The stainless steel grid with hermetically sealed cores belongs to the manually cleaned separators.
Quickly and easily using the integrated wiper segments – you wipe the captured particles off the grid surface without removing the magnetic cores. It is manual cleaning with a simple design, so it requires neither compressed air nor an electrical supply.
We equip the grid with the strongest neodymium magnets, generating a magnetic induction of around 12,000 G on the surface. It captures ferromagnetic particles from 1 micron and, thanks to the high induction, also only partially magnetic particles, e.g. weakly magnetic stainless steel.
As standard in five sizes from 176 × 250 mm to 416 × 400 mm, with magnetic tubes of 25 mm diameter. However, we also manufacture it to measure according to the dimensions of your technology.
The grid is made entirely of stainless steel and polished, and the magnetic cores are hermetically sealed in a stainless steel casing. A waterproof design is available for use in liquids.
Zero. The separator works with permanent neodymium magnets, requires no power supply or drive, and cleaning is done manually using the wiper segments.
Yes, we offer separator rental. We also test your material on our separators free of charge – we guarantee the tests within three days.
