Hang type magnetic sweepers MZ-Z
The hanging magnetic broom is a universal device for the removal of any unwanted, hazardous ferrous debris (such as swarf, nails, tacks, nuts, bolts, screws, paperclips, metal shavings, wires, scrap metal etc.) from large areas. The main advantage is its versatility. The continuous discharge magnetic sweeper can be easily mounted on any vehicle, forklift, handling trolley or other machine and clean all places where the machine moves. The surfaces are thus cleaned while the vehicle performs its normal operation. The broom is often used on sweeping machines suspended in the space between the machine's brushes and its wheels to protect the tires from puncture. Why do the metal removal as a separate activity? You can keep collecting ferrous debris while doing your usual work!
These hanging magnetic brooms excel in their versatility. Thanks to their design, the magnetic sweeper can be easily hung behind almost any machine - whether it is a car, forklift or other vehicle. In this way, metal debris can be collected during normal machine operation (= elimination of flat tires). Hanging the broom up is a matter of seconds!
The fundamental advantage of this magnetic broom is the quick, safe and easy removal of the ferrous debris gathered inside of the broom. In this way it differs from competing products without easy cleaning systems.
Customer care
Your project will be taken care of by us from beginning up to the very end. It does not end with the order placed at us. We will provide the full support for all the time of the use of the separator.
1. We will come
2. We will align and design
3. We will make a made-to-measure product
4. We will install
5. We will put into operation and school in
6. We will provide authorized service
We guarantee tests withing three days!
Make sure that our device perfectly meets your expectations!
We will provide tests of your material on our magnetic separators for FREE!
We produce hang type magnetic sweepers in two versions: one is equipped with ferrite magnets and the other with very strong neodymium magnets. Brooms with neodymium magnets are stronger, allowing for the attraction of ferrous objects from greater distances and at higher speeds. This has a positive effect on the cleaning efficiency.
The broom body is housed in a durable stainless steel case. That is why you can clean the broom safely and the collected ferrous debris can be easily removed.
Another significant advantage is the large working area of 1500 x 150 mm! This increases the broom capacity, more magnetic particles can be captured, the cleaning interval extended and the cleaning costs reduced.
Installation of the hanging magnetic broom on the vehicle

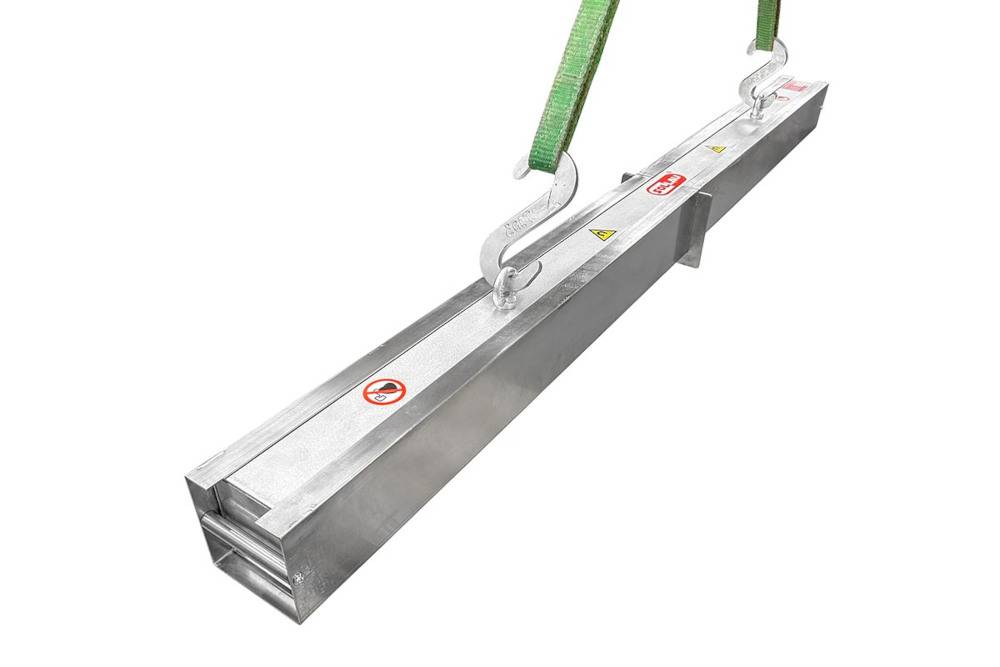

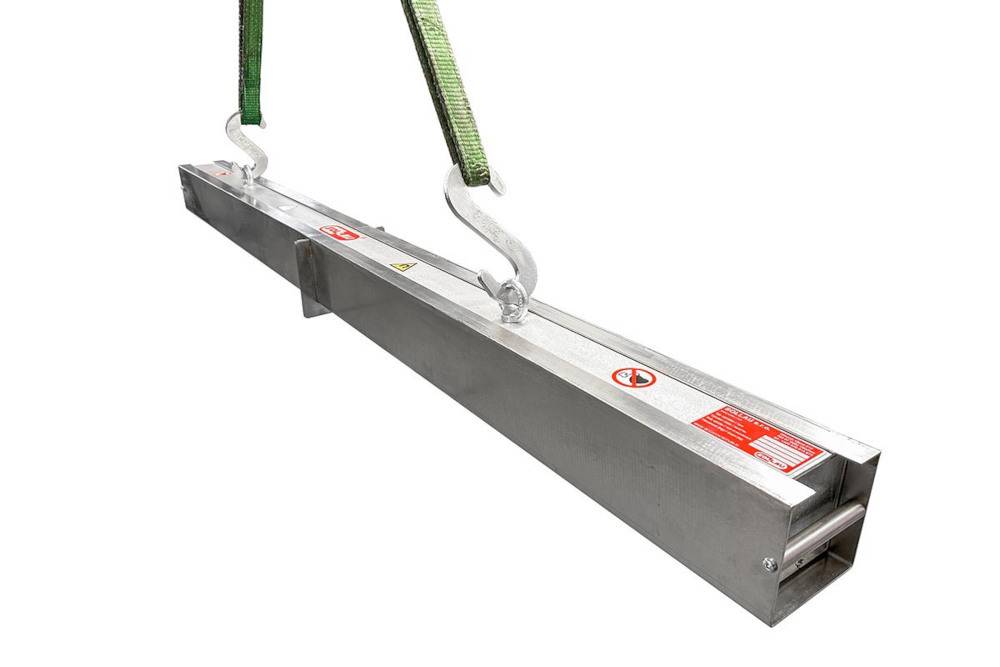

The vehicle mounted magnetic sweeper is equipped with eyebolts, to which you can easily attach a chain and hang the broom behind a vehicle, trolley etc. We can adapt the eyebolts to your needs. The broom installation is a matter of seconds!
How to clean the hang type magnetic sweeper

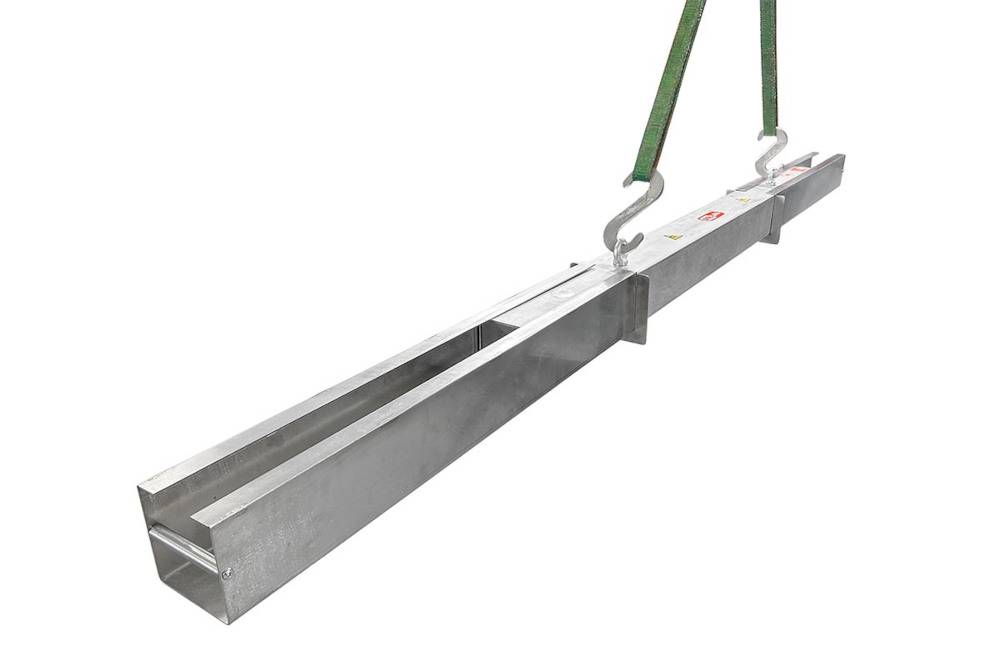

The fundamental advantage of this magnetic broom is the quick, safe and easy removal of the ferrous debris gathered inside of the broom. There is no risk of injury as the collected metals are not to be wiped off by hand. The magnetic broom body is housed in a durable stainless steel case. The cleaning consists in removing the stainless steel housing from the magnetic core – as afterwards the trapped ferrous debris fall off. The housing is divided into two parts so that cleaning is quick and comfortable.

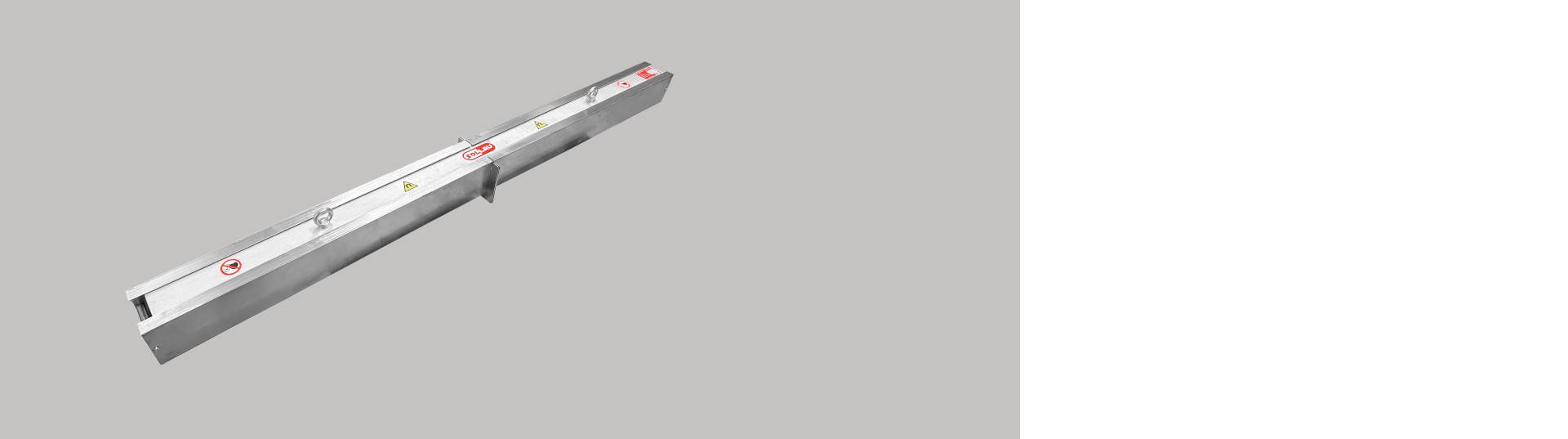

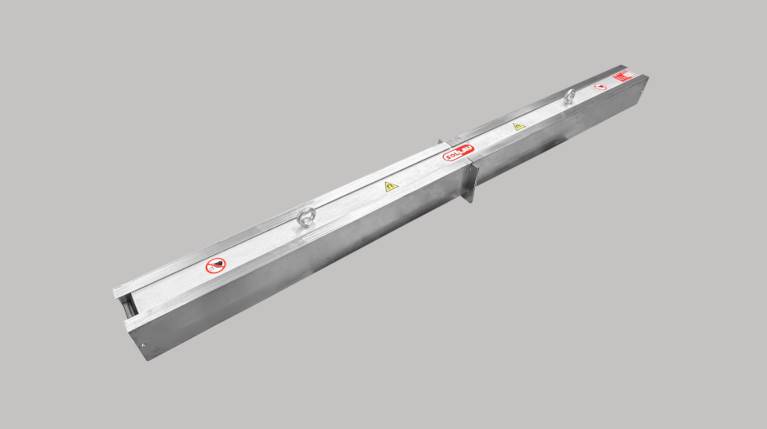

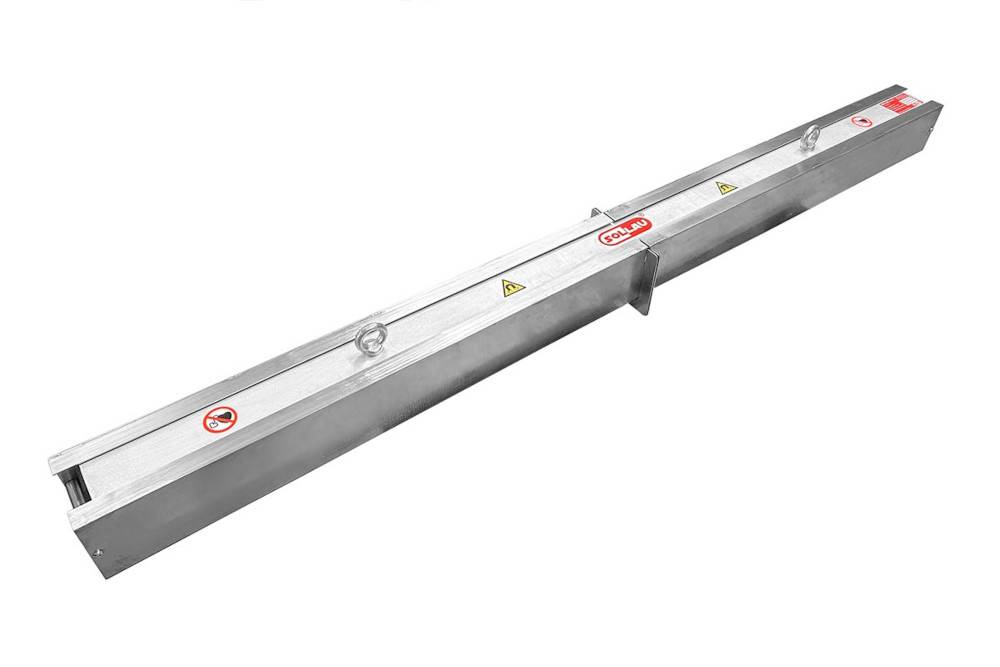

MZ-Z
- Easy installation on the machine - a universal device
- Working width: 1 500 mm
- Working area: 1 500 x 150 mm
- Easy and safe cleaning
- Versions with ferrite and also neodymium magnets
- Magnetic induction: 1 300 - 3 000 G (depending on the kind of applied magnets)
Materials used for the production of the magnetic sweeper
- Broom body: aluminum EN AW 6060
- Housing: stainless steel 1.4301
The hang type magnetic sweeper MZ-Z is designed to collect metal contaminants — nails, screws, wire and similar debris — from large surface areas. It can be attached to any vehicle or machine, allowing continuous metal collection during regular operation without requiring a separate cleaning step. It is typically used behind cars, forklifts, reach trucks or sweeping machines in industrial facilities, automotive workshops and engineering plants — wherever metal debris poses a risk to vehicle tyres.
The sweeper is fitted with suspension hooks to which you attach a chain and hang the unit behind your vehicle or machine — installation takes just a few seconds. The suspension hooks can be adapted to your specific requirements, making it possible to attach the sweeper to virtually any vehicle. No tools or vehicle modifications are required for installation.
The ferrite magnet version (magnetic flux density 1,300 G) is suitable for standard collection of nails, screws and wire. The neodymium magnet version (up to 3,000 G) offers a deeper magnetic field — it picks up debris from a greater height and allows operation at higher vehicle speeds, directly improving cleaning efficiency over large areas.
The working width of the MZ-Z is 1,500 mm, with an effective area of 1,500 × 150 mm. Thanks to its large effective area, the sweeper captures a significant amount of debris in a single pass, extending the cleaning interval and reducing overall operating costs.
Cleaning is straightforward — you simply slide the stainless steel casing off the magnetic core and the collected metals fall away on their own. The casing is split into two sections for convenient cleaning, and the entire process is carried out without the risk of injury from sharp metal debris. This is a key advantage over competing products, where metals must be removed by manual wiping.
The standard MZ sweeper is handheld and carried by its handle — it is suited for cleaning smaller areas without a vehicle. The MZ-VZV sweeper is designed to be mounted on forklift tines. The MZ-Z is a tow-behind sweeper that can be quickly attached by chain to virtually any vehicle or machine, making it the most versatile of the three models in terms of compatibility with different equipment.
Yes, we offer the MZ-Z in custom configurations to meet specific dimensional or mounting requirements — including adaptation of the suspension hooks to your needs. Contact us with a description of your operation and we will propose the optimal solution.
