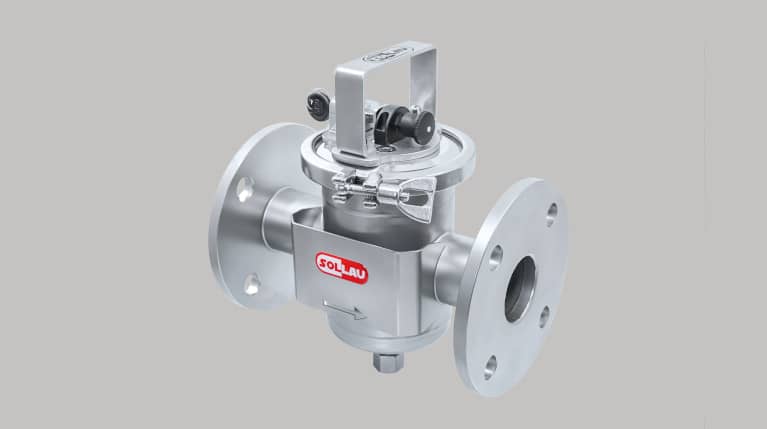

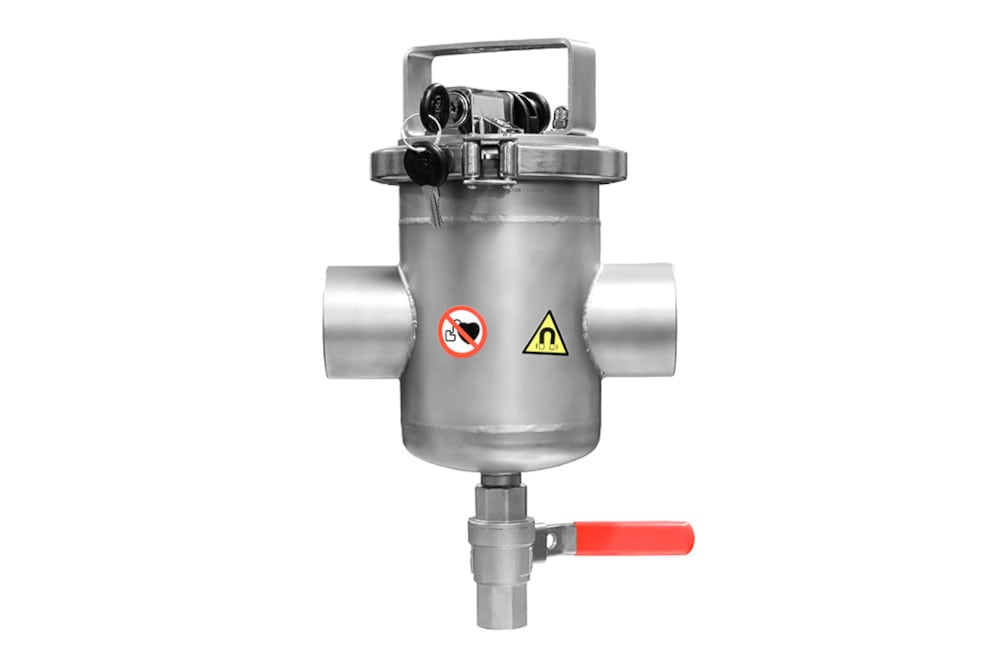

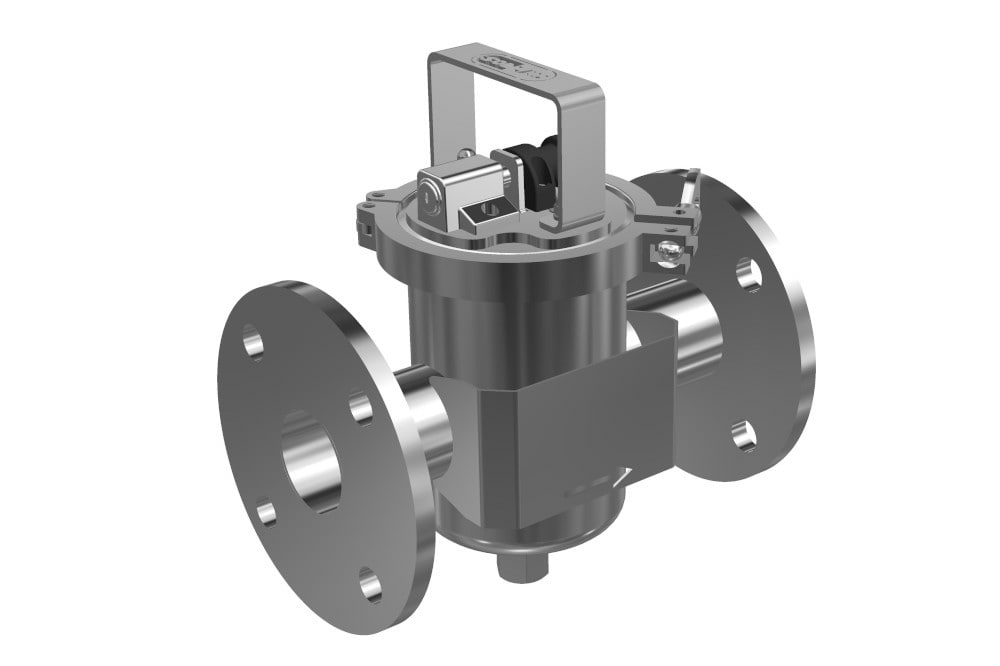

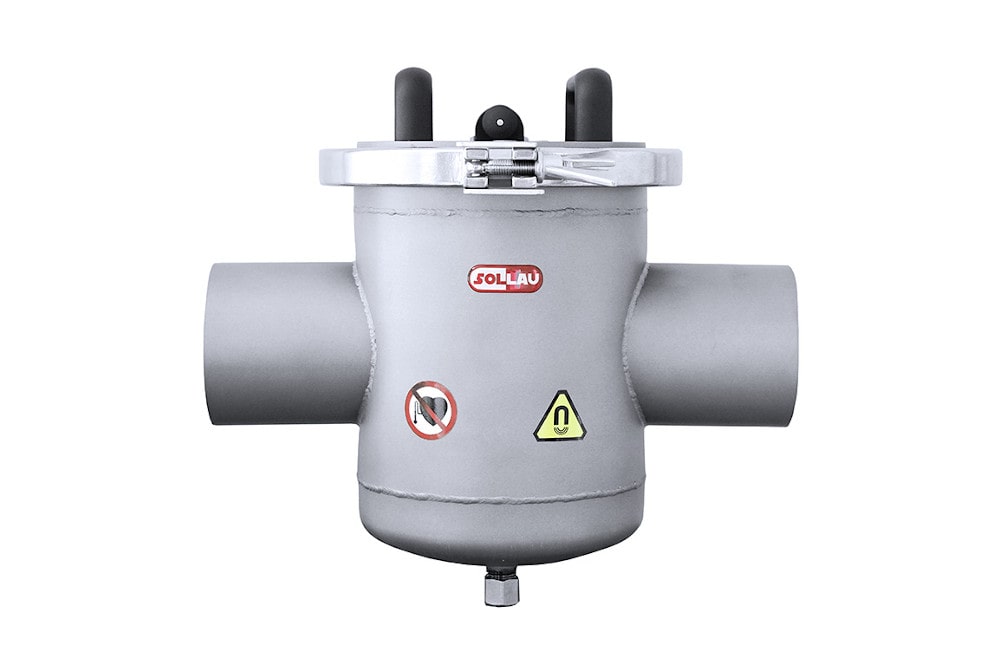

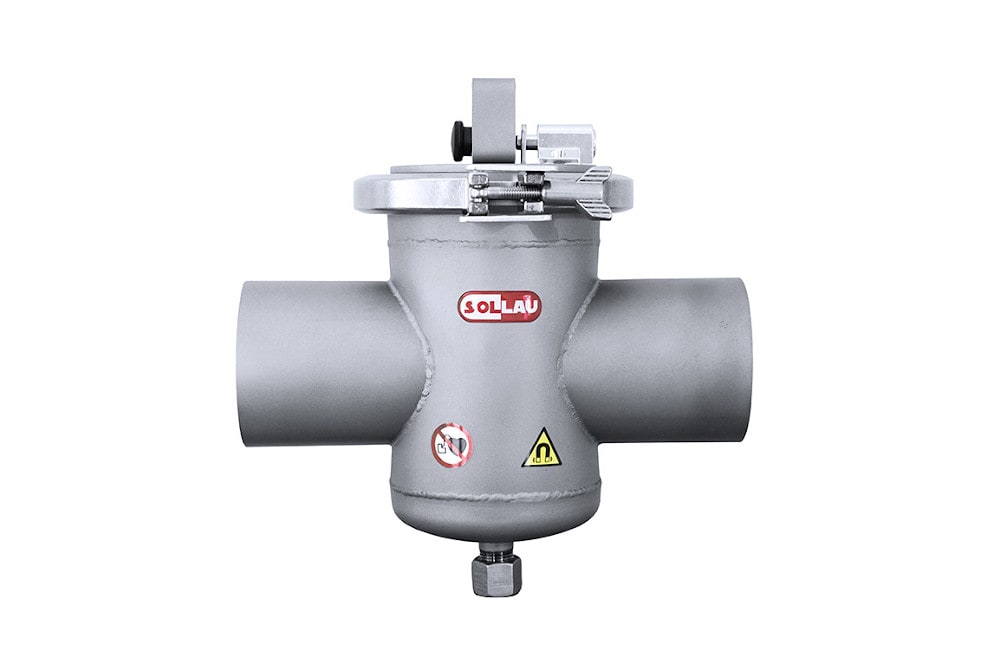

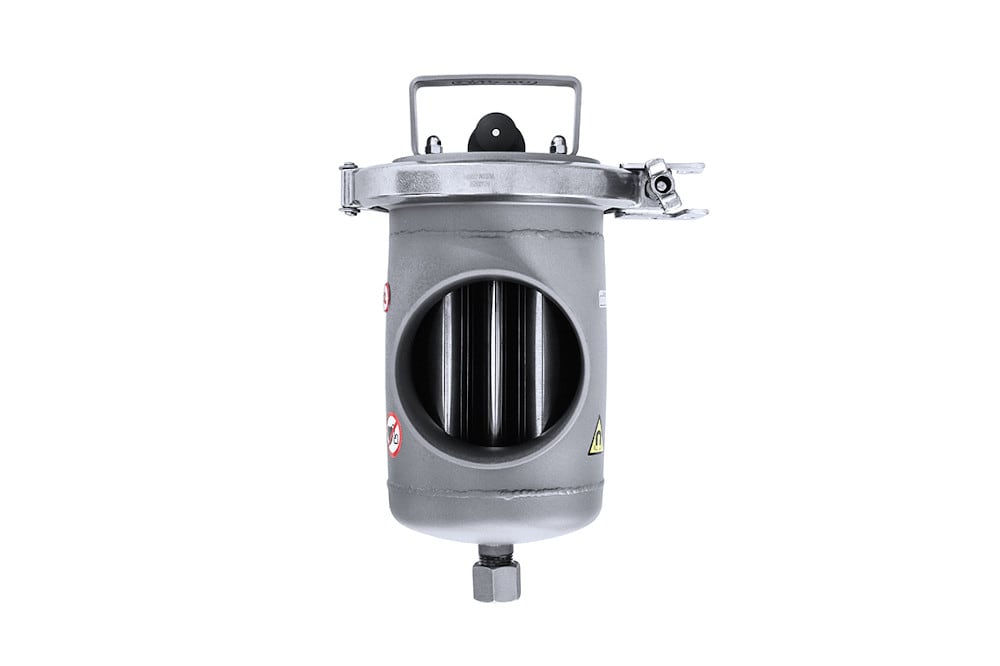

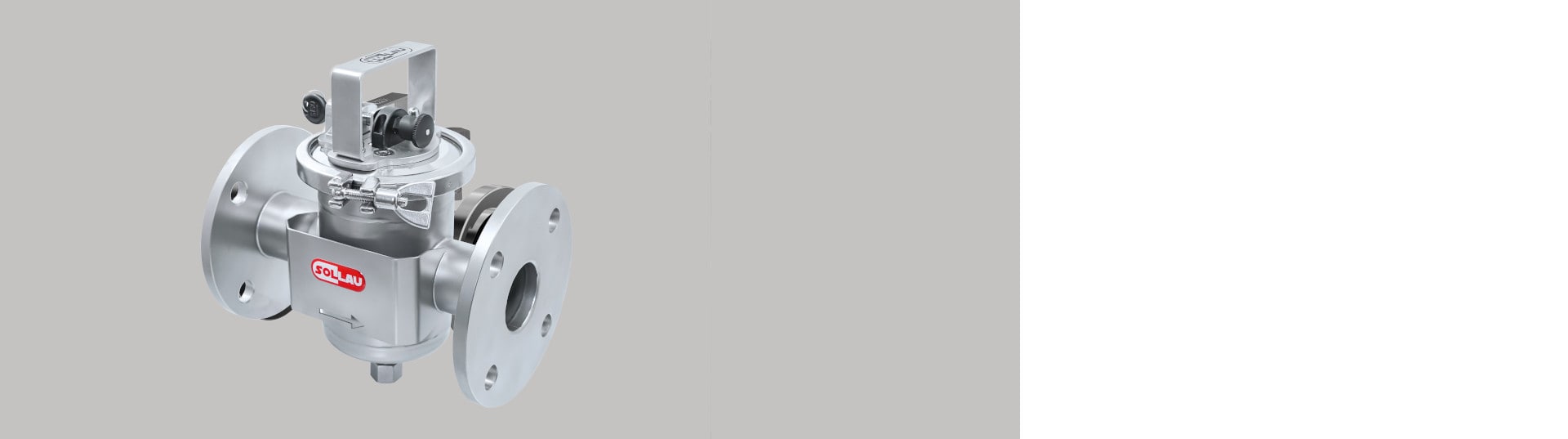

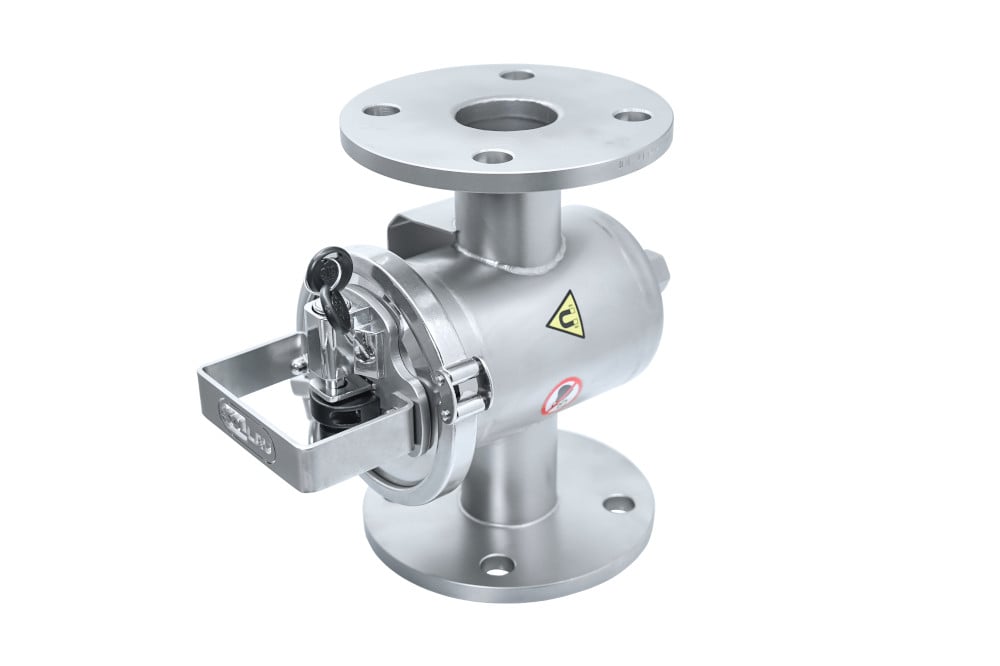

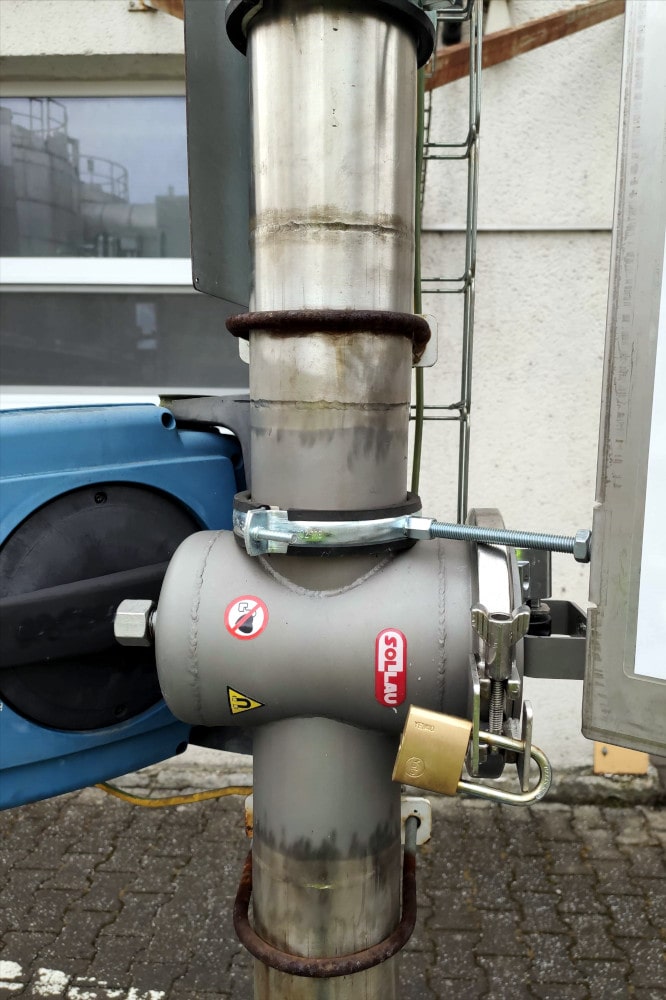

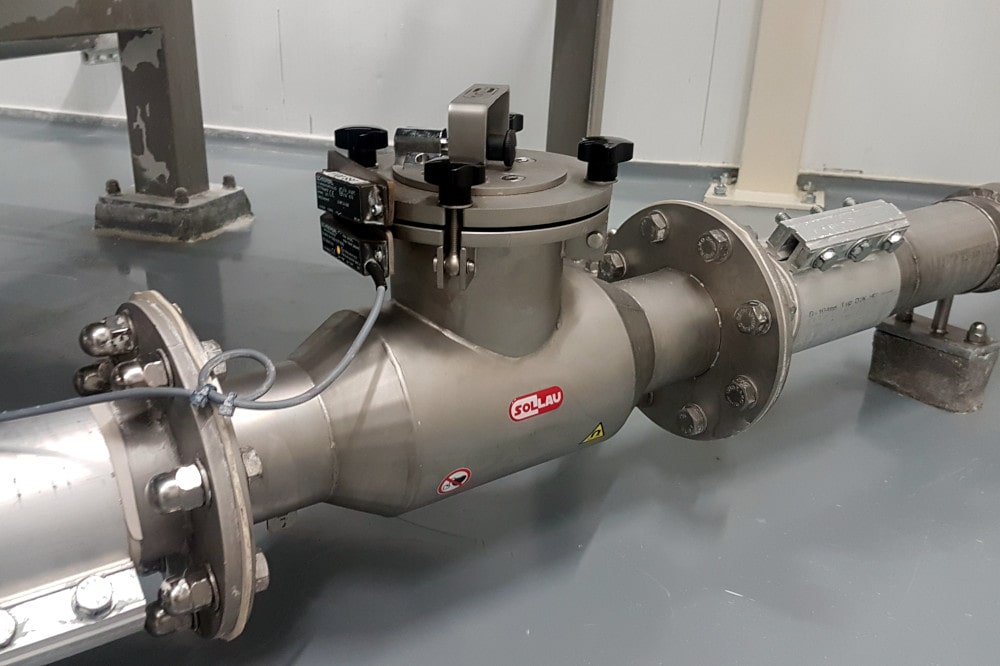

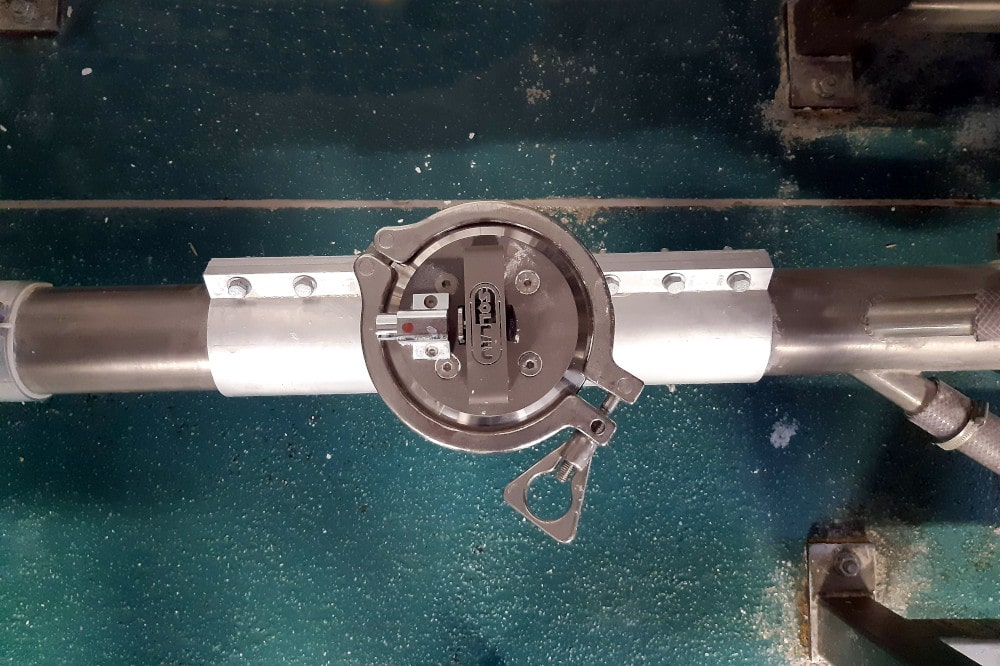

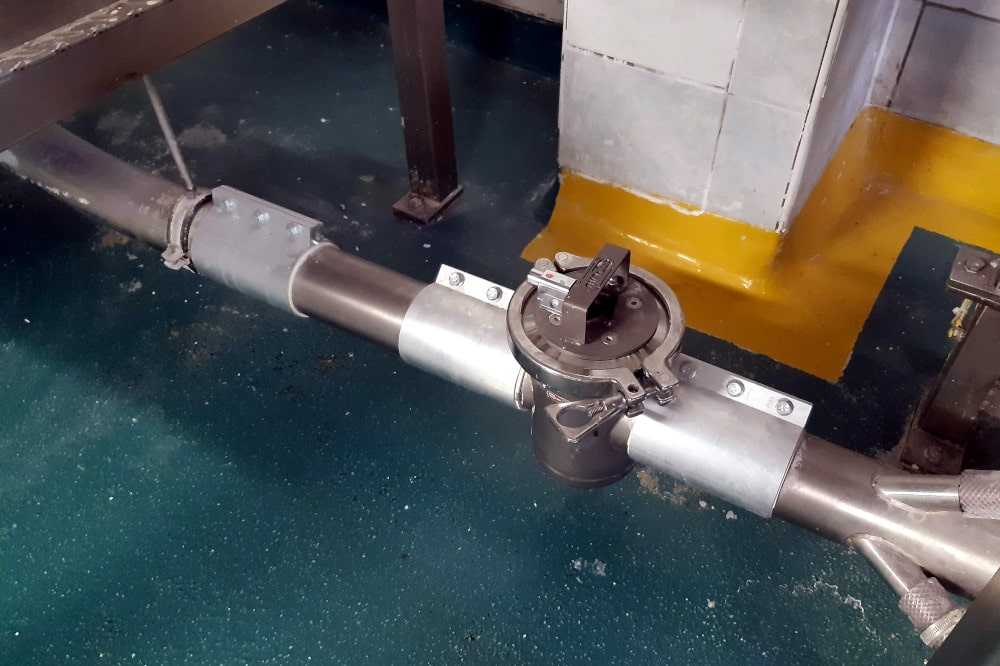

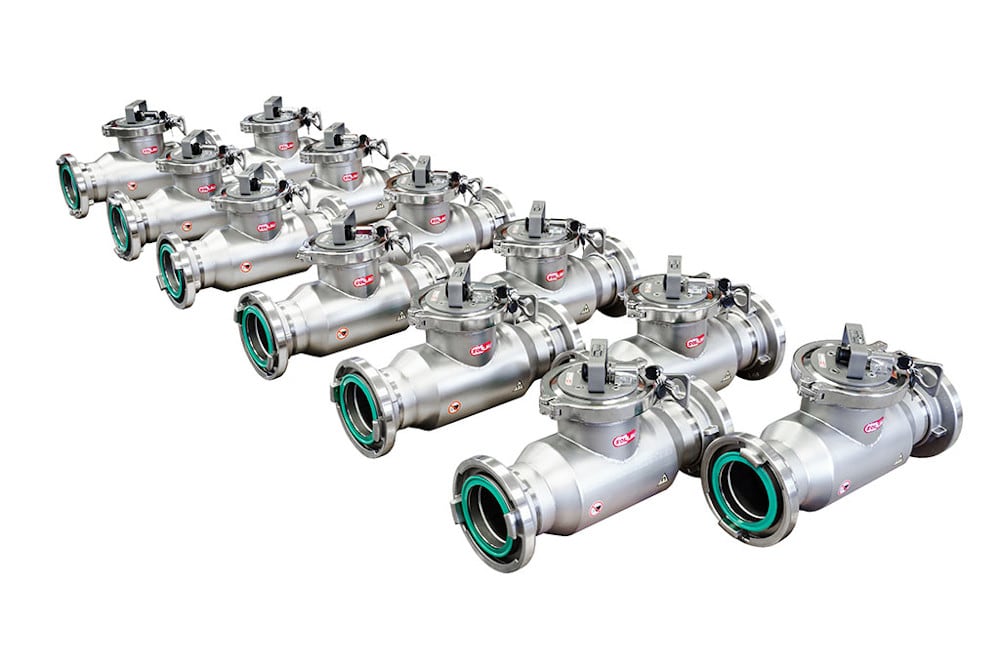

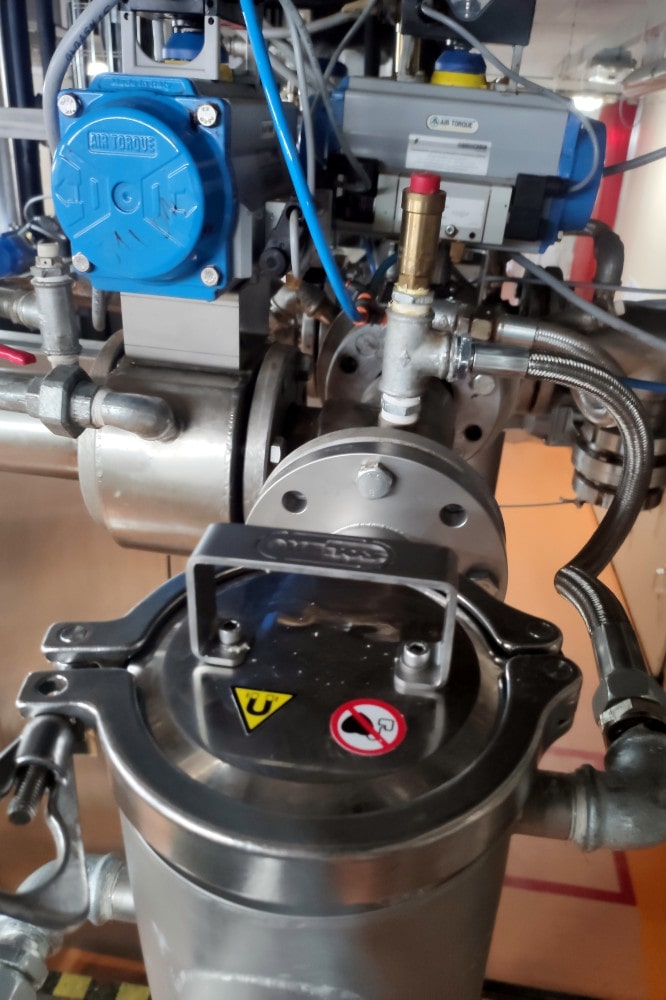

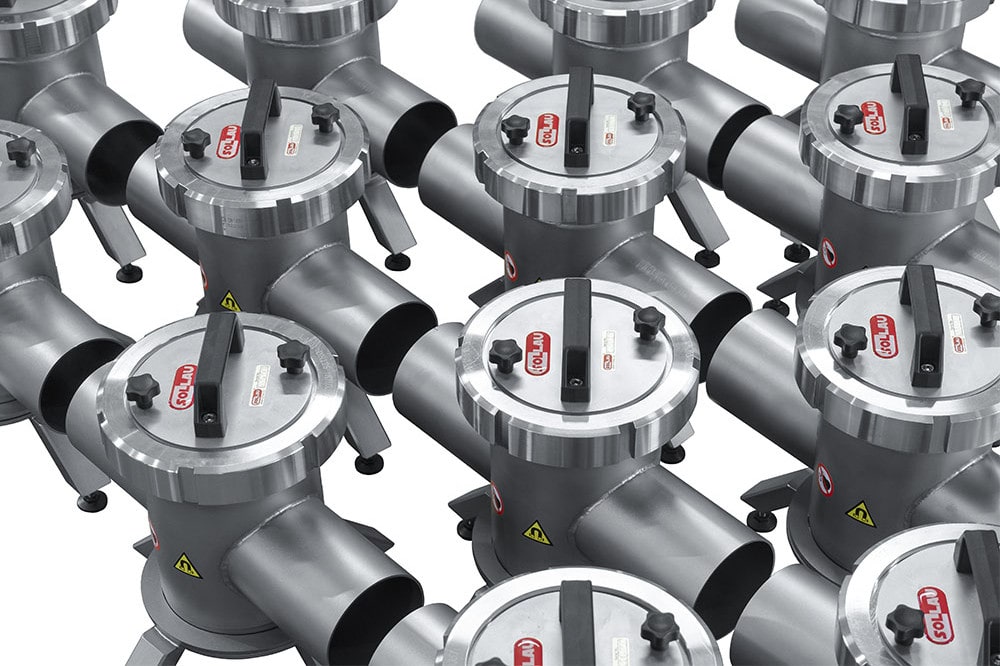

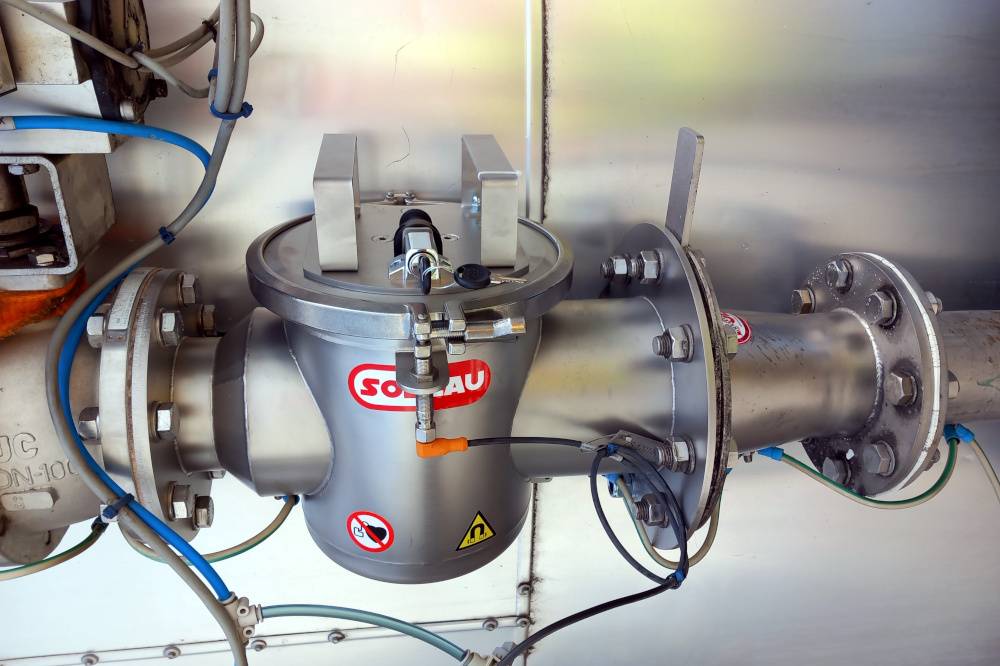

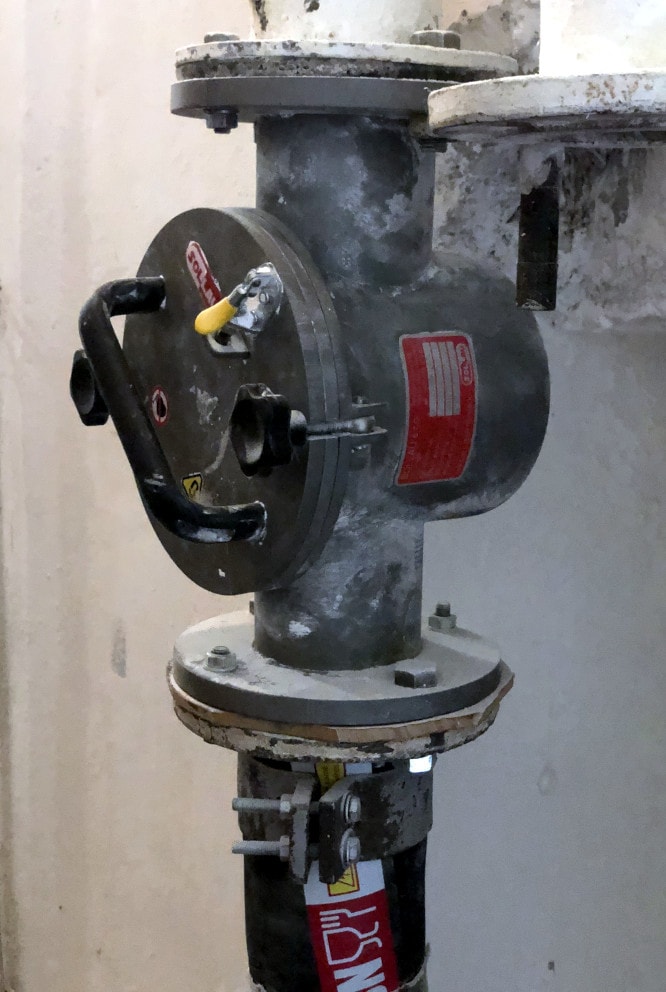

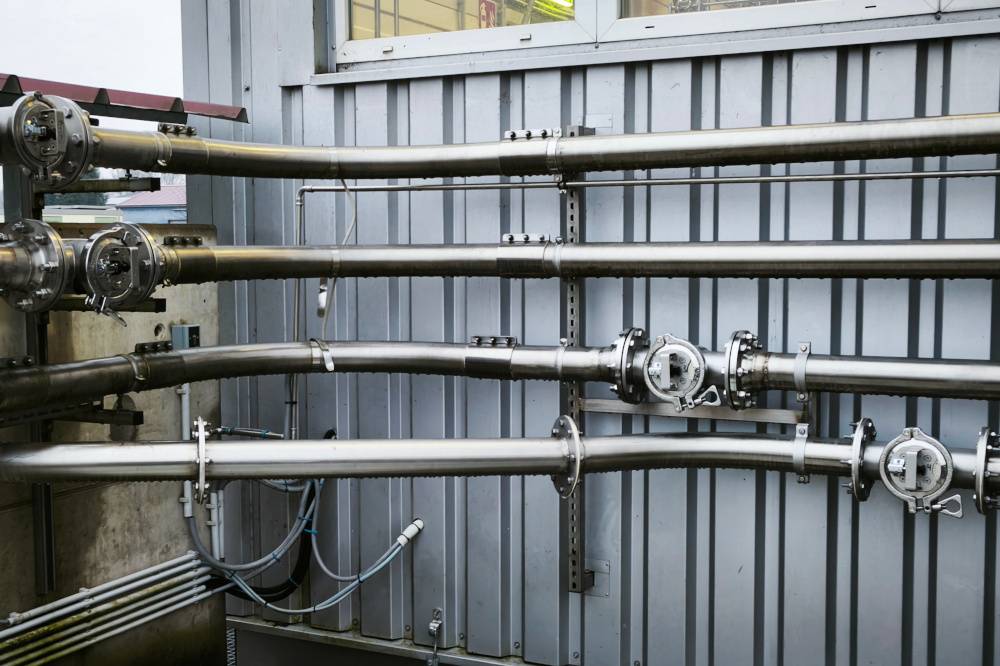

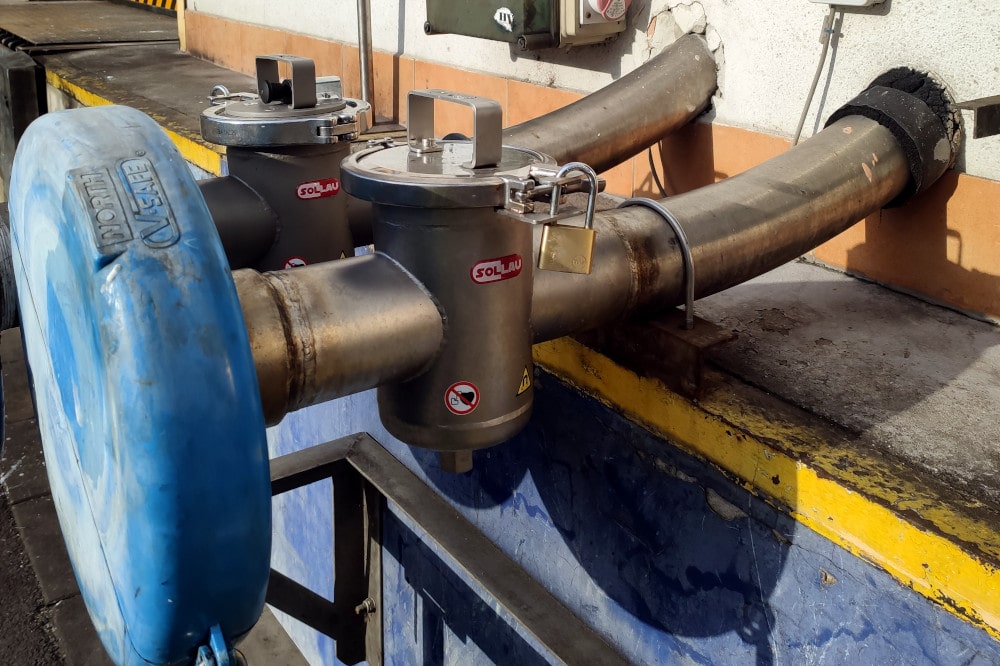

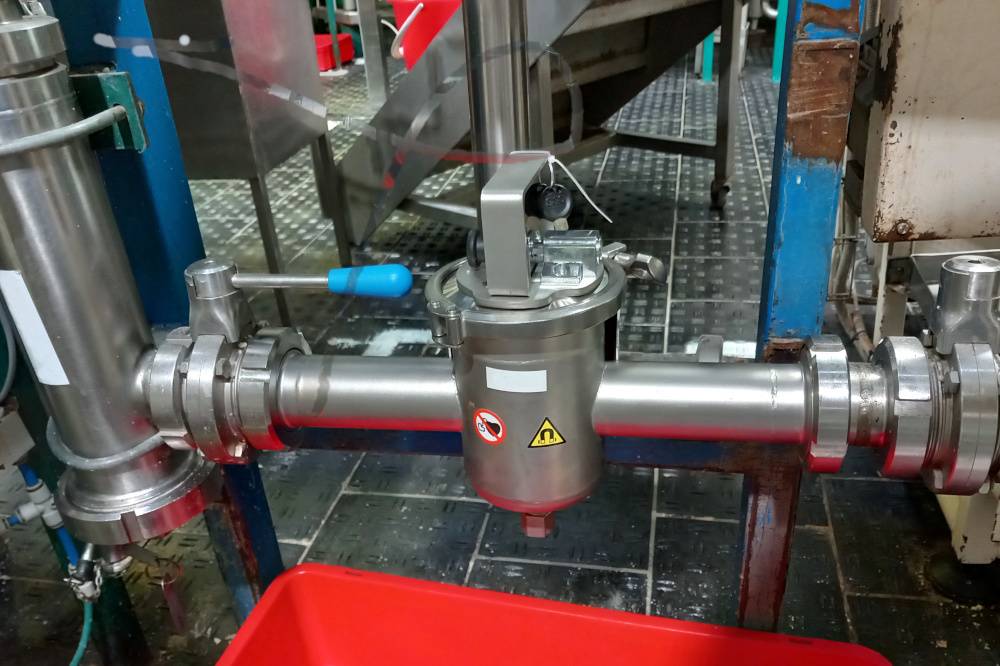

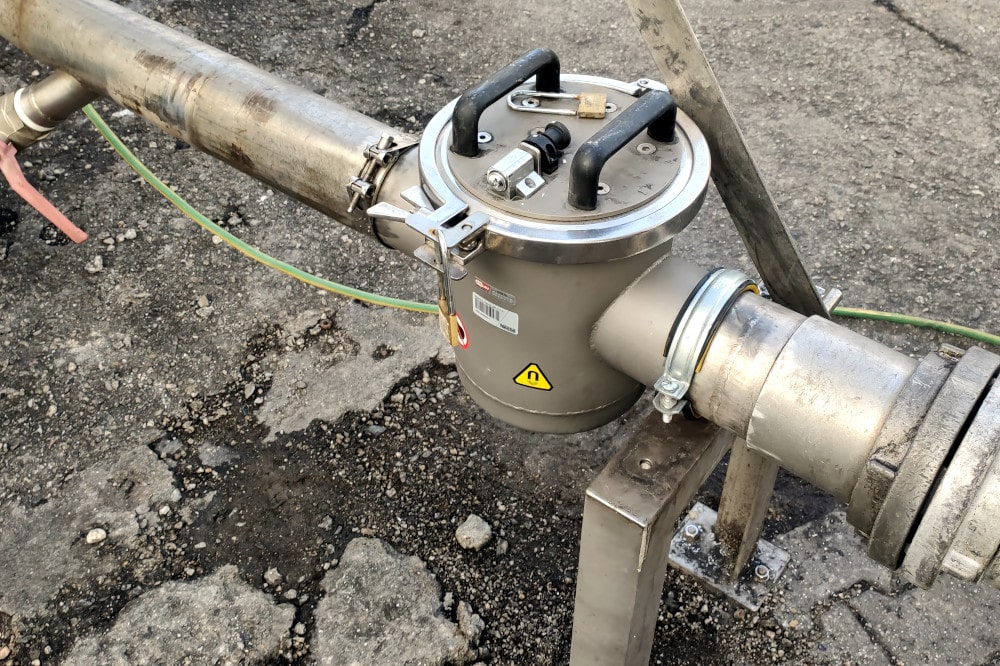

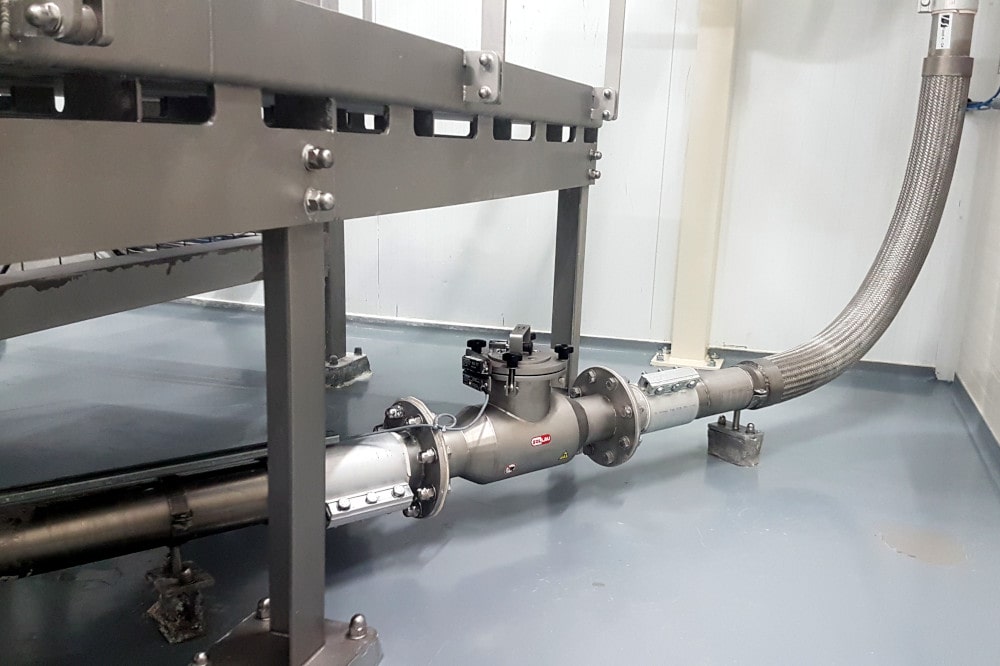

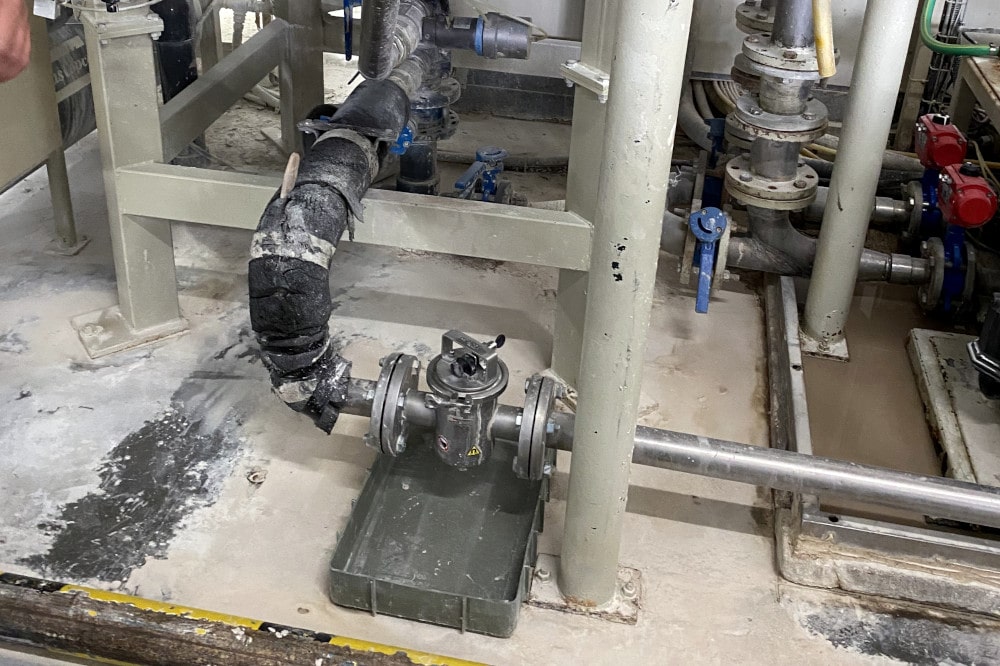

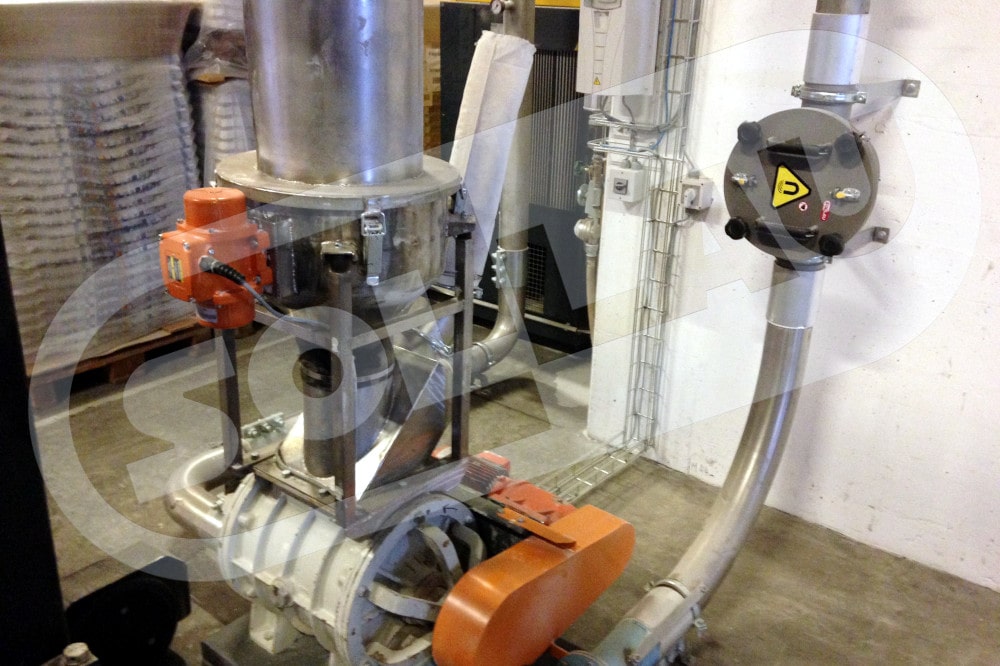

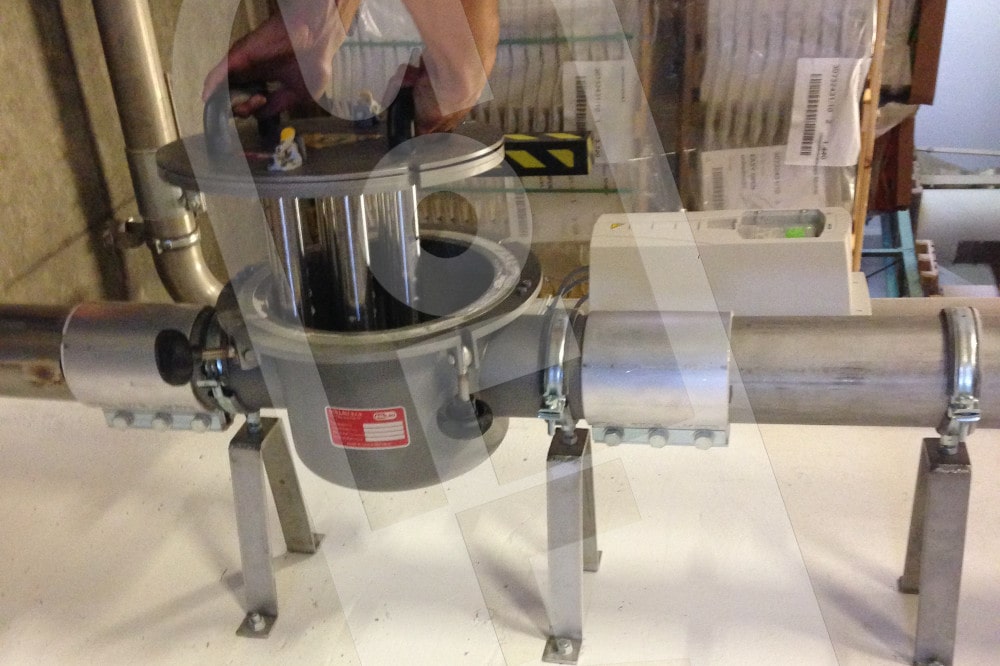

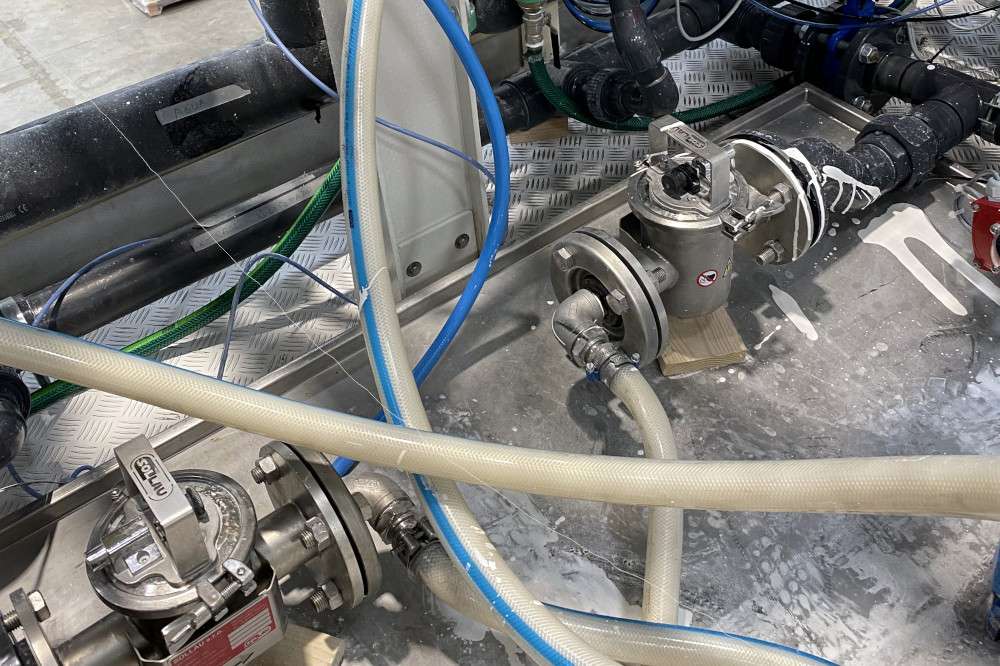

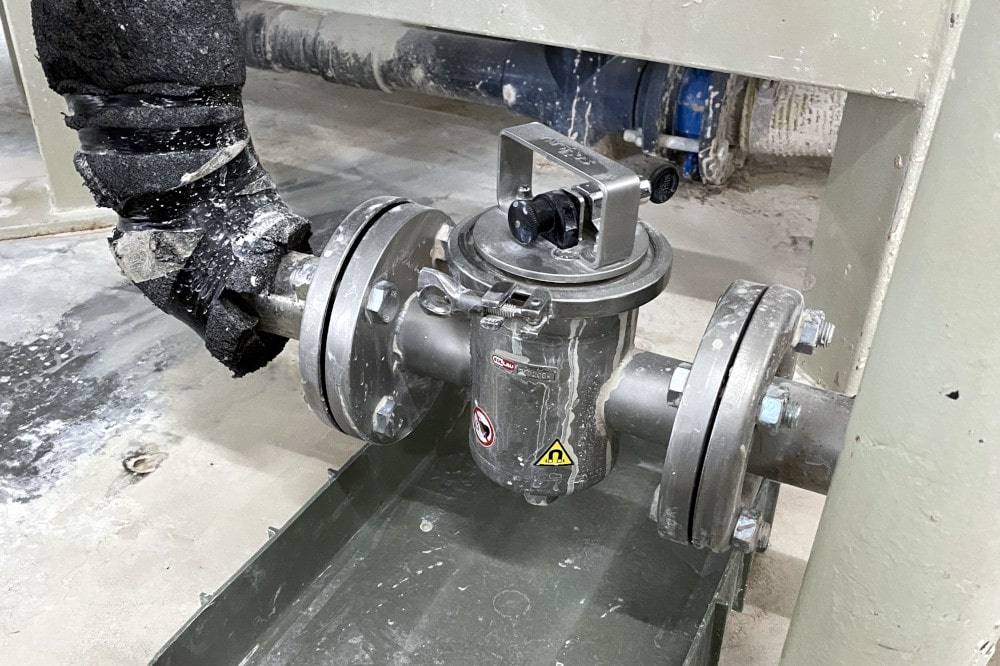

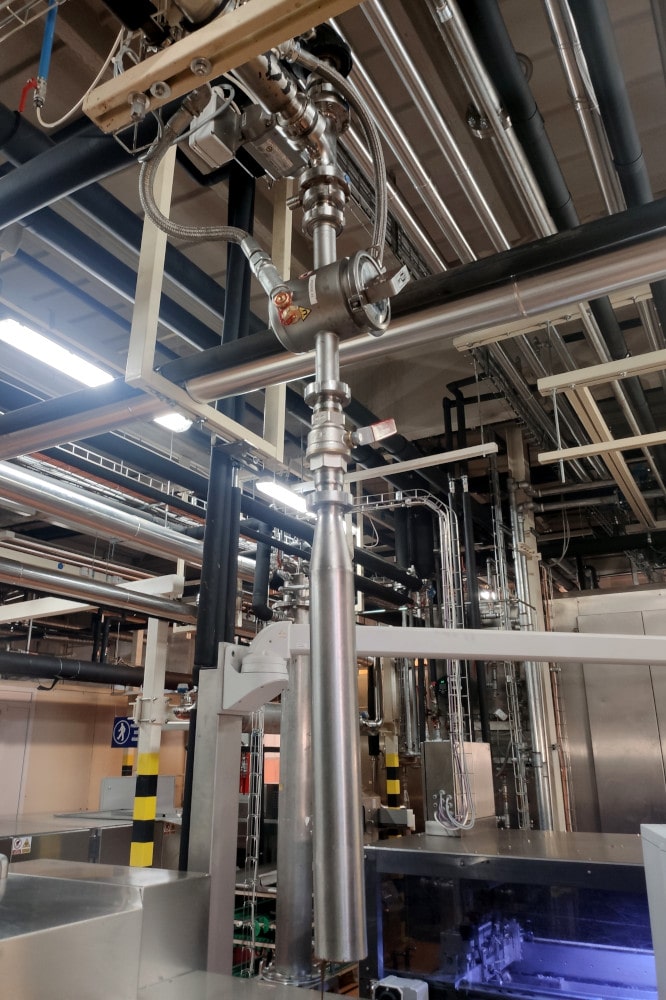

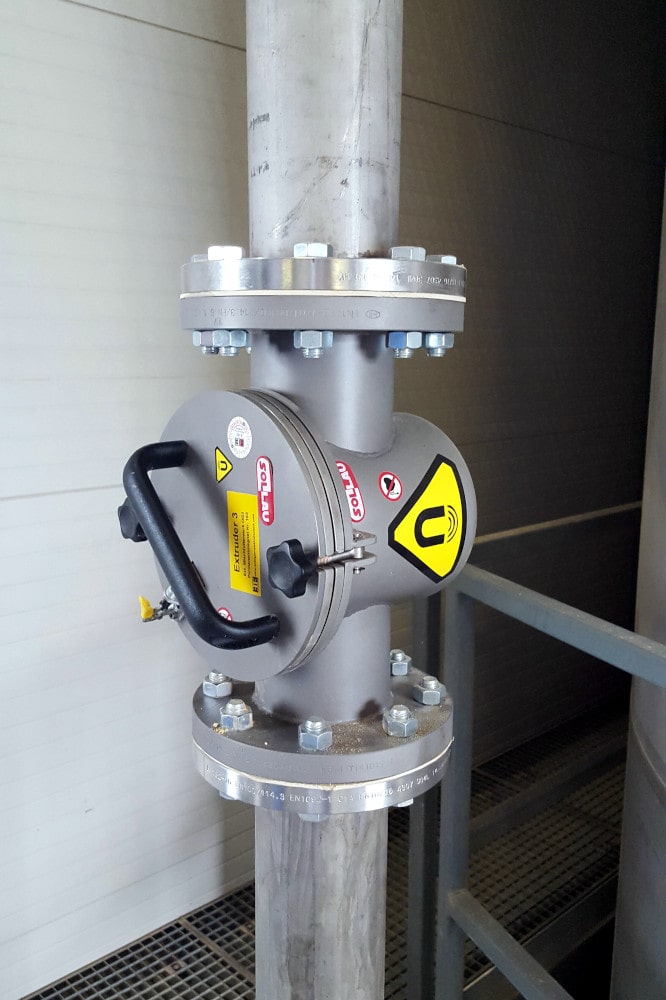

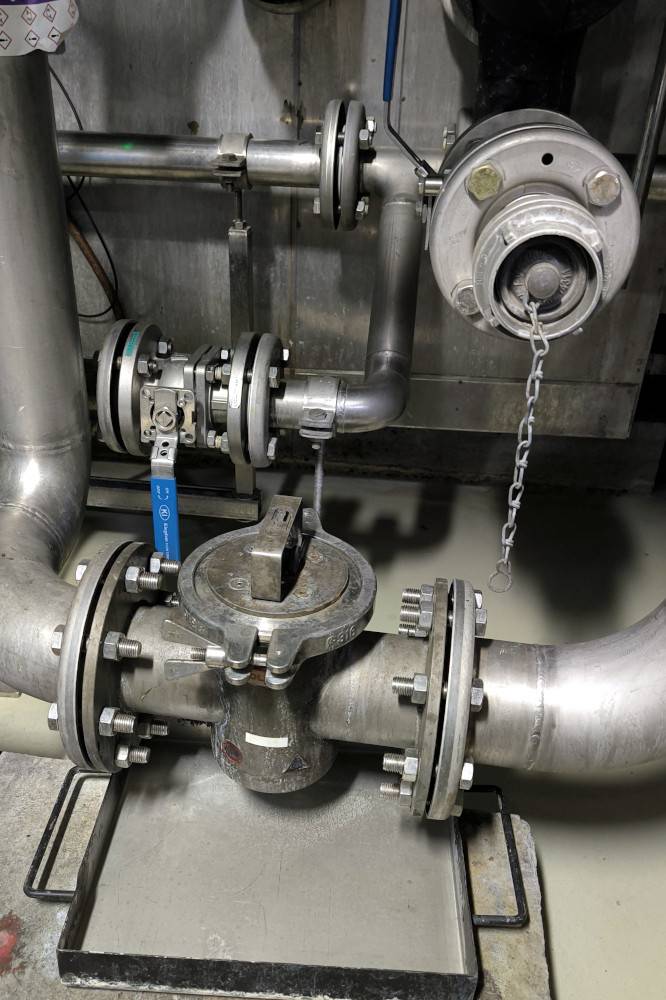

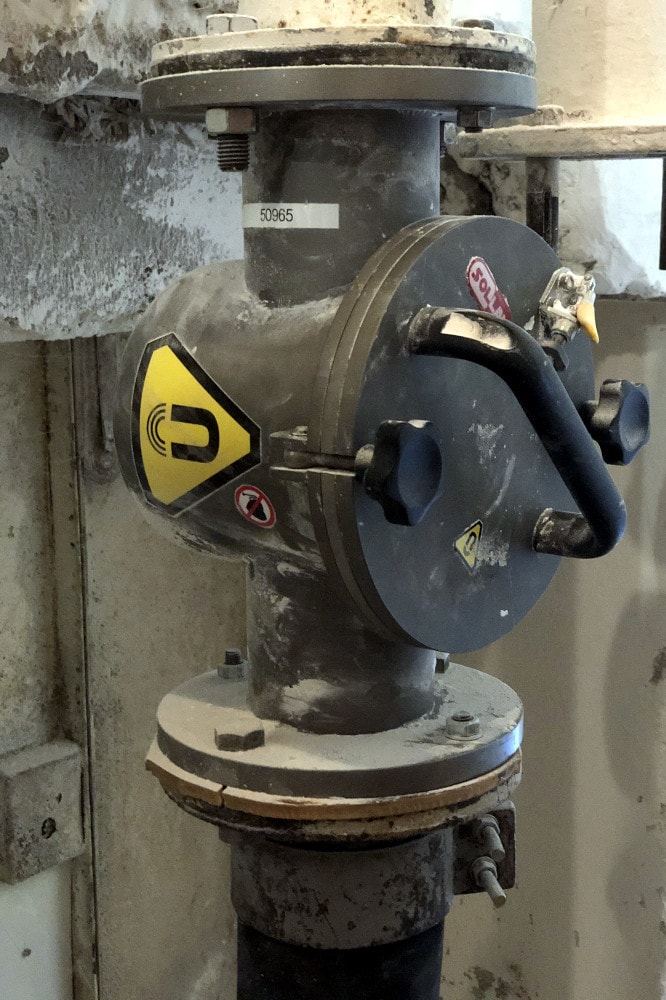

Pipeline magnetic separator MSP-S
Magnetic traps (magnetic filters) are designed to separate ferromagnetic particles from liquid materials transported in a pipeline. As standard, the flow magnetic separator is fitted with flanges (other types of terminations are possible on request), so you can easily install it in the piping. It is designed for a pressure of 6 - 10 bar (according to the pipe diameter) - on request we can make it resistant to higher pressures as well. It can also be used for cleaning of liquid materials transported in pressure pipelines.
The great advantage of the trap magnet is its low weight and the correspondingly easy handling and cleaning. Thanks to its advantageous price, this appliance is the most used and versatile magnetic filter for the separation of ferromagnetic particles from various liquid materials transported by pipelines.
This magnetic pipe filter is often used for separation of iron particles from liquids such as chocolate, lemonade, machining emulsions, cutting oils or glazes.
Our high-strength neodymium magnets can capture fine iron starting from 1 µ! As standard, the separator is equipped with magnets with a magnetic induction of 9 500 G. We optionally offer a variant with an induction of 13 500 G. If one of the separator magnetic rods is damaged, it is possible to replace it easily (no external service intervention is needed).
SOLLAU 5 year warranty
We can vouch for the quality of our magnetic separators and that is why why we provide a 5 year warranty on them! Our magnetic separators can be relied on! We are a specialist in the field of magnetic separation.
Benefits of using the separator
- Material without ferromagnetic particles
- Fast investment return
- Easy installation and operation = higher willingness to use the separator

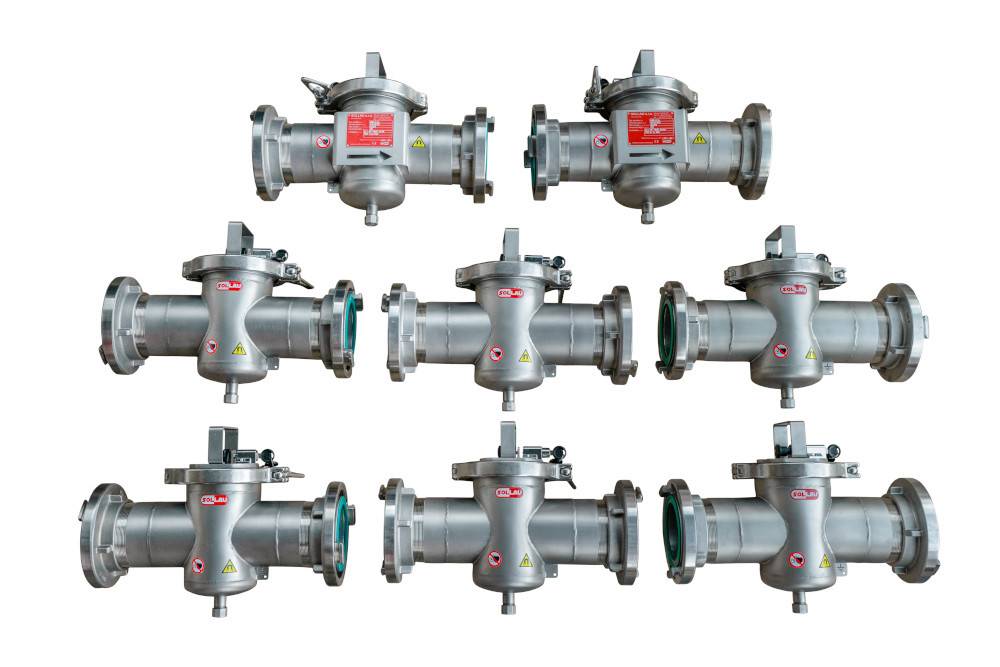

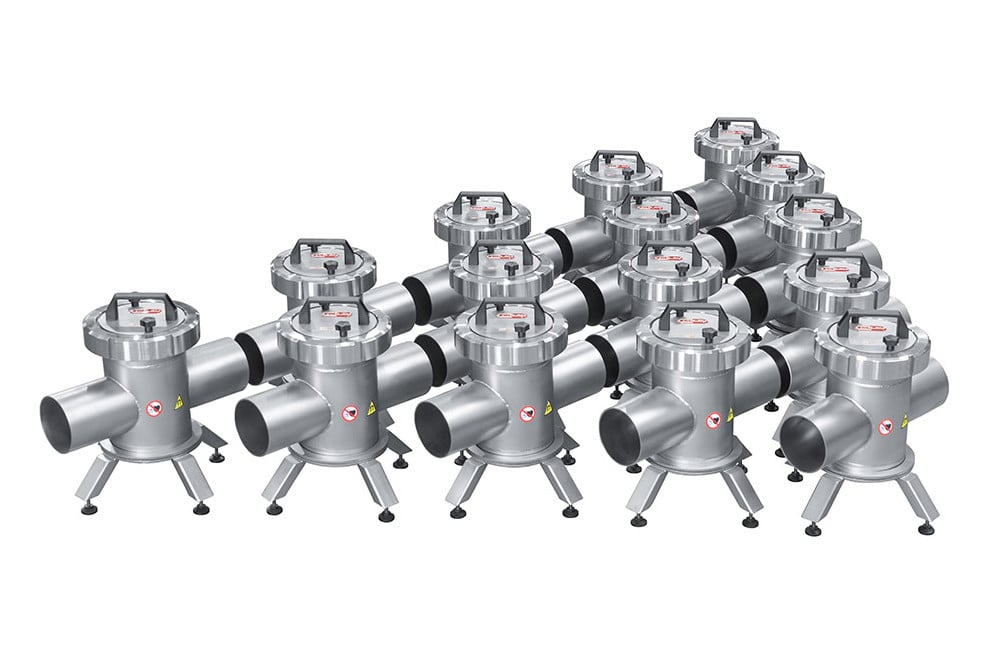

We produce the pipeline magnetic separator in connection diameters from 80 to 200 mm as standard. However, we can adjust the connection dimensions and the connection mode (fire hose couplings, flange, screw connections, special connectors etc.) according to your wishes as well.
We are the manufacturer of these ferrous traps. We guarantee a top technical design and a favorable price.

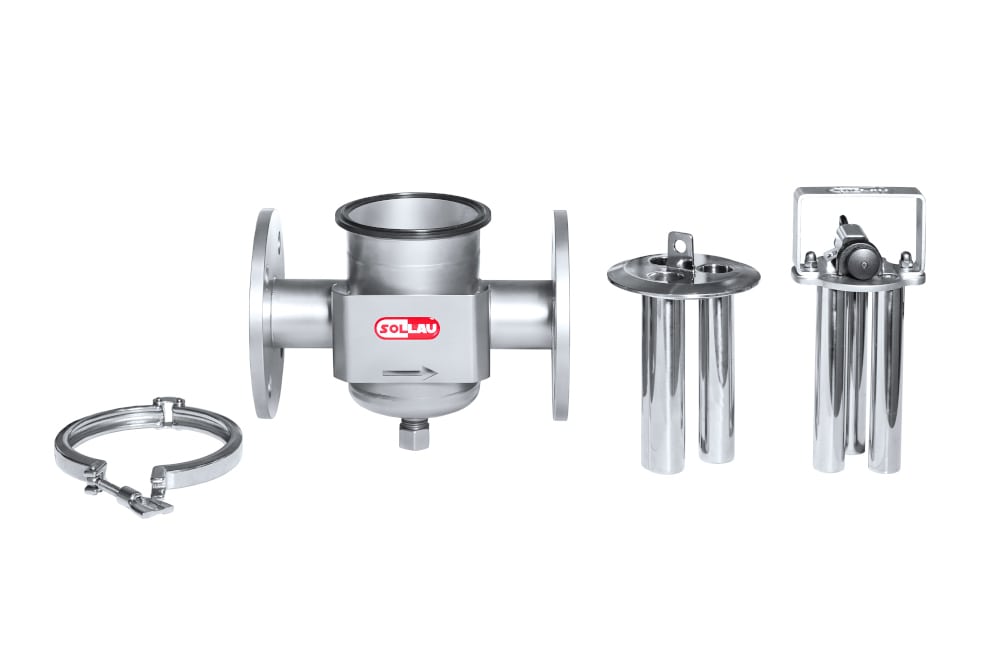

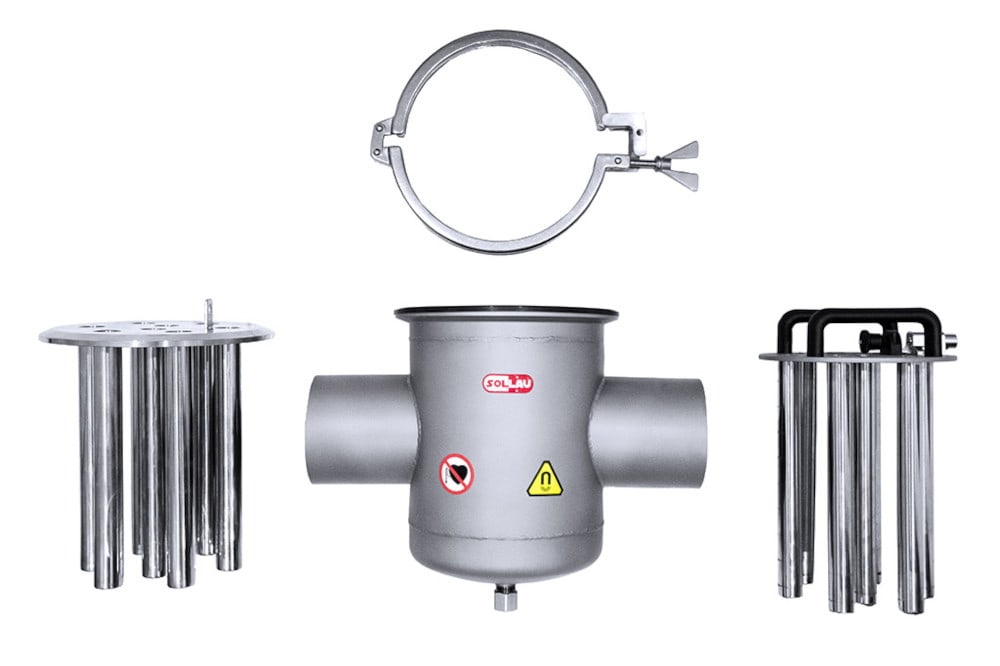

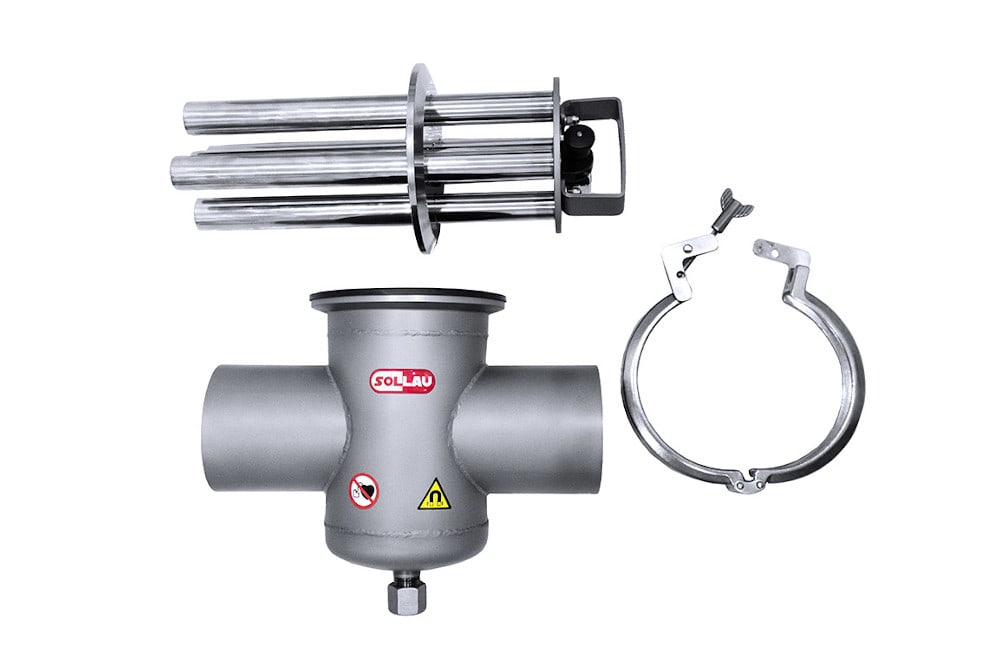

The magnetic trap consists of several parts:
- Magnetic component
- Magnetic core
- Stainless steel tubes
The magnetic core consists of magnetic rods, placed in stainless steel protective tubes. Thanks to this "tube in tube" system, the magnetic rods are protected and their lifetime is significantly extended. This also eliminates the risk of flaking off a piece of magnet or its nickel plating and subsequent contamination of the cleaned material.
The magnetic filter is equipped with magnetic rods, formed with the strongest neodymium magnets. These magnetic rods create an ingenious labyrinth so that the medium to be cleaned is in contact with several magnetic rods. Thanks to this cleaning labyrinth and the applied strong neodymium magnets, the maximum efficiency of the magnetic separator is ensured - we can capture ferromagnetic impurities starting with 1 µm!

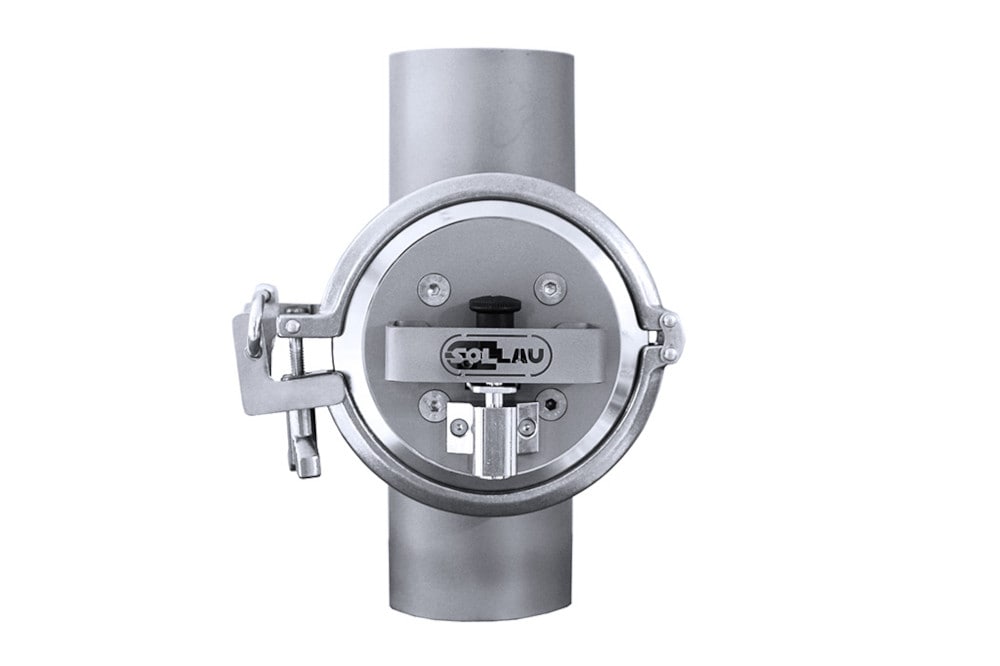

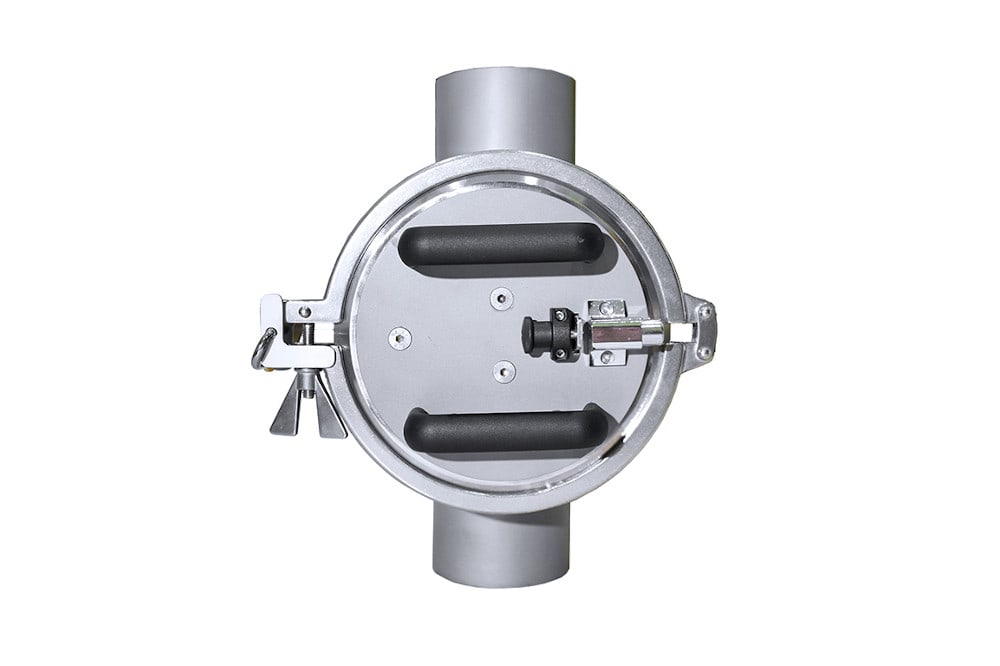

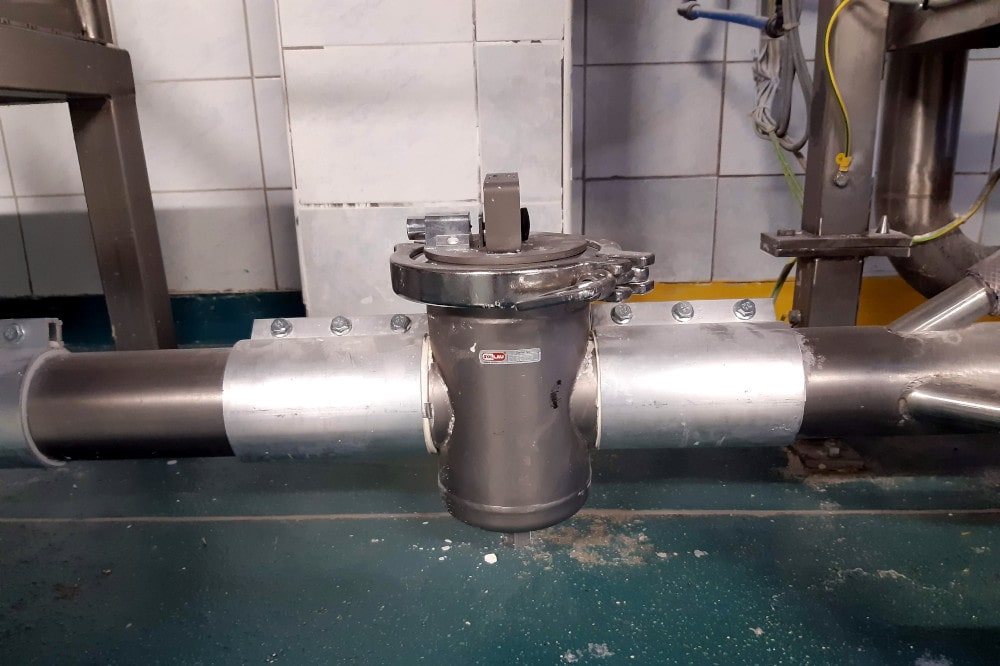

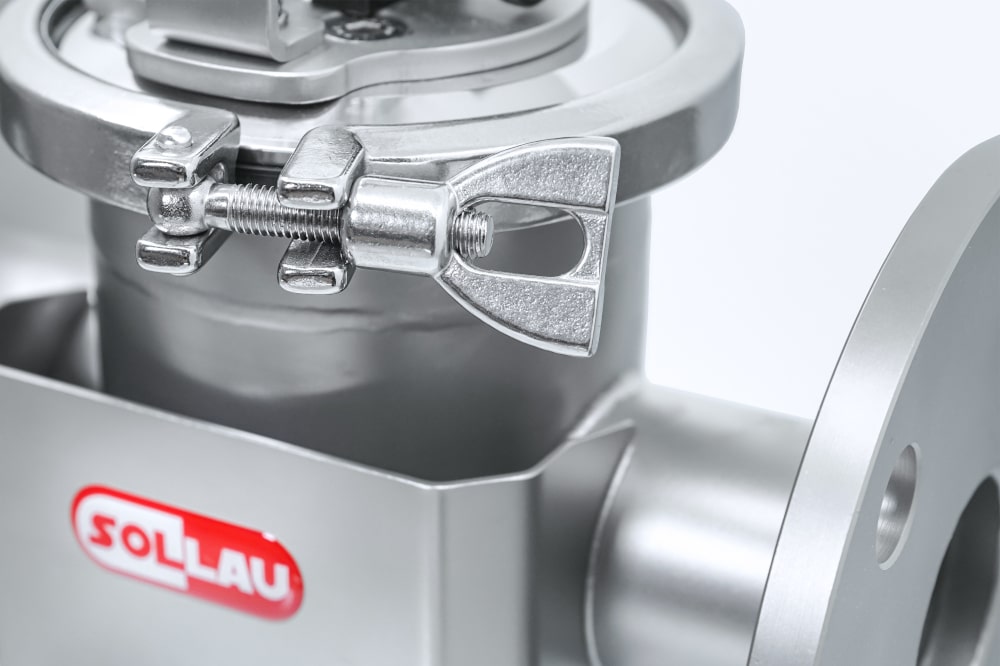

Fixation of the magnetic component to the separator body is ensured by a fast clamp. This makes the separator very quick and easy to clean.

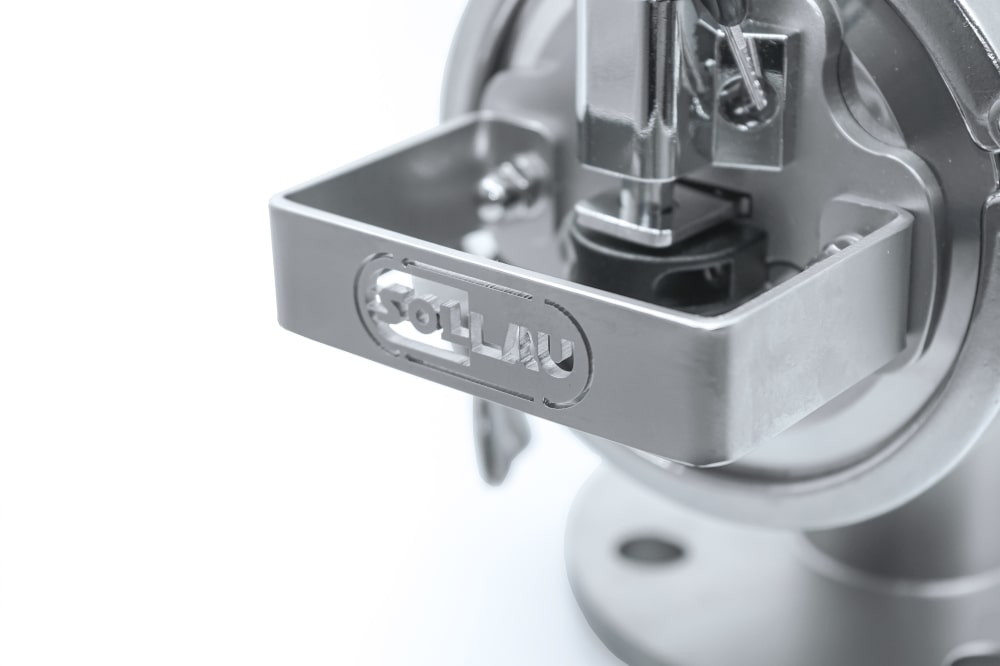

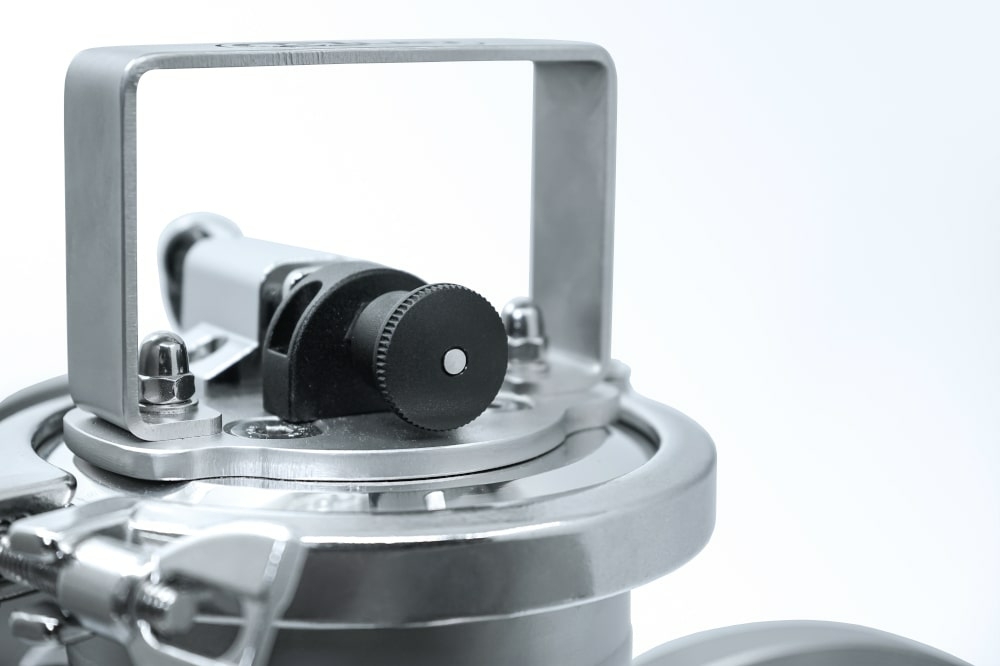

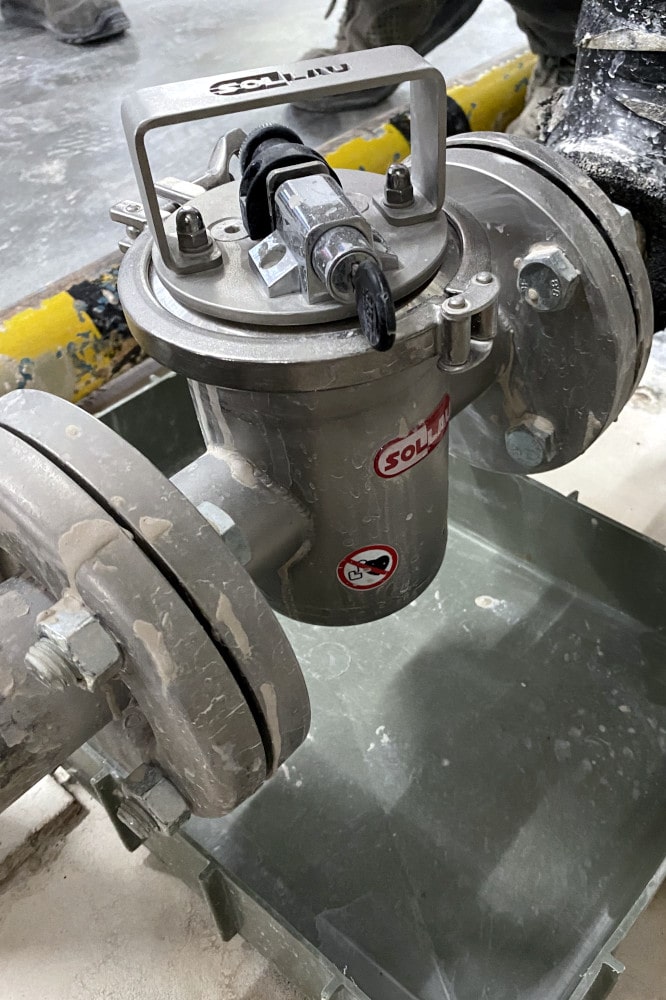

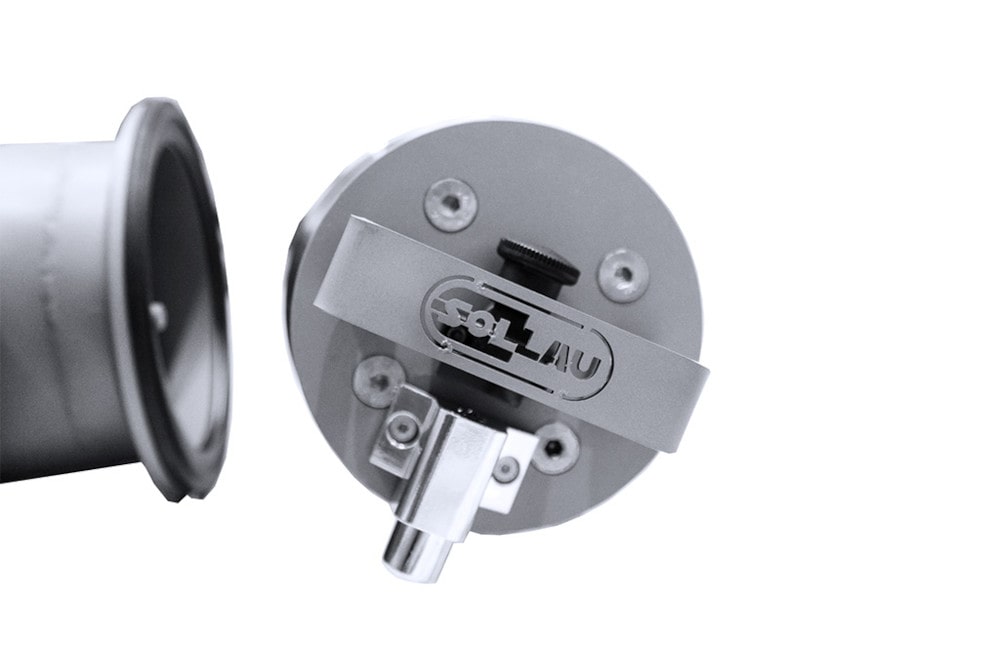

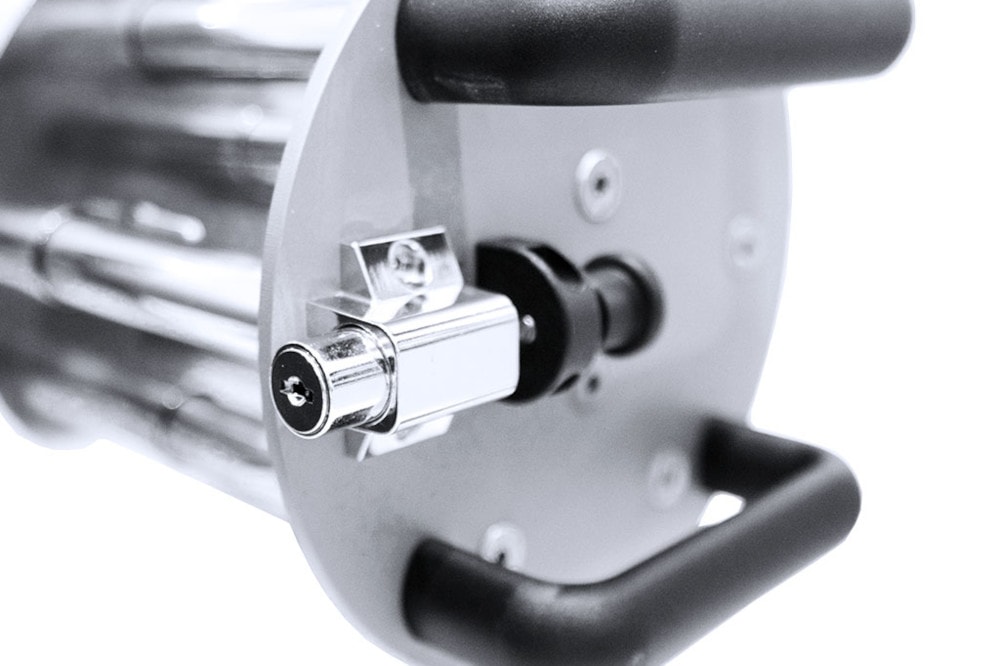

There is a lock of the magnetic rods integrated in the pipeline magnetic separator, protecting it from an unintentional cleaning. This is often required by auditors to ensure the safety of the cleaning process.

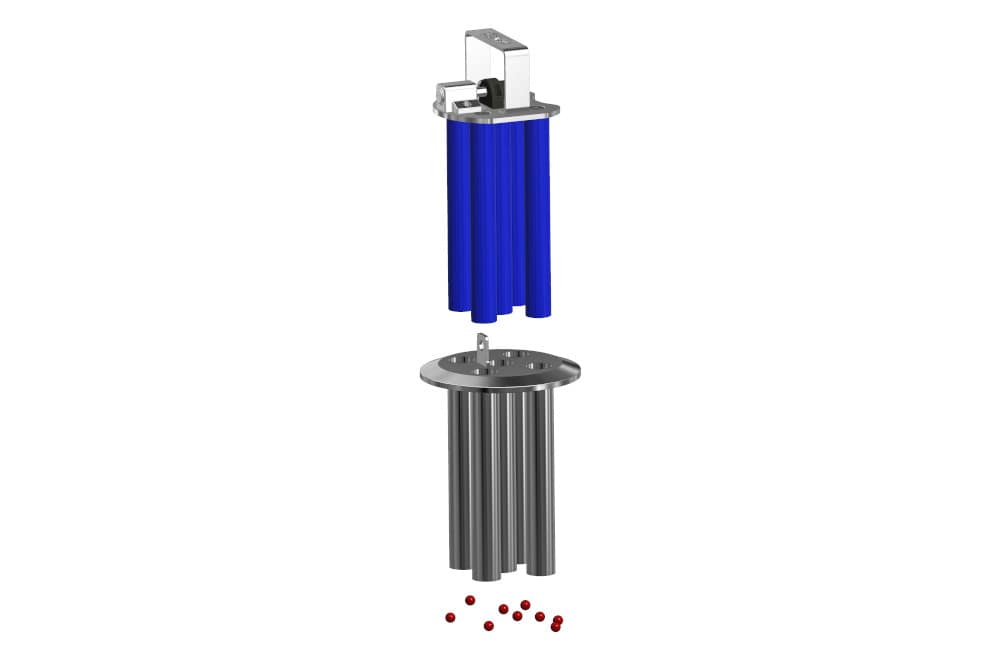

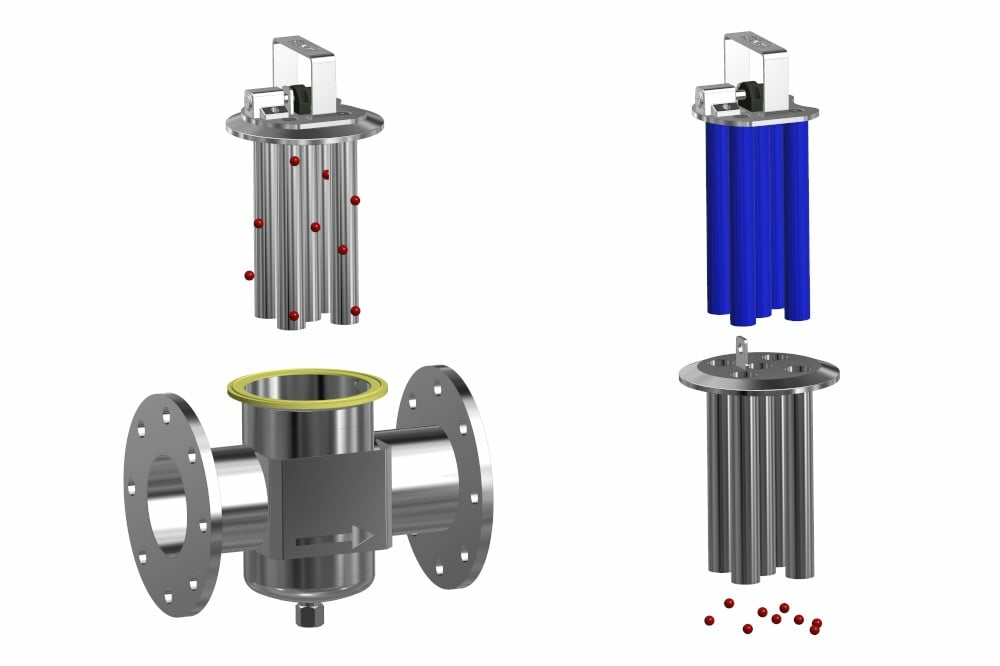

How will be the pipeline magnet cleaned?

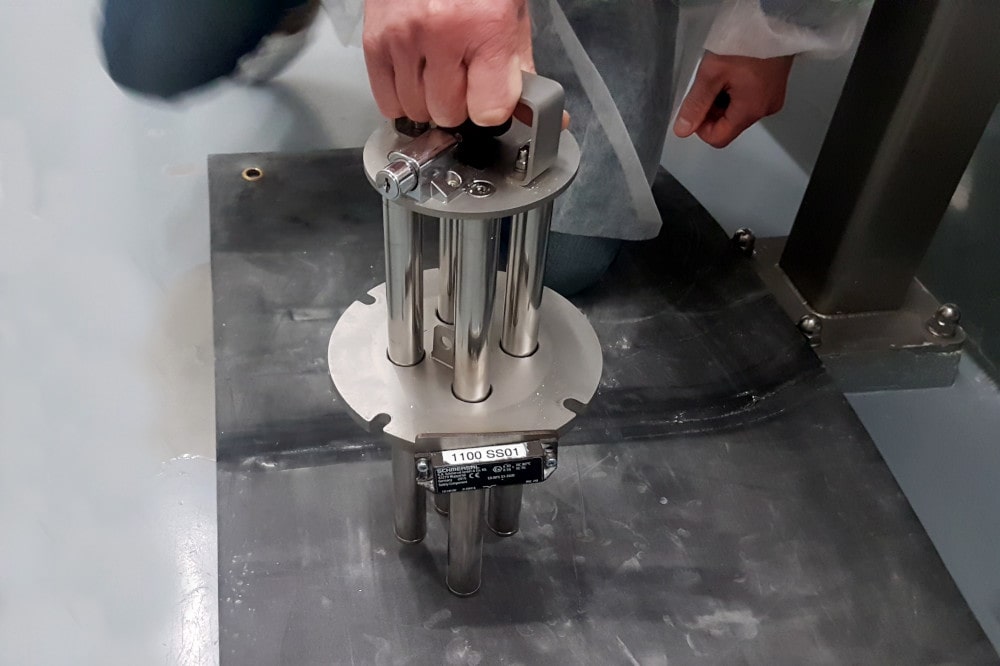

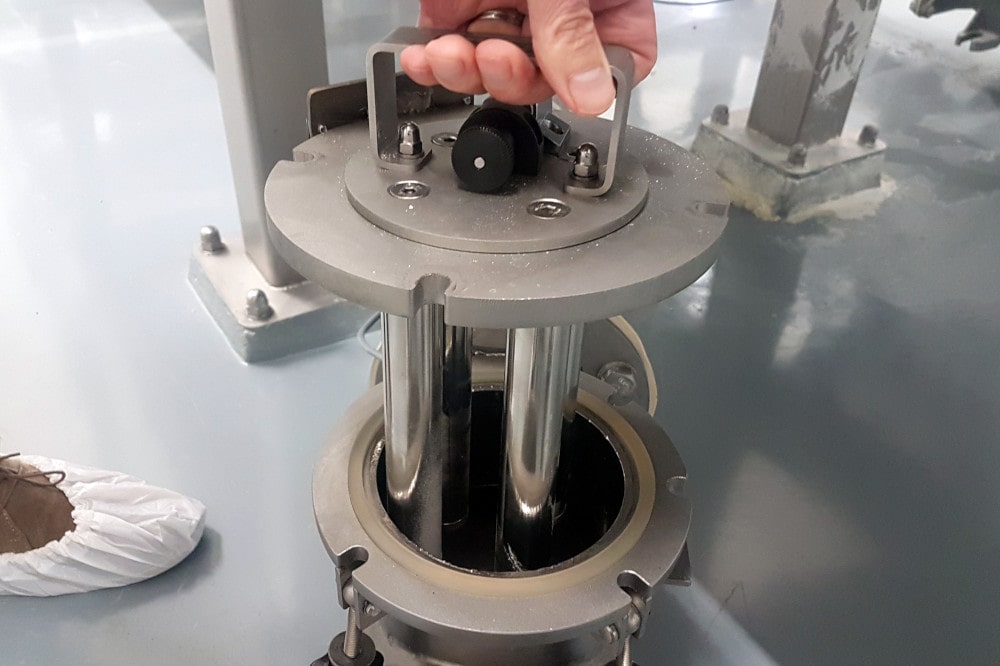

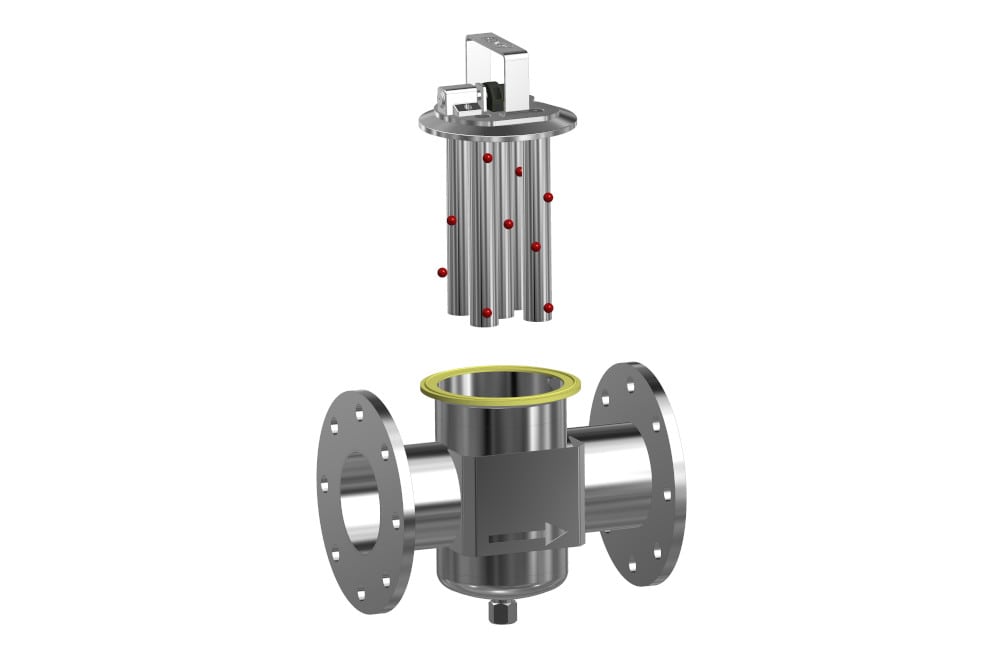

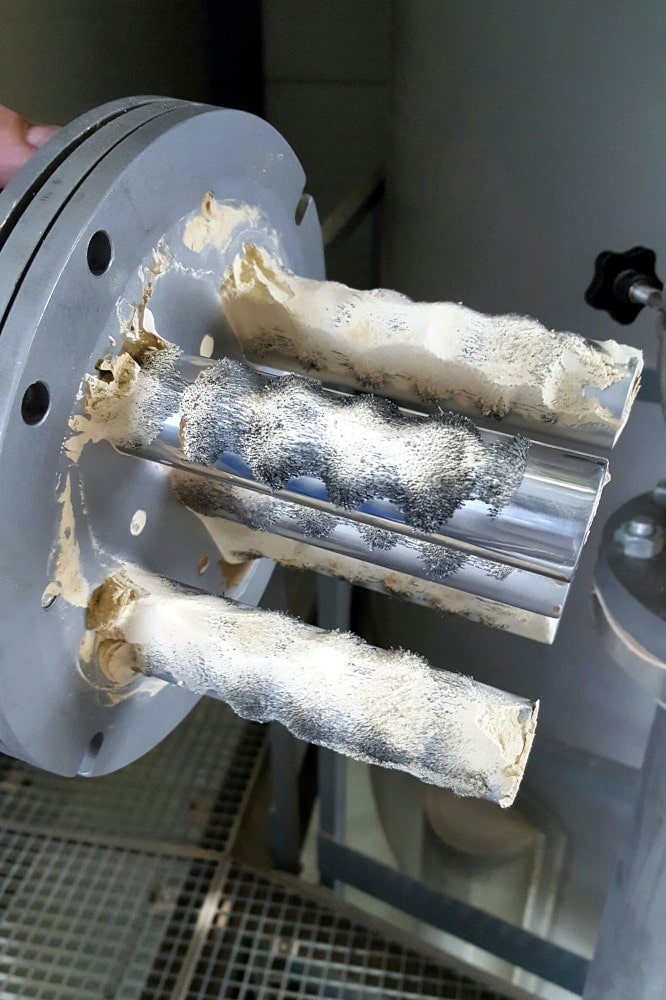

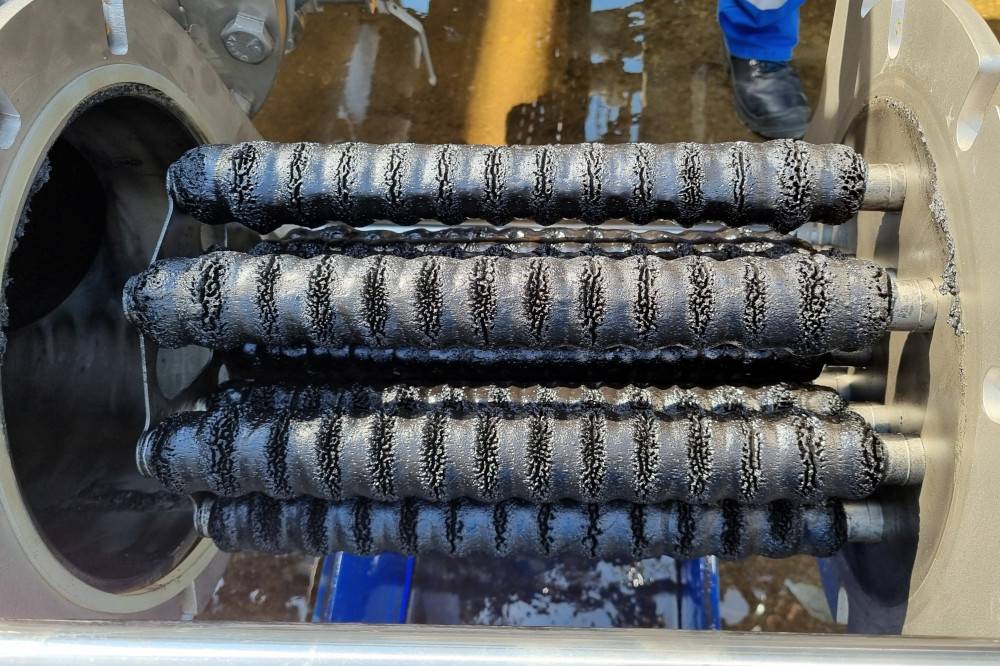

Ferromagnetic particles are trapped on magnetic rods being in contact with the separated material. Cleaning the finger magnet is very easy and quick. It is performed in several steps:
- Release the fast clamp
- Pulling the magnetic component out of the separator body
- Removing the magnetic cores from the stainless steel protective tubes (metal particles fall off)
- Reverse assembly
SOLLAU – our products are welded by real professionals!
Authorization to perform welding on pressure equipment according to PED 2014 / 68 / EU
Pressure welder certificate according to EN-ISO 3834 - 2, EN 1090 - 2, EN 13480 - 1 to 5, EN 13445 - 1 to 5

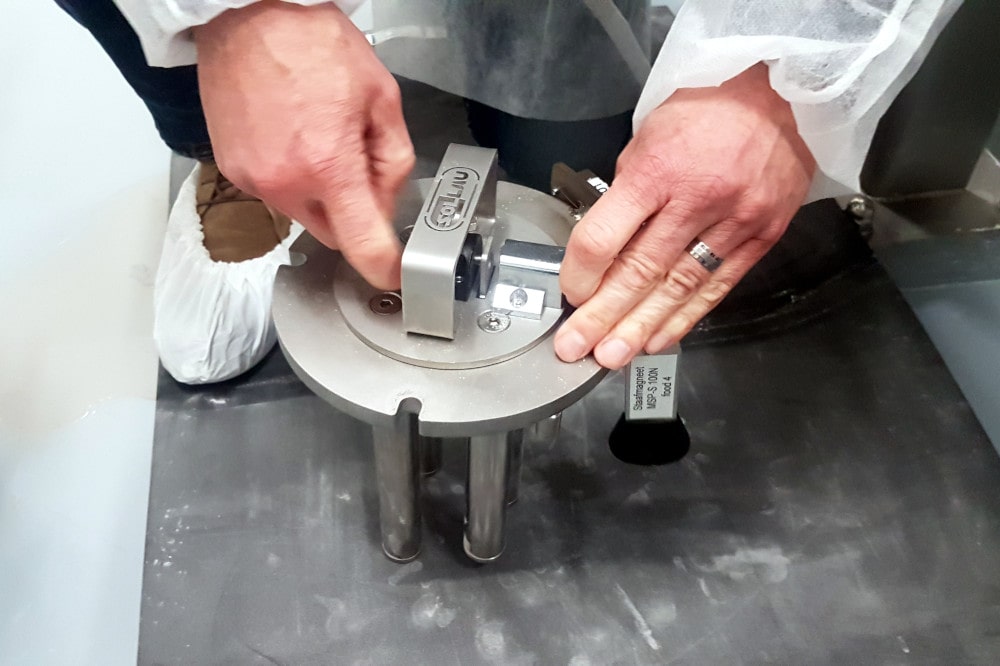

The design of the magnetic trap allows for easy replacing of the magnetic rods (damaged e.g. by improper handling). This exchange is really easy - just loosen one screw and replace the rod. Therefore, no manufacturer's service intervention is required.
We offer the separator MSP-S with three different surface finishes:
- sandblasted (Ra 1.6 µm)
- internally polished (Ra 0.14 µm)
- fully polished (Ra 0.14 µm)
- Low weight = easy handling
- 9 500 G at the point of contact with the material to be cleaned
- Optional variant – 13 500 G
- Pressure resistance up to 10 bars
- High pull-off force
- Integrated lock of magnetic rods
Is designed to separate magnetic iron contamination from a rapid stream (up to 25 m/s) of liquids or dry substances of good bulk properties.
|Product||Input/output diameter (mm)||Datasheet|
|MSP-S 50 N OCTOPUS||50||display PDF|
|MSP-S 65 N OCTOPUS||66||display PDF|
|MSP-S 80 N OCTOPUS||80||display PDF|
|MSP-S 100 N OCTOPUS||100||display PDF|
|MSP-S 125 N OCTOPUS||125||display PDF|
|MSP-S 150 N OCTOPUS||150||display PDF|
|MSP-S 200 N OCTOPUS||200||display PDF|
Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.
- Simple and safe cleaning system
- Integrated lock of magnetic tubes
- Resistant all-stainless steel one- and double-sheathed design
- Pressure resistance up to 6 bars
- 13,500 Gauss on the core and up to 9,500 Gauss on the shell

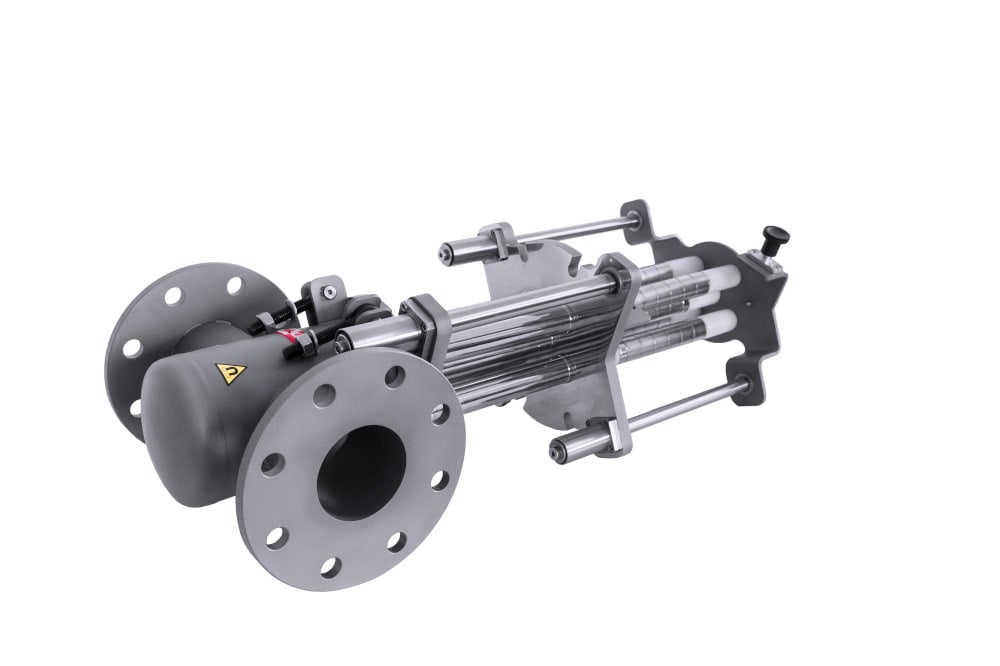

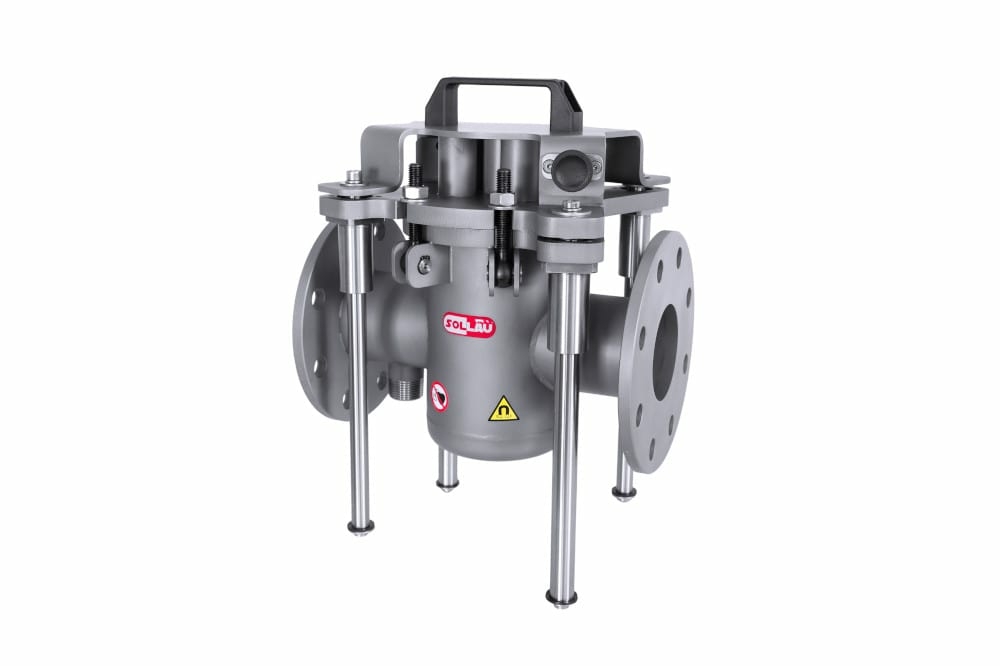

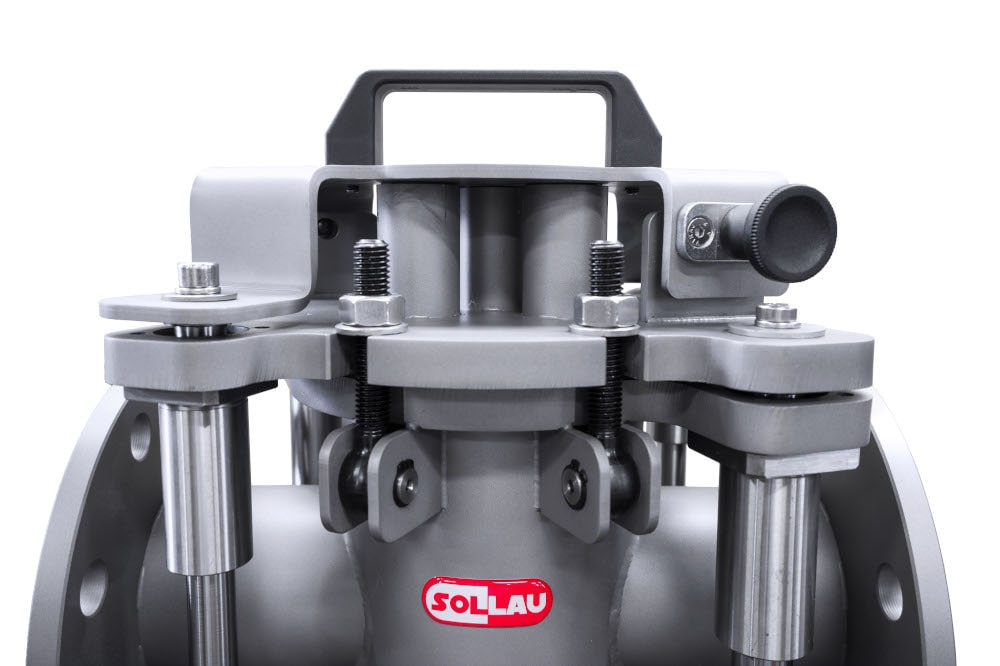

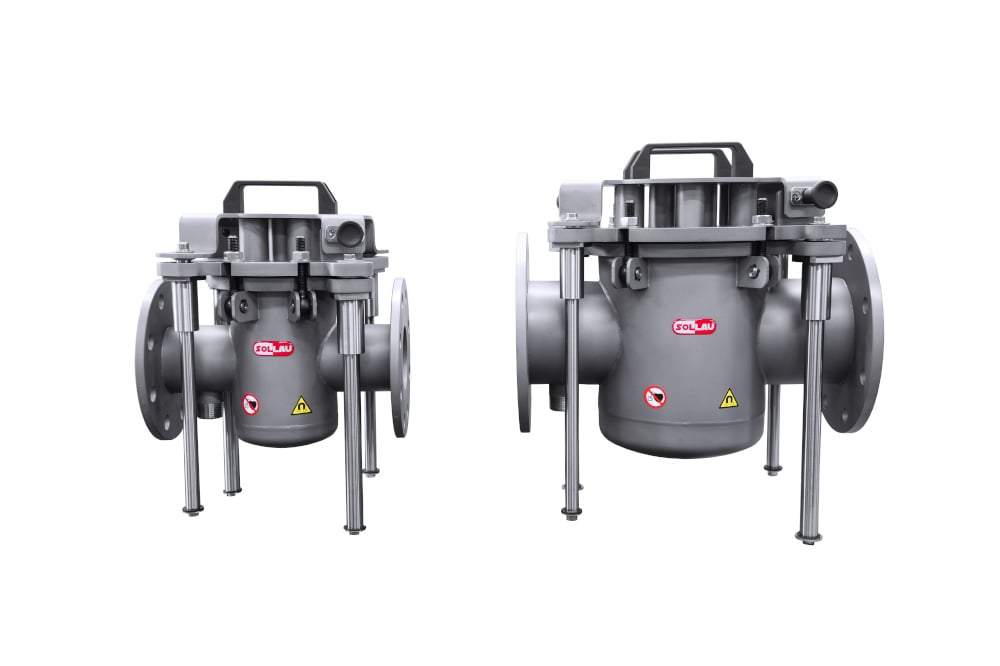

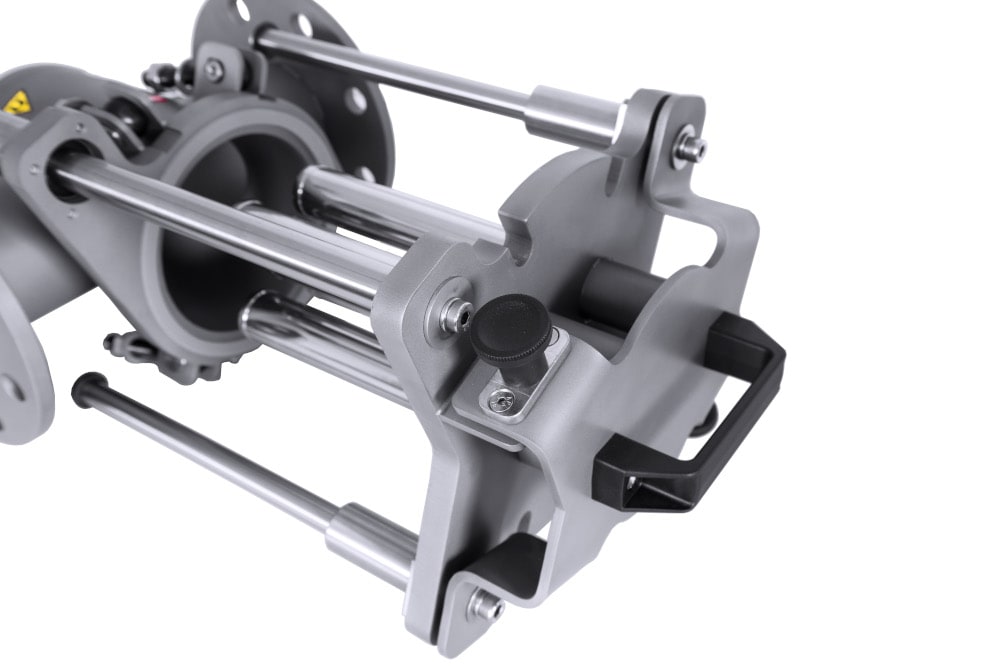

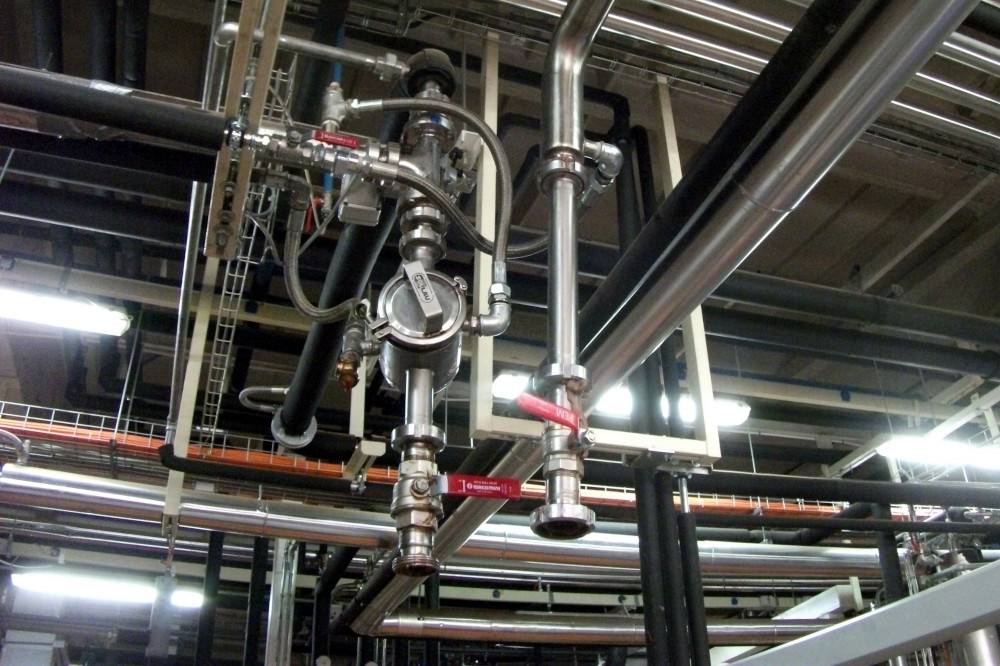

This type of magnetic separator is designed for use in vertical pipelines of larger diameters. Here it serves as an alternative to the MSP-S and MSP-MC separators, where the cleaning could be troublesome due to the weight of the magnetic units. Therefore, we have fitted the separator with guide rods firmly connecting the magnetic assembly to the separator body.
How is the magnetic trap cleaned

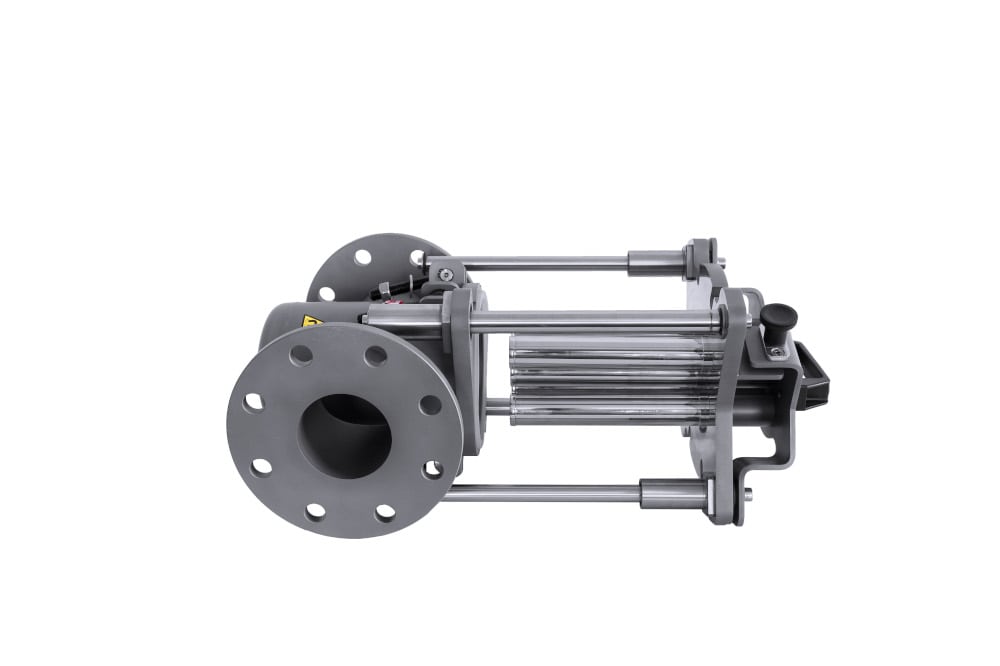

Separator cleaning is very fast, comfortable, and especially safe. After loosening the nuts and tilting the bolts, take out the magnetic assembly (firmly connected to the separator body by the guide rods). After releasing the magnetic cores lock, slide out the magnetic cores (still connected to the separator by the guide rods) of the protective stainless steel tubes. The ferrous metals trapped on the stainless steel tubes will fall off.
We also supply this magnetic filter in a double wall version, which allows heating of the separator interior. This prevents the solidification of materials (such as syrup or chocolate) transported at higher temperatures.
|Product||Input/output diameter (mm)||Datasheet|
|MSP-VT 150 N CRAB||150||display PDF|
|MSP-VT 200 N CRAB||200||display PDF|
|MSP-VT 250 N CRAB||250||display PDF|
Which industrial branches can the trap magnet be used in?
It finds use mainly in the food industry (cleaning of sugar, lemonades, chocolate, etc.), engineering (cleaning of machining emulsions and cutting oils) and ceramics manufacturing (separation of iron particles from glazes and slips). This type of separator is often applied also in pulp and paper industry.
