Chute magnets ML ALARM with indication of magnet saturation
First chute magnet with blockage detection in Europe! Provides a clear signal when cleaning is required. Designed for the separation of ferrous contaminants from poorly flowing materials.
- Europe’s first magnetic separator with blockage alarm
- Clear indication of when cleaning is needed
- Real-time signal of separator efficiency: 100%, 0%
- Eliminates human error
Advantages of ML ALARM magnetic separator
Blockage alarm
Europe’s first chute magnet with real-time blockage signal
Improved separation quality
Clogged separators lose efficiency. The ALARM system alerts operators when cleaning is necessary, ensuring maximum separation quality.
Minimised ddDowntime
Thanks to the ALARM system, operators clean only when necessary – saving time and avoiding unnecessary shutdowns.
Adjustable sensor position
Customise sensor placement to suit your specific product and contaminant size for optimal detection.

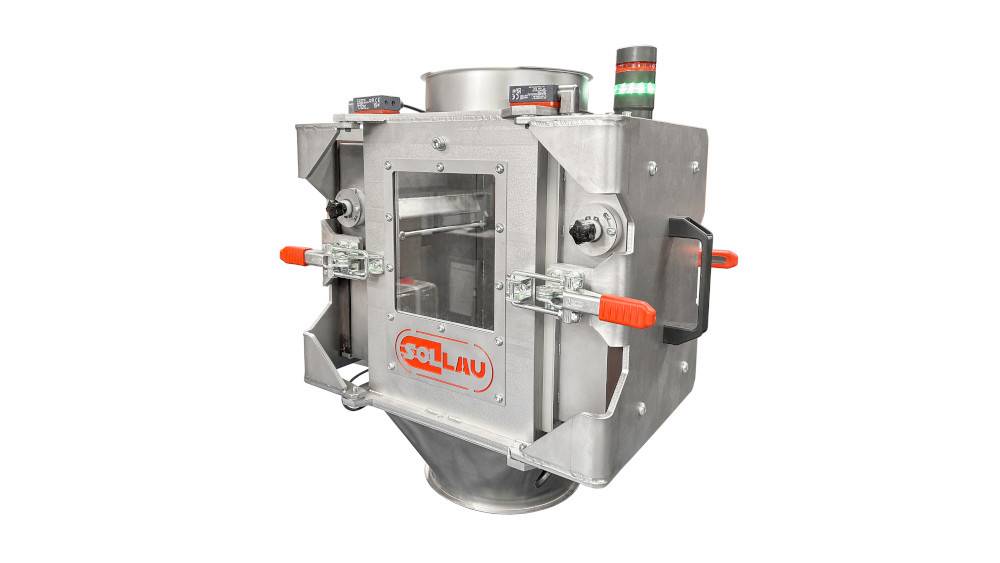

ML ALARM chute magnet – maximum efficiency, minimum downtime
ML ALARM is designed to remove ferrous contaminants from materials with poor flow properties (e.g. grain, flour, sugar, sawdust), which are not suitable for conventional grate separators.
The first magnetic separator in Europe with a unique blockage alarm system – clearly indicates when cleaning is required and when intervention is not necessary.
This functionality guarantees the separator always operates at maximum efficiency, improving product purity, reducing downtime and minimising damage to downstream equipment.
A visual LED beacon eliminates human error – operators only clean when necessary, improving productivity and reducing operating costs.
The ALARM system supports enhanced quality control, allows better audit traceability, and helps reduce customer complaints.
Chute magnets can be equipped with ferrite or the strongest neodymium magnets, depending on your application and separation goals.
We’ll test your material within 3 days – free of charge
SEPARATOR BLOCKAGE INDICATION

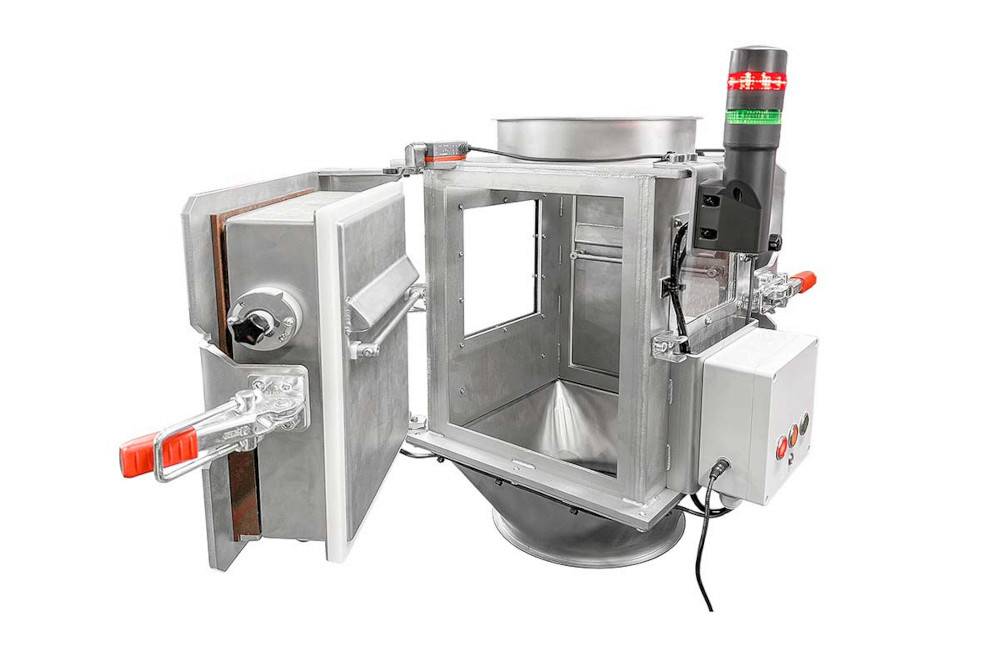

The ML ALARM chute magnet includes two magnetic plates on opposite sides of the housing. The ALARM system detects contamination on the plates. If one plate is clogged, the separator efficiency drops, which is signalled by a red LED on the door or beacon.
What do the LED colours mean?
| Green Light (100% efficiency) | Red Light (0% efficiency) |
|---|---|
| The separator is fully functional. | The separator is blocked and must be cleaned immediately! |
Technical documentation for download
ML F ALARM datasheets (ferrite magnets)
| Product | Max. Capacity (m3/h) | Inlet/Outlet Diameter (mm) | Datasheet |
|---|---|---|---|
| ML 100 F ALARM | 10 | 100 | display PDF |
| ML 120 F ALARM | 30 | 120 | display PDF |
| ML 150 F ALARM | 40 | 150 | display PDF |
| ML 200 F ALARM | 75 | 200 | display PDF |
| ML 250 F ALARM | 100 | 250 | display PDF |
| ML 300 F ALARM | 150 | 300 | display PDF |
ML N ALARM datasheets (neodymium magnets)
| Product | Max. Capacity (m3/h) | Inlet/Outlet Diameter (mm) | Datasheet |
|---|---|---|---|
| ML 100 N ALARM | 10 | 100 | display PDF |
| ML 120 N ALARM | 30 | 125 | display PDF |
| ML 150 N ALARM | 40 | 150 | display PDF |
| ML 200 N ALARM | 75 | 200 | display PDF |
| ML 250 N ALARM | 100 | 250 | display PDF |
| ML 300 N ALARM | 150 | 300 | display PDF |
