Semi-closed magnetic drums MBO

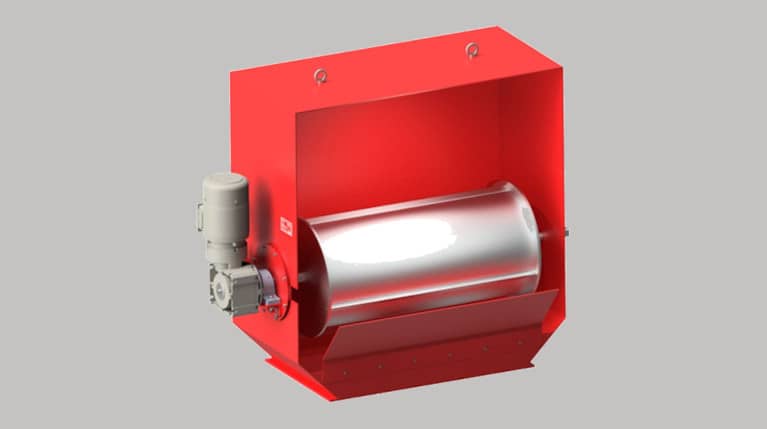

Semi-closed magnetic drum MBO

Magnetic drum in the semi-closed box pattern version serves to unintermitting and automatous separation of ferromagnetic particles coming from dry material (especially coming from wood chips etc.that could be problematic for MBZ magnetic drums in the basic covered version from the point of view of material fraction).

Design of magnetic drum

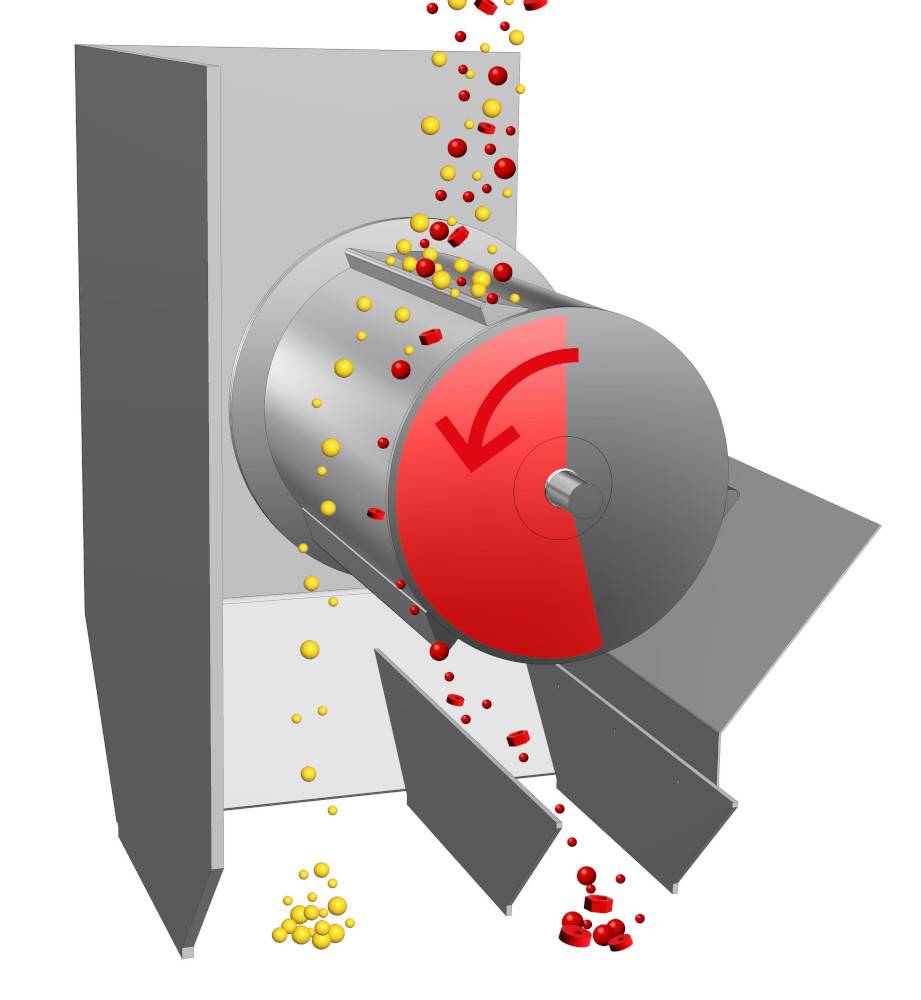

The semi-closed box of can be also connected to conveyor system easily. The system of permanent magnets makes the separation of magnetic metal particles without the need of interrupting the production cycle easier and simultaneously protects the subsequent machinery (e. g. presses, stampers, mills, shredder) against damage. The heart of the magnetic drum is a set of magnetic cores of crescent-moon shape that the outer part of the drum (made of stainless steel) with stalled tappers revolves round.

Cleaning of magnetic drum

Metal magnetic adulterants are caught on the surface of the drum and fall off behind the drum axis into the hopper for ferromagnetic contaminants.



MBO 304

Semi-closed magnetic drum with a diameter of 304 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

ProductMaximum capacity (m3/h)
Maximum capacity depends on the type and properties of the material being cleaned
Working width (mm)Datasheet (CZ)
MBO 304 F 300 25 300

display PDF

MBO 304 F 400 35 400

display PDF

MBO 304 F 500 45 500

display PDF

MBO 304 F 600 55 600

display PDF

MBO 304 F 700 65 700

display PDF

MBO 304 F 800 75 800

display PDF

MBO 304 F 900 85 900

display PDF

MBO 304 F 1000 95 1000

display PDF

MBO 304 F 1100 105 1100

display PDF

MBO 406

Semi-closed magnetic drum with a diameter of 406 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

ProductMaximum capacity (m3/h)
Maximum capacity depends on the type and properties of the material being cleaned
Working width (mm)Datasheet (CZ)
MBO 406 F 400 45 400

display PDF

MBO 406 F 500 55 500

display PDF

MBO 406 F 600 65 600

display PDF

MBO 406 F 700 75 700

display PDF

MBO 406 F 800 90 800

display PDF

MBO 406 F 900 120 900

display PDF

MBO 406 F 1000 140 1000

display PDF

MBO 406 F 1100 160 1100

display PDF

MBO 406 F 1200 180 1200

display PDF

MBO 406 F 1300 200 1300

display PDF

MBO 506

Semi-closed magnetic drum with a diameter of 506 mm is a device for automatic and permanent removal of magnetic iron metals from inert materials.

ProductMaximum capacity (m3/h)
Maximum capacity depends on the type and properties of the material being cleaned
Working width (mm)Datasheet (CZ)
MBO 506 F 500 70 500

display PDF

MBO 506 F 600 85 600

display PDF

MBO 506 F 700 105 700

display PDF

MBO 506 F 800 125 800

display PDF

MBO 506 F 900 145 900

display PDF

MBO 506 F 1000 180 1000

display PDF

MBO 506 F 1100 215 1100

display PDF

MBO 506 F 1200 250 1200

display PDF

MBO 506 F 1300 285 1300

display PDF



Which industrial branches can the semi-closed magnetic drum be use of in?

The semi-closed magnetic drums find use in recycling and mining as well as in wood, plastic, ceramic, glass and food industry.
