VTP - Vibrating Sieve for Pneumatic Conveying
Vibrating sieve for pneumatic conveying VTP. It serves to separate particles ranging from 20 mm to 20 μm.
INDUSTRIES: The Food-Processing Industry, The Chemical and Plastics Industry
- Single deck vibrating sieve
- Input and output are suitable for pneumatic connection
- It is designed for high-capacity safety sieving
- All contact parts are from AISI 304 or 316 stainless steel
- Transparent inspection hole on the top side
Comprehensive solutions from SOLLAU – magnetic separators, metal detectors, vibrating sieves, and vibrating feeders – all in one place!
Tell us more details about your project - we can help you choose the right vibrating sieve.
Advantages of the VTP Vibrating Sieve for Pneumatic Conveying
- It is suitable for use in pneumatic conveying with continuous material flow
- High sieving efficiency even at extreme flow rates of bulk mixtures
- Compact design = easy integration of the vibrating sieve into pipeline systems
- Fast and tool-free cleaning – minimal downtimes in production
- Specially designed sieve shape – minimizing pressure losses
- Low noise and vibration thanks to shock-absorbing design

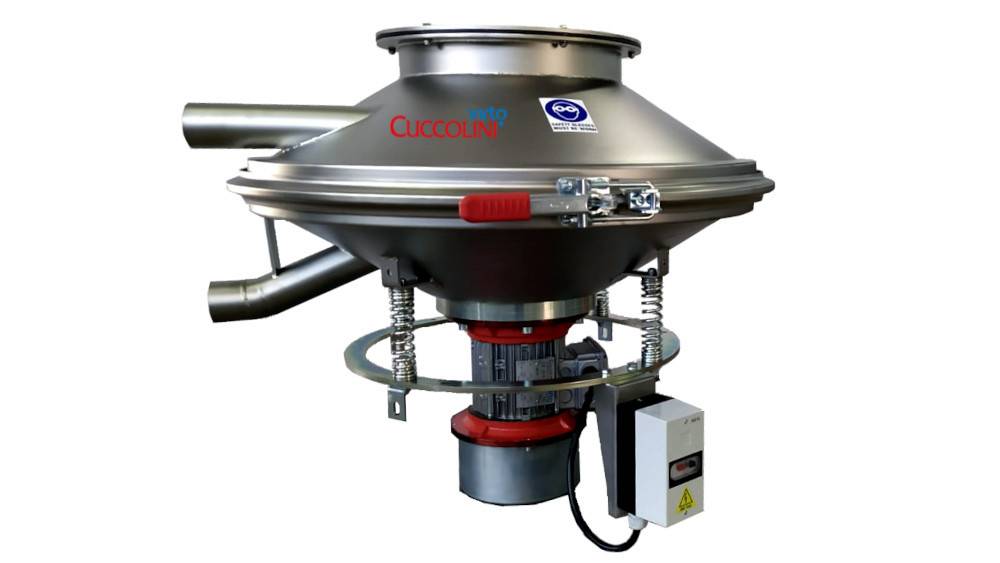

The VTP vibrating sieve for pneumatic conveying is designed specifically for vertical or inclined installation in pneumatic conveying systems. It serves the needs of traditional particle separation ranging from 20 mm to 20 μm.
The material is evenly distributed over the entire sieving surface. The vibrating motor generates a multi-dimensional motion that ensures efficient material sieving.
The correct fraction passes through the sieve and continues through the pneumatic system, while the oversized particles are discharged through the side outlet.
Tell us more details about your project - we can help you choose the right vibrating sieve.
WHERE IS THE VTP VIBRATING SIEVE USED?
The vibrating sieve is used in food and beverage production:
- Quality control of flour, sugar, and other powdered foods
- Removing impurities from spices and ingredients
- Ensuring the correct consistency of powder mixtures
Also in the Chemical and Plastics Industries:
- Control sieving of chemical powders and granulates
- Filtration of pigments and dyes
- Quality assurance of powder chemicals
How does cooperation work?
1.We will come
2.We will measure and design
3.We will manufacture to measure
4.We will install
5.We will commission and train
6.We will provide authorized service
Tell us more details about your project - we can help you choose the right vibrating sieve.

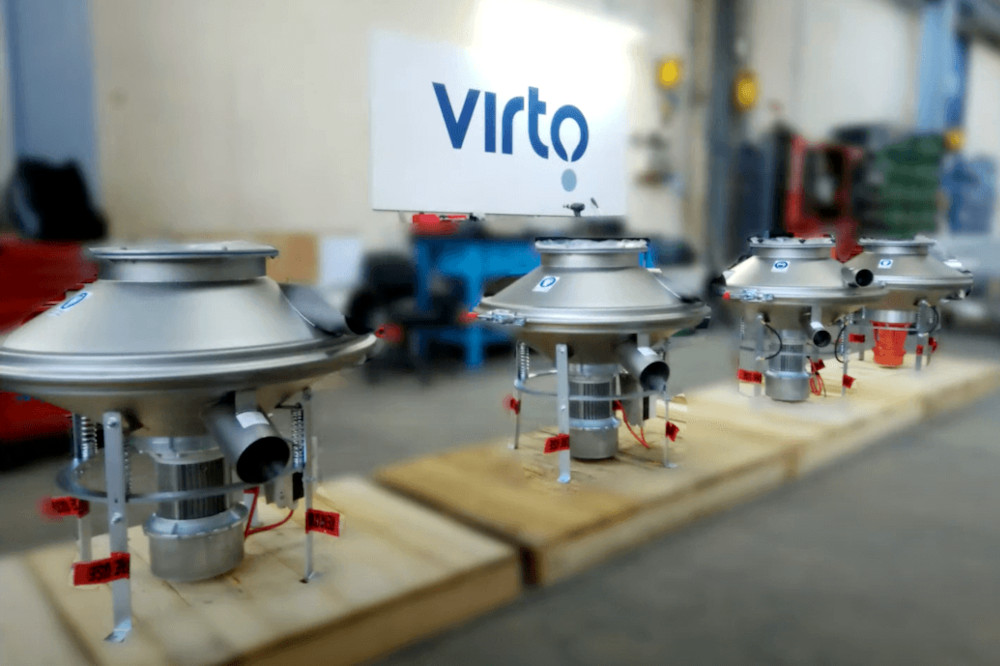

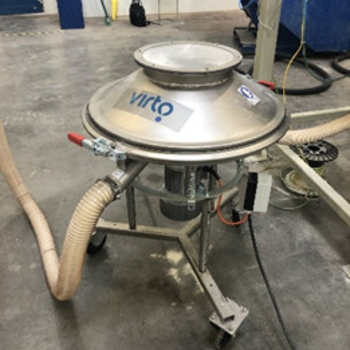

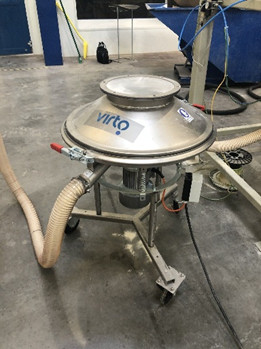

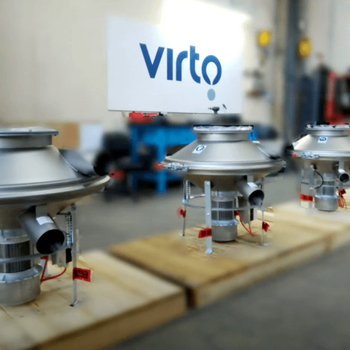

Photo Gallery
Videos
Tell us more details about your project - we can help you choose the right vibrating sieve.
Technical Parameters
- Number of sieve decks: 1
- Input connection: Standard or customized according to customer requirements
- Sieve area: 0.26 – 0.36 m2
- Sieve diameter: 300–900 mm
- Power consumption: 0.48 – 0.73 kW
- Min. operating air pressure: 0.5 bar
- Weight: 48 – 95 kg
- Capacity: ??? 5 t/h
- Material: AISI 304 or 316 stainless steel
- Protection: IP65
- The ATEX zone: ATEX 22
Frequently asked questions (FAQ) – C-Line, X-Line, T-Line vibrating sieves
Looking for the ideal vibrating sieve for your operation? We have prepared an overview of the most common FAQs about the C-Line, X-Line, and T-Line series to help you navigate our offer. You will quickly find answers to key questions and find out which solution is right for you.
