VPB/VPM – Vibrating Sieve for Powders and Bulk Materials
Vibrating sieves for powders and bulk materials VPB and VPM.
INDUSTRIES: Food Processing, Recycling, Chemical and Plastics, Metal powders.
- Universal vibrating sieve for all technological lines and all major industry sectors
- Multi-storey separation (1 – 3 decks of vibrating sieves)
- Cylindrical top cover
- All contact parts made from AISI 304 or 316 stainless steel
- Fixed base with the possibility of mounting on wheels
- Standard 1,500 rpm motor, available on the open market
Comprehensive solutions from SOLLAU – magnetic separators, metal detectors, vibrating sieves and vibrating feeders – all in one place!
Tell us more details about your project - we can help you choose the right vibrating sieve.
Advantages of the VPB and VPM Vibrating Sieves for Powders and Bulk Materials
- Vibrating sieve for a wide range of industrial applications and all major industrial sectors
- Configurable with up to three sieve decks
- Option of ultrasonic or ball sieve cleaning
- Easy integration with bag/big bag tipping units
- Fast and tool-free cleaning – minimal downtimes in production
- Product-contact components (seals, etc.) meet FDA requirements
These vibrating sieves are typically used for sieving and separating dry powders in various industries such as food processing, recycling, paint/coating production, and metal powder handling.

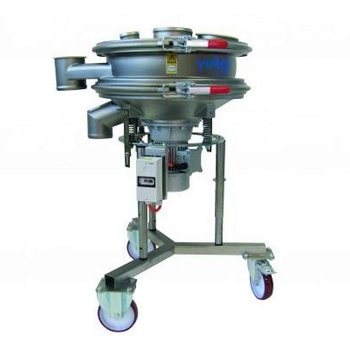

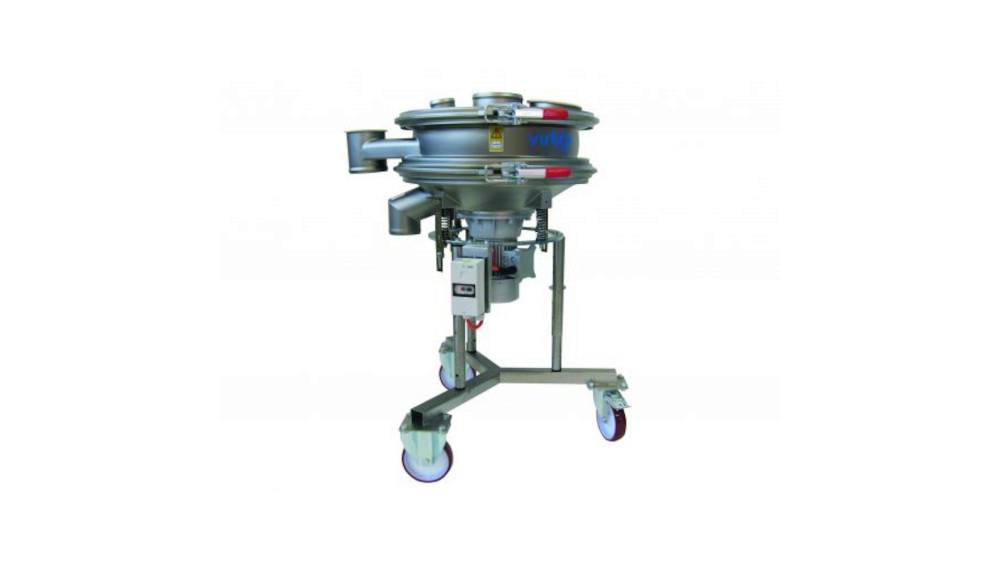

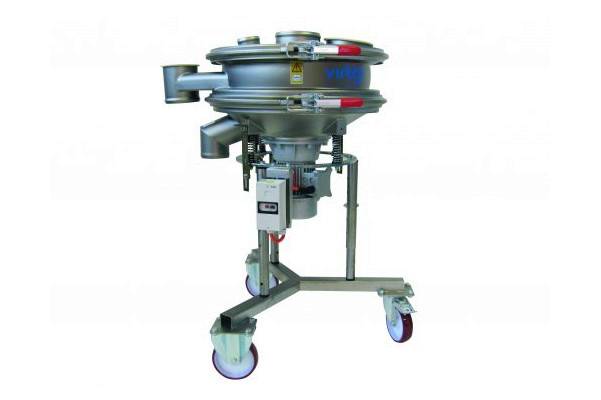

The VPB vibrating sieve for powders and bulk materials is a compact device ideal for lower volumes and laboratory use. It features stainless steel construction, a centrally located motor, and quick-release belt clamps. With adjustable height and the possibility of mounting on a trolley, it is highly mobile and versatile.
It is commonly used in combination with bag emptying units and big bag filling/emptying stations.

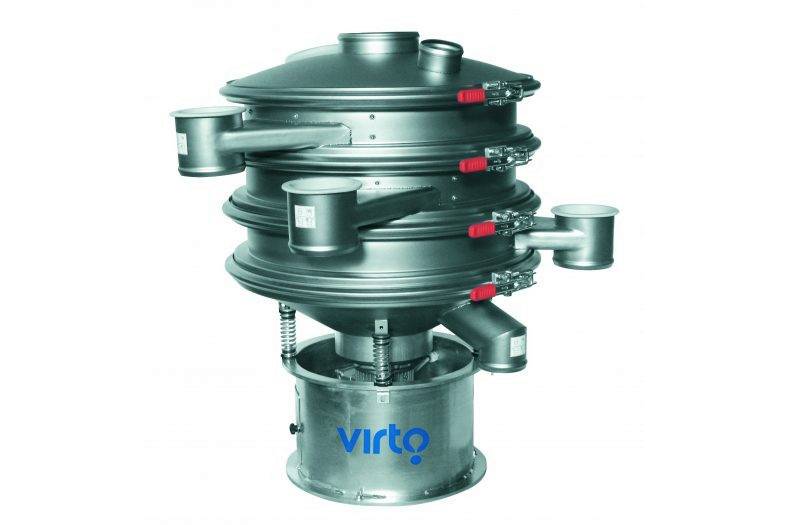

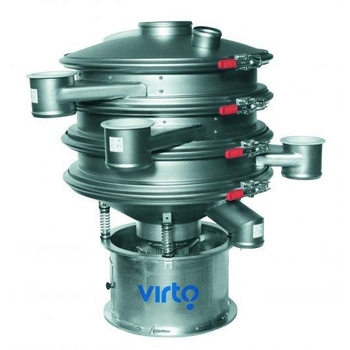

The VPM vibrating sieve for powders and bulk materials is a more powerful variant and has become the industry standard for efficient sieving and separation of fine powders at high flow rates.
It is designed for high-capacity powder separation and offers the possibility of sieve cleaning with ultrasonic or ball systems. It is used for dedusting, trimming, sorting, and control sieving in continuous processes.
Tell us more details about your project - we can help you choose the right vibrating sieve.
WHERE IS THE VPB/VPM VIBRATING SIEVE USED?
The vibrating sieve is used in the production of food and dry mixtures
- Inspection and safety sieving of flour, sugar and other bulk foods
- Removal of unwanted admixtures from powdered ingredients
- Sorting and classification of spices, coffee and coffee blends
Also in industrial applications
- Laboratory sieving and testing of bulk materials (especially VPB)
- Sieving of chemical powders, pigments and coating materials
- Processing of metal powders for powder metallurgy
- Safety sieving in ongoing production or during big bag filling
In recycling and processing industries
- Sorting and classification of crushed materials
- Separation of fine powders from coarser particles
- Dedusting and cleaning of recycled materials
- Inspection sieving before further processing
How does cooperation work?
1.We will come
2.We will measure and design
3.We will manufacture to measure
4.We will install
5.We will commission and train
6.We will provide authorized service
Tell us more details about your project - we can help you choose the right vibrating sieve.
Photo Gallery
Videos
Tell us more details about your project - we can help you choose the right vibrating sieve.
Technical Parameters
Technical parameters of VPB vibrating sieves
| Model | Sieve diameter (mm) | Nr. of sieve decks | Sieve area (m2) | Motor (kW) | Centrifugal force (kg) |
|---|---|---|---|---|---|
| VPB 450 | 450 | 1 - 3 | 0.10 | 0.30 – 0.36 | 230 |
| VPB 600 | 600 | 1 – 3 | 0.26 | 0.45 – 0.50 | 428 |
| VPB 500 1 – 2x | 500 | 1 – 2 | 0.22 | 0.20 – 0.23 | 590 |
| VPB 500 3x | 500 | 3 | 0.22 | 0.20 – 0.23 | 400 |
| VPB 800 1 – 2x | 800 | 1 – 2 | 0.36 | 0.62 – 0.68 | 590 |
| VPB 800 3x | 800 | 3 | 0.36 | 0.62 – 0.68 | 1 000 |
Technical parameters of VPM vibrating sieves
| Model | Sieve diameter (mm) | Nr. of sieve decks | Sieve area (m2) | Motor (kW) | Centrifugal force (kg) |
|---|---|---|---|---|---|
| VPM 900 1 – 2x | 900 | 1 – 2 | 0.587 | 0.62 – 0.68 | 850 |
| VPM 900 3x | 900 | 3 | 0.587 | 0.62 – 0.68 | 1 280 |
| VPM 1200 1 – 2x | 1200 | 1 – 2 | 0.932 | 0.82 – 0.96 | 1 300 |
| VPM 1200 3x | 1200 | 3 | 0.932 | 0.82 – 0.96 | 1 900 |
| VPM 1500 1 – 2x | 1500 | 1 – 2 | 1.575 | 1.20 – 1.70 | 2 300 |
| VPM 1500 3x | 1500 | 3 | 1.575 | 1.20 – 1.70 | 2 900 |
| VPM 2000 1 – 2x | 2000 | 1 – 2 | 2.7 | 3.2 | 6 000 |
| VPM 2000 3x | 2000 | 3 | 2.7 | 3.2 | 6 900 |
