Pipeline magnetic separators for pneumatic conveying lines MSP-S
Magnetic traps (magnetic filters) are designed to separate ferromagnetic particles from bulk materials transported in a pipeline. As standard, the flow magnetic separator is fitted with flanges (other types of terminations are possible on request), so you can easily install it in the piping. It is designed for a pressure of 6 - 10 bar (according to the pipe diameter) - on request we can make it resistant to higher pressures as well. It can also be used for cleaning of bulk materials transported in pressure pipelines.
The great advantage of the separator is its low weight and the correspondingly easy handling and cleaning. Thanks to its advantageous price, this appliance is the most used and versatile magnetic filter for the separation of ferromagnetic particles from various bulk materials transported by pipelines.
Why magnetic traps by SOLLAU?
Download PDF
(Size 768 kB)
The pipe magnetic separator is often used to remove ferrous metal contamination from bulk materials transported in pipelines (such as flour, sugar, spices or plastic granulate). The separator can be installed in positive as well as negative pressure conveying systems (typically used to transport bulk materials).
SOLLAU 5 year warranty
We can vouch for the quality of our magnetic separators and that is why why we provide a 5 year warranty on them! Our magnetic separators can be relied on! We are a specialist in the field of magnetic separation.
Benefits of using the separator
- Material without ferromagnetic particles
- Fast investment return
- Easy installation and operation = higher willingness to use the separator
We produce the pipeline magnetic separator in connection diameters from 80 to 200 mm as standard. However, we can adjust the connection dimensions and the connection mode (fire hose couplings, flange, screw connections, special connectors etc.) according to your wishes as well.
We are the manufacturer of these magnetic filters. We guarantee a top technical design and a favorable price.
Customer care
Your project will be taken care of by us from beginning up to the very end. It does not end with the order placed at us. We will provide the full support for all the time of the use of the separator.
1. We will come
2. We will align and design
3. We will make a made-to-measure product
4. We will install
5. We will put into operation and school in
6. We will provide authorized service
We guarantee tests withing three days!
Make sure that our device perfectly meets your expectations!
We will provide tests of your material on our magnetic separators for FREE!
The magnetic trap consists of several parts:
- Magnetic component
- Magnetic core
- Stainless steel tubes
- Separator body
The magnetic core consists of magnetic rods, placed in stainless steel protective tubes. Thanks to this "tube in tube" system, the magnetic rods are protected and their lifetime is significantly extended. This also eliminates the risk of flaking off a piece of magnet or its nickel plating and subsequent contamination of the cleaned material.
The magnetic component is equipped with magnetic rods, formed with the strongest neodymium magnets. These magnetic rods create an ingenious labyrinth so that the medium to be cleaned is in contact with several magnetic rods. Thanks to this cleaning labyrinth and the applied strong neodymium magnets, the maximum efficiency of the magnetic separator is ensured - we can capture ferromagnetic impurities starting with 1 µm!
Fixation of the magnetic component to the separator body is ensured by a fast clamp. This makes the separator very quick and easy to clean.
There is a lock of the magnetic rods integrated in the separator, protecting it from an unintentional cleaning. This is often required by auditors to ensure the safety of the cleaning process.
How will be the separator cleaned?

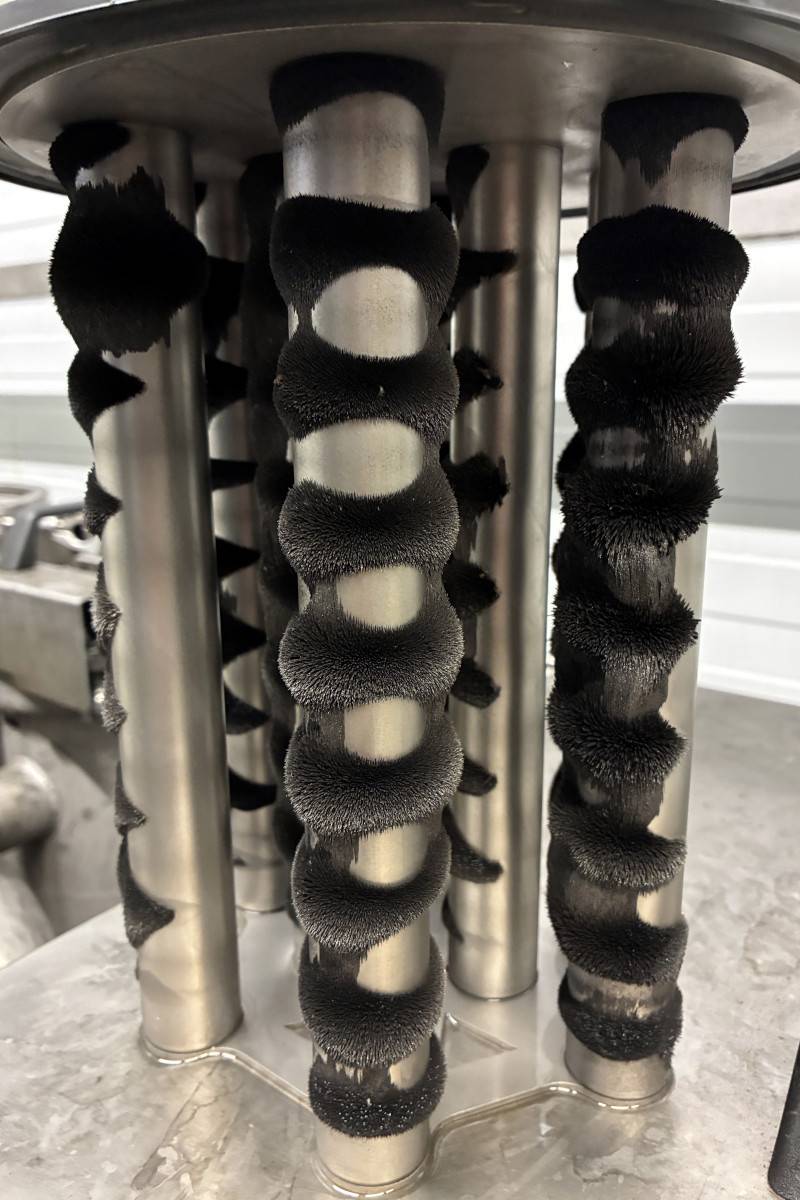

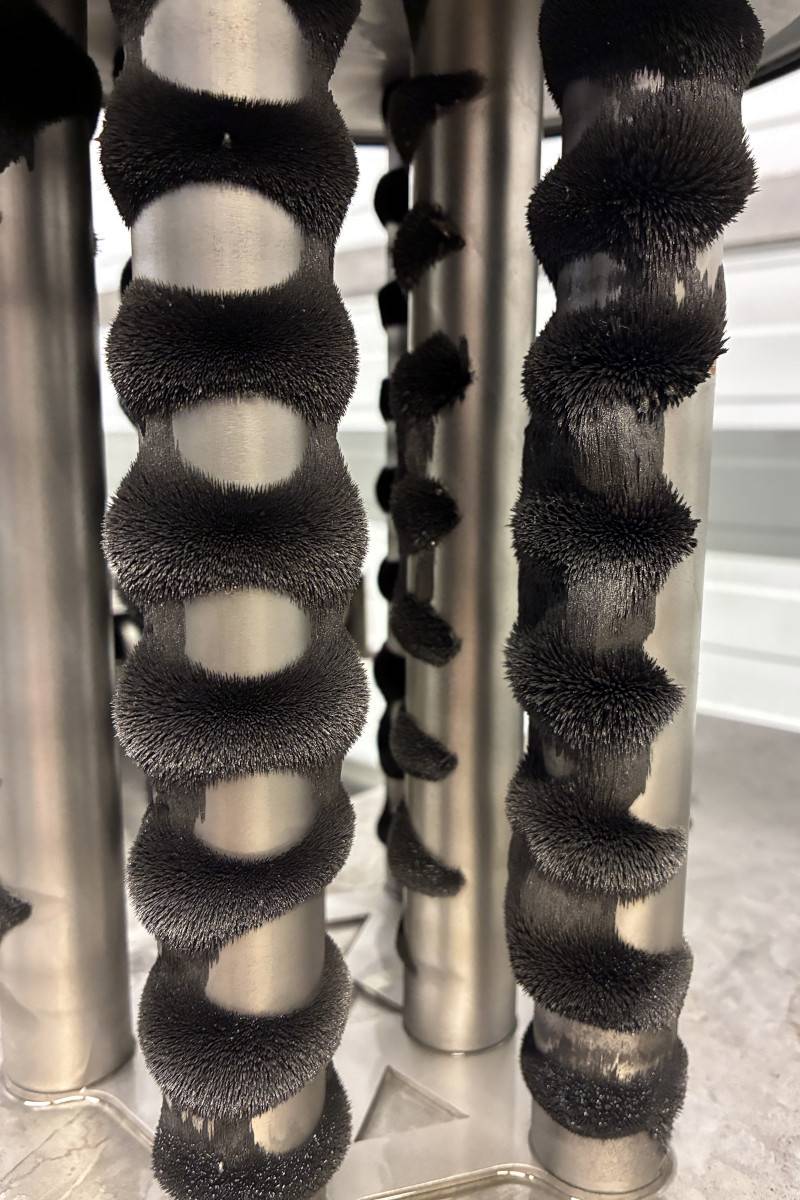

Ferromagnetic particles are trapped on magnetic rods being in contact with the separated material. Cleaning the magnetic filter is very easy and quick. It is performed in several steps:
- Release the fast clamp
- Pulling the magnetic component out of the separator body
- Removing the magnetic cores from the stainless steel protective tubes (metal particles fall off)
- Reverse assembly
SOLLAU – our products are welded by real professionals!
SOLLAU certifications:
Authorization to perform welding on pressure equipment according to PED 2014 / 68 / EU
Pressure welder certificate according to EN-ISO 3834 - 2, EN 1090 - 2, EN 13480 - 1 to 5, EN 13445 - 1 to 5
Exchange of magnetic rods
The design of the magnetic separator allows for easy replacing of the magnetic rods (damaged e.g. by improper handling). This exchange is really easy - just loosen one screw and replace the rod. Therefore, no manufacturer's service intervention is required.
We offer the separator MSP-S with three different surface finishes:
- sandblasted (Ra 1.6 µm)
- internally polished (Ra 0.14 µm)
- fully polished (Ra 0.14 µm)
MSP-S OCTOPUS
- Low weight = easy handling
- 11 500 G at the point of contact with the material to be cleaned
- Optional variant – 16 000 G
- Pressure resistance up to 10 bars
- High pull-off force
- Integrated lock of magnetic rods
Is designed to separate magnetic iron contamination from a rapid stream (up to 25 m/s) of dry substances of good bulk properties.
| Product | Input/output diameter (mm) | Datasheet |
|---|---|---|
| MSP-S 50 N OCTOPUS | 50 | display PDF |
| MSP-S 65 N OCTOPUS | 66 | display PDF |
| MSP-S 80 N OCTOPUS | 80 | display PDF |
| MSP-S 100 N OCTOPUS | 100 | display PDF |
| MSP-S 125 N OCTOPUS | 125 | display PDF |
| MSP-S 150 N OCTOPUS | 150 | display PDF |
| MSP-S 200 N OCTOPUS | 200 | display PDF |
Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.
- How the MSP-S 150 N magnetic filter with 16,000 G extended pump service life and stabilized operation (case study)
- Separation of metals in the production of chocolate
- Pure liquid ammonia thanks to the Pipeline magnetic separator MSP-S 50 N OCTOPUS (case study)
- From transport tanks to silos without ferrous contaminants: Magnetic separators in the pasta production (case study)
Why magnetic traps by SOLLAU?
Download PDF
(Size 768 kB)
The MSP-S is a magnetic separator designed to remove ferromagnetic contaminants from bulk materials conveyed through pipelines — typically flour, sugar, spices or plastic granules. We install it in both pressure and suction pneumatic pipeline systems; it withstands pressures of 6 to 10 bar as standard, and higher-pressure versions are available on request.
The magnetic rods are made of neodymium and create a flow-through labyrinth — the separated material comes into contact with multiple magnetic rods and the separator captures ferromagnetic contaminants from 1 µm. We supply 11,500 G flux density at the point of contact with the separated medium as standard; a version with 16,000 G is available as an option.
Cleaning takes place in four steps: releasing the quick-release clamp, pulling the magnetic component out of the separator body, removing the magnetic core from the protective stainless steel sleeve — the captured metals fall away automatically — and reassembly. The "tube within a tube" system hermetically protects the magnetic cores during cleaning and in operation.
The MSP-S separator is equipped with an integrated magnetic tube lock that protects the separator against unintentional cleaning during operation. This feature is routinely required by quality auditors as part of production process safety assurance.
We manufacture separators as standard in diameters from 80 to 200 mm (50 and 65 mm on request); connection dimensions and type of connection — flange, threaded or special fittings — can be adapted to customer requirements. Surface finish is available in three versions: sandblasting (Ra 1.6 µm), internal polishing (Ra 0.14 µm) or fully polished (Ra 0.14 µm).
The MSP-S is suitable for the food industry (flour, sugar, spices), the plastics industry (granules) and all sectors where bulk materials are conveyed through pressure or suction pipelines. The separators comply with PED 2014/68/EU, EN-ISO 3834-2 and EN 1090-2 certifications.
We provide a 5-year warranty on MSP-S magnetic separators. Selected models are available for immediate delivery from stock; we also carry out free tests of your material on our magnetic separators before purchase.
Which industrial branches can the pipeline magnetic separator be use of in?
The pipeline magnetic separator finds use in food industry (for cleaning products like flour, sugar, starch etc.), pharmaceutical industry, plastic industry, chemical and ceramic industries as well as in sanitary facilities.
