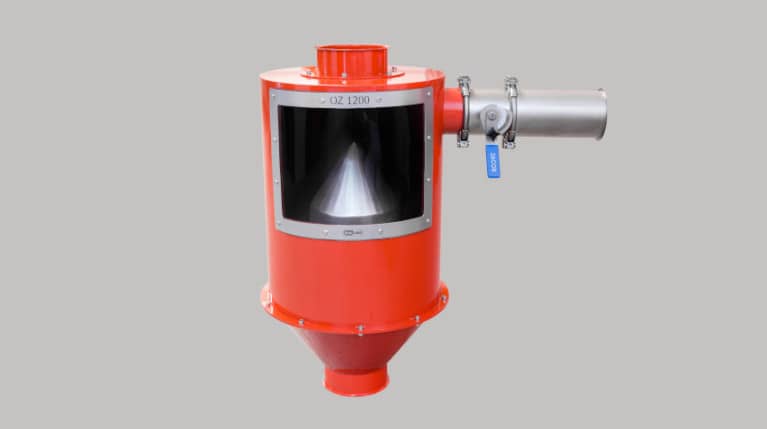

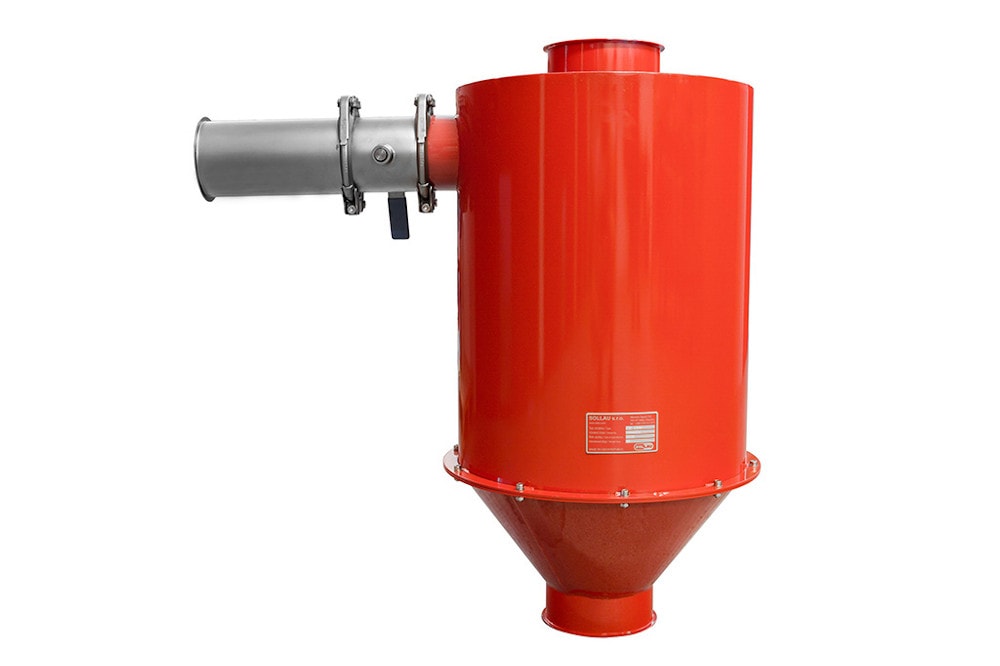

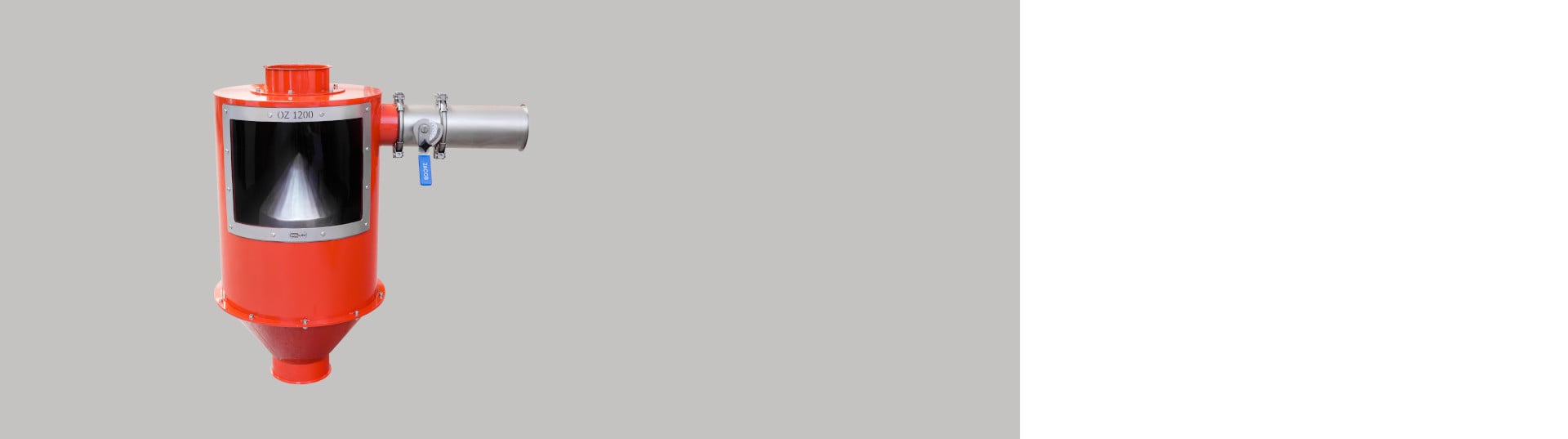

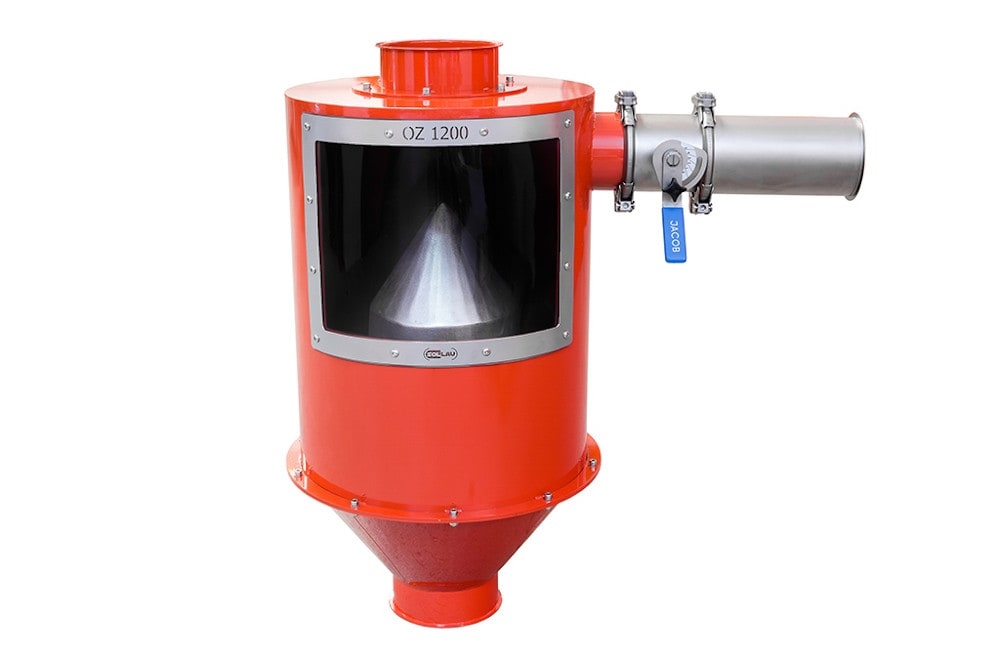

Dust collector OZ

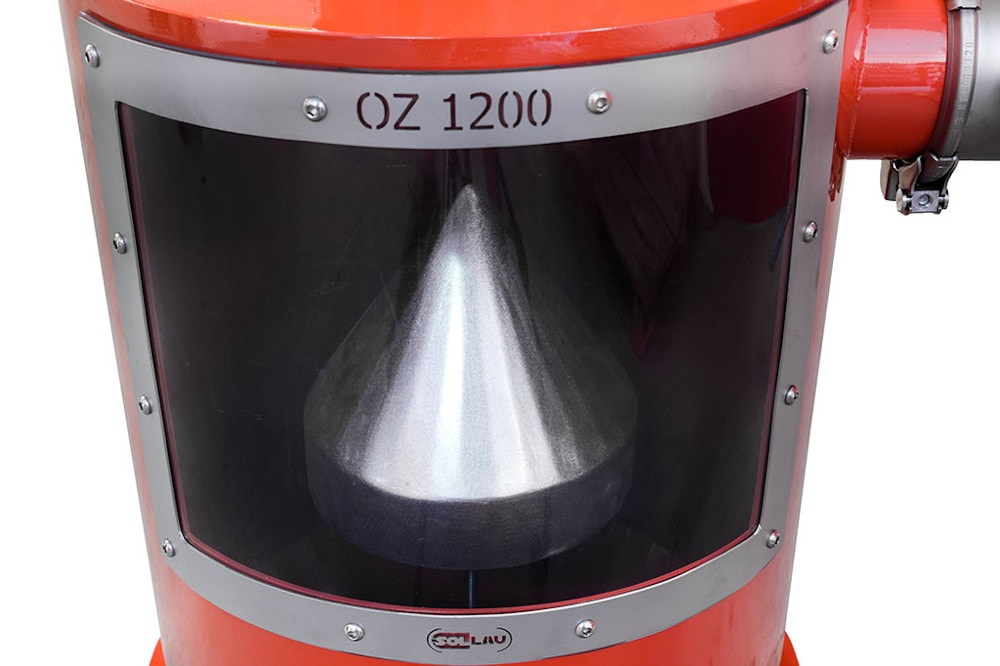

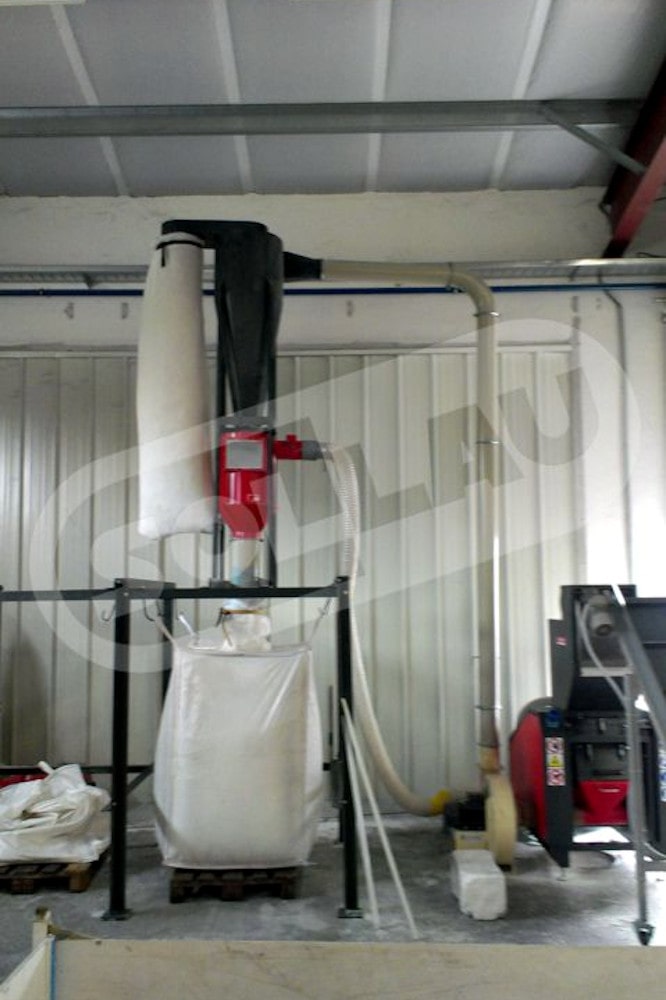

The deduster removes even the finest dust particles from plastic pellets and crushed plastic materials (that are subsequently processed by plastic extrudes & injection moulding machines). The plastic granulates flow through a sieve and over a height extendable dispersion cone into the inner part of the dust separator. The lateral draft fan pulls out of the falling material the unwanted finest dust particles. The clean material falls through the separator and is collected under the separator outlet into a collecting bin, big bag etc.
Which way does dust-collecting appliance work?

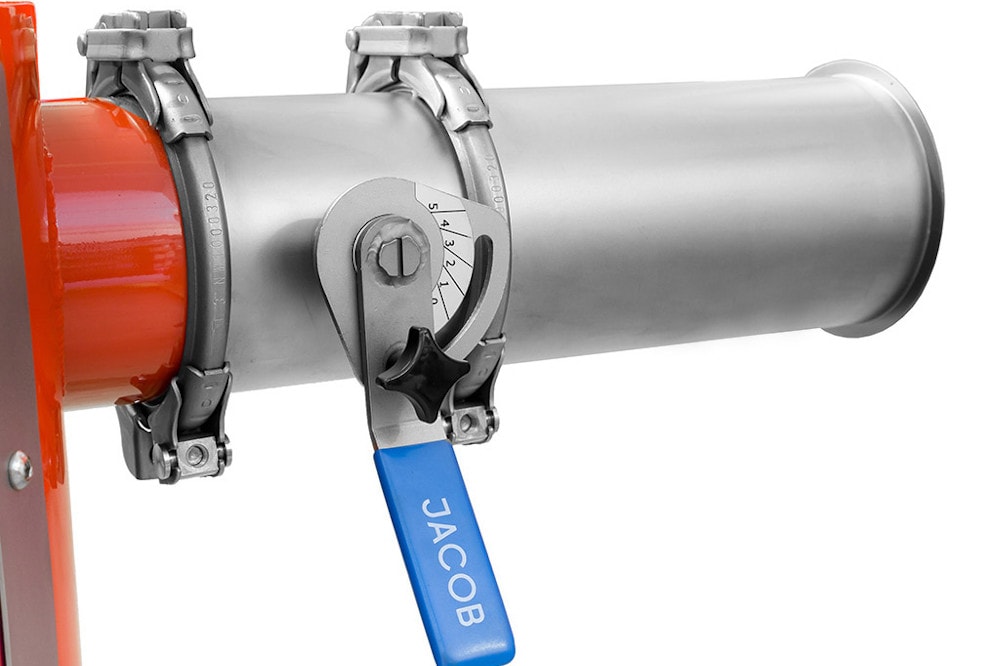

Thanks to the small dimensions and simple design the dust collector is easy to install and transport (from one application place to another without the necessity of moving the moulding machines). All the system is maintenance-free and inexpensive to acquire and operate, the draft force is adjustable, deduster does not need expensive filters and improves the working environment at client's premises.
The design as well as the size and output of the dust separator can be adjusted to client's requirements.
OZ
The deduster removes even the finest dust particles from plastic pellets and crushed plastic materials (that are subsequently processed by plastic extrudes & injection moulding machines). The plastic granulates flow through a sieve and over a height extendable dispersion cone into the inner part of the dust separator. The lateral draft fan pulls out of the falling material the unwanted finest dust particles. The clean material falls through the separator and is collected under the separator outlet into a collecting bin, big bag etc.
| Product | Capacity (kg/h) | Datasheet |
|---|---|---|
| OZ 1200 | 1 200 | display PDF |
For removing fine dust from plastic regrind, we recommend the Dust collector OZ with fully automatic continuous operation; for sampling plastic granules and regrind without opening the packaging, the Magnetic sampling rods MVT is the right choice. For sampling bulk and semi-liquid materials in a pipe system, we offer the Rotating sampler RV; for visual inspection of contamination in plastic samples, the Sample mounting press TVL.
The Magnetic sampling rods MVT are equipped with neodymium magnets that capture ferrous particles from 1 micron — sampling takes place directly inside the container without opening the packaging, keeping the material protected. The rod is 32 mm in diameter and 1,500 mm in standard length; we can adjust the length to fit your container. MVT is suitable for plastic granules, regrind and agricultural commodities.
The Dust collector OZ 1200 handles a throughput of 1,200 kg/h of regrind in fully automatic continuous operation. Side suction at the point of free fall removes fine dust directly from the material flow — eliminating the need for costly filters and reducing maintenance requirements. The unit is our own Czech-manufactured product.
The Rotating sampler RV offers a sampling ratio from 1:9 to 1:130, which you can set simply by changing the pin position. For an even lower sample share, multiple RV units can be connected in series — the ratios are then multiplied. The sampler handles material with a grain size up to 65 mm and requires a uniform material feed to maintain the set ratio accurately.
The Sample mounting press TVL melts a sample of plastic regrind, flakes or recyclate at 0–300 °C and, under pressure of up to 10 bar, produces a disc 0.5 mm ±0.1 mm thick that is suitable for visual inspection. The unit consists of three modules — temperature control with touchscreen, pressing unit, and optional water-cooled circuit; modules can be purchased separately. TVL is a cost-effective alternative to expensive laboratory equipment for small and medium-sized plastics processors.
The Rotating sampler RV is supplied with standard inlet diameters of 50–250 mm; we adapt the connection to flange, threaded or special fittings to match your line. The granulator blower is equipped as standard with a Jacob quick-release connector DN100; on request, we manufacture it for other pipe diameters. Both products are manufactured in the Czech Republic.
The Dust collector OZ and Magnetic sampling rods MVT are intended primarily for the plastics industry and recycling; the Rotating sampler RV is used in cement plants, lime works, and the mining, chemical, pharmaceutical and food industries. The Sample mounting press TVL and the granulator blower are aimed at plastics manufacturers and processors operating their own recycling or grinding lines.
Which industrial branches can the dust collector be use of in?
The dust collectors find use e. g. in recycling and plastic industry.
