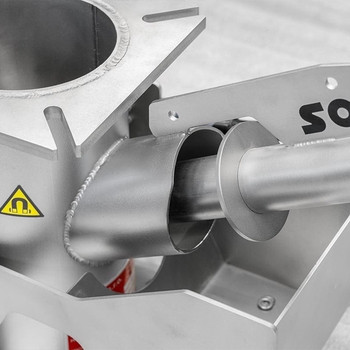

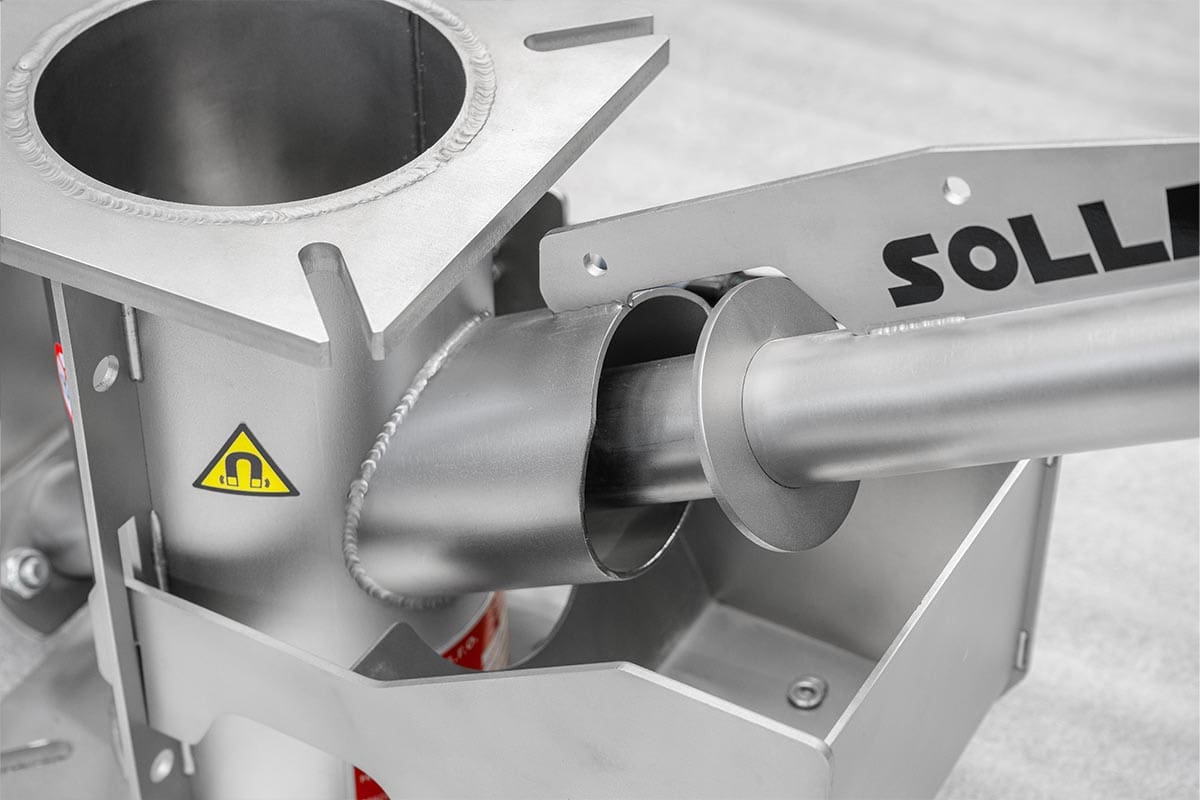

Magnetic separator with automatic cleaning MSS-AC WORM
The cheapest automatic magnetic separator on the market! Automatic cleaning without compromises in quality, magnetic induction of 9,000 G and robust stainless-steel construction – all at a price unmatched by competitors.
- Automatic magnetic separator at the lowest price on the market
- Reinforced body for installation under a hopper
- Reliable separation even when completely filled with material
- Automatic cleaning at intervals from 1 min to 10 h
We will test your material within 3 days – free of charge
The cheapest automatically cleaned magnetic separator on the market
MSS-AC WORM brings fully automatic magnetic separation at a price with no competition on the market.
It offers professional performance, stainless-steel construction and a magnetic induction of 9,000 G – with no compromise in quality. The separator captures Fe contaminants from 30 microns!

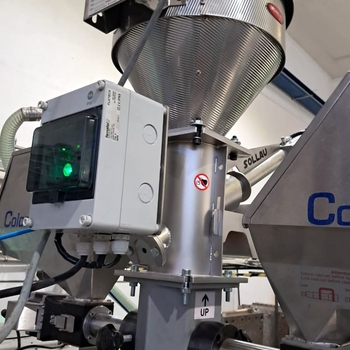

The reinforced body is designed to support a column of granulate as well as the entire hopper (approx. 200 kg). The separator can therefore be installed directly under the injection moulding machine hopper without the need for additional supports.

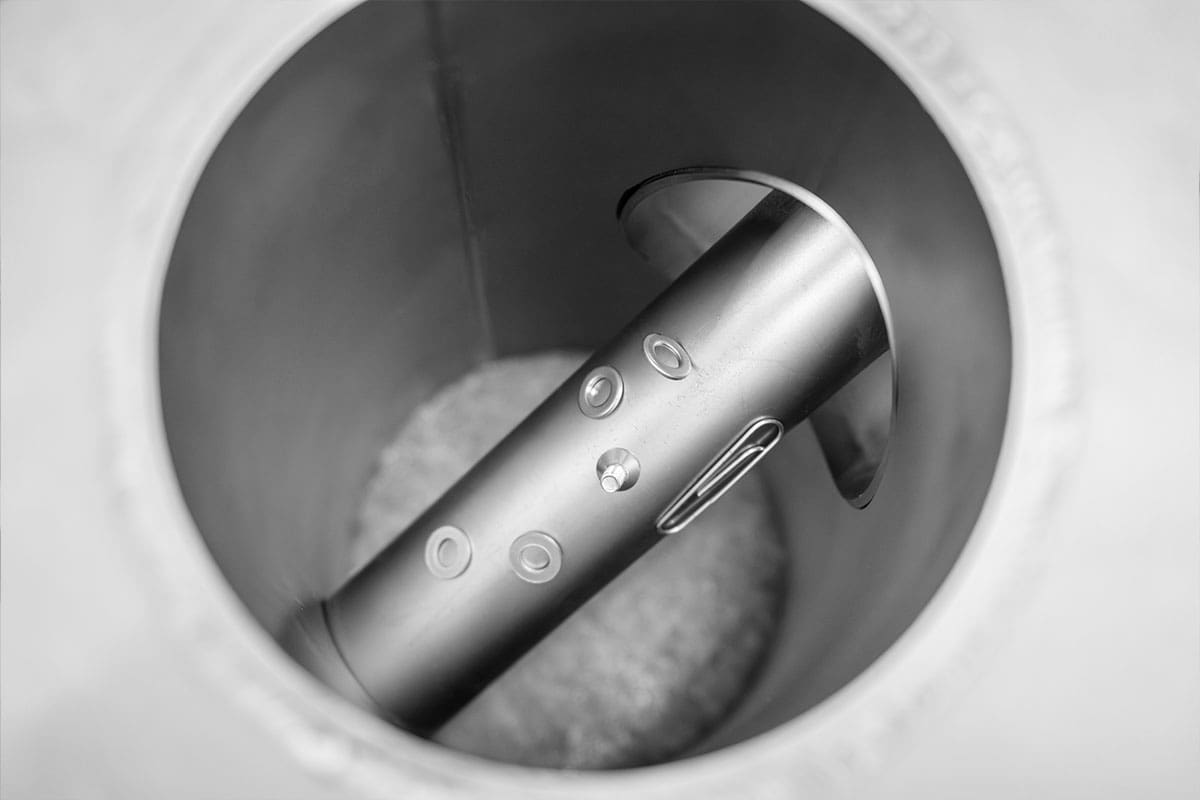

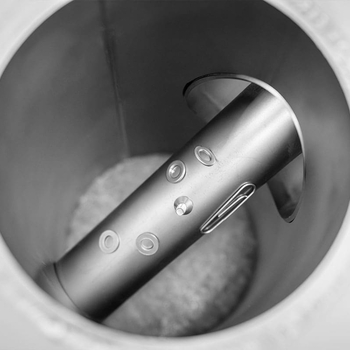

It works reliably even when completely filled with material. It continuously captures metal contaminants from the granulate without the need to maintain a free passage. There is no need to interrupt the material flow during separator cleaning!

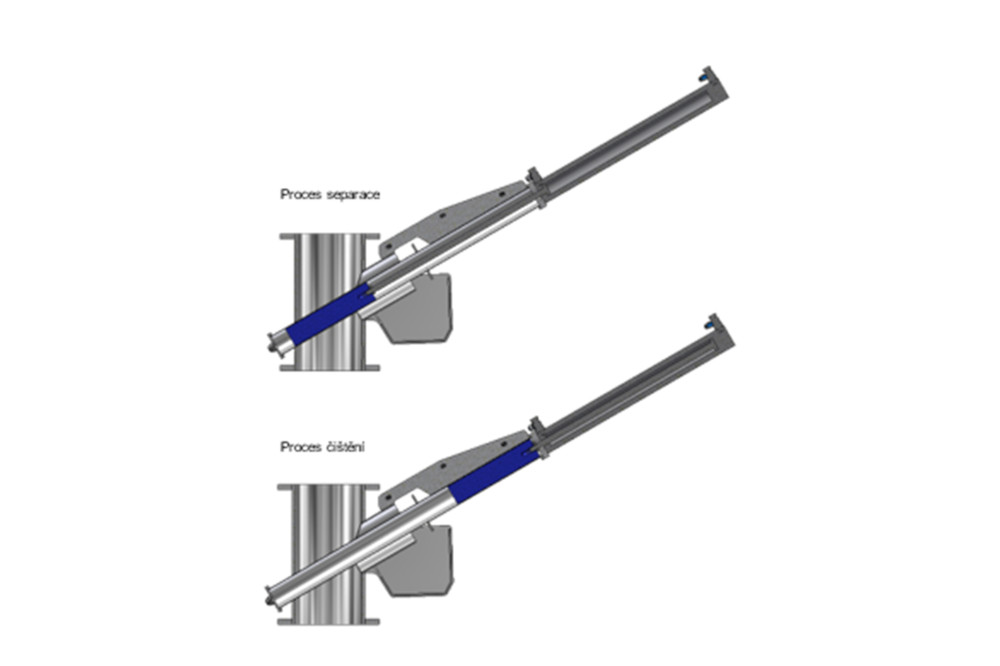

Automatic pneumatic or electric cleaning takes place at your set interval from 1 min to 10 h. Production therefore runs without interruption and without operator intervention.
It is most commonly used in the plastics industry – in plastic injection moulding or extrusion. However, it is also used in other industries where metal contaminants need to be reliably captured from bulk materials.
Two types of automatic magnetic separators MSS-AC WORM

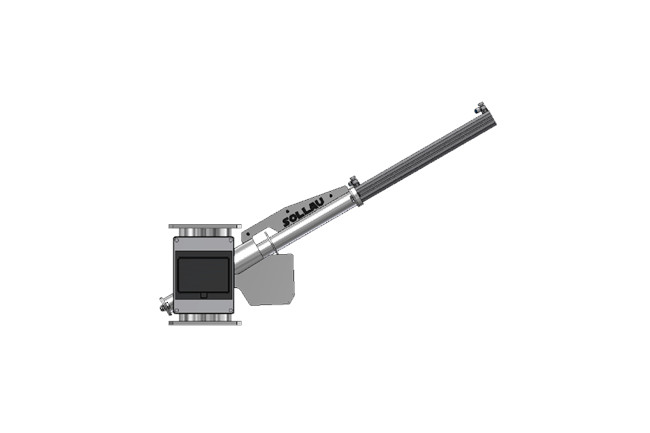

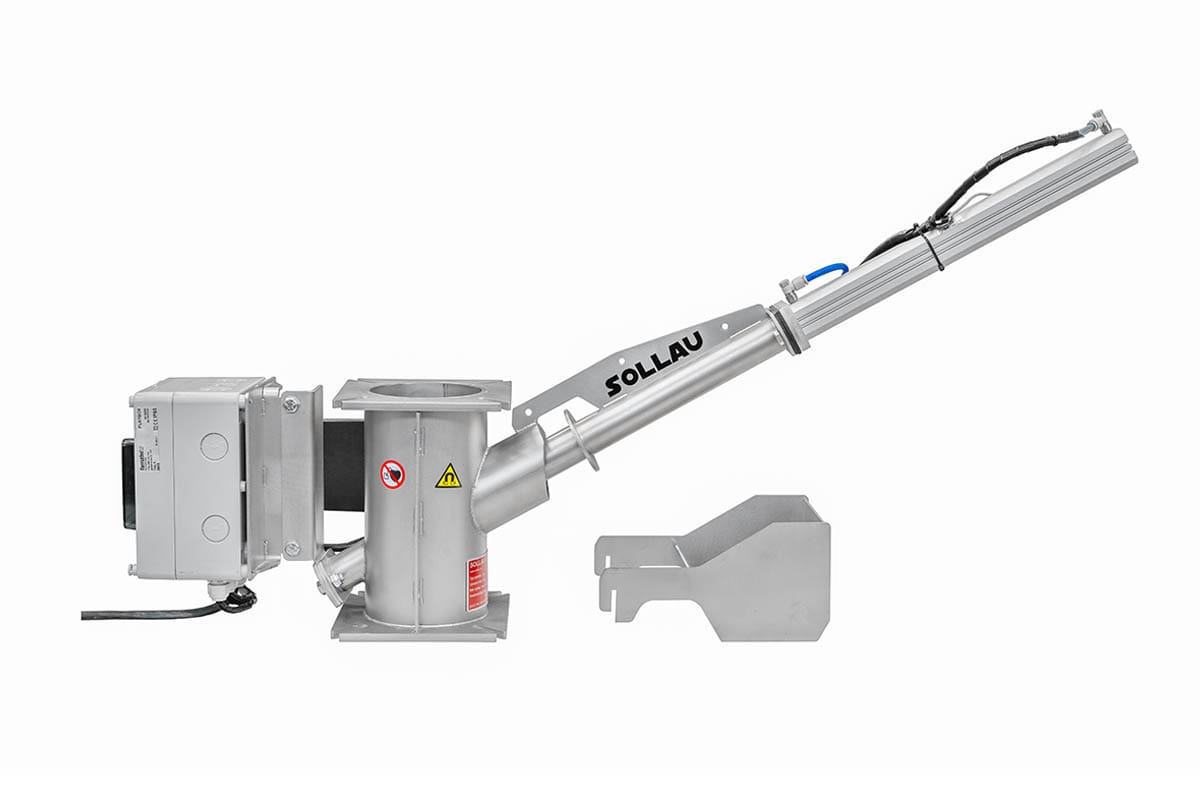

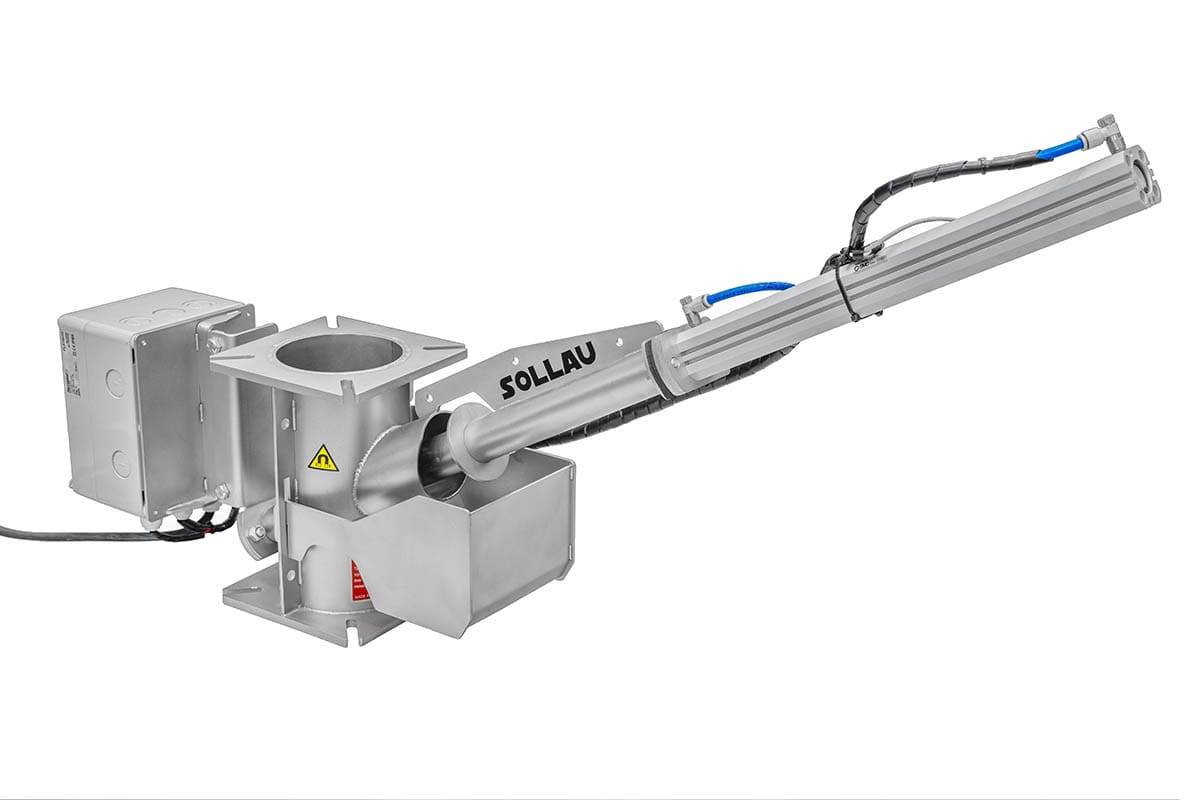

Automatic separator MSS-AC WORM PNEU

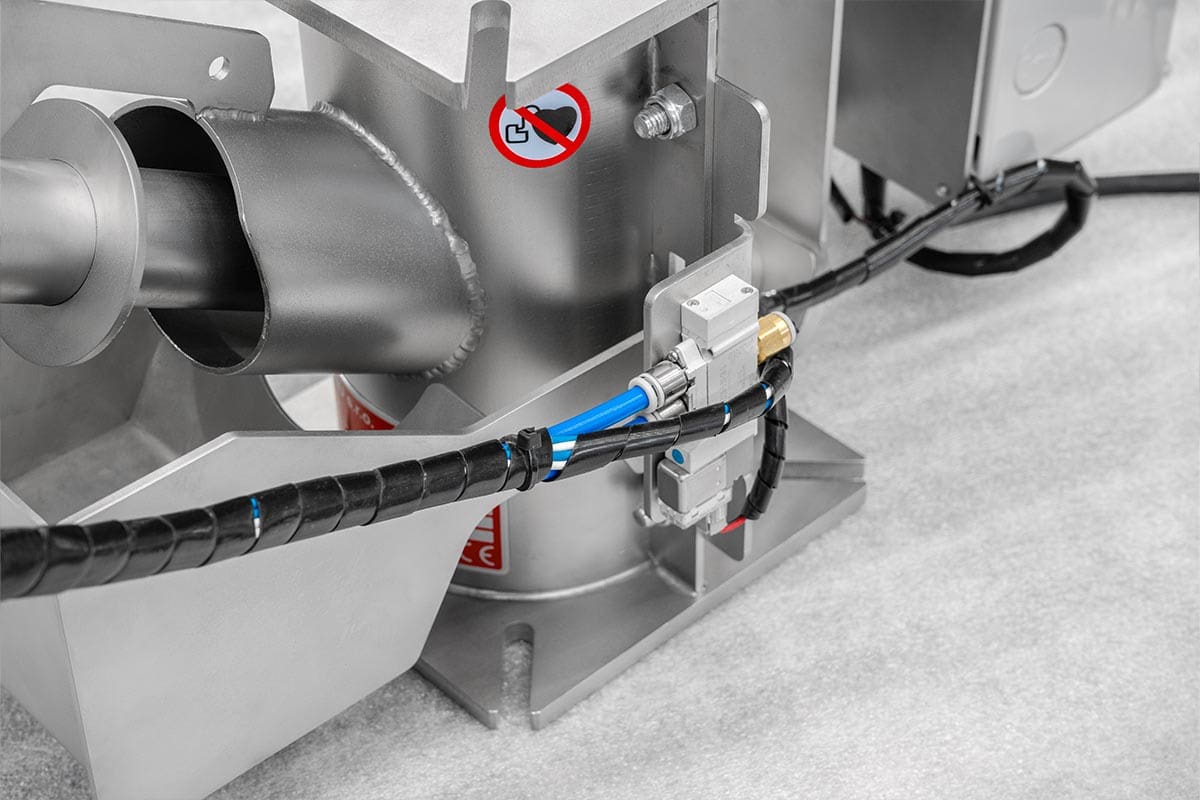

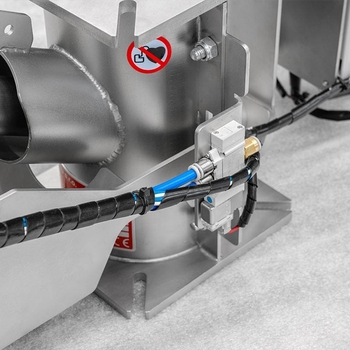

- Automatic cleaning - pneumatic cylinder
- Optional position of the pneumatic cylinder
- High efficiency – 9,000 G magnets

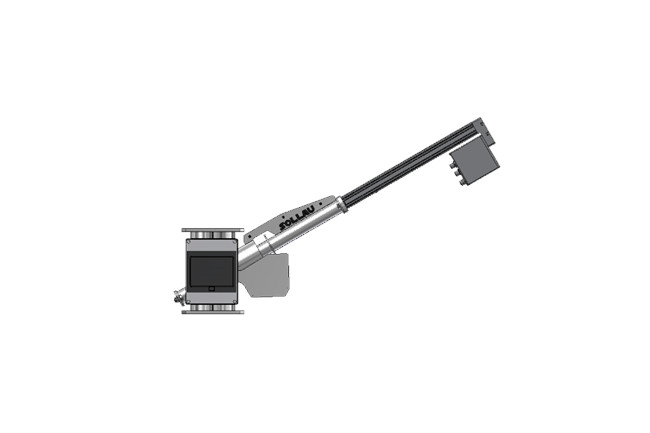

Automatic separator MSS-AC WORM ELE
- Automatic cleaning – electric actuator
- Optional position of the electric cylinder
- High efficiency – 9,000 G magnets
Not enough space to install the separator? Adapt it to your conditions!
The MSS-AC WORM separator is designed to be installed most often directly under the injection moulding machine hopper. Thanks to the installation height of only 220 mm, it can also be placed in areas with limited height.
In some cases, however, the installation space may be very tight and the pneumatic cylinder (PNEU version) or the electrically driven cylinder (ELE version) may obstruct installation.

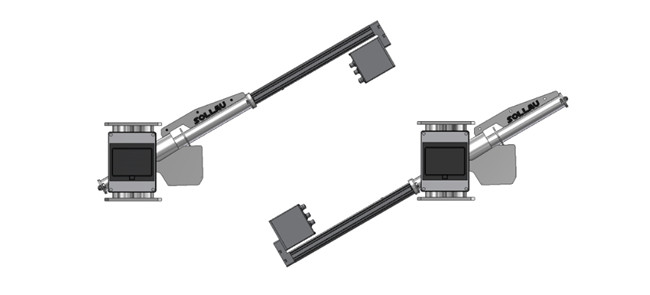

The solution is simple. The cylinder position can be easily adjusted according to the specific installation conditions – the cylinder can be placed in the upper or lower part of the separator. This allows you to adapt the device exactly to the available space.
How does cooperation work?
1.We will come
2.We will measure and design
3.We will manufacture to measure
4.We will install
5.We will commission and train
6.We will provide authorized service

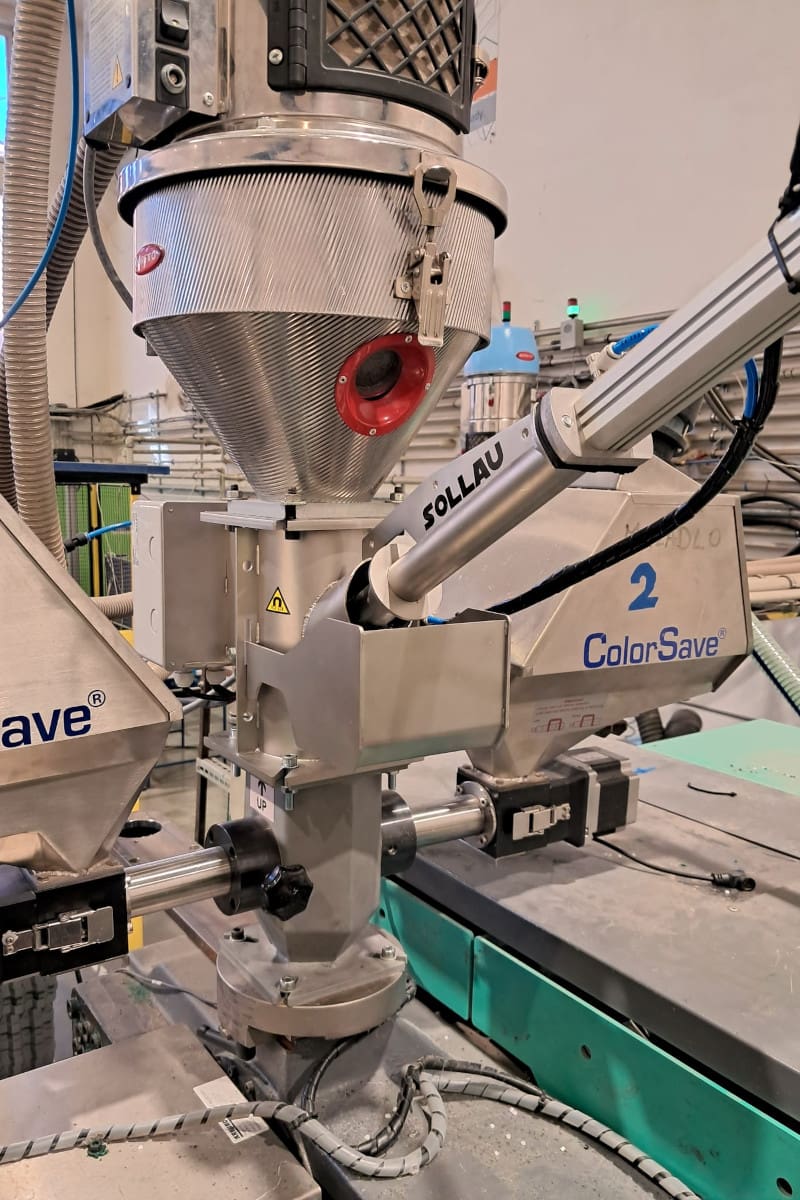

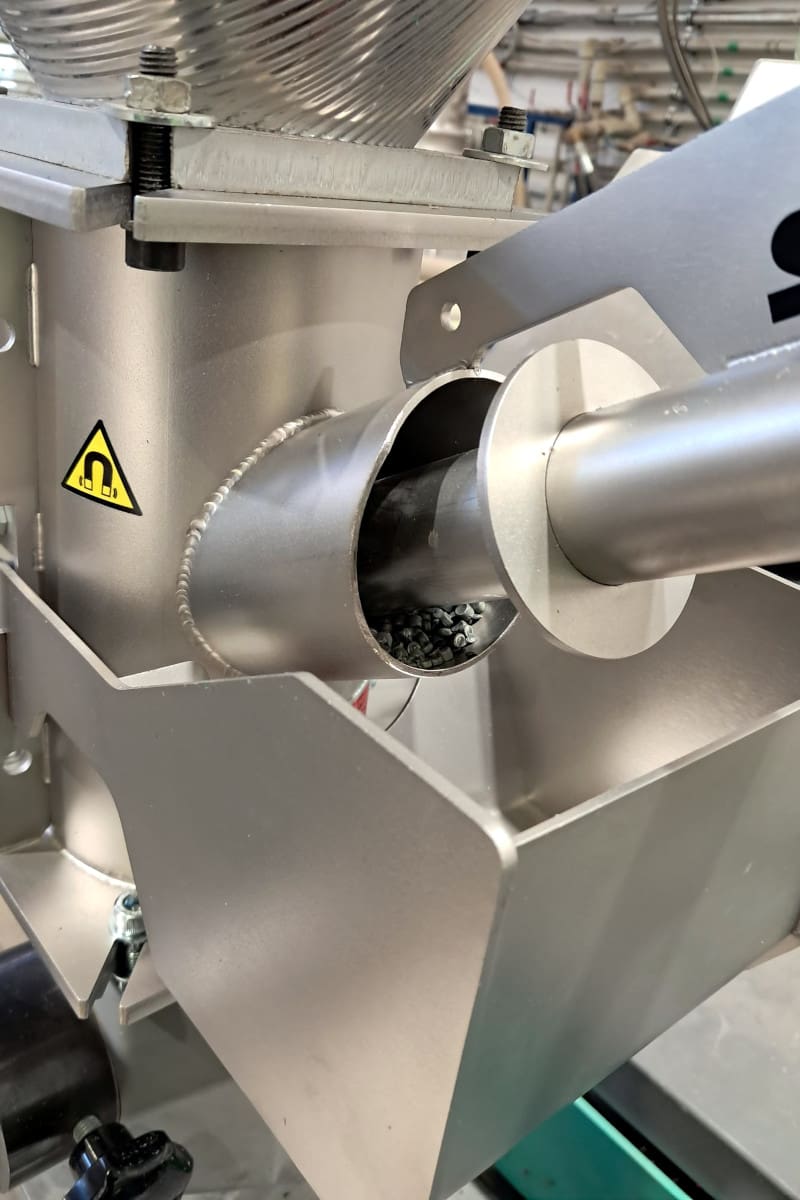

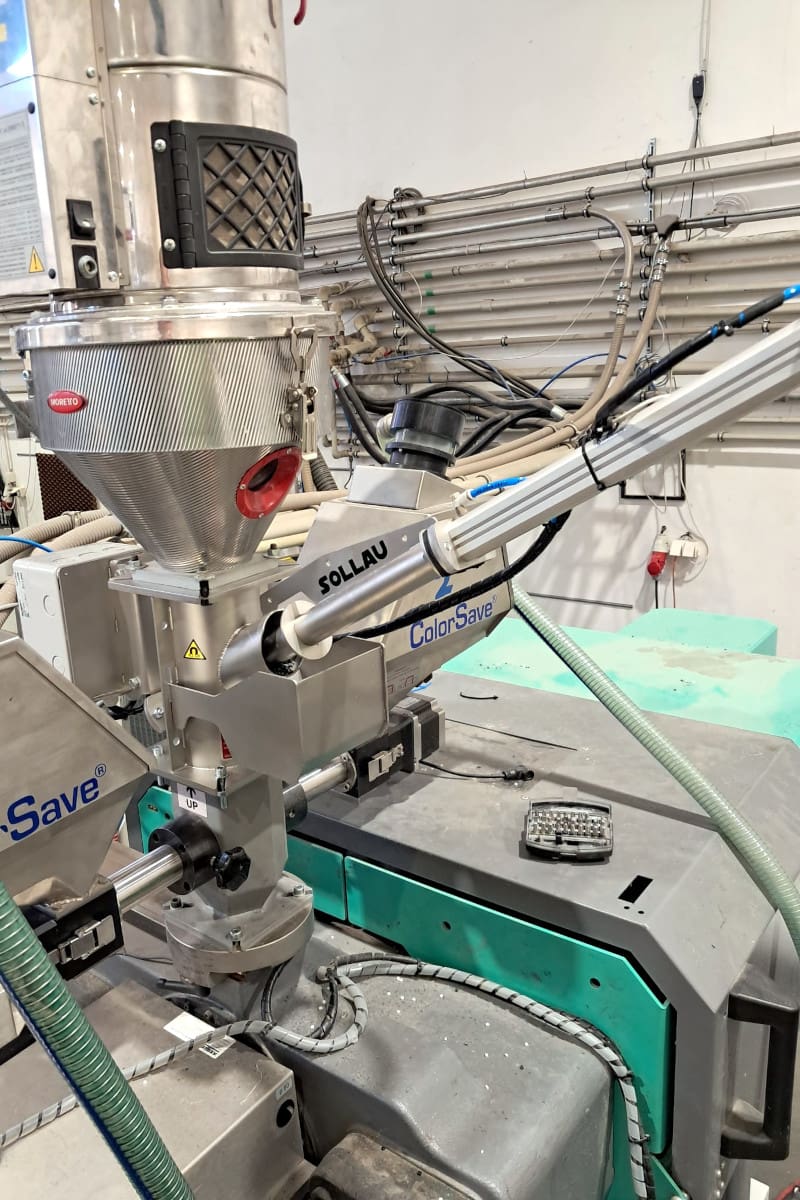

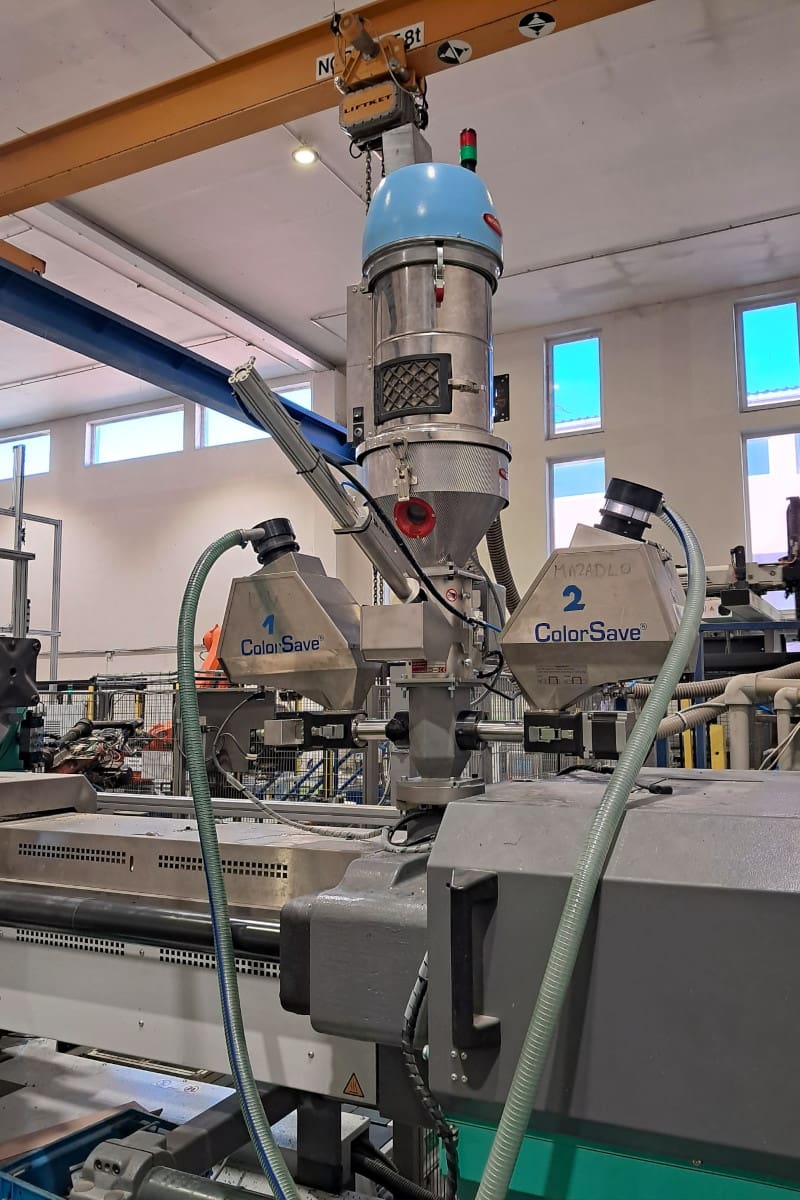

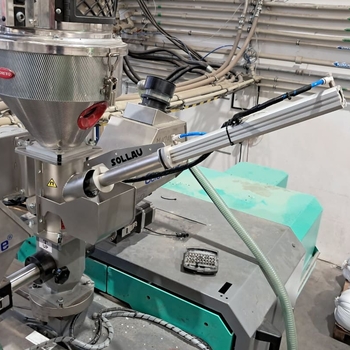

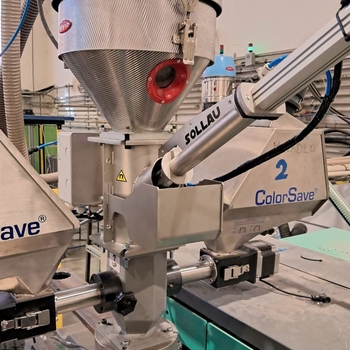

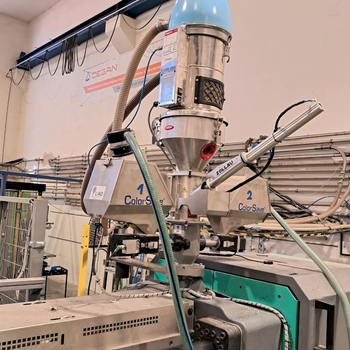

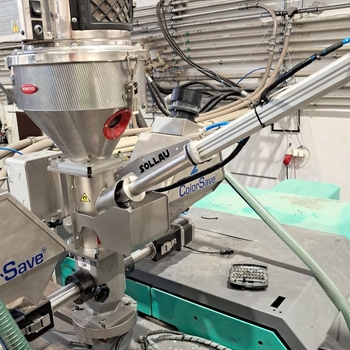

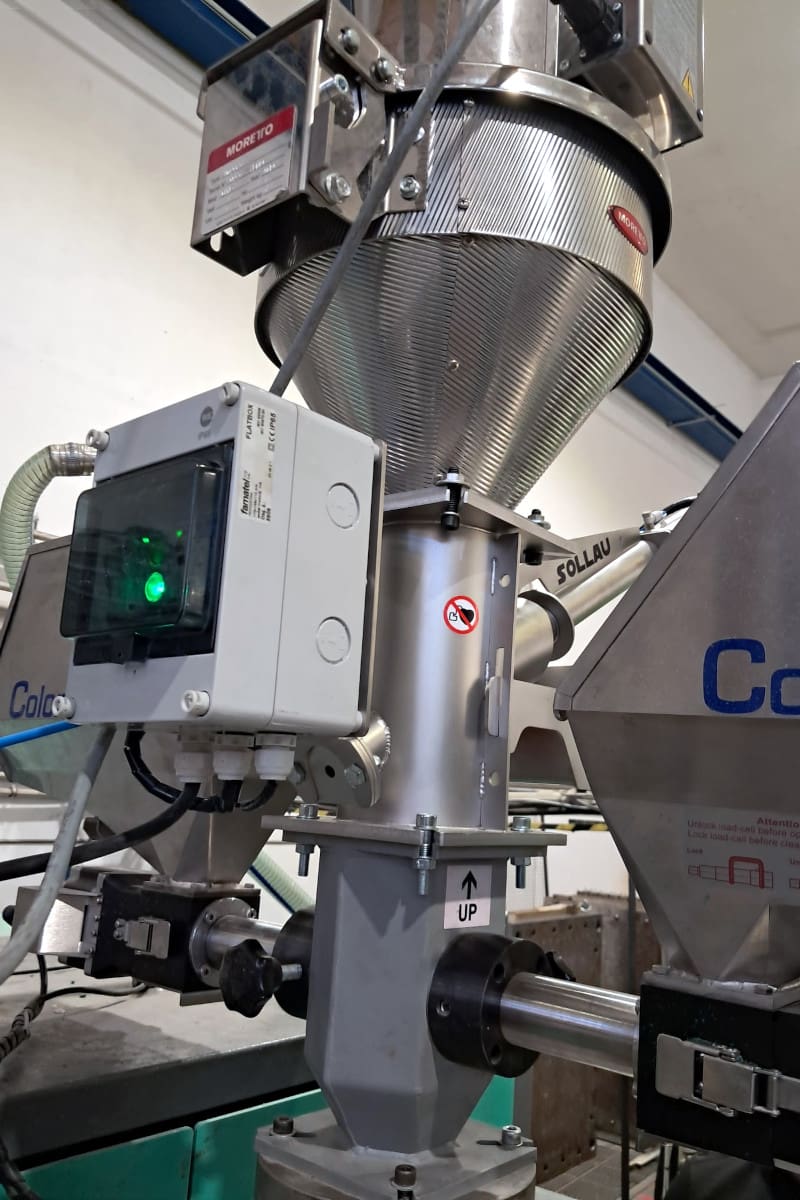

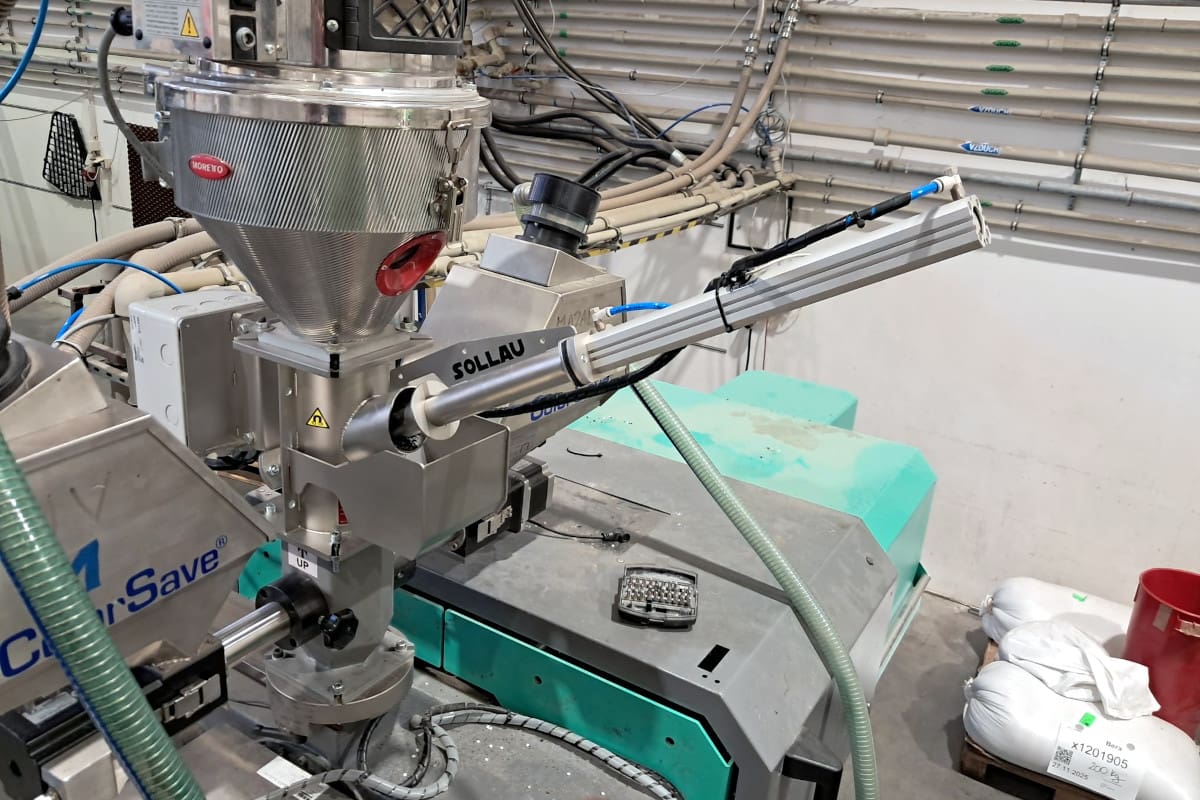

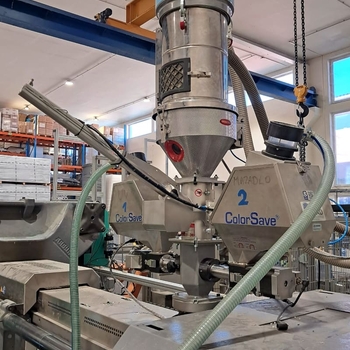

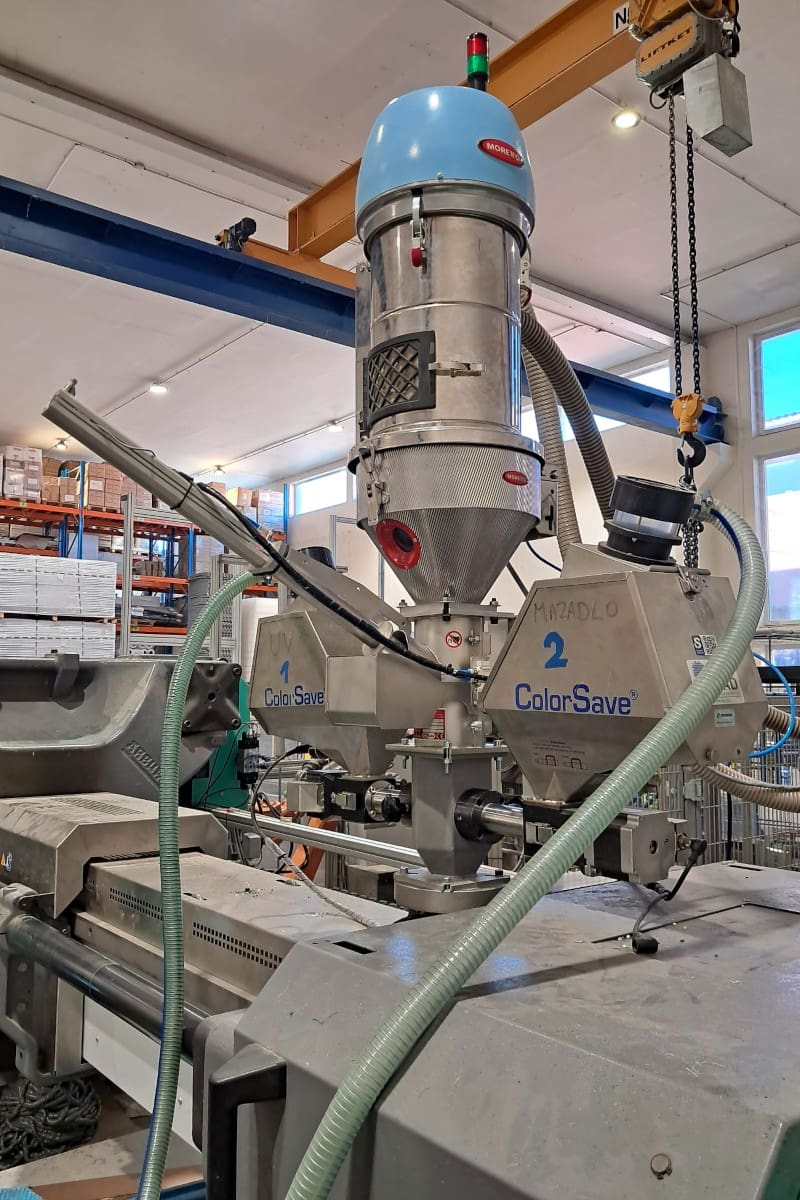

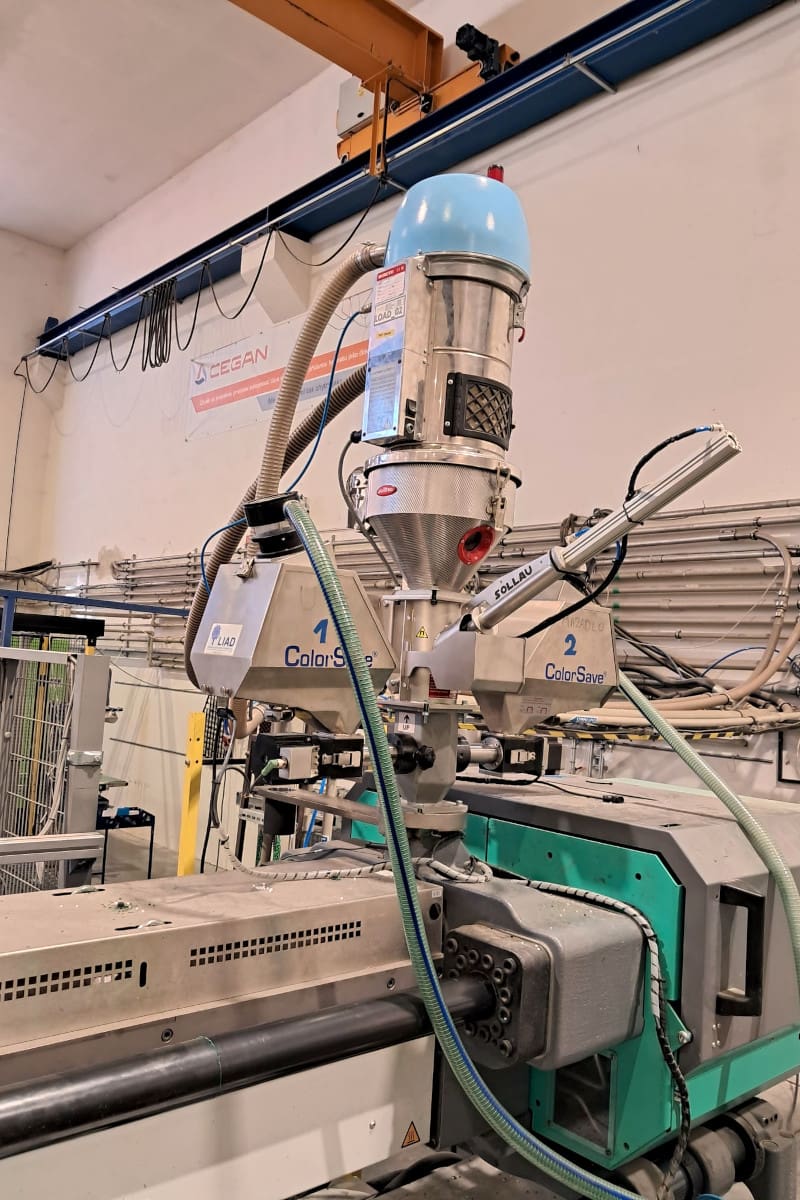

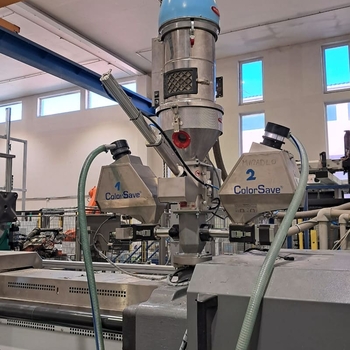

Photo gallery from installations

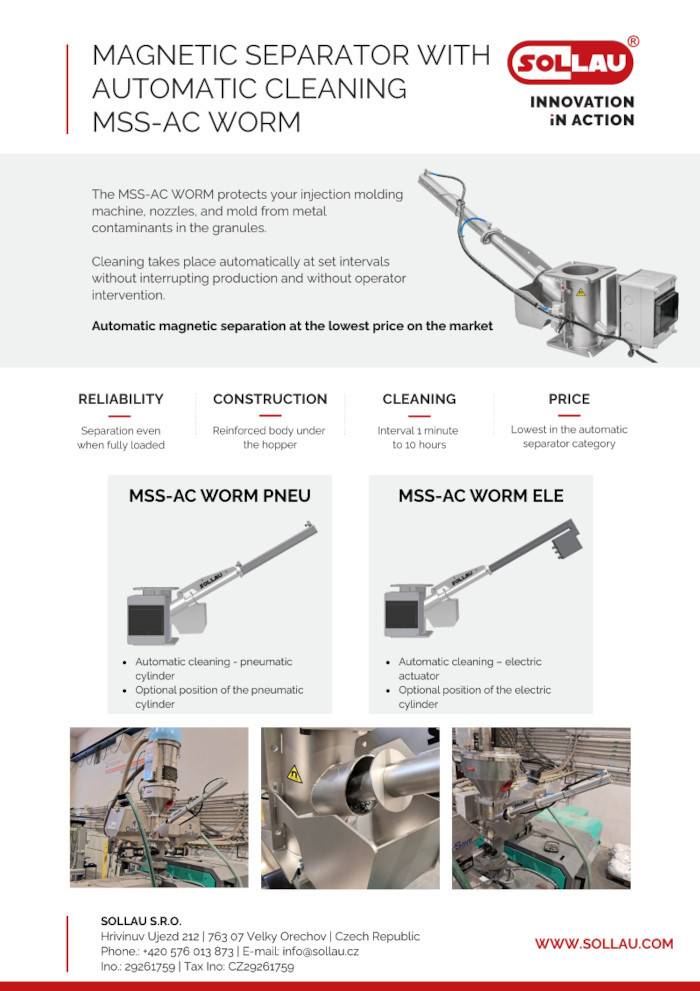

Technical documentation for download
Automatic magnetic separator MSS-AC WORM
| Model | Diameter (mm) | Weight (kg) | Data sheet |
|---|---|---|---|
| MSS-AC 100 WORM | 100 | 15 | display PDF |
Frequently asked questions (FAQ) – automatic magnetic separators MSS-AC WORM
The MSS-AC WORM separator captures ferromagnetic metal contaminants (filings, burrs, tool fragments) from plastic granulate before it enters the injection moulding machine. It protects the injection screw, injection nozzles and mould from damage and prevents rejects caused by metallic contaminants.
The separator is designed as a compact and structurally efficient device without unnecessary extras. The result is full functionality – automatic cleaning, reinforced stainless-steel body, 9,000 G – at a manufacturing price unmatched by competing automatic separators.
Ferromagnetic particles from 30 microns up to 12 mm, including random pieces – screws, filings, fragments from production or material transport.
Yes. MSS-AC WORM is designed so that separation takes place reliably even when the entire internal volume of the pipe is filled with granulate. There is no need to maintain a free passage.

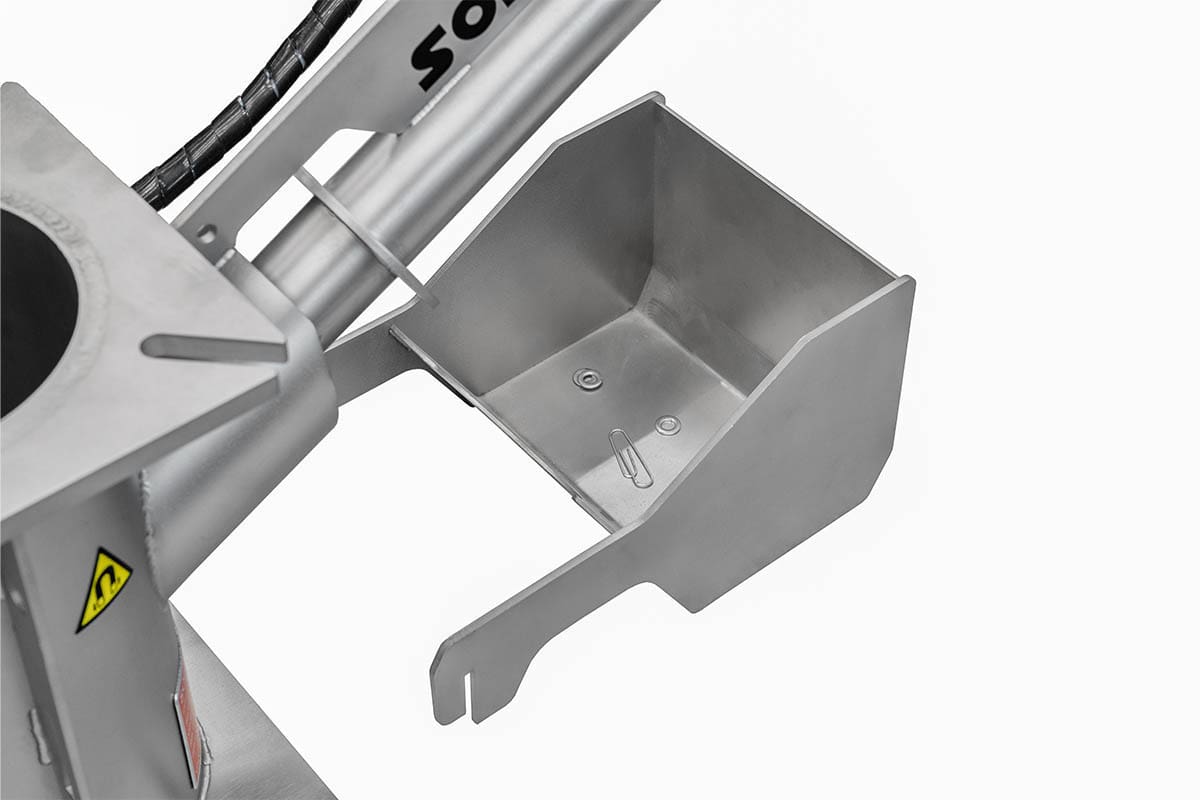

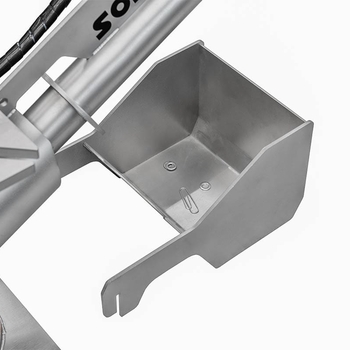

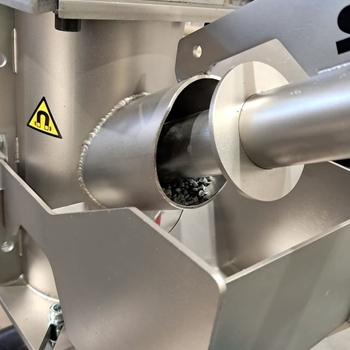

Cleaning takes place automatically at a set interval (1 min – 10 hours). Captured contaminants fall into an easily removable collection box.
Do you have a question?
Are you interested in the possibilities of using a magnetic separator?
Would you like to discuss modifications, custom adjustments or price?
Write to us and we will get back to you within 24 hours.
