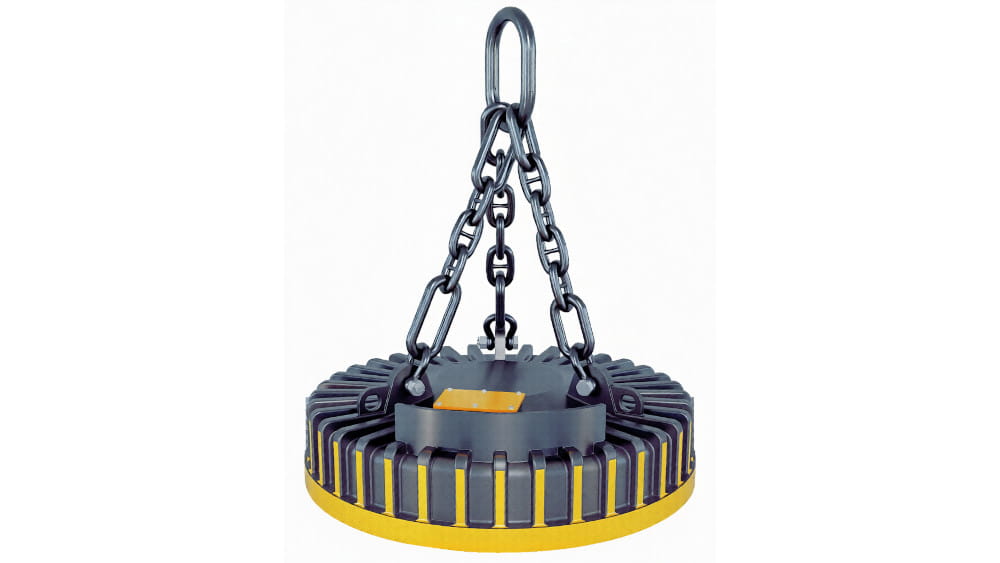

Scrap electromagnet circular EMG-SM
Circular scrap electromagnet for fast and reliable scrap handling, designed for continuous operation thanks to its durable cast-iron body. In stock with rental option available.
- Durable cast-iron electromagnet body
- Highly reliable coil with high-quality insulation
- Reinforced magnet protection for long service life
- Electromagnets in stock, rental option available
We will test your material within 3 days – free of charge

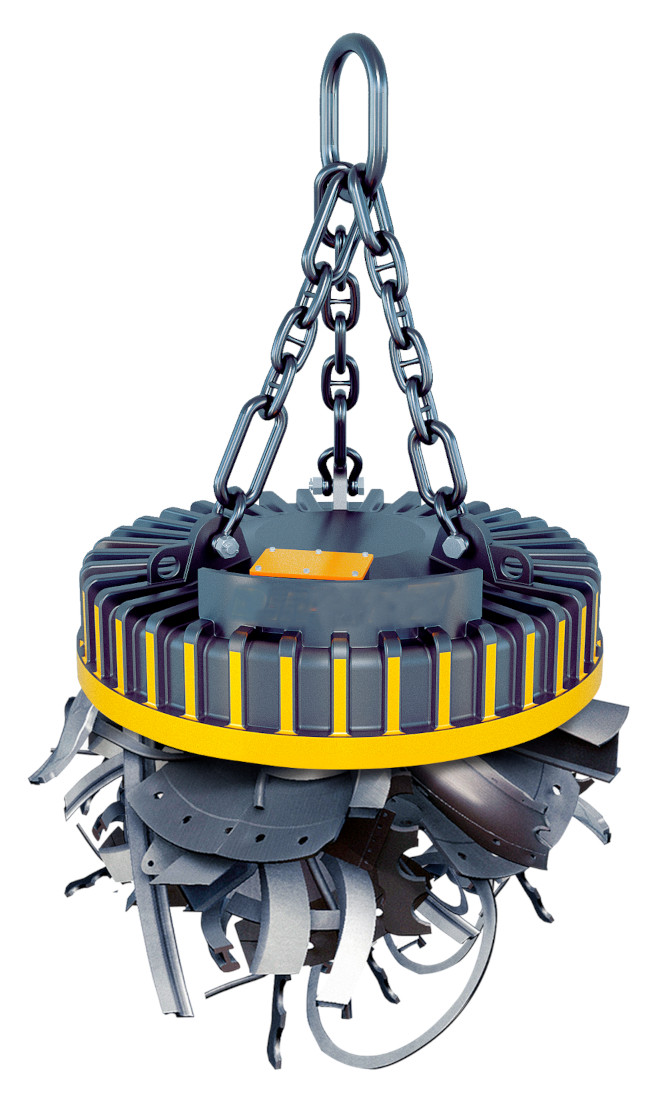

EMG-SM scrap electromagnets are robust circular crane magnets specially designed for handling metal scrap, steel chips or cuttings. They are mainly used in scrapyards, steel mills, foundries and recycling plants, where they ensure fast and efficient handling of ferromagnetic material.
The magnets are specially designed for scrap handling. The EMG-SM series is built for continuous industrial operation with a 75% duty cycle (24/7) and includes several sizes with diameters of 850–1850 mm and a breakaway force of up to 66,000 kg.
The durable design ensures reliable operation even in demanding conditions. The electromagnet body is made as a single-piece cast-iron casting (not a welded structure) with cooling ribs, ensuring high strength, efficient heat dissipation and preventing moisture from penetrating the magnet.
A high-quality coil with reinforced insulation minimizes the risk of short circuit. Stable performance is supported by a thermal insulation layer for handling material up to 650 °C, while magnet protection is ensured by a potting compound and reinforced bottom plate, which extend its service life.

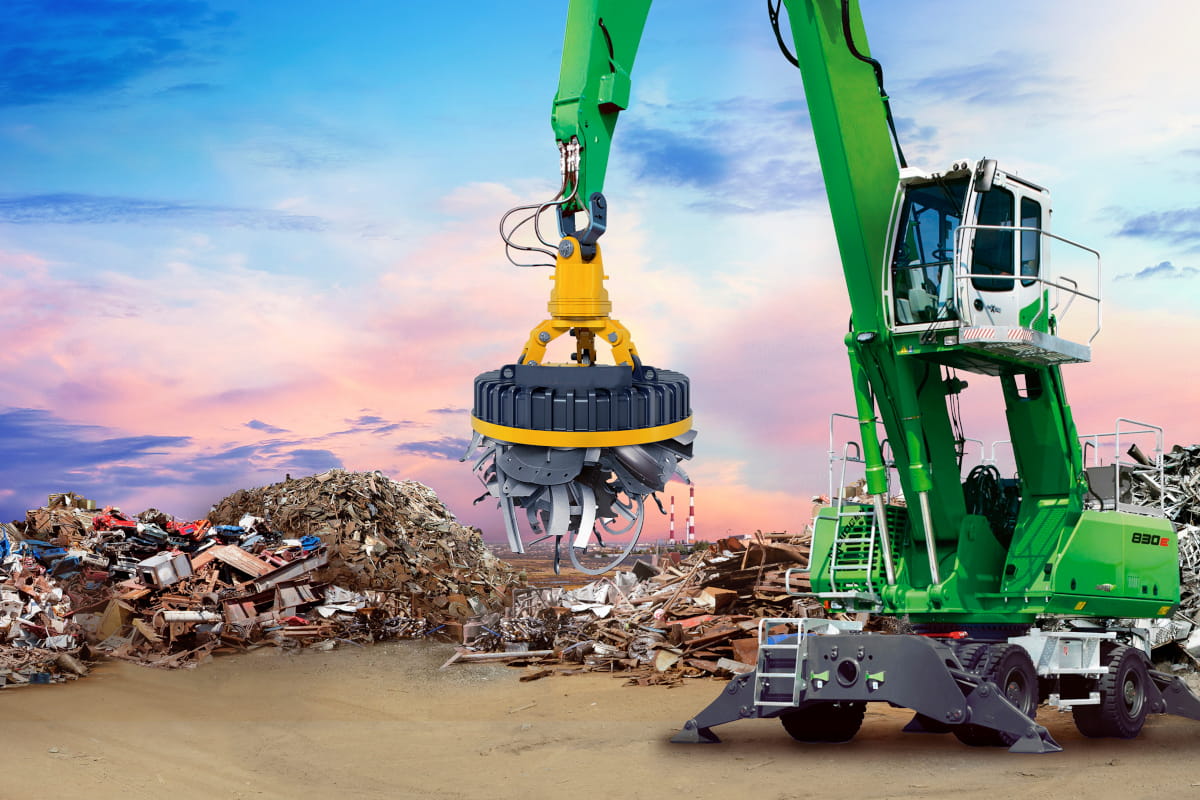

The electromagnet is suspended from the crane hook of a gantry crane, bridge crane or mobile handler using a universal suspension system and is powered by a generator or electromagnet control system.

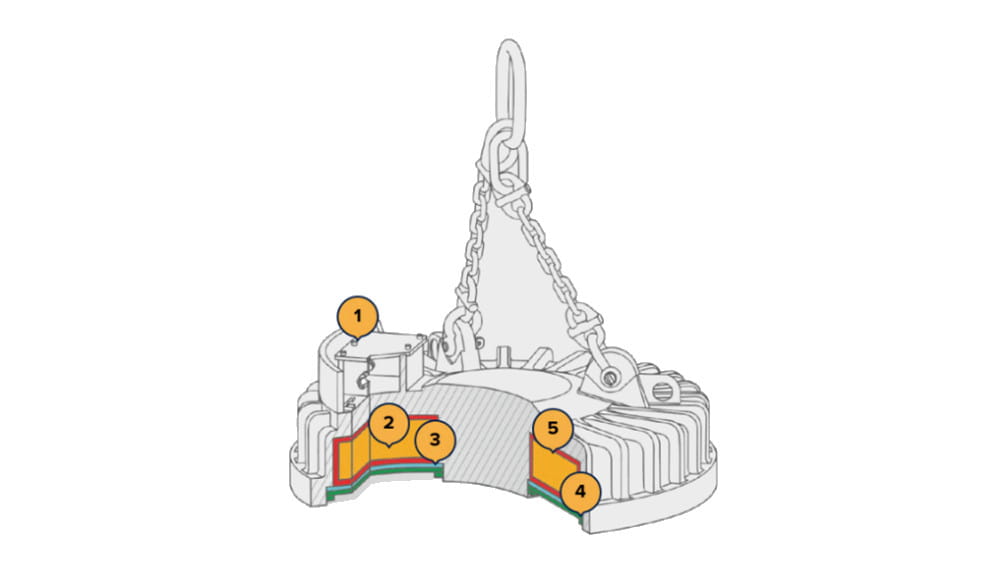

Scrap electromagnet – main advantages
The electromagnet body is made as a single-piece cast-iron casting with cooling ribs, ensuring high strength and efficient heat dissipation. Unlike welded structures, it is more durable and better sealed, preventing moisture from entering the magnet and damaging the coil.
The coil is made of a high-quality conductor with reinforced insulation, which significantly reduces the risk of turn-to-turn short circuits. This design increases the overall reliability of the device and, in the event of damage, allows easy repair by rewinding the coil.
A special insulating layer helps maintain the optimal operating temperature of the coil even when handling hot material up to 650 °C, ensuring stable performance and safe electromagnet operation.
The durable protective plate protects the internal parts of the electromagnet against mechanical damage during scrap handling and significantly extends its service life even in demanding operating conditions.
The coil is protected by a special potting compound that prevents electrical short circuits between the conductor and the electromagnet housing while also contributing to better heat dissipation.

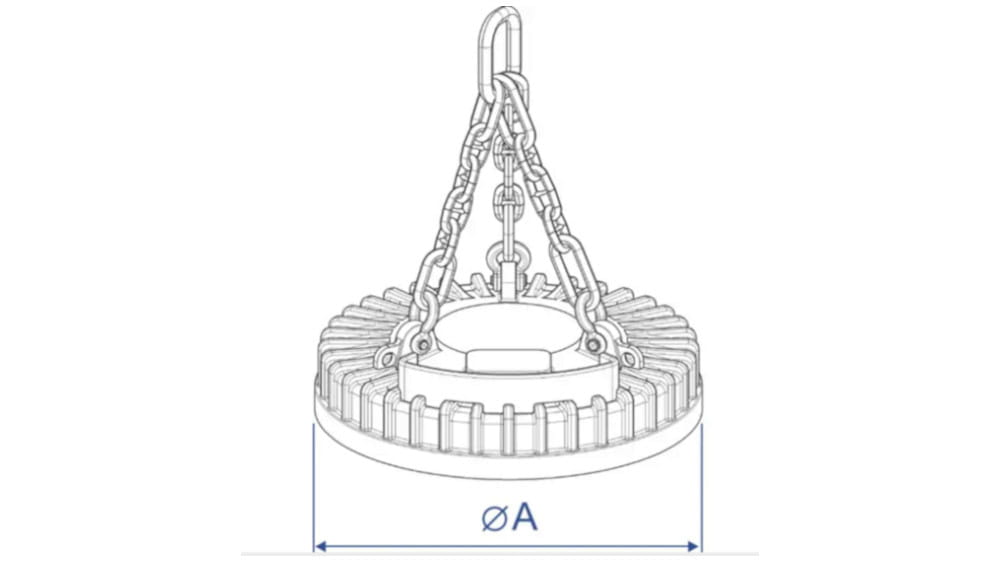

How to choose the right scrap electromagnet?
When selecting an EMG-SM scrap electromagnet, it is important to consider the diameter of the electromagnet and the type of material you will be handling.
Materials such as steel chips, light or heavy scrap, ingots or blooms have different magnetic properties, and therefore require different electromagnet sizes and power ratings.
To choose the right model, it is necessary to follow the load capacity table, which lists capacities for individual material types.
If you are not sure which model to choose, contact us – our specialist will help you select a suitable electromagnet for your operation.

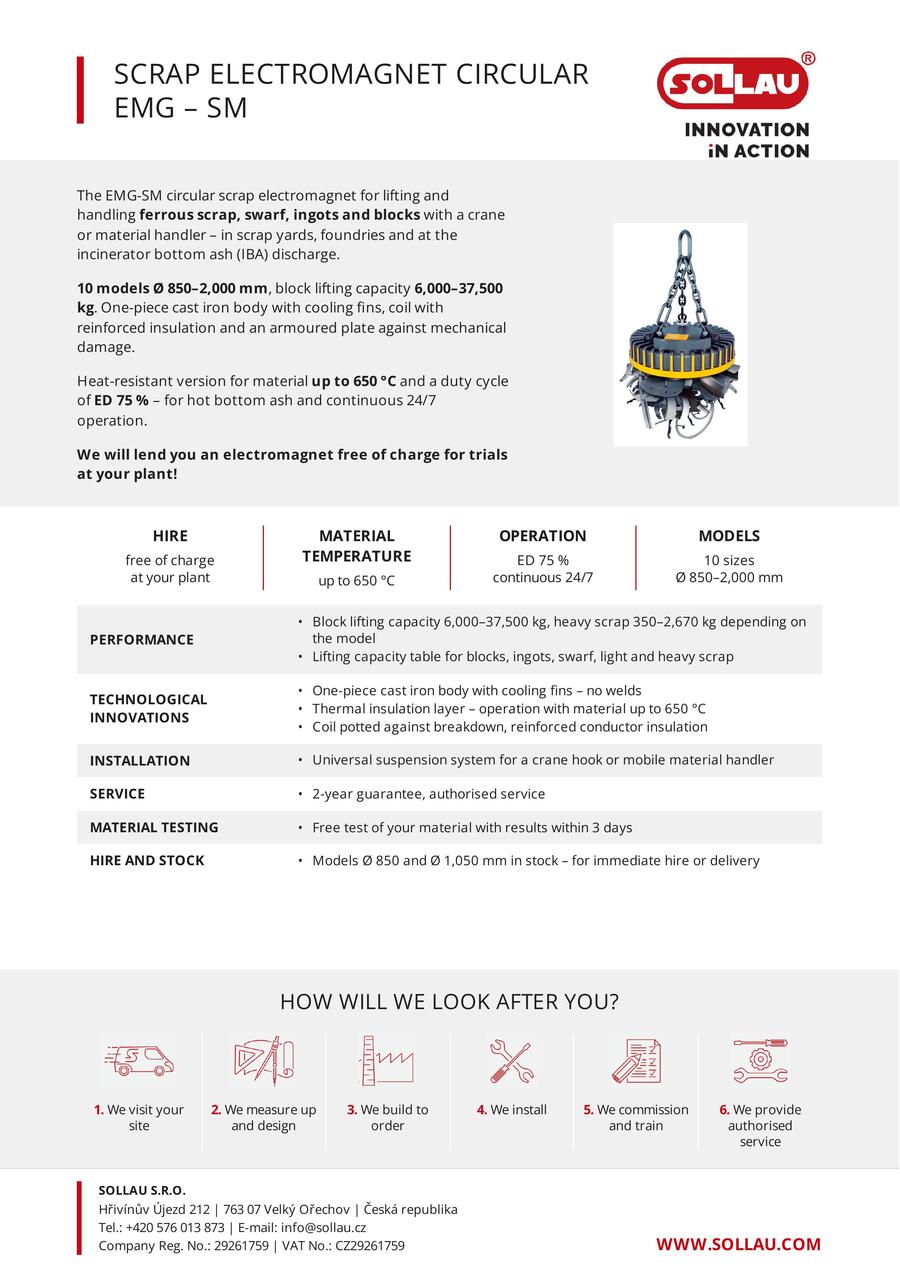

Additional technical information can be found in the product data sheet.
| Load capacity (kg) | ||||||
|---|---|---|---|---|---|---|
| Model | Diameter ØA, mm | Blocks | Ingots, pig iron | Steel chips, shavings | Light scrap | Heavy scrap |
| EMG 085 SM | 850 | 6 000 | 460 | 180 | 230 | 350 |
| EMG 105 SM | 1 050 | 8 500 | 540 | 220 | 290 | 460 |
| EMG 115 SM | 1 150 | 11 000 | 700 | 290 | 380 | 610 |
| EMG 125 SM | 1 250 | 13 000 | 870 | 350 | 540 | 850 |
| EMG 135 SM | 1 350 | 15 000 | 1 020 | 410 | 620 | 1 030 |
| EMG 145 SM | 1 450 | 18 000 | 1 200 | 480 | 790 | 1 230 |
| EMG 155 SM | 1 550 | 20 000 | 1 480 | 600 | 1 000 | 1 510 |
| EMG 170 SM | 1 700 | 27 500 | 1 800 | 710 | 1 180 | 1 740 |
| EMG 185 SM | 1 850 | 33 000 | 2 200 | 840 | 1 440 | 2 190 |
| EMG 200 SM | 2 000 | 37 500 | 2 610 | 990 | 1 670 | 2 670 |
Download the load capacity table for scrap magnets (PDF 590 kB)

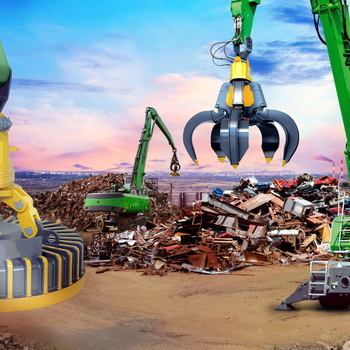

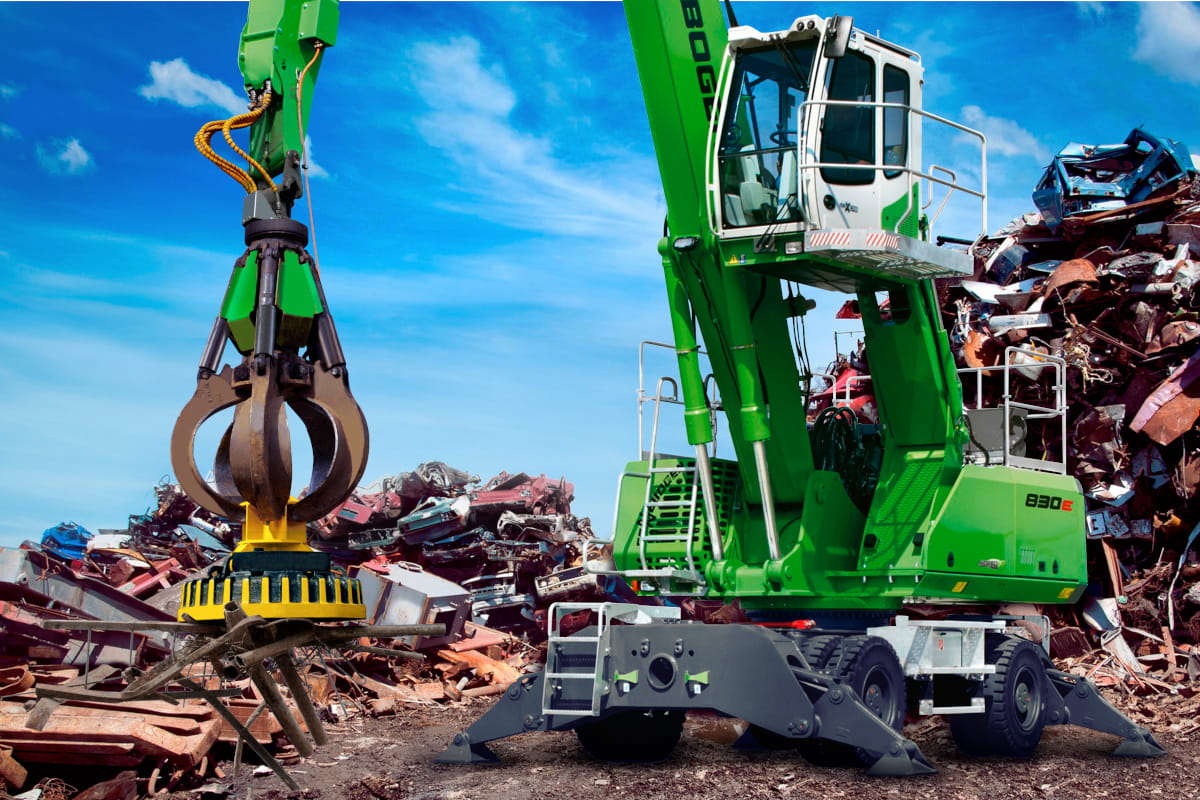

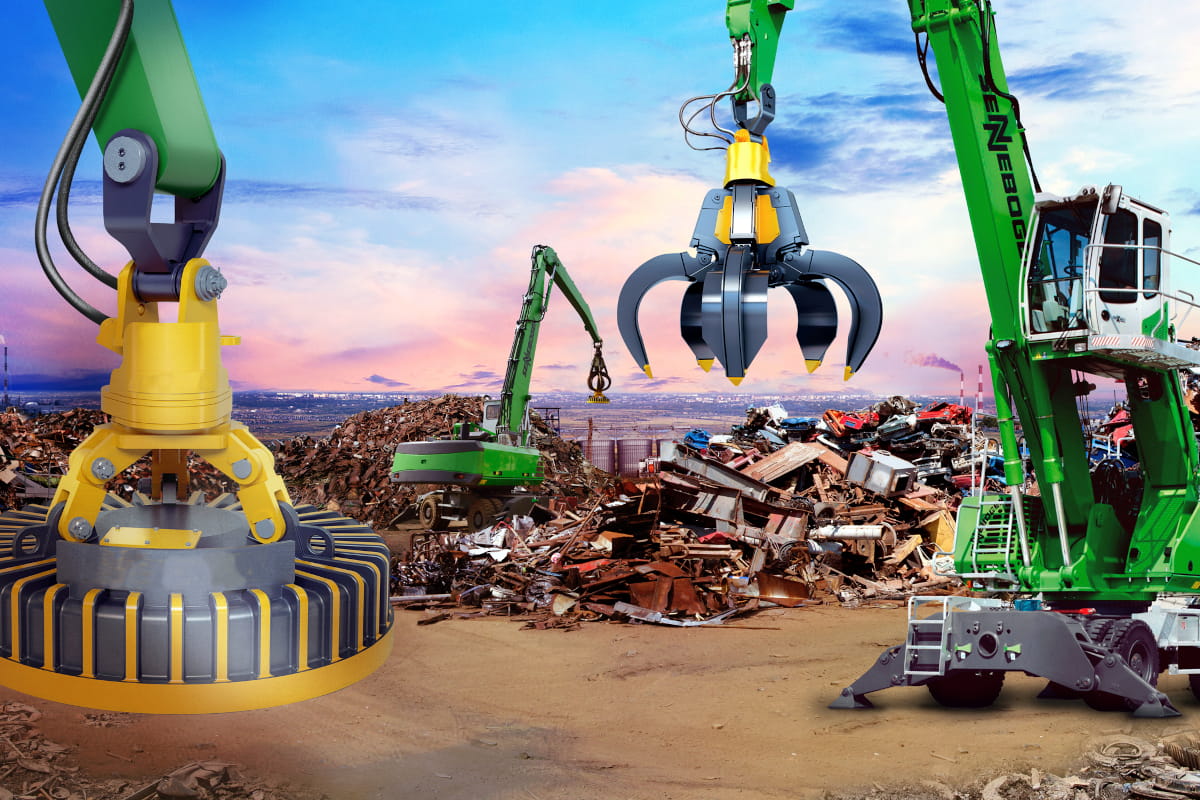

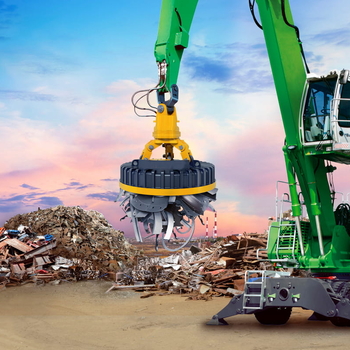

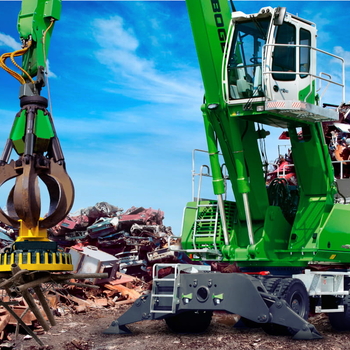

Photo gallery from practice
Technical documentation
Scrap electromagnet circular EMG-SM
| Model | Diameter ØA (mm) | Weight (kg) | Data sheet |
|---|---|---|---|
| EMG 085 SM | 850 | 700 | display PDF |
| EMG 105 SM | 1 050 | 860 | display PDF |
| EMG 115 SM | 1 150 | 1 120 | display PDF |
| EMG 125 SM | 1 250 | 1 400 | display PDF |
| EMG 135 SM | 1 350 | 1 750 | display PDF |
| EMG 145 SM | 1 450 | 2 150 | display PDF |
| EMG 155 SM | 1 550 | 2 700 | display PDF |
| EMG 170 SM | 1 700 | 3 230 | display PDF |
| EMG 185 SM | 1 850 | 4 000 | display PDF |
| EMG 200 SM | 2 000 | 4 500 | display PDF |
Frequently asked questions (FAQ) – Scrap electromagnet circular EMG-SM
The EMG-SM scrap electromagnet is used for handling metal scrap, steel chips, metal charge or cast-iron bars. It is mainly used in scrapyards, recycling plants and steel mills for handling ferromagnetic materials.

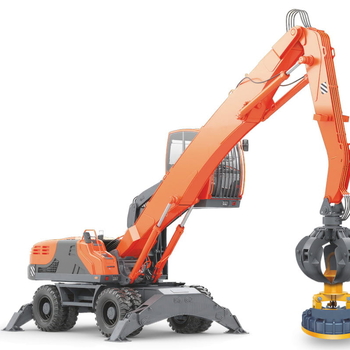

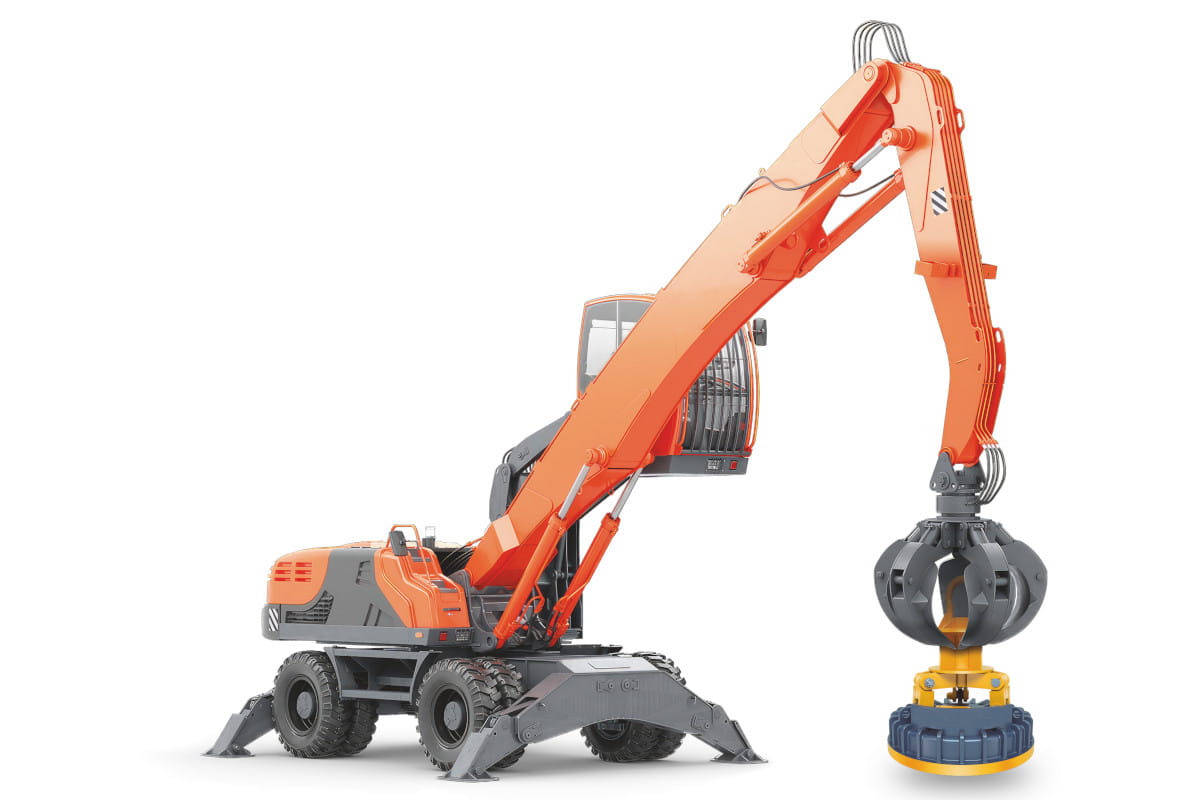

The EMG-SM series electromagnets are designed for use on most mobile scrap handling machines, such as material handlers, excavators or cranes. Thanks to their universal design, they can be easily integrated into various types of equipment.
EMG-SM is suitable for handling various types of ferromagnetic material, for example:
- light and heavy metal scrap
- steel chips
- metal charge and metal bundles
- cast-iron bars or ingots.
Yes. The EMG-SM electromagnet is also available in a heat-resistant version, which allows handling material with a temperature of up to approximately 650 °C (depending on the type of steel).
The EMG-SM electromagnet has a robust cast-iron body with cooling ribs that improve heat dissipation and extend continuous operating time. High-quality coil insulation reduces the risk of short circuit, and the reinforced protective plate protects the coil from damage, increasing the service life of the equipment.
The EMG-SM electromagnets are designed for a 75% duty cycle in continuous operation 24 hours a day, 7 days a week. This operating mode meets standard requirements for industrial scrap handling in multi-shift operations.
Thanks to the universal suspension and connection system, EMG-SM electromagnets are compatible with most common scrap handling machines, such as Sennebogen, Fuchs, Liebherr, Caterpillar, Hitachi, Volvo and others.
We provide a standard 2-year warranty for EMG-SM electromagnets. All models are in stock, so delivery is very fast.
In the event of a failure, we provide a fast electromagnet replacement so the customer can continue working without interrupting operations. Replacement electromagnets are in stock, and we are able to respond immediately to prevent downtime in scrap handling.
Yes. We offer customers the option of a free electromagnet loan for testing directly in their operation. This allows them to verify the performance and suitability of the EMG-SM electromagnet under real working conditions.
