How the MSP-S 125 N magnetic filter significantly improved wash media quality and extended bag filter service life (case study)
In the production of automotive parts—specifically engine cylinder crankcases—the quality of the wash medium plays a crucial role. During washing, foundry sludge and metal particles are released and, together with the liquid, return to the circulation loop. If these contaminants are not removed effectively, it quickly leads to clogging of bag filters, frequent replacements, and unnecessary operating costs.
To solve this issue, a MSP-S 125 N OCTOPUS magnetic filter was installed in the piping system upstream of the bag filters, designed for DN 125 pressure piping and liquid mixtures.
Solution: a magnetic filter directly in the pipeline

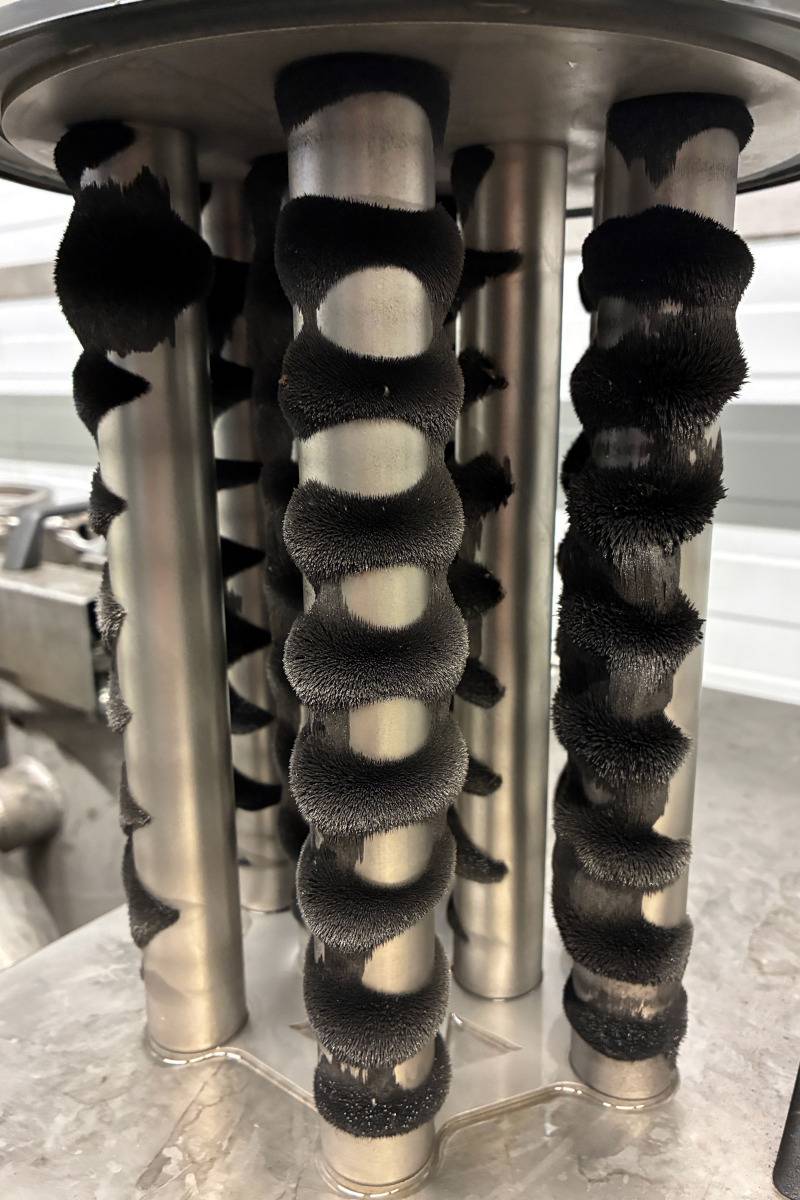

The MSP-S 125 N OCTOPUS magnetic filter was placed directly into the circulation pipe of the cleaning unit, i.e. upstream of the bag filters. Its task is to capture ferromagnetic particles and foundry sludge before they load the downstream filtration stages.
As a result:
- wash media quality improved significantly,
- bag filters are subject to less load,
- and the entire system operates more stably and at lower cost.
Key benefits of the MSP-S 125 N OCTOPS magnetic filter
- Effective filtration of metallic contaminants from the wash medium
- Installed directly into DN 125 pressure piping
- No negative impact on flow or pressure
- Robust design for continuous industrial operation
- Easy maintenance and long service life
- Protection of downstream bag filters and equipment
Operational results
After installing the magnetic filter, the customer reported:
- cleaner wash medium,
- a significant extension of bag filter service life,
- fewer service interventions,
- lower operating costs,
- and smoother operation of the cleaning technology.
Conclusion
Installing the MSP-S 125 N OCTOPUS magnetic filter in a cleaning system for engine cylinder crankcases proved to be a simple yet highly effective step. The result is cleaner wash media, longer filter life, and stable operation without unnecessary costs.
An in-line magnetic filter is exactly the kind of solution that pays back quickly and delivers long-term performance.
Equipment used
Magnetic filter MSP-S 125 N OCTOPUS
