Efficient removal of ferrous contaminants from slag and foundry sand in the Holcim Magyarország Kft cement plant (case study)
How we could reliably separate tramp metals from slag and foundry sand by installing an overband magnet in a Holcim cement plant.
The Holcim Magyarország Kft. Company operates a cement plant in Királyegyházi, i. e., in a clay and limestone mine in Bükkösd. This cement plant is one of the leading producers of building materials in Hungary and puts an accent on environmental protection and the quality of products.
The Királyegyházi Cement Plant has invested 4.5 billion HUF in the ecological treatment of waste (the amount of the treated waste equals to the annual waste production of the entire Baranya district). By replacing 90 % of fossil fuels with alternative ones, it has achieved more than 50 % reduction in CO2 emissions per tonne of cement since 2011.
Problem
The processed slag and foundry sand contained large amounts of iron contaminants, previously removed by a manually cleaned electromagnet. However, this solution was not effective enough due to the increased volume of the processed material and higher metal contamination.
Solution

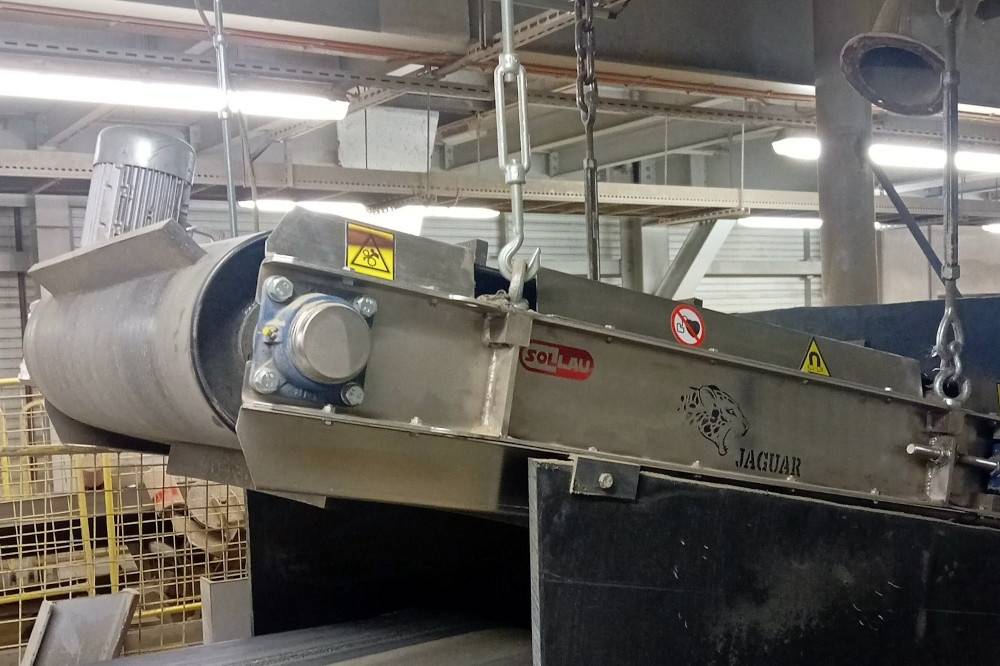

We recommended to apply our customer the self-cleaning overband magnet DND-AC Ms2 F – Jaguar, which can be easily suspended over the conveyor. Thanks to its high efficiency and fully automated operation it has enabled a significant reduction in iron contamination.
After successful testing, the customer ordered 2 separators. After a month of use, he was so satisfied with the separation quality that he ordered two more of the same separators. This confirms that the equipment works perfectly and meets the high industrial demands.
Benefits of using the self-cleaning overband DND-AC Ms2 F JAGUAR
- Efficient removal of ferrous contaminants in the cement process
- Automated separation eliminates the need for manual cleaning
- Increased quality of the processed material and reduced operating costs
- Easy installation above the conveyor belt
- Long working life thanks to the robust all-stainless steel design
Applied equipment: overband magnet DND-AC Ms2 F JAGUAR
- 10-year warranty
- Suspension height up to 320 mm
- All-stainless steel design
- No dead spots between the magnetic core and the separator cover
- Separation of particles in size from 1 mm
With the installation of the DND-AC Ms2 F - Jaguar, the customer has significantly streamlined its operation, reduced the need for maintenance and achieved a higher quality of the cleaned material. If you also are looking for a reliable metal separation solution, contact us!
