Our company is a specialist in field of magnetic separation

We develop, produce and apply devices for magnetic separation. Our magnetic separators are designed and manufactured exactly in a made-to-measure way as per your needs.

16. 8. 2022

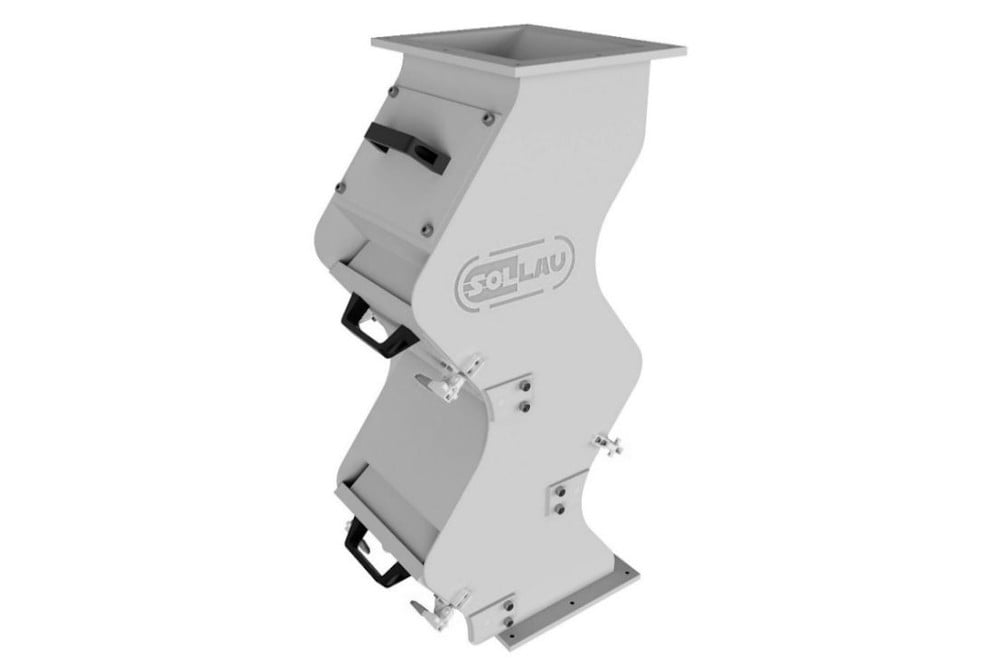

MSK-MC cascade magnetic separator

In case you need to clean high volumes of bulk materials (even of those tending to bridge) with a low content of ferromagnetic contaminants, a manually cleanable hump magnet separators (which can handle up to 365 m3 of material transported by gravity per hour) are the ideal solution.

Since the material is forced to move through the hump in a zig zag pattern andl bounces from one magnetic wall to the other inside the separator (while still turning over), a very high purity level of the final product is achieved (despite the extremely high amount of the cleaned material).

In case of higher contamination with ferrous debris, we can also produce this separator in a fully automated self-clean version.

The main advantages of the MSK-MC magnetic separator with manual cleaning:

  • Extremely high operating capacity
  • Offset design breaks up material clumps and directs the product flow to the plate magnets
  • Easy and fast cleaning - thanks to the hinged plate magnets
  • Large cross section + smooth surfaces = ideal solution for problematic materials (tending to build up etc.)
  • High abrasion resistance thanks to stainless steel design
  • No energy consumption
