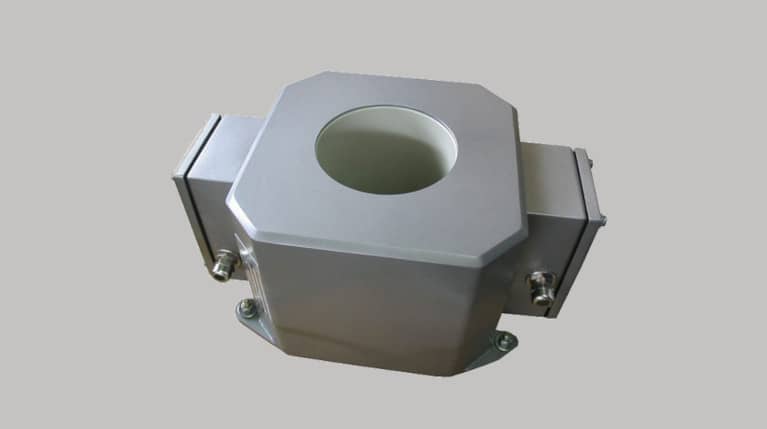

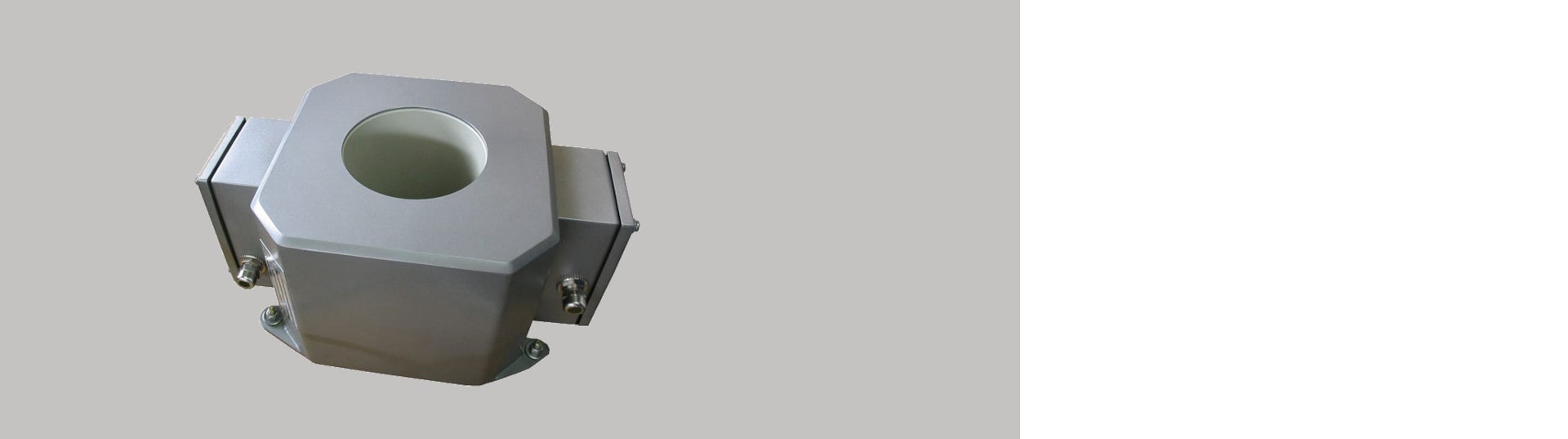

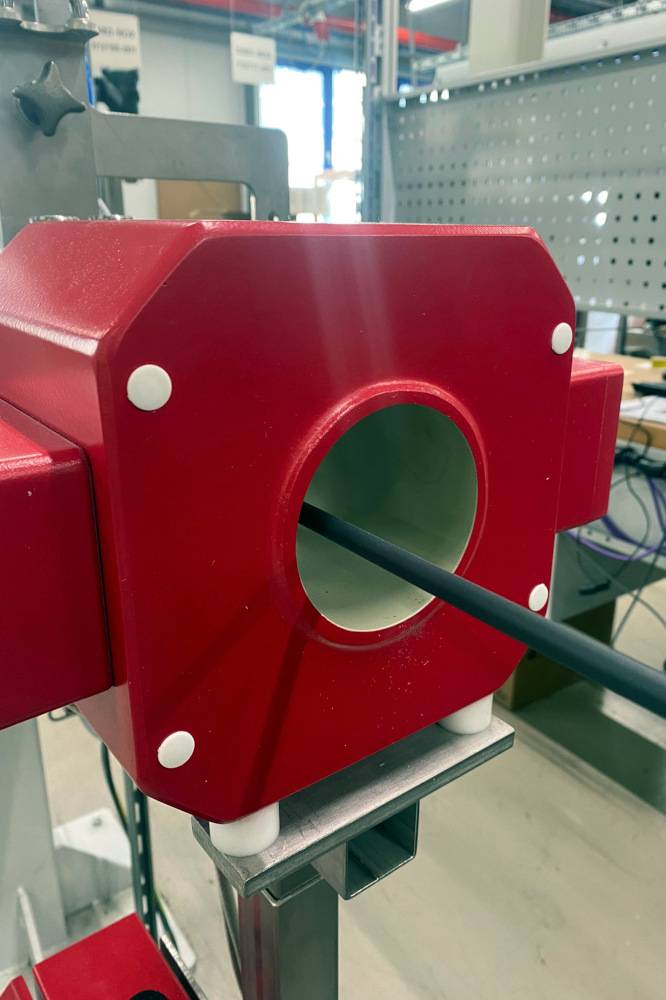

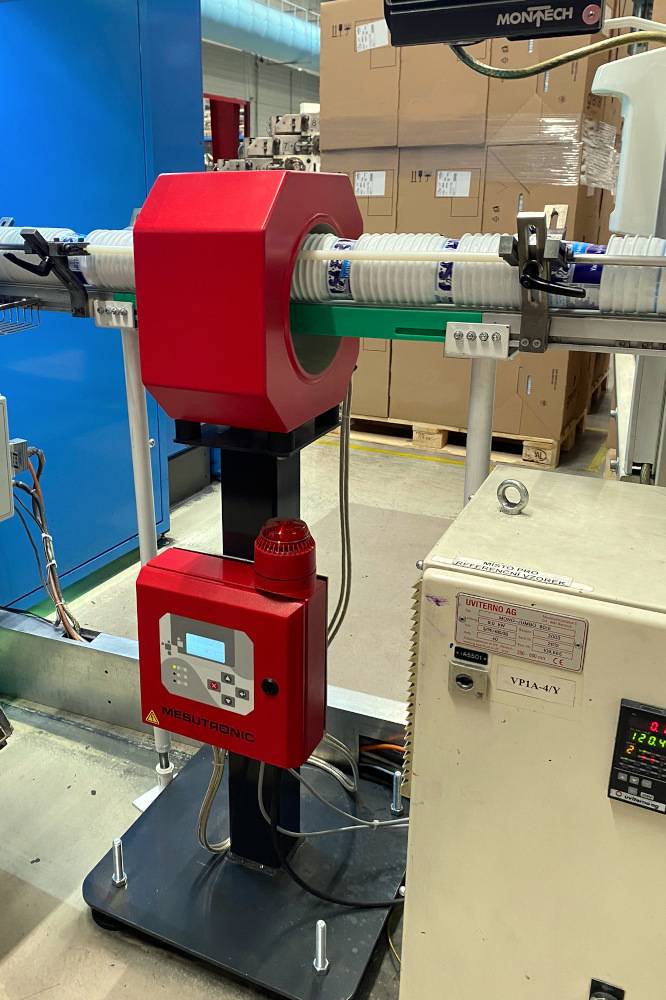

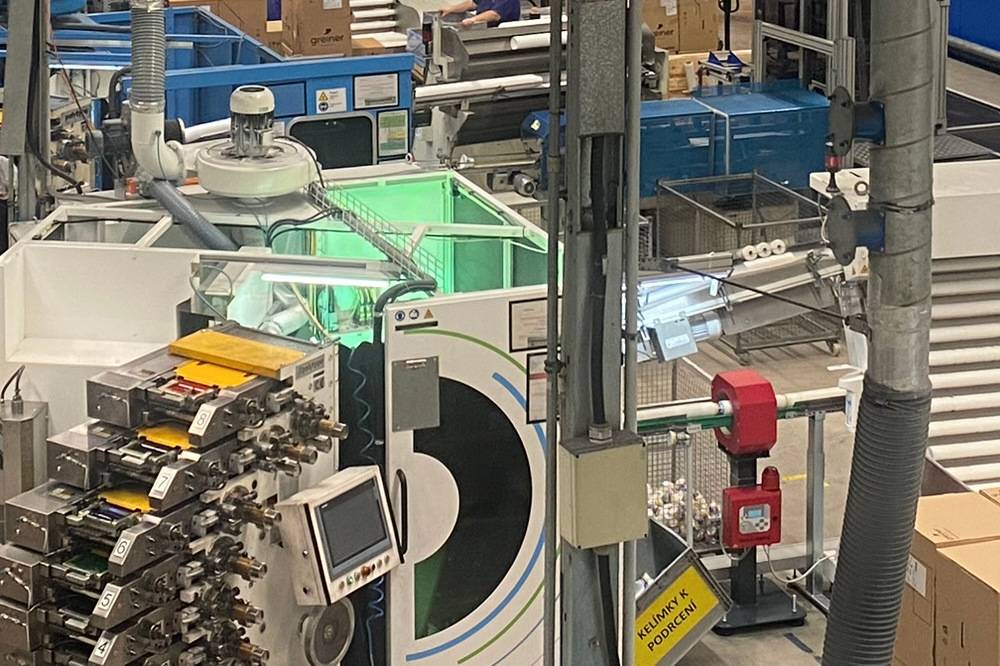

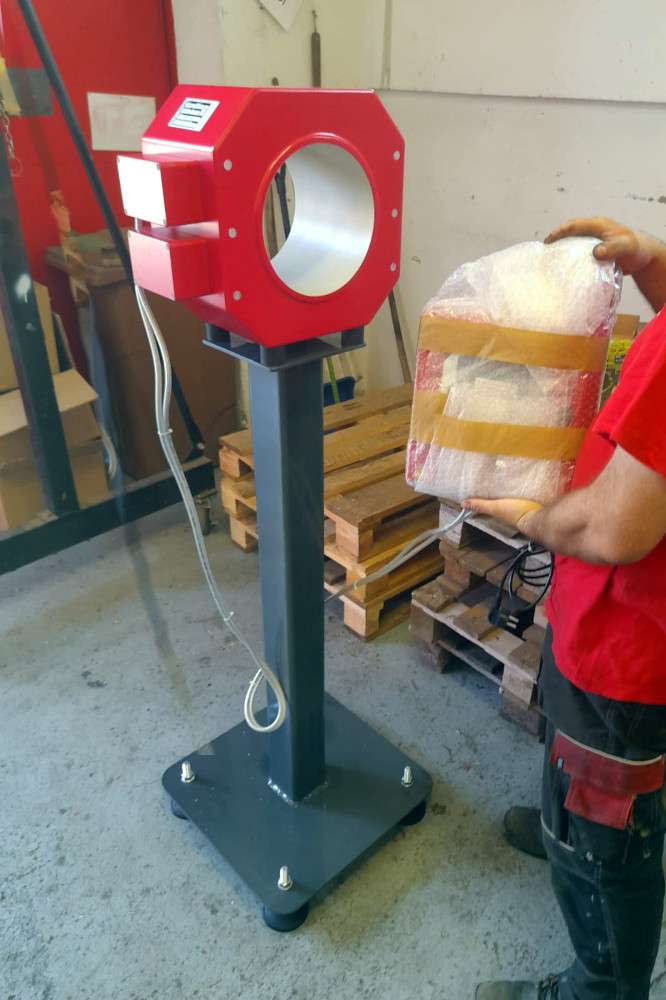

Metal detectors METRON 05 CR for gravity
Thanks to its low height and compact dimensions, the METRON 05 CR detector is easily integrable into the existing pipeline.
The simple METRON 05 CR with round aperture is used to detect metal particles in pipe-transported bulk materials.

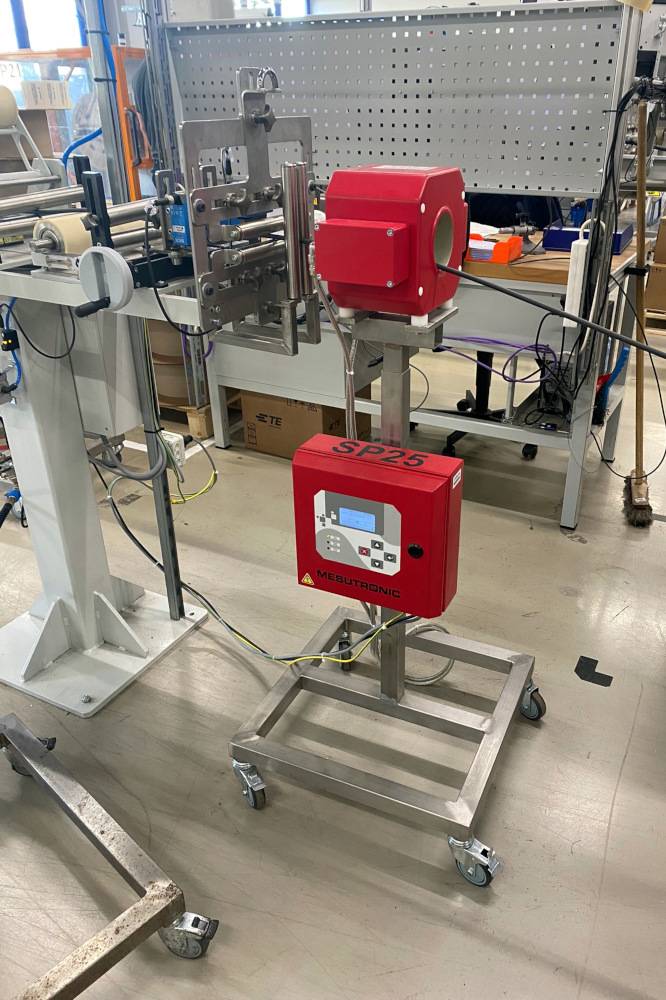

This detector is equipped with a powerful AMD 05 control unit with a range of advanced features such as automatic product setup, automatic calibration and the digital filtration system. The unit is equipped with a 5-line LCD display and is controlled with 4 ergonomic buttons. Its operation is simple and intuitive. The control unit is installed on the detector frame, but it can also be placed in a separate housing outside the detector.
The METRON 05 CR excels in in the low price while keeping the required detection standards. We supply this free-fall style metal detector for pipes with a diam. of 35 – 600 mm as standard.
Principle advantages of a gravity free-fall style metal detector
- Metal detector with a round opening for installment into transport pipeline system. All metal particles are detected and it is both off-shell particles and the ones in the form of inclusions in the end product.
- High sensitivity even in the conditions of rough industrial use.
- User friendly and reliable technology proven by the use of many years.
- It is used either for quality control of the product being processed or as a protection of subsequent machinery.
- Individual solution on the basis of removable tube and retaining frame.
The METRON 05 CR gravity free-fall style metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Comfortable – in design and data management
Optional equipment
The METRON 05 CR detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer, beacon with siren
- Visual markers – color marking of contaminants
- Reject systems – flap valve systems for bulk materials, 3-way ball valves
- Plastic sensing tubes – with transitions, funnel or flanges
- MesuSET – operation of detector via laptop
- MesuNET – network integration and remote maintenance
- Test etalons
Special design
Do you have special requirements for a metal detector design? The most common requirements include:
- Explosion proof versions
- Visual marking of the detected contaminants = color coding
- Designed even for use at high-temperatures
- ALUTRON version – suppression of interference signals from metalized foils – Patent No. 4342826

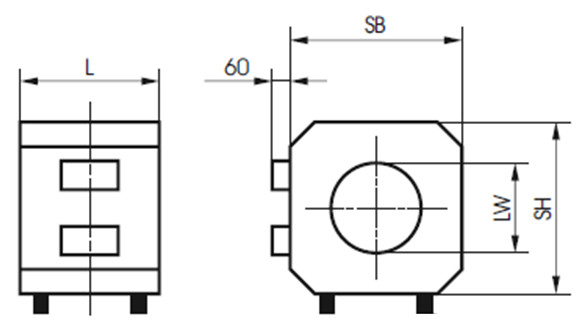

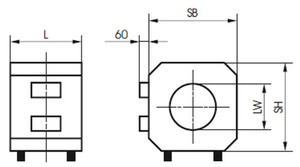

Dimensions
| LW: Aperture diameter (mm) | SB = SH: Detector width (mm) | L: Detector length (mm) |
|---|---|---|
| 35 | 150 | 125 |
| 45 | 150 | 125 |
| 55 | 150 | 125 |
| 70 | 150 | 125 |
| 85 | 200 | 150 |
| 100 | 200 | 150 |
| 115 | 250 | 150 |
| 130 | 250 | 150 |
| 150 | 250 | 200 |
| 170 | 300 | 200 |
| 210 | 350 | 250 |
| 235 | 400 | 300 |
| 265 | 450 | 300 |
| 300 | 500 | 350 |
| 335 | 550 | 400 |
| 380 | 600 | 450 |
| 430 | 650 | 500 |
| 470 | 700 | 500 |
| 525 | 750 | 600 |
| 600 | 850 | 700 |
We can supply units with different height, inside diameters, frames, etc. to meet your requirements.
We will ask you to specify the required modifications so that the offer can be elaborated exactly according to your requirement.
Metal free zone - MFZ
It is essential for the proper metal detector functioning that there are no fixed (e.g. conveyor structure, its covering) or moving metal parts (e.g. conveyor rollers) in the proximity of the detector’s aperture. Therefore, the MFZ is defined for each detector and it should not contain moving or fixed metals. The aperture of the metal detector is to be placed in the middle of this metal free zone. When you observe the MFZ when installing the detector, you will prevent false alarms and false detections and contribute to the correct detector operation.
Contact us – we will help you with the MFZ calculation for moving and fixed metals.
Sensitivity of a metal detector
The detector's sensitivity depends on many parameters, such as the aperture dimensions (the lower is the aperture height, the higher is the detector sensitivity), the conveyor belt speed, the density of the product, its temperature and humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.

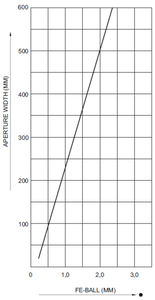

The sensitivity diagram of the METRON 05 D detector applies to LB 1,5 x LH
AMD 05 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Auto-balance including the suppression of interfering signals and automatic sensitivity calibration
- Multi-filter system using digital filtration for maximum stability in harsh environments
- Self-monitoring system ensures that all important components function properly
- Touch screen control panel – modern design
- Easy 4-button intuitive operation
- 5-line LCD display
- Product storage memory backup – for up to 500 products
- Metal detector network and remote service - diagnostics, parameter change, SW update
Scope of delivery
The delivery of METRON 05 CR detectors includes:
- Detection head
- Control unit (= electronics mounted in a metal cabinet)
- Connecting cables
- Installation hardware
- User manual
Datasheet
- Power supply: 100 – 240 V AC, 50/60 Hz
- Power consumption: max. 50 W
- Type of protection: IP 654
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- The conveying speed at which metals can be reliably detected: 1,5 – 6,0 m/s
- Power cable: 1.8 m with plug
METRON 05 CR is an economical gravity free-fall metal detector for pressure pipelines with apertures of 35–600 mm, offering an attractive price-to-performance ratio for applications where advanced connectivity or a touchscreen are not required. Compared to the premium METRON 07 PowerLine, it features a simple 4-button interface with a 5-line LCD display and IP 65 protection (METRON 07 PowerLine: 5.7" colour touchscreen, Ethernet, IP 66). For pneumatic conveying, choose METRON 05 PowerLine, which is designed for higher pipeline pressure.
Sensitivity depends on the aperture diameter – the smaller the aperture, the higher the sensitivity. Additional factors include material speed (0.05–1.5 m/s), product density, temperature and moisture. We carry out tests of your material on the equipment free of charge and guarantee results within 3 working days – contact us to arrange sample submission.
Yes. For proper operation of METRON 05 CR, a Metal Free Zone must be maintained – no stationary or moving metal objects (support structures, rollers, etc.) should be present in the immediate vicinity of the aperture. Failure to observe the MFZ causes false signals and unnecessary product rejection. We will help you calculate the MFZ for your specific installation – just contact us.
We supply METRON 05 CR as standard for pipe diameters of 35–600 mm – one of the widest standard ranges in our portfolio of detectors for pressure pipelines. On request, we manufacture the detector with a non-standard aperture diameter, height or frame. The most common special versions are the ATEX version for explosive environments and the Alutron version, which eliminates false signals caused by metallised film (Patent No. 4342826).
METRON 05 CR meets HACCP requirements. IP 65 protection ensures resistance to dust and water jets; the operating temperature range of -10 °C to +50 °C covers most industrial applications. If your audit requires IP 66 or IFS, BRC or SQF certification, consult us – for more demanding environments we offer the METRON 07 PowerLine model.
The AMD 05 control unit features a 5-line LCD display and 4 ergonomic buttons – operation is intuitive even without specialist training. The unit provides automatic product setting with interference signal suppression, automatic sensitivity calibration, digital signal filtering and system function monitoring. Up to 500 product profiles can be stored in memory. The unit can be mounted directly on the detector frame or installed remotely; the optional mesuNET module enables remote access and management.
We handle your project from start to finish: we visit your site, take measurements, design a tailored solution, install, commission and train your operators. We then provide authorised warranty and post-warranty service. Before your order, we also guarantee free testing of your material on the equipment within 3 working days.
