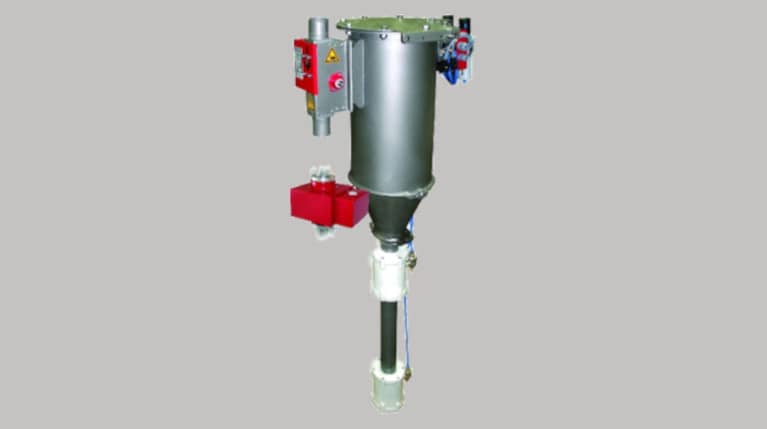

Pipe metal detector P-TRON 05 GM V1
The cost-effective pipe metal detector P-TRON 05 GM V1 detector is used to detect and reject metal particles from vacuum-fed bulk materials. It is designed for installation into vertical and horizontal pipes. It is often used to detect metals in plastic material (granules, re-granulate, plastic flakes).
The detector is fully automatic, equipped with a high-speed reject flap that instantly diverts the detected contaminant from the product stream and minimizes the loss of a good product.
The main advantages of this metal detector include the low price (resulting in a very fast return on investment) and easy installation.
We supply this detector with an inlet opening of 38 – 80 mm as standard.
The control unit is very simple to operate, stable, and durable.
Principle advantages of a pipeline metal detector
- Metal detector for compressed-air transport.
- All metals both free and hidden in the material are detected and separated automatically.
- Very exact and relible detection of metals.
- Option to deliver a special design for abrasive materials or into an explosive ambient with the atex certificate.
Principle of detector function
The metal detector of the P-TRON series is installed into a pipeline used for the vacuum transport of bulk materials. The inspected material passes through the reject assembly. If the material is contaminated with metal particles, the contaminant in the product stream alters the high frequency field generated by the search coil. The electronics evaluate this signal and generate an impulse for the solenoid valve and double actuating air cylinder of the reject assembly. The contaminant is instantly diverted from the good product stream assuring minimal good product loss. The reject flap then automatically returns to its normal position. The detector operation including the elimination of contaminants is fully automatic.
Thanks to the high-speed reject flap used, its operation is very fast and accurate, enabling minimization of good material loss.The reject time is adjustable.

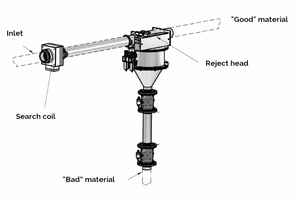

Horizontal installation

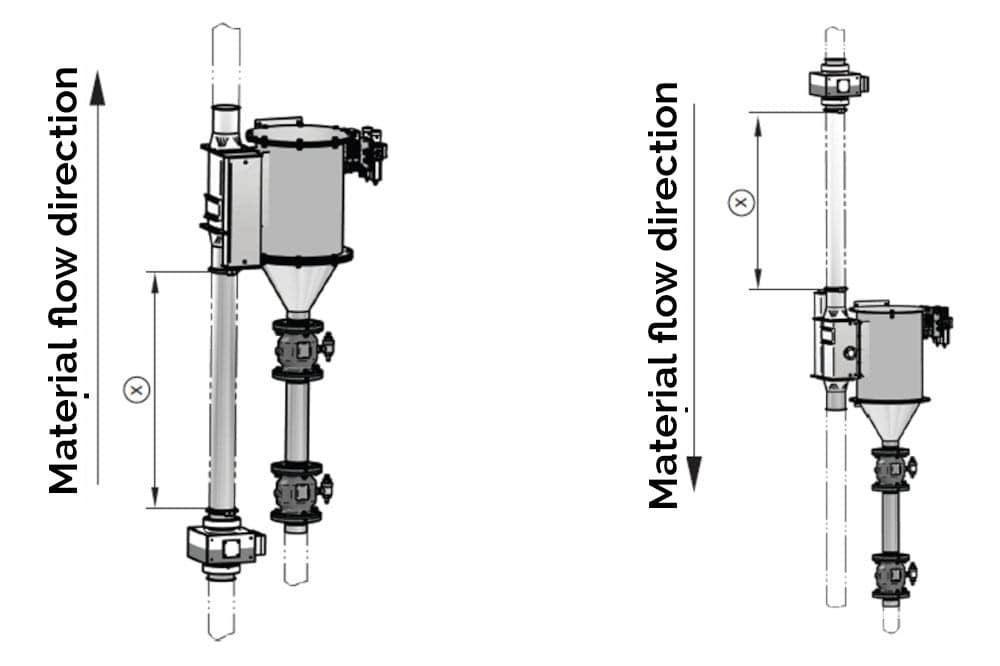

Vertical installation
The P-TRON 05 GM V1 pipeline metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Fast – in response and cleaning
Optional equipment
The P-TRON 05 GM V1 detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer
- Reject counter
- MesuSET – operation of detector via laptop
- MesuNET – network integration and remote maintenance
Special design
Do you have special requirements regarding the metal detector design? The most common requirements include:
- Integrated control unit
- Units can be painted in customer specific colour code
- Version for explosive atmospheres
- Larger container for removed contaminants
- Reject flap made from polished stainless steel
Contact us – we will elaborate a solution just for you.
Dimensions
P-TRON 05 GM V1 H – horizontal installation
| Ø A | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | Ø H (mm) | K (mm) | L (mm) | M (mm) | Ø N (mmp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size 1 | 38, 45, 50, 55, 60 | 270 | 340 | 1286 | 350 | 175 | 60 | 187 | 90 | 160 | 11,5 |
| Size 2 | 60, 70, 75, 80 | 310 | 430 | 1410 | 350 | 175 | 89 | 187 | 98 | 160 | 11,5 |
| Size 3 | 85, 100″, 120″ | 430 / 280 / 280 | 669 | 1116 | 453 | 233 | 89 | 200 | 96 | 170 | 13 |
P-TRON 05 GM V1 V UP – vertikální instalace
| ØA | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | Ø H (mm) | K (mm) | L (mm) | M (mm) | Ø N (mmp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size 1 | 38, 45, 50, 55, 60 | 398 | 340 | 1500 | 350 | 175 | 60 | 473 | 246 | 160 | 11,5 |
| Size 2 | 60, 70, 75, 80 | 480 | 430 | 1620 | 350 | 175 | 89 | 473 | 250 | 160 | 11,5 |
| Size 3 | 85, 100″, 120″ | 660 / 298 / 310 | 669 | 1630 | 453 | 233 | 89 | 538 | 324 | 170 | 13 |
P-TRON 05 GM V1 V DOWN – vertical installation
| ØA | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | Ø H (mm) | K (mm) | L (mm) | M (mm) | Ø N (mmp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size 1 | 38, 45, 50, 55, 60 | 398 | 340 | 1500 | 350 | 175 | 60 | 473 | 246 | 160 | 11,5 |
| Size 2 | 60, 70, 75, 80 | 480 | 430 | 1620 | 350 | 175 | 89 | 473 | 250 | 160 | 11,5 |
| Size 3 | 85, 100″, 120″ | 660 / 298 / 310 | 669 | 1630 | 453 | 233 | 89 | 538 | 324 | 170 | 13 |
We can supply units with different height, inside diameters, frames, etc. to meet your requirements.
Contact us – we will prepare a solution just for you.
Sensitivity of a metal detector
The detector sensitivity depends on many parameters, such as the aperture diameter (the smaller the aperture, the higher the sensitivity), the material speed, the density of the product, its temperature, humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.17.03.2022
Sensitivity diagram the detector P-TRON 05 GM V1
| Model | P-TRON 05 GM V1 38 | P-TRON 05 GM V1 45 | P-TRON 05 GM V1 50 | P-TRON 05 GM V1 55 | P-TRON 05 GM V1 60 | P-TRON 05 GM V1 65 | P-TRON 05 GM V1 70 | P-TRON 05 GM V1 75 | P-TRON 05 GM V1 80 | P-TRON 05 GM V1 100 | P-TRON 05 GM V1 120 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Aperture diameter (mm) | 38 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 100 | 120 |
| Fe ball (mm) | 0,6 | 0,9 | 1,2 | ||||||||
| NonFe ball (mm) | 0,6 | 1,0 | 1,2 | ||||||||
| SS ball (mm) | 1,0 | 1,5 | 1,75 | ||||||||
AMD 05 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Auto-balance including the suppression of interfering signals and automatic sensitivity calibration
- Multi-filter system using digital filtration for maximum stability in harsh environments
- Self-monitoring system ensures that all important components function properly
- Touch screen control panel – modern design
- Easy 4-button intuitive operation
- 5-line LCD display
- Product storage memory backup – for up to 500 products
- Metal detector network and remote service - diagnostics, parameter change, SW update
Scope of delivery
The delivery of P-TRON 05 GM V1 detectors includes:
- Detection head
- Control unit (= electronics mounted in a metal cabinet)
- Separation unit
- Connecting cables
- Installation hardware
- Power supply: 100 – 240 V AC, 50/60 Hz
- Power consumption: max. 50 W
- Type of electrical protection: IP 54
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- Transport speed: 0.5 – 30 m/sec
- Required air pressure: 6 – 10 bar
- Compressed air consumption during the separation: 0.2 l
- Material: diameter: 0,5 – 8,0 mm
- Power cable: 1.8 m with a plug
The pipe metal detector P-TRON 05 GM V1 with a 38 mm aperture detects ferromagnetic and non-ferromagnetic particles from 0.6 mm in diameter and stainless steel from 1.0 mm. Sensitivity depends on the aperture diameter — the smaller the opening, the higher the sensitivity. For a 100 mm aperture, sensitivity for Fe and NonFe is 1.2 mm and for stainless steel 1.75 mm.
The material passes through the detection coil; when a metal contaminant is detected, a high-speed ejection flap automatically opens and diverts the contaminant along with a small amount of material into the reject bin. Thanks to a 50 ms switching time and an adjustable ejection cycle duration, losses of good material are minimal. The entire process runs fully automatically even at conveying speeds of up to 30 m/s.
No, the P-TRON 05 GM V1 does not require a Metal Free Zone, which significantly simplifies installation and allows integration into existing production lines without modifying the surrounding structure. The detector can be installed directly into the pipeline without any special protective zones around the detection head.
We supply the P-TRON 05 GM V1 with an inlet opening of 38 to 120 mm in diameter. It is designed for bulk materials with a particle size of 0.5 to 8.0 mm — typically plastic granules, regrind, or flakes. The material conveying speed can range from 0.5 to 30 m/s.
Yes, we supply the detector in three installation configurations: H (horizontal), V UP (vertical, material flowing upward), and V DOWN (vertical, material flowing downward). Assembly dimensions vary according to orientation and size group; detailed dimensional tables are included in the technical documentation.
Yes, we offer the P-TRON 05 GM V1 with an ATEX certificate for use in potentially explosive atmospheres. This version is suitable for applications such as conveying flammable powders or granules. Contact us to select the correct version and specify your requirements.
The AMD 05 control unit provides automatic product setup with interference rejection, digital signal filtering, and intuitive 4-button operation on a 5-line LCD display. Settings for up to 500 different products can be stored in memory. Remote connectivity is provided by the optional mesuNET module, which allows diagnostics, parameter changes, and software updates via network; the mesuSET module is available for laptop-based control.
To select the right model with the required sensitivity, we recommend carrying out a test with your material — we provide this service free of charge. Simply contact us, arrange to send samples, and we guarantee test results within three days.
