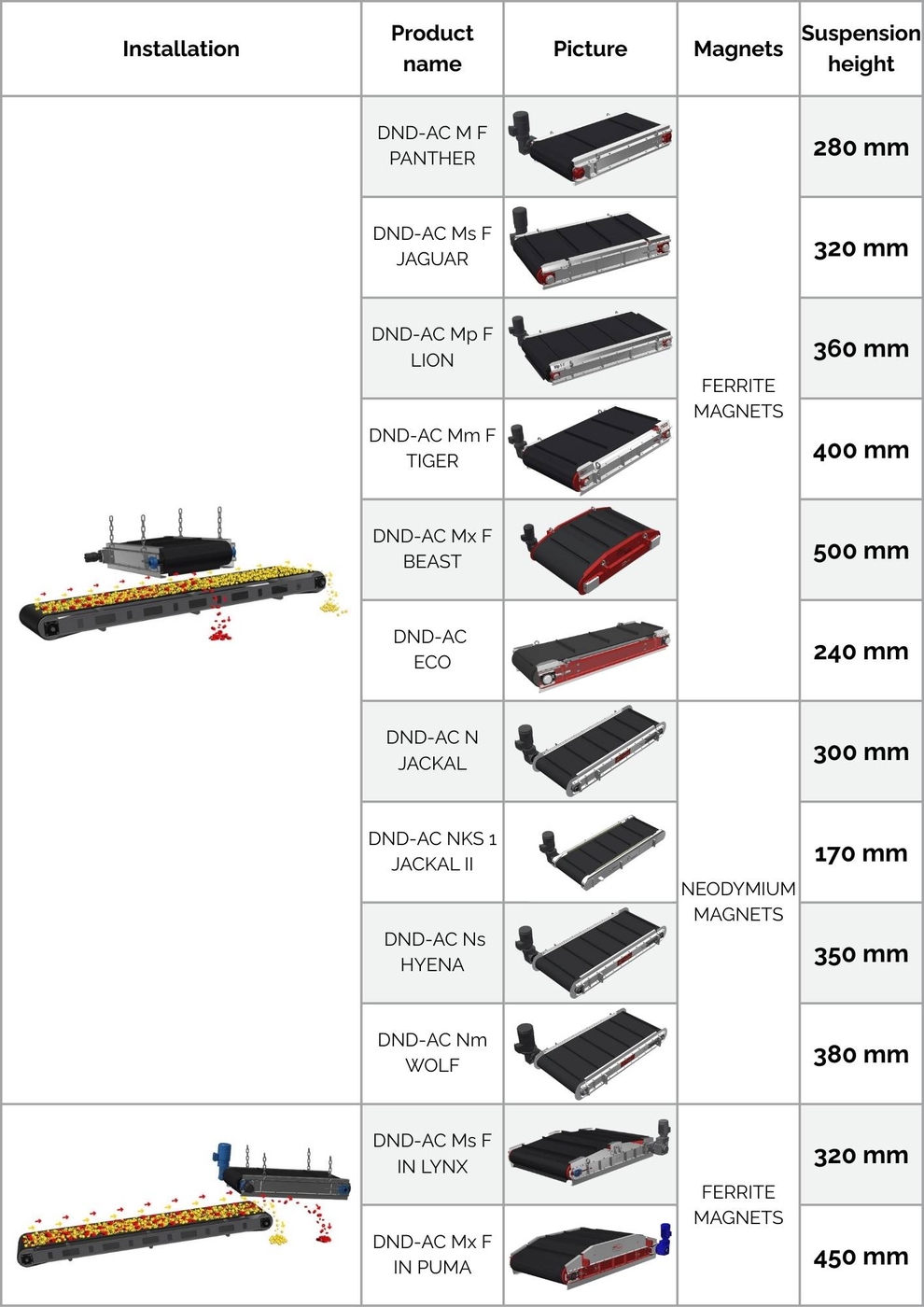

Model series of the DND-AC overband magnet

DND-AC M F
PANTHER

• Suspension height up to 280 mm
• The lightest of the ferrite models
• Separation of magnetic particles from 1 mm

Combines a standard performance with an interesting price. These separators are intended for medium-duty applications with the maximum installation height of 200 mm, and they are capable of trapping larger ferromagnetic particles (above 1 mm). A very good rate of return (price/performance ratio) is a significant benefit of this kind of plate.

DND-AC Ms F
JAGUAR

• Suspension height up to 320 mm
• Separation of magnetic particles from 1 mm

Is intended for heavy-duty users who expect from the separator a high performance even at greater depths (the maximum installation height is 320 mm).

DND-AC Mp F
LION

• Suspension height up to 360 mm
• Separation of magnetic particles from 1 mm

Is a model intended for the installation height up to 360 mm (it is also wider, what is its another advantage).

DND-AC Mm F
TIGER

• Suspension height up to 400 mm
• Separation of magnetic particles from 1 mm

Is designated for very demanding applications and for removal of ferromagnetic particles from depths of up to 400 mm.

DND-AC Mx F
BEAST

• Suspension height up to 500 mm
• Separation of magnetic particles from 1 mm

Is the strongest of all SOLLAU magnetic overband separators. Magnetic induction of these devices is at the limit of the capabilities of the strongest permanent magnets and can only be surpassed by electromagnetic separators. This series is intended for the most challenging separation from extreme depths and high and heavy material layers. The maximum suspension height of these devices is 500 mm (an interesting fact: the strongest ferrite DND-AC Mx F series is approximately five times heavier than the lightest DND-AC M F series!).

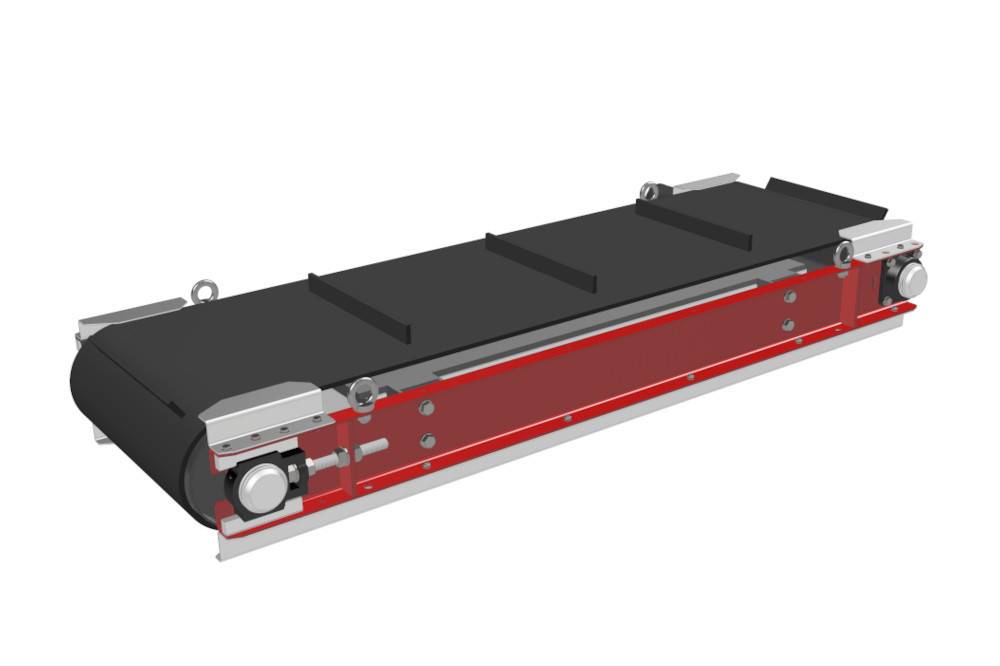

DND-AC F
ECO

• Atraktivní poměr cena/výkon (bez nadstandardní výbavy)
• Instalační výška až 240 mm
• Zachycení feromagnetických částic větších než 1 mm

Model DND-AC ECO nabízí cenově dostupnou alternativu k prémiovým magnetickým deskám s automatickým čištěním.

I přes nižší cenu si zachovává silný magnetický výkon (účinný do výšky 240 mm) a je ideální pro spolehlivou separaci kovových nečistot.

 Proč magnetická deska DND-AC ECO?

1. Nízká pořizovací cena
2. Dostatečný magnetický výkon pro většinu aplikací
3. Nízká hmotnost
4. Kompaktní rozměry
5. Ocelové bočnice a krytování desky
6. Snadná změna polohy a orientace pohonu + možnost hydropohonu

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

Write us

DND-AC Ms F IN
LYNX

• Suspension height up to 320 mm
• Separation of magnetic particles from 1,5 mm

This range of magnetic plates is designed for the separation of material with a medium layer height - the hanging height is 320 mm.

DND-AC Mx F IN
PUMA

• Suspension height up to 500 mm
• Separation of magnetic particles from 1,5 mm

This is the most powerful model series of separators for longitudinal placement with a hanging height of an incredible 500 mm!

This range of magnetic plates is designed for the separation of material with a large layer height.

DND-AC N
JACKAL

• Suspension height up to 300 mm
• Separation of magnetic particles from 0,5 mm

Is the lightest series intended for the maximum suspension height of 300 mm. This separator is even able to trap Fe particles smaller than 1 mm (at shallower depths).

DND-AC NKS 1
JACKAL II

• Separator constantly in stock (immediately available)
• Twin pole neodymium variant with a ferrite releasing pole
• Suspension height up to 300 mm
• Separation of magnetic particles from 0,5 mm

Is available in 2-pole version with discharge ferrite pole.

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

Write us

DND-AC Ns
HYENA

• Suspension height up to 350 mm
• Separation of magnetic particles from 0,5 mm

Is a stronger neodymium variant (with a maximum installation height of 350 mm), intended for medium-duty applications. Its benefits include: a high magnetic induction (at a short distance), a separation of smaller Fe particles and a low weight.

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

Write us

DND-AC Nm
WOLF

• Suspension height up to 380 mm
• Separation of magnetic particles from 0,5 mm

This is the strongest neodymium model, particularly intended for mobile applications where an extremely high magnetic induction at shallower material depths is needed. Maximum installation height: 380 mm.

Some products from this model family are available for immediate purchase. We are constantly extending the offer of our magnetic separators in stock so that we can deliver them to you immediately. Please, contact our dealer to inform for their current availability.

Write us
