Plate metal detector METRON 03 SL

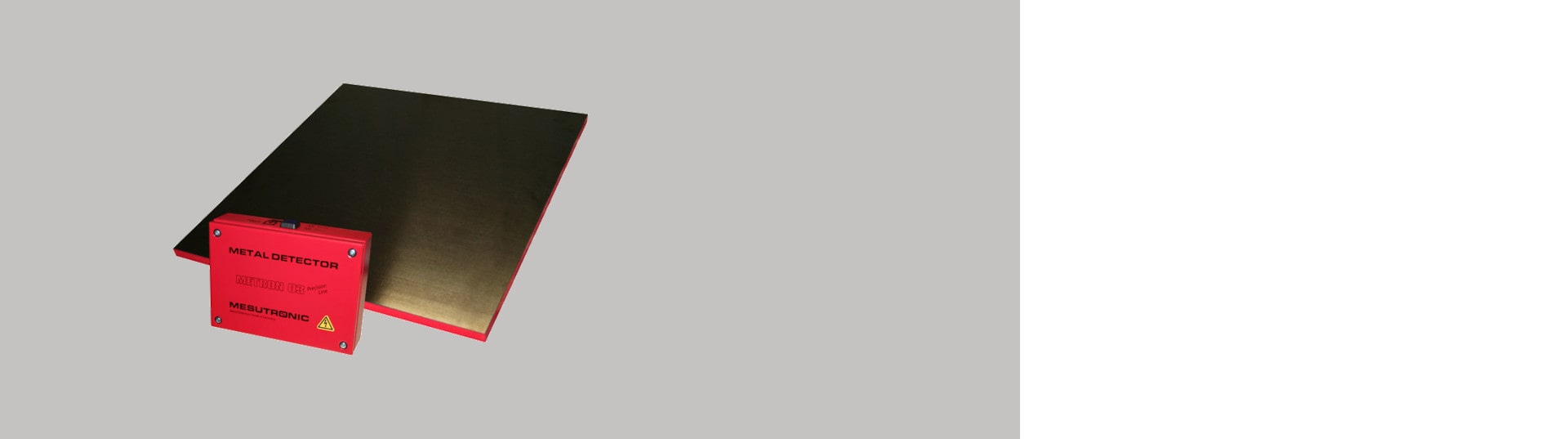

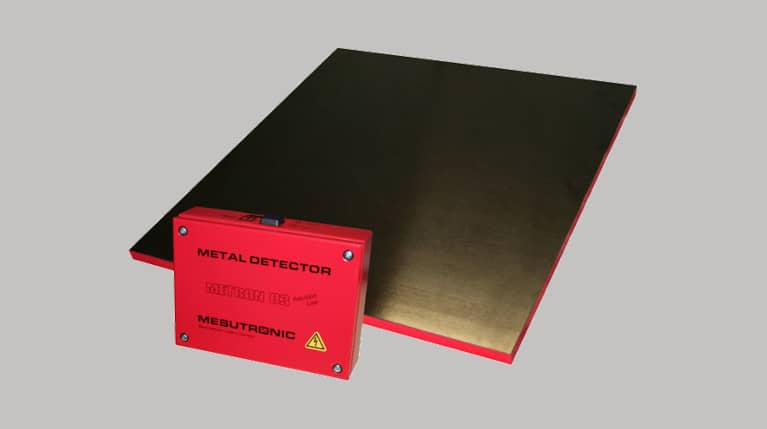

The METRON 03 SL single surface metal detector with an integrated Duroplex plate is used to detect metal particles products transported on belt conveyors. We recommend using this metal detector preferably for flat products.
This metal detector does not require any metal-free zone and its use is very variable.
The main advantages of this single surface metal detector include, in particular, its low cost and easy installation.You can easily fix it with a few screws to the conveyor. The assembly cannot be easier!
The control unit is very simple to operate, stable and durable.
Principle advantages of a plate metal detector
- Compact flat metal detector intented to installment into light conveyer strands.
- All metals both free and hidden in the material are detected.
- For low filling heights of conveyers or for inspection of hollow objects.
- Without a need for a ""metal-free"" zone.
- Quick and easy assembly.
- Good level of exactnes of detection even in the rough conditions of industry, excellent protection of machinery despite of minimum investment costs.
- Practical, reliable and by running of many years proven technology.
The METRON 03 SL D plate metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Easy – in installation and handling
Optional equipment
The METRON 03 SL detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer, beacon with siren
- Remote reset of the device
- Conveyor control – reverse operation of the conveyor

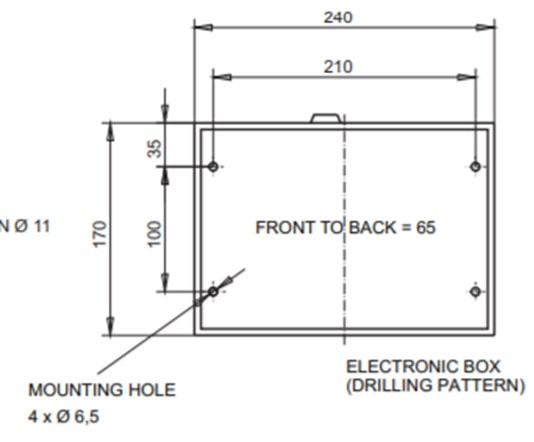

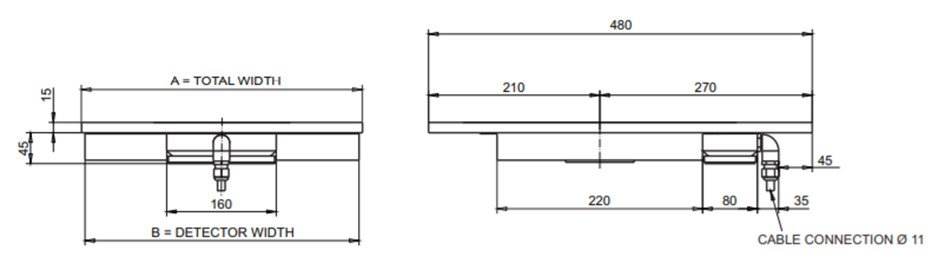

Dimensions
| B: Detector width (mm) | Detection area (mm) | Weight (kg) |
|---|---|---|
| 200 | B - 10 | 5 |
| 250 | B - 10 | 6 |
| 300 | B - 10 | 7 |
| 350 | B - 10 | 8 |
| 400 | B - 10 | 9 |
| 420 | B - 10 | 10 |
| 450 | B - 10 | 11 |
| 500 | B - 10 | 12 |
| 550 | B - 10 | 13 |
| 600 | B - 10 | 14 |
| 650 | B - 10 | 15 |
| 700 | B - 10 | 16 |
| 750 | B - 10 | 17 |
| 800 | B - 10 | 18 |
| 850 | B - 10 | 19 |
| 900 | B - 10 | 20 |
| 950 | B - 10 | 21 |
On request, we can also supply this model also in other dimensions.
Metal free zone - MFZ
The great advantage of this metal detector is that a metal-free zone is not required.
Contact us – we will help you with the MFZ calculation for moving and fixed metals.
Sensitivity of a metal detector
The detector's sensitivity depends on many parameters, such as the aperture dimensions (the lower is the aperture height, the higher is the detector sensitivity), the conveyor belt speed, the density of the product, its temperature and humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.

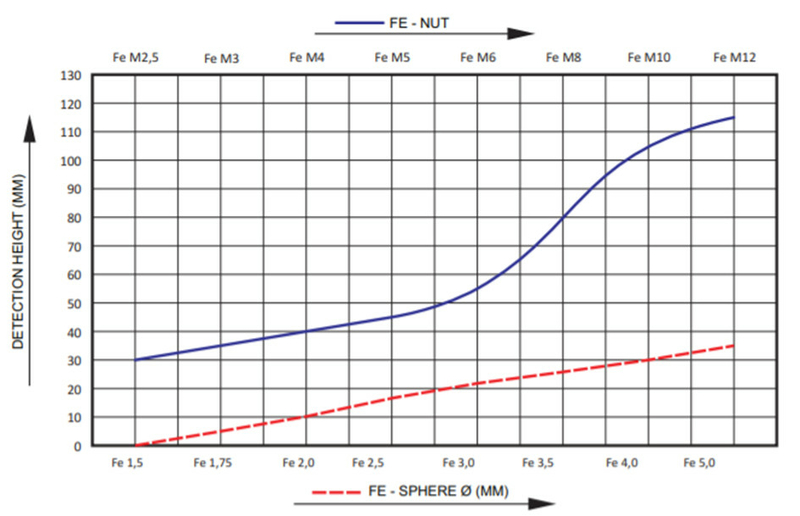

The sensitivity diagram of the METRON 05 S detector applies to LB 1,5 x LH
AMD 03 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Easy control
- Self-monitoring system ensures that all important components function properly
- Reduction of conveyor vibration
- Simple maintenance and diagnostics
- Continuous balance unit
- Optical detection and failure signaling
Scope of delivery
The delivery of METRON 05 D detectors includes:
- Detection head
- Control unit
- Connecting cables
- User manual
Datasheet
- Power supply: 100 – 240 V AC, 50/60 Hz
- Current consumption: max. 50 W
- Type of protection: IP 54
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- Max. conveyor belt speed, at which metals can be reliably detected: 30 m/s (higher speed version available on request)
- Power cable: 1.8 m with plug
