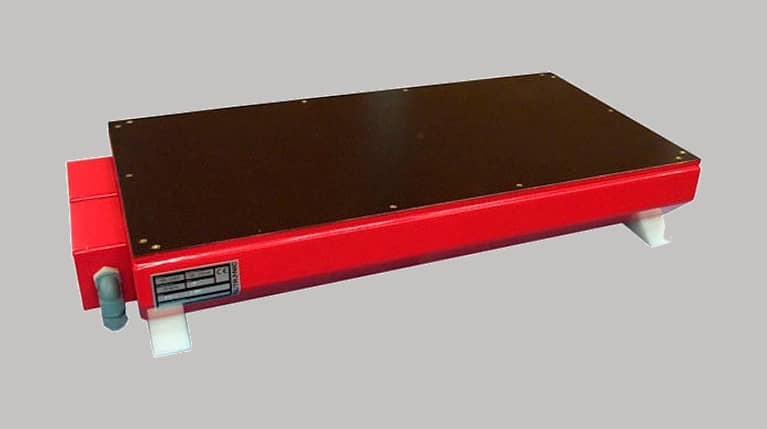

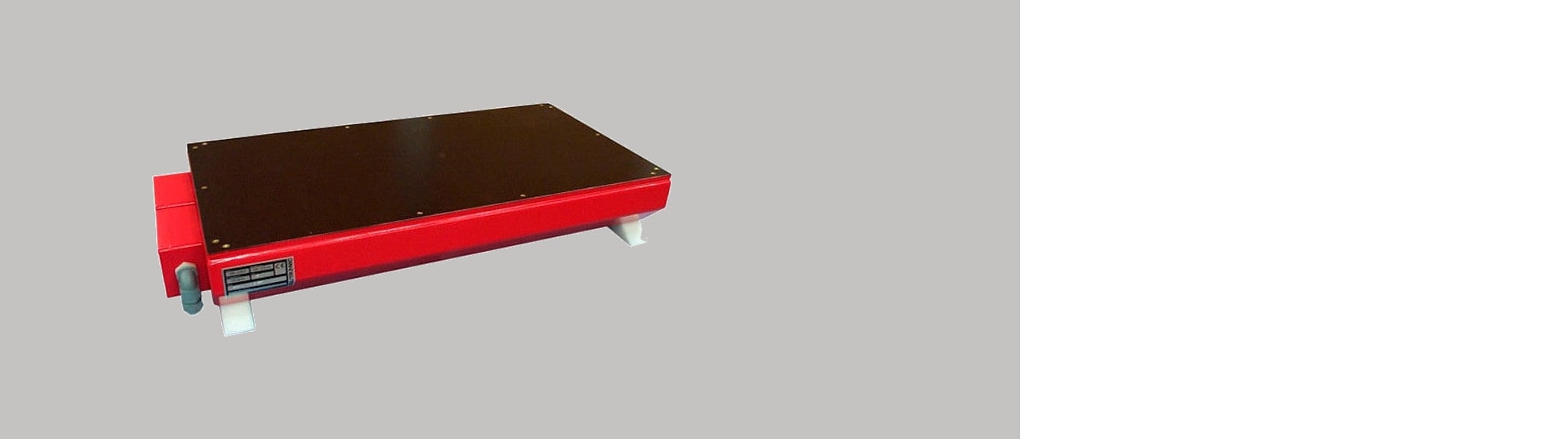

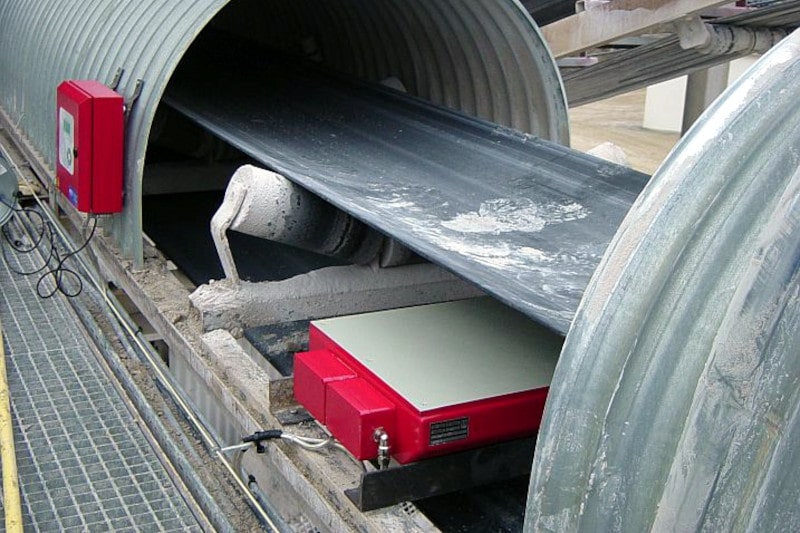

Plate metal detector METRON 05 S

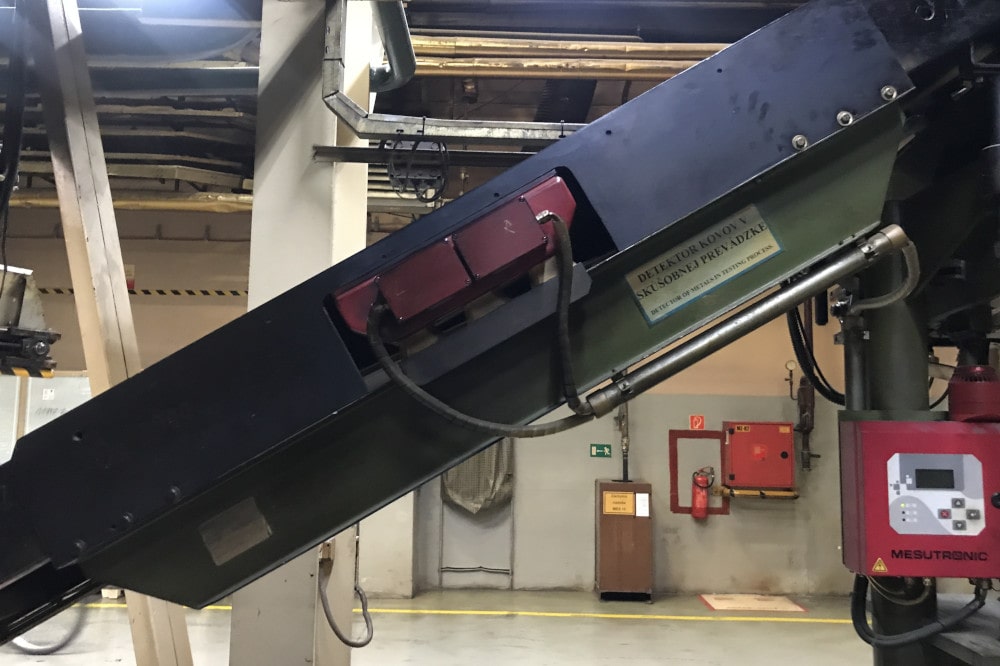

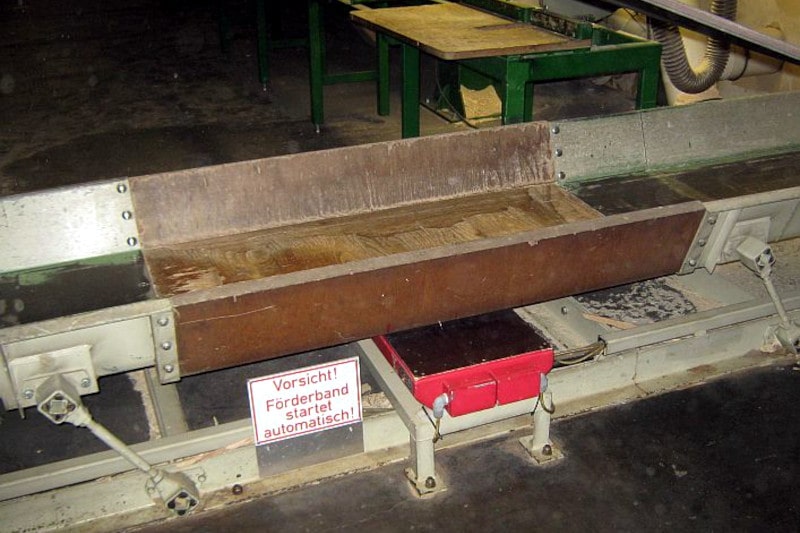

The METRON 05 S plate metal detector is to be installed in belt conveyors, vibratory chutes etc. We recommend using this plate metal detector for little product height.
Thanks to its advantageous price and simple installation, the METRON 05 S belongs to one of the most frequently used single surface metal detectors. You can easily fix it with a few screws to the conveyor. The assembly cannot be easier! The installation of this detection plate requires only minimum demands on a metal-free zone, so the possibilities of its use are really wide.
The detectors are supplied in widths of 200 – 6,000 mm and their use is practically unlimited.
All features above make the METRON 05 S plate detector the most widely used single surface detector.
It is equipped with a powerful AMD 05 control unit with a range of advanced functions such as automatic product setup, automatic calibration, or a digital filtration system. The unit is fitted with a 5-line LCD display and controlled by 4 ergonomic buttons. Its operation is simple and intuitive.
Principle advantages of a plate metal detector
- Mono-board metal detector for installment into conveyer belt , vibrating feeders and material chutes.
- All metals both free and hidden in the material are detected.
- Good level of exactness of detection even in the rough conditions of industry.
- For a medium height of the material on the belt.
- Reliable preservation of the technology despite of low investment costs.
- Reliable technology proved by operation of many years.
- Quick and easy assembly.
- Made-to-measure solution.
The METRON 05 S plate metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Easy – in installation and handling
Optional equipment
The METRON 05 D detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer, beacon with siren
- Remote reset of the device
- Conveyor control – reverse operation of the conveyor
- Visual marking of the detected contaminants = color coding
- Reject systems – pusher (= reject arm), plough (= diverter), carriage retract band, flap, stop on detect (SOD)
- SW modifications according to your needs – data transfer, specific check operations
Special design
Do you have special requirements for a metal detector design? The most common requirements include:
- Detection head and control unit housing in stainless steel design
- Ingress protection code: IP 65
- Units painted to customer specific color code
- Special power supply and termination boxes etc.
- Designed for use even at high temperatures
- ALUTRON version – suppression of interference signals from metalized foils – Patent No. 4342826

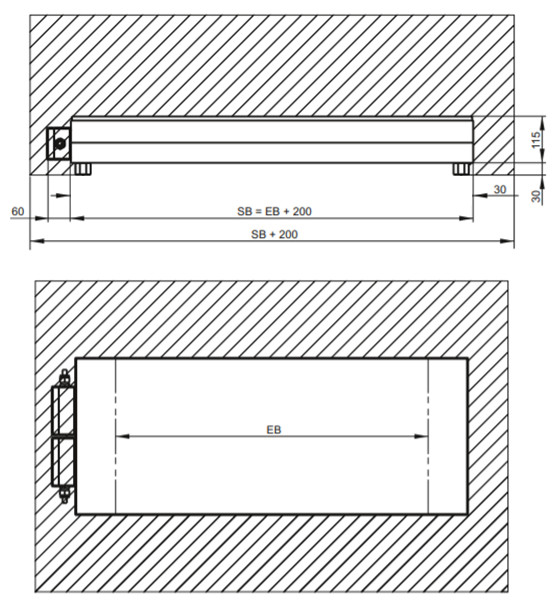

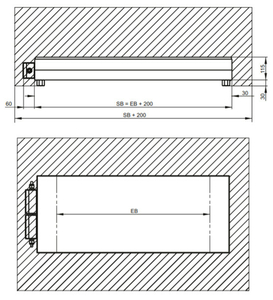

Dimensions
| EB: Detection area (mm) | SB: Detector width (mm) |
|---|---|
| 200 - 6000 | EB + 200 |
Metal free zone - MFZ
It is essential for the proper metal detector functioning that there are no fixed (e.g. conveyor structure, its covering) or moving metal parts (e.g. conveyor rollers) in the proximity of the detector’s aperture. Therefore, the MFZ is defined for each detector and it should not contain moving or fixed metals. The aperture of the metal detector is to be placed in the middle of this metal free zone. When you observe the MFZ when installing the detector, you will prevent false alarms and false detections and contribute to the correct detector operation.
Contact us – we will help you with the MFZ calculation for moving and fixed metals.
Sensitivity of a metal detector
The detector's sensitivity depends on many parameters, such as the aperture dimensions (the lower is the aperture height, the higher is the detector sensitivity), the conveyor belt speed, the density of the product, its temperature and humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.

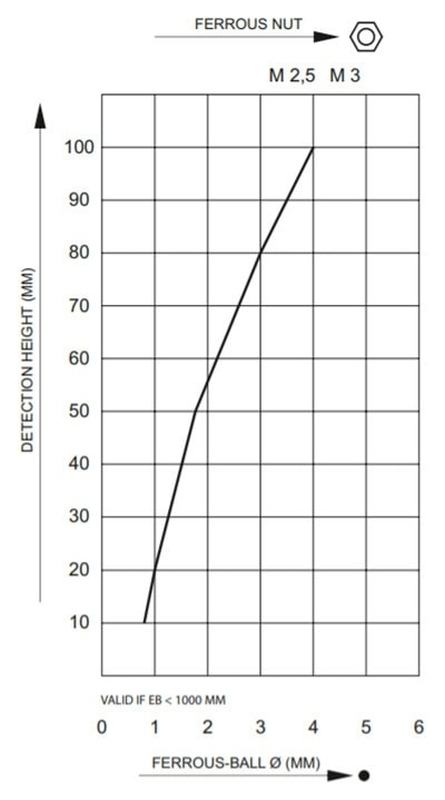

The sensitivity diagram of the METRON 05 S detector applies to LB 1,5 x LH

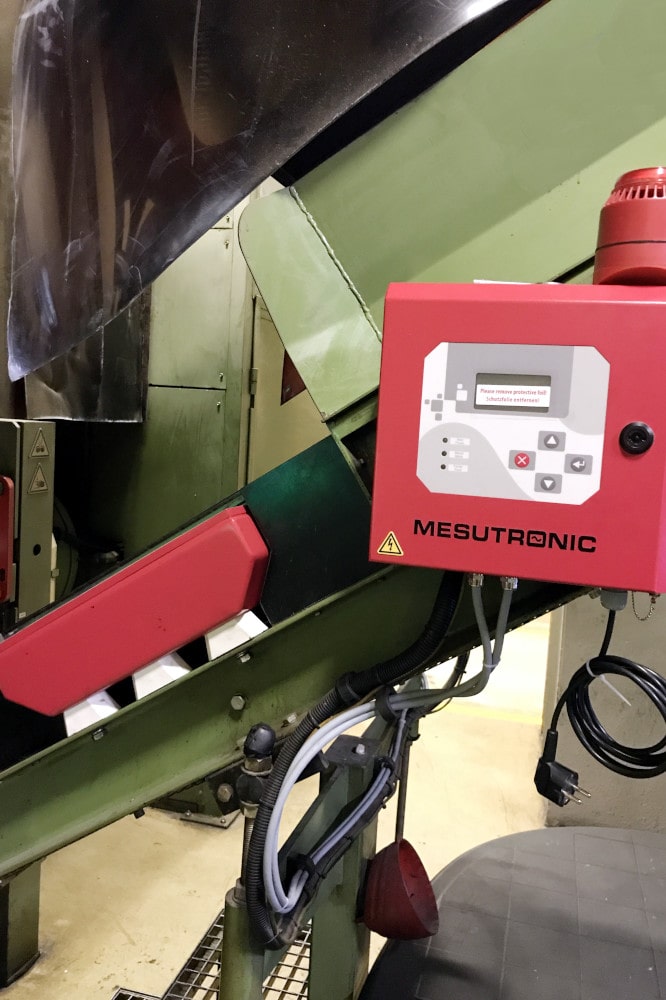

AMD 05 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Auto-balance including the suppression of interfering signals and automatic sensitivity calibration
- Multi-filter system using digital filtration for maximum stability in harsh environments
- Self-monitoring system ensures that all important components function properly
- Touch screen control panel – modern design
- Easy 4-button intuitive operation
- 5-line LCD display
- Product storage memory backup – for up to 500 products
- Metal detector network and remote service - diagnostics, parameter change, SW update
Scope of delivery
The delivery of METRON 05 D detectors includes:
- Detection head
- Control unit
- Connecting cables
- User manual
Datasheet
- Power supply: 100 – 240 V AC, 50/60 Hz
- Current consumption: max. 50 W
- Type of protection: IP 54
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- Max. conveyor belt speed, at which metals can be reliably detected: 1,5 m/s (higher speed version available on request)
- Power cable: 1.8 m with plug
