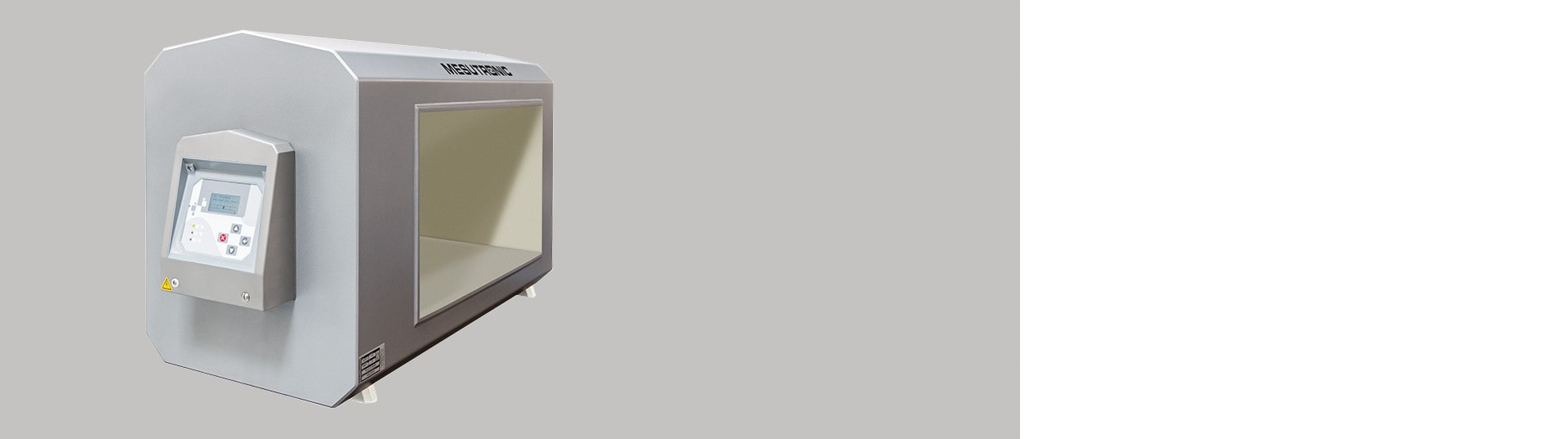

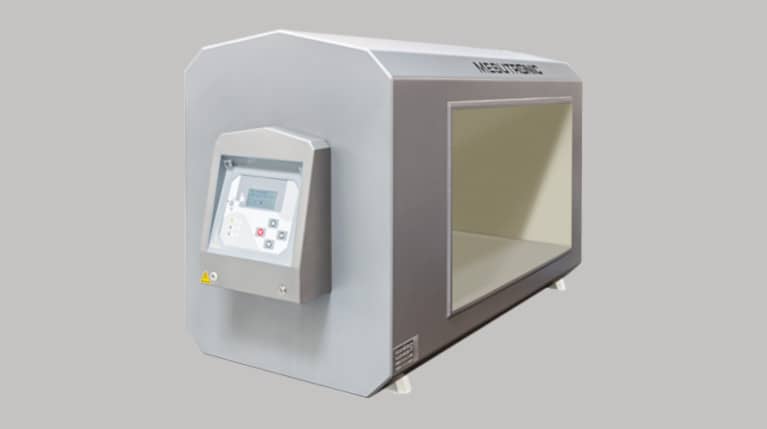

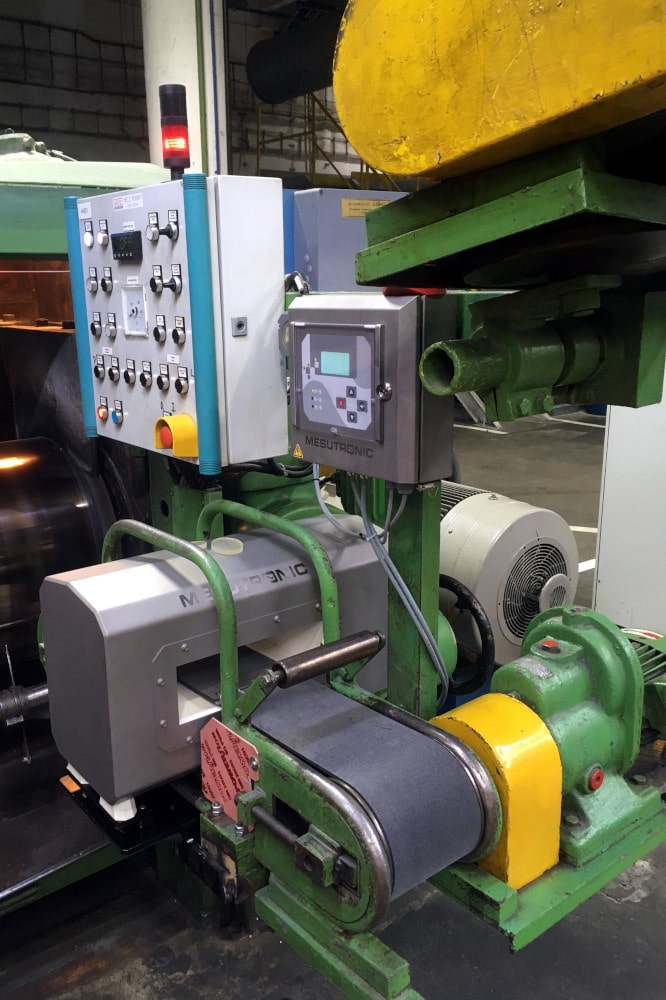

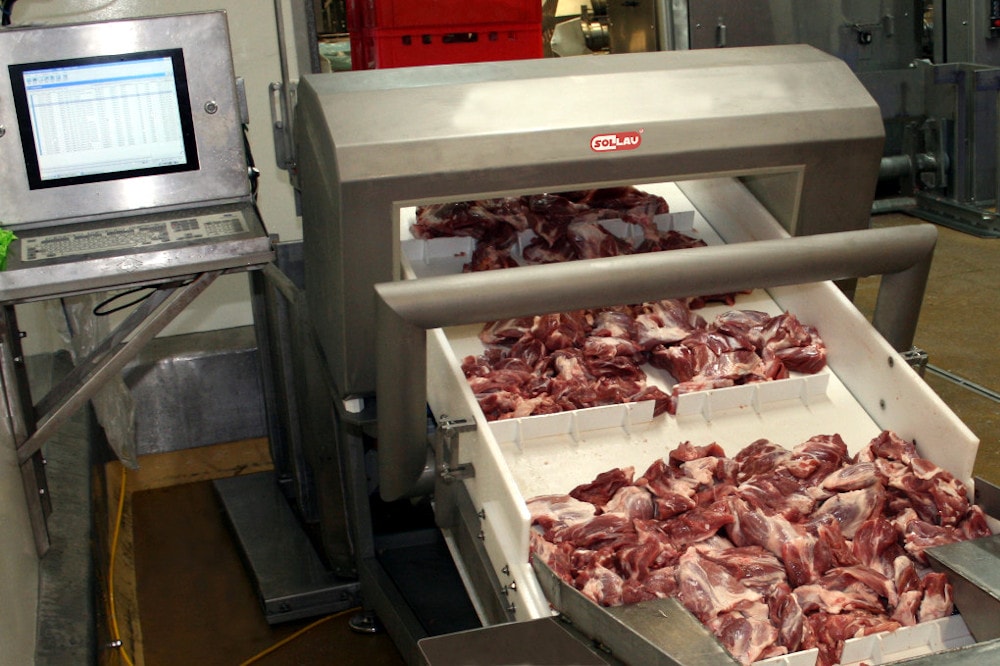

Tunnel metal detector METRON 05 CI
The METRON 05 CI tunnel metal detector with integrated control unit is used to detect metal contaminants in materials transported on the conveyor belts. Digital signal processing enables excellent detection results and the robust detector design contributes to its maximum working life.
Thanks to its advantageous price, the METRON 05 CI is one of the most commonly used tunnel detectors.
It is equipped with a powerful AMD 05 control unit with a range of advanced functions such as automatic product setup, automatic calibration, or a digital filtration system. The unit is fitted with a 5-line LCD display and controlled by 4 ergonomic buttons. Its operation is simple and intuitive.
The METRON 05 CI metal detector enables the metal detection in materials transported on a conveyor belt at speed of up to 30 m/s!
Principle advantages of a tunnel metal detector
- Tunnel detector with integrated evaluation electronics to be installed into the conveyer belts for checking the goods or protecting the technologies.
- All metal particles are detected and it is both off-shell particles and the ones in the form of inclusions in the end product.
- Exact and maximally reliable detection of metals.
- Easy operation.
- Minimum dimensional requirements (reduction of the range of the area that metal object can occur in) thanks to mesuCAGE technology.
- It conforms to the quality requirements as per HACCP, IFS, BRC and SQF systems.
The METRON 05 CI tunnel metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Comfortable – in design and data management
Optional equipment
The METRON 05 CI detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer, beacon with siren
- Metal spheres in plastic to verify sensitivity of the detector
- Hard copy printer
- MesuNET – network integration and remote maintenance
- Conveyor belt controller – reverse operation, belt stop
- Reject systems – pusher (= reject arm), plough (= diverter), carriage retract band, flap, stop on detect (SOD)
Special design
Do you have special requirements for a metal detector design? The most common requirements include:
- Explosion proof versions
- Units painted to customer specific color code
- Special power supply, terminals, etc.
- Designed for use even at high temperatures
- Detector head including display and/or control electronics in a separate housing

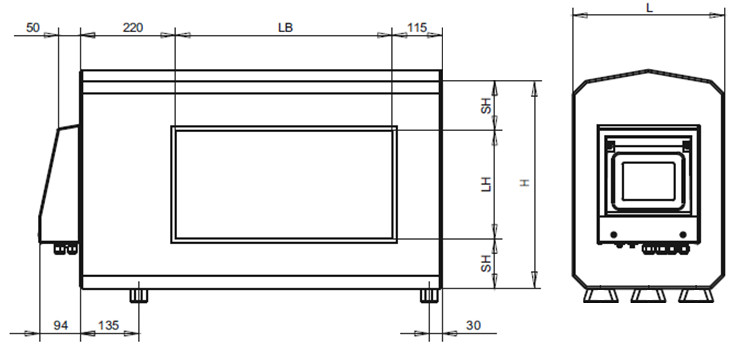

Dimensions
| LH: Aperture height (mm) | LB: Aperture width (mm) | SH: Thickness | L: Detector length (mm) |
|---|---|---|---|
| 50 | Volitelná | 150 | 260 |
| 75 | Optional | 130 | 260 |
| 100 - 150 | Optional | 115 | 260 |
| 175 – 200 | Optional | 115 | 300 |
| 225 – 250 | Optional | 115 | 350 |
| 275 – 300 | Optional | 115 | 400 |
| 325 – 350 | Optional | 115 | 450 |
| 375 – 400 | Optional | 115 | 500 |
| 425 – 450 | Optional | 115 | 550 |
| 475 – 500 | Optional | 115 | 600 |
| 550 - 600 | Optional | 115 | 650 |
LB – aperture width - selectable from 50 to 2000 mm (50 mm each)
Metal free zone - MFZ
It is essential for the proper metal detector functioning that there are no fixed (e.g. conveyor structure, its covering) or moving metal parts (e.g. conveyor rollers) in the proximity of the detector’s aperture. Therefore, the MFZ is defined for each detector and it should not contain moving or fixed metals. The aperture of the metal detector is to be placed in the middle of this metal free zone. When you observe the MFZ when installing the detector, you will prevent false alarms and false detections and contribute to the correct detector operation.
Contact us – we will help you with the MFZ calculation for moving and fixed metals.
Sensitivity of a metal detector
The detector's sensitivity depends on many parameters, such as the aperture dimensions (the lower is the aperture height, the higher is the detector sensitivity), the conveyor belt speed, the density of the product, its temperature and humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.

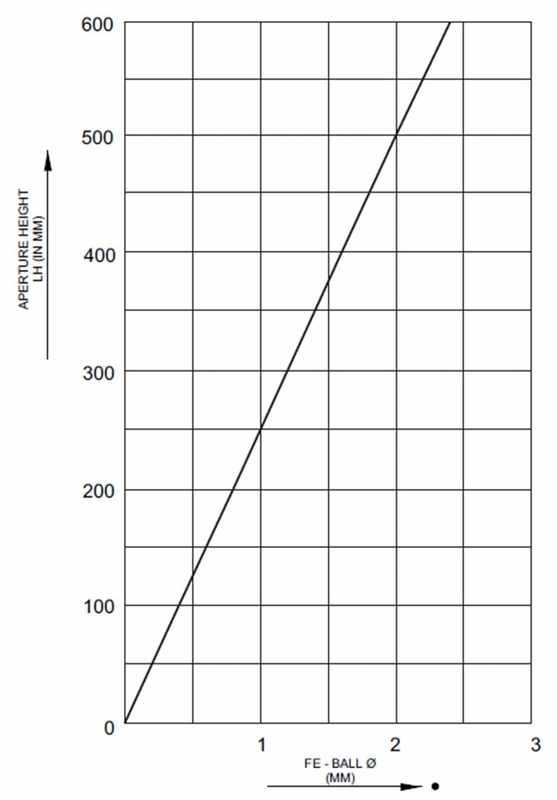

The sensitivity diagram of the METRON 05 D detector applies to LB 1,5 x LH
AMD 05 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Control unit (of single board design) with built-in regulated power supply for reliable performance and ease of service
- Auto-balance including the suppression of interfering signals and automatic sensitivity calibration
- Multi-filter system using digital filtration for maximum stability in harsh environments
- Narrow detection zone provides an accurate location of the metallic particle in the detection field allowing precise separation
- Self-monitoring system ensures that all important components function properly
- Easy 4-button intuitive operation
- 5-line backlit LCD display
- Product storage memory backup – for up to 500 products
Scope of delivery
The delivery of METRON 05 D detectors includes:
- Detection head with an integrated control unit
- User manual
Datasheet
- Power supply: 100 – 240 V AC, 50/60 Hz
- Power consumption: max. 50 W
- Type of protection: IP 66 (IP 69 K)
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- Max. conveyor belt speed, at which metals can be reliably detected: 30 m/s
- Power cable: 1.8 m with plug
METRON 05 CI is an economical option with an attractive price/performance ratio – suitable where you need reliable detection without requirements for advanced data management or network connectivity. METRON 07 CI additionally offers imagePHASE technology for product visualisation on the display, a significantly smaller metal-free zone thanks to mesuCAGE technology, and remote access via Ethernet or WiFi. If you need integration into a corporate network, detailed data management, or have limited space for installation, we recommend METRON 07 CI.
A tunnel metal detector (METRON 05 CI or 07 CI) detects metallic contaminants in both unpackaged and packaged products. The easySCOPE inspection X-ray additionally captures non-metallic impurities – glass, stones or plastics – and is intended for final inspection of packaged products. If your quality standards require detection of non-metallic foreign bodies as well, or you work with products packaged in metallised film, easySCOPE is the right choice.
Sensitivity is primarily influenced by aperture height (the lower, the higher the sensitivity), as well as belt speed, product density, temperature, and moisture. To recommend the most suitable model for your application, we carry out material tests free of charge – results are guaranteed within three days.
The metal-free zone is the area in the immediate vicinity of the detector aperture that must not contain any moving or stationary metals – such as conveyor frame, guards or rollers. Failure to observe the MFZ causes false signals and incorrect product rejection. METRON 07 CI, thanks to mesuCAGE technology, requires a significantly smaller metal-free zone than standard models; we are happy to assist with the MFZ calculation for your specific installation.
Yes. The METRON 05 CI and METRON 07 CI tunnel metal detectors feature hygienic design for use in the food industry and protection rating IP 66 (IP 69K), ensuring resistance to water and high-pressure cleaning. The operating temperature range is -10 °C to +50 °C, making them suitable for refrigerated environments and lines with wet products.
Yes. The METRON 05 CI and METRON 07 CI tunnel metal detectors and the easySCOPE inspection X-ray comply with the requirements of HACCP, IFS, BRC and SQF systems and are FDA-compatible. METRON series detectors are equipped with data management and network connectivity, which facilitates documentation and auditability of the production process.
We take care of your project from start to finish: we visit, survey and design a solution, manufacture to measure, install, commission and train the operators. We provide authorised service throughout the entire period of operation. METRON 07 CI detectors also enable remote diagnostics and software updates via the network, reducing the time required for any service intervention.
Industrial metal detectors for conveyor belts are devices designed to detect metallic contaminants in materials transported on a conveyor, vibratory feeder, or material chute. They are installed directly on existing conveyor belts or as part of integrated conveyor systems. They serve either for product quality control or as protection of production equipment against damage by metals.
SOLLAU offers three main groups. Tunnel detectors: Tunnel metal detector METRON 05 D (split design, easy installation without stopping the belt), Tunnel metal detector METRON 05 C, Tunnel metal detector METRON 05 CI, and Tunnel metal detector METRON 07 CI (with imagePHASE and mesuCAGE technologies). Plate detectors: Plate metal detector METRON 03 SL (for low product heights, no MFZ required) and Plate metal detector METRON 05 S (most widely used model, width up to 6,000 mm). Also available: Metal detector for vibratory conveyors METRON 05 VT, the specialised Tunnel metal detector METRON 05 CO for the woodworking industry, and complete conveyor systems — Conveyor metal detector TRANSTRON and Metal detector TRANSTRON HL.
A tunnel metal detector surrounds the material from all sides — the detection head forms a frame through which the material passes. It provides precise detection and is suitable for various material heights. A plate metal detector is a flat detection plate installed directly in the conveyor, optimal for products with low to medium material height on the belt. Its main advantages are extremely easy installation, lower cost, and minimal or no Metal Free Zone requirements. The choice depends on material height, required sensitivity, and installation conditions.
The Metal Free Zone (MFZ) is a protective space around the detection head where no fixed or moving metals (conveyor frame, rollers) are permitted, to prevent false signals. The tunnel detectors METRON 05 C and METRON 05 D require an MFZ. The mesuCAGE technology on the Tunnel metal detector METRON 07 CI significantly reduces the MFZ. The Plate metal detector METRON 03 SL and the Metal detector for vibratory conveyors METRON 05 VT require no MFZ at all — making them the easiest to install. The Plate metal detector METRON 05 S and the Tunnel metal detector METRON 05 CO have only minimal MFZ requirements.
The tunnel detectors METRON 05 C, METRON 05 D, METRON 05 CI, and METRON 07 CI detect metals at conveyor speeds of up to 30 m/s. The Plate metal detector METRON 05 S is designed for conveyors with speeds up to 1.5 m/s (higher speeds available on request). The Tunnel metal detector METRON 05 CO for the woodworking industry handles speeds up to 6 m/s. Detector sensitivity also depends on aperture height, product density, temperature, and moisture content.
The detectors are equipped with three types of control units. The Plate metal detector METRON 03 SL uses the AMD 03 unit with optical signalling and conveyor vibration suppression. Most models — METRON 05 C, METRON 05 D, METRON 05 S, METRON 05 VT, METRON 05 CO, and METRON 05 CI — are fitted with the AMD 05 unit featuring a 5-line LCD display, 4 buttons, automatic product setting, and memory for 500 products. The Tunnel metal detector METRON 07 CI uses the advanced AMD 07 unit with a 5.7" colour touch display, Ethernet connectivity, remote access via mesuNET, and product visualisation using imagePHASE technology.
The portfolio covers a wide range of industrial applications. The Tunnel metal detector METRON 05 CO with its octagonal shape and stainless steel construction is specialised for the woodworking industry — it can inspect tree trunks with a diameter of up to 1,600 mm at conveyor speeds of up to 6 m/s. The Tunnel metal detector METRON 07 CI meets HACCP, IFS, BRC, and SQF hygiene standards, making it suitable for the food industry as well. The Metal detector for vibratory conveyors METRON 05 VT is ideal for vibratory feeders of all shapes. The degree of protection ranges from IP 54 to IP 69 K depending on the model.

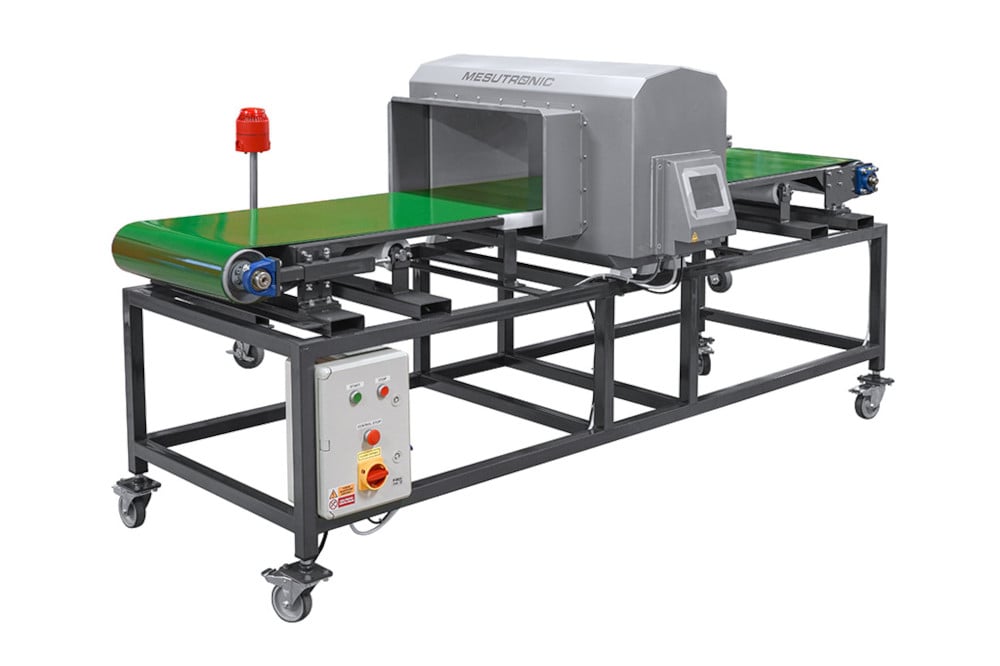

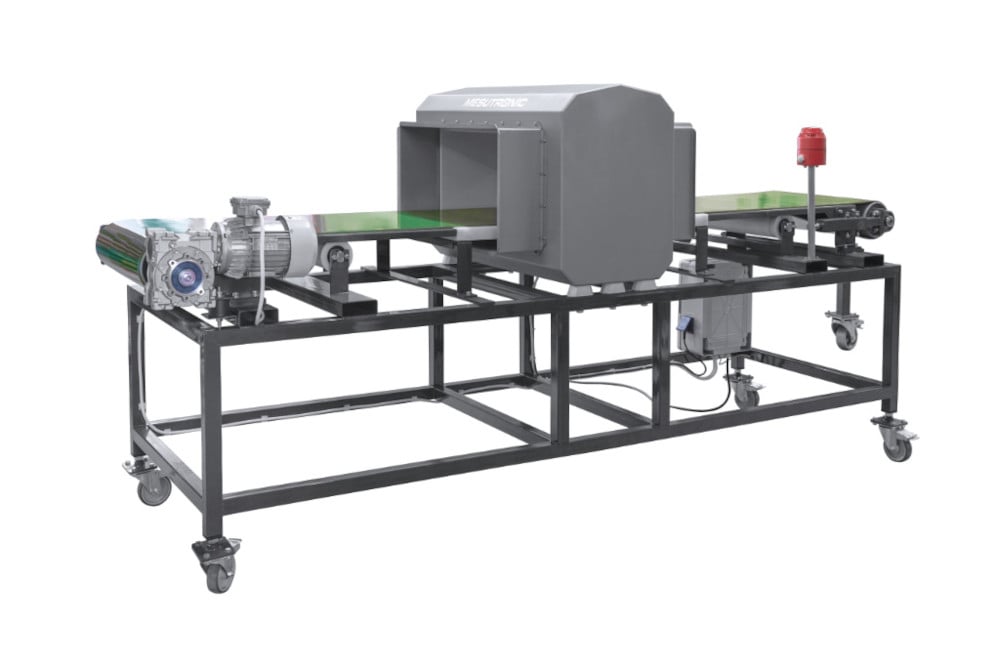

The Conveyor metal detector TRANSTRON is a complete solution combining a custom-built conveyor with an industrial metal detector — most commonly the Tunnel metal detector METRON 07 CI or METRON 05 CI. The conveyor is designed precisely to the customer's requirements: correct MFZ compliance, integration into the existing line, and choice of rejection system. The Metal detector TRANSTRON HL is a variant for woodworking plants, the ideal complement to the METRON 05 CO. SOLLAU guarantees free material tests within three days and provides a full service cycle: site visit, assessment, custom manufacture, installation, commissioning, operator training, and authorised service.
