Multi-segment plate metal detector METRON 04 ProfiLine

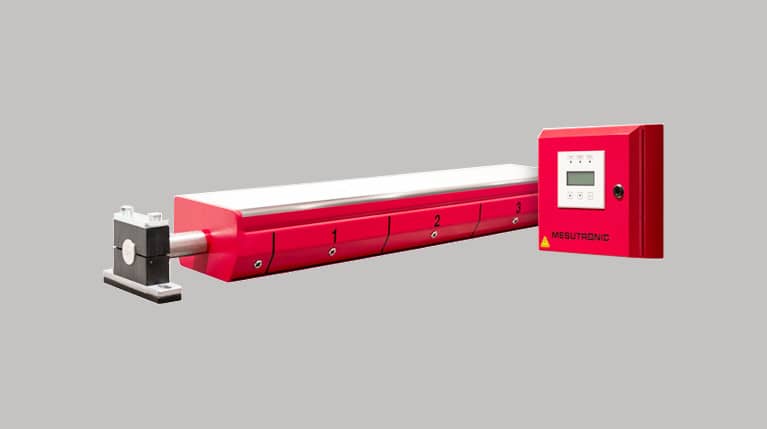

METRON 04 ProfiLine multisegmented metal detector is used to detect metal contaminants in plastic foil strips and textile materials. Thanks to its multi-segment design, it can determine exactly in which segment the metal contaminant is located. This significantly saves operating time and reduces the good material loss.
The standard version can reliably detect metals at a speed of 10 m/s. The high-speed variant allows detecting metals at a speed of up to 20 m/s!
It can be installed vertically and horizontally. Thanks to the two-point mounting, its installation is very easy and fast.
The length of the individual detection segments is 300 mm. The size portfolio is very wide, so you will find detectors with widths of 900 - 12,000 mm in the standard offer! This means that the detection can be performed in 3 - 40 segments.
The antistatic sensor surface enables excellent detection results and therefore the METRON 04 ProfiLine requires only a minimal metal free zone.
Principle advantages of a plate metal detector
- Electronic multi-segment metal detector (indicator ribbon) for unwoven textiles or foil type belts/builds. It is use for final inspection of goods or protection of high-priced production technologies.
- All metals both free and hidden in the material are detected and separated automatically.
- Precise and positionally exact detection of metals.
- Guarantee of the highest quality of the product.
- Quick disassembly thanks to poit-to-point pinning.
- It fits every time – the length of the detector is optional by 150 or 300 mm.
The METRON 04 ProfiLine plate metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Easy – in installation and handling
Optional equipment
The METRON 04 ProfiLine detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer, beacon with siren
- Metal spheres in plastic to verify sensitivity of the detector
Special design
Do you have special requirements for a metal detector design? The most common requirements include:
- High temperature version up to 120 °C
- High speed version for conveying speeds up to 20 m/s
- Units painted to customer specific color code
- Special power supply, terminals, etc.
Contact us – we will elaborate a solution just for you.
Dimensions
| A: Effective sensing (detection) width (mm) | B: Detector width (mm) |
|---|---|
| 500 – 600 - … - 12000 | B = A + 160 |
A – Effective detection width – available from 500 to 12,000 mm (in 100 mm steps)
Sensitivity of a metal detector
The detector's sensitivity depends on many parameters, such as the aperture dimensions (the lower is the aperture height, the higher is the detector sensitivity), the conveyor belt speed, the density of the product, its temperature and humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.

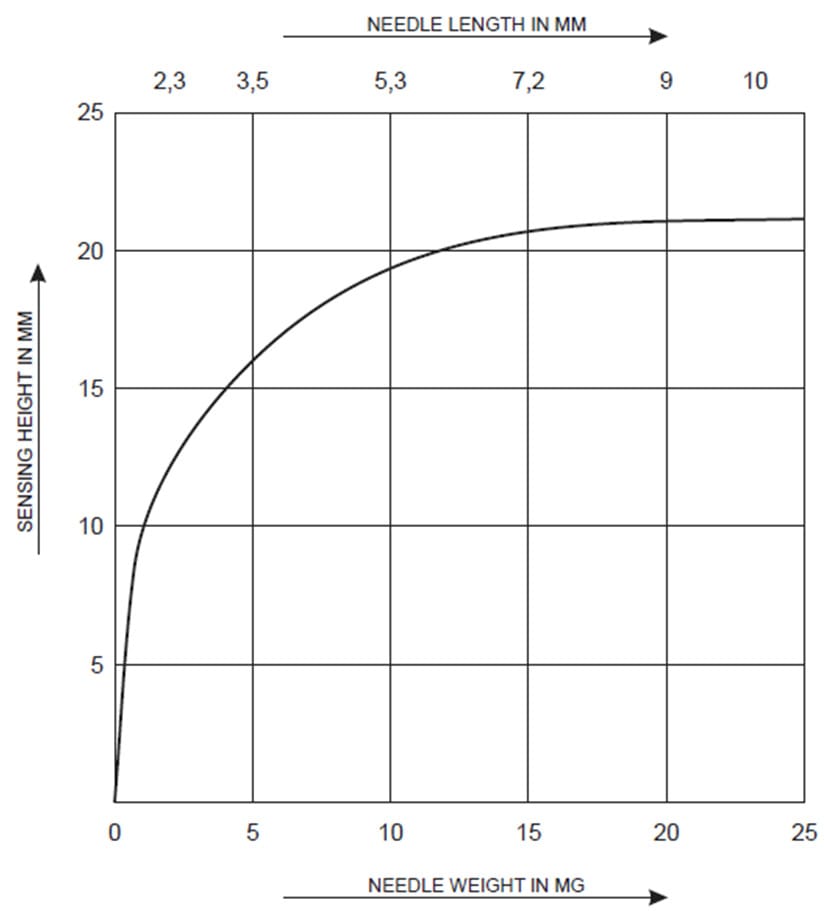

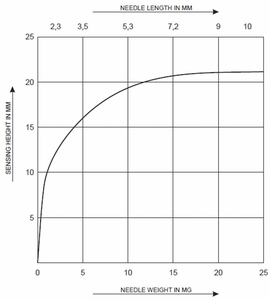

The sensitivity diagram of the METRON 05 ProfiLIne detector applies to LB 1,5 x LH

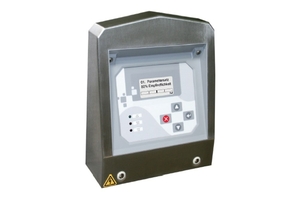

AMD 05 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Auto-balance including the suppression of interfering signals and automatic sensitivity calibration
- Multi-filter system using digital filtration for maximum stability in harsh environments
- Self-monitoring system ensures that all important components function properly
- Touch screen control panel – modern design
- Easy 4-button intuitive operation
- 5-line LCD display
- Product storage memory backup – for up to 500 products
- Metal detector network and remote service - diagnostics, parameter change, SW update
Scope of delivery
The delivery of METRON 04 ProfiLine detectors includes:
- Detection head
- Control unit
- User manual
- Power supply: 100 – 240 V AC, 50/60 Hz
- Power consumption: max. 0,7 A
- Type of protection: IP 54
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- Max. conveyor belt speed, at which metals can be reliably detected: 10 m/s
- Power cable: 1.8 m with plug
