Plate metal detector METRON 05 ProfiLine

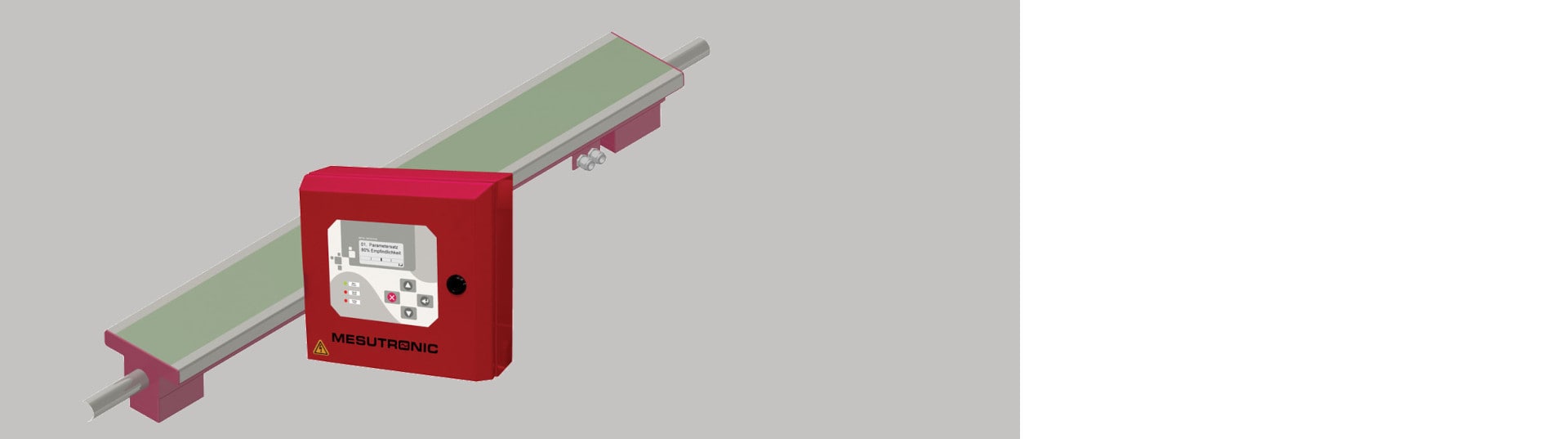

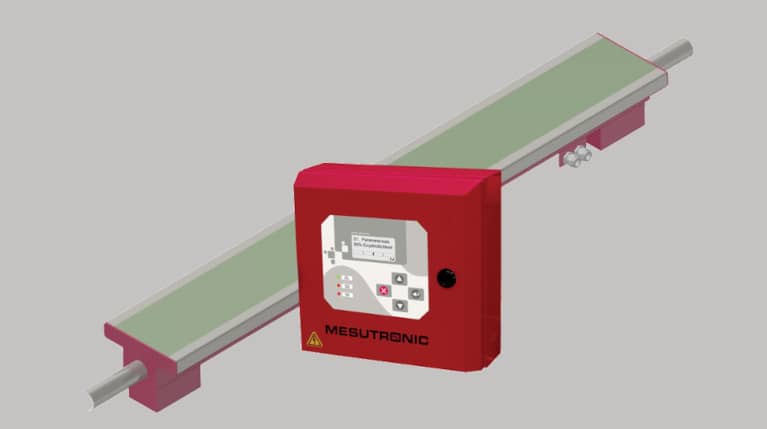

METRON 05 ProfiLine single plate metal detector is used to detect metal contaminants in plastic foil strips and textile materials. It can reliably detect metals even at a speed of 10 m/s and achieves excellent results in the detection of metal needles in textile fleece.
It can be installed vertically and horizontally. Thanks to the two-point mounting, its installation is very easy and fast.
The size portfolio is very wide, so you will find detectors with widths of 500 - 12000 mm in the standard offer!
The antistatic sensor surface enables excellent detection results and therefore the METRON 05 ProfiLine requires only a minimal metal-free zone.
This detector is equipped with a high-performance AMD 05 control unit with a wide range of advanced functions. The unit is fitted out with a 5-line LCD display and controlled by 4 ergonomic buttons. Its operation is simple and intuitive.
Principle advantages of a plate metal detector
- Single-segment ledgelike metal detector for thin textile fleeces or foil type belts/builds. Reliable detection of zbroken needles and other metal parts and it is also at humid products..
- All metals both free and hidden in the material are detected and separated automatically.
- Precise and positionally exact detection of metals.
- Preserves the high-priced production technologies or monitors the quality of the product.
- Quick disassembly thanks to poit-to-point pinning.
- Made-to-measure length of detector.
The METRON 05 ProfiLine plate metal detector is:
- Reliable – in process and detection
- Durable – in technology and performance
- Easy – in installation and handling
Optional equipment
The METRON 05 ProfiLine detectors can be supplied with a wide range of additional equipment:
- Signal units – beacon, buzzer, beacon with siren
- Metal spheres in plastic to verify sensitivity of the detector
Special design
Do you have special requirements for a metal detector design? The most common requirements include:
- Units painted to customer specific color code
- Special power supply, terminals, etc.
Contact us – we will elaborate a solution just for you.
Dimensions
| A: Effective sensing (detection) width (mm) | B: Detector width (mm) |
|---|---|
| 500 – 600 - … - 12000 | B = A + 160 |
A – Effective detection width – available from 500 to 12,000 mm (in 100 mm steps)
Sensitivity of a metal detector
The detector's sensitivity depends on many parameters, such as the aperture dimensions (the lower is the aperture height, the higher is the detector sensitivity), the conveyor belt speed, the density of the product, its temperature and humidity, etc.
Maximum obtainable sensitivity can be established by testing your product sample in our laboratory. We will perform these tests free of charge. Please contact us, we will discuss the test execution as well as the dispatch of your material samples.

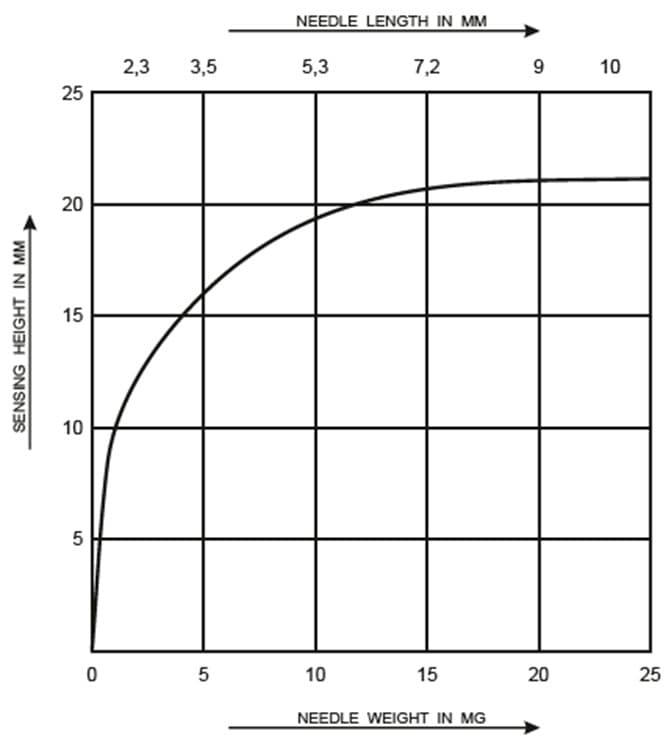

The sensitivity diagram of the METRON 05 ProfiLIne detector applies to LB 1,5 x LH
AMD 05 Control unit
A first-rate control unit is essential for the proper functioning of any detector. Our control unit is made with an emphasis on the high quality of workmanship and of the employed components.
The result is a stable control unit with a wide range of functions (just to name a few):
- Auto-balance including the suppression of interfering signals and automatic sensitivity calibration
- Multi-filter system using digital filtration for maximum stability in harsh environments
- Self-monitoring system ensures that all important components function properly
- Touch screen control panel – modern design
- Easy 4-button intuitive operation
- 5-line LCD display
- Product storage memory backup – for up to 500 products
- Metal detector network and remote service - diagnostics, parameter change, SW update
Scope of delivery
The delivery of METRON 05 ProfiLine detectors includes:
- Detection head
- Control unit
- User manual
Datasheet
- Power supply: 100 – 240 V AC, 50/60 Hz
- Power consumption: max. 0,7 A
- Type of protection: IP 54
- Min. working temperature: - 10 °C
- Max. working temperature: + 50 °C
- Relative air humidity: 0 – 95 % (without condensation)
- Max. conveyor belt speed, at which metals can be reliably detected: 10 m/s
- Power cable: 1.8 m with plug
The METRON 05 ProfiLine is a single-segment plate metal detector designed to detect metal contaminants in foil webs and textile materials. It is most commonly used in the textile industry — where it reliably detects broken needles and other metal parts concealed in textile fleece — and also for inspecting foil rolls or webs made of plastics and non-woven fabrics. The detector protects expensive production equipment from damage or serves for continuous product quality monitoring.
The METRON 05 ProfiLine is a single-segment detector that covers the entire detection width with one sensor — making it simpler in construction and more cost-effective. The METRON 04 ProfiLine, by contrast, is a multi-segment detector that can more precisely locate the position of each detected metal across the width of the material, which is advantageous for targeted rejection of contaminants from wide webs. The choice between the two models depends on the required detection width and whether you need cross-directional position accuracy.
We supply detectors with detection widths from 500 to 12,000 mm, in 100 mm increments. The overall width of the detector is always 160 mm greater than the detection width. The detector length is manufactured to order according to your requirements, so it can be precisely tailored to the width of your production line.
Sensitivity depends on the detection width, material speed, and material properties. The sensitivity diagram applies for a ratio of LB 1.5 × LH (contaminant length × height). The detector operates reliably at material speeds of up to 10 m/s, and the antistatic surface of the sensor minimises the required Metal Free Zone. To determine the specific sensitivity for your material and line speed, we recommend carrying out a free test.
The detector can be installed horizontally or vertically, adapting to different production line configurations. The two-point mounting system ensures fast and straightforward installation and removal — without the need for complex structural modifications. Thanks to minimal Metal Free Zone requirements, integration into existing lines is easy even in space-restricted environments.
The AMD 05 control unit provides automatic product setup with interference signal suppression, automatic sensitivity calibration, digital signal filtering for stable operation in demanding environments, and continuous system function monitoring. It is operated using 4 ergonomic buttons and a five-line backlit LCD display; settings for up to 500 products can be stored in memory. Optional accessories include warning devices (beacon, buzzer) and a set of test standards for verifying detector sensitivity.
The standard supply includes the detection head, the AMD 05 control unit, and a user manual. The two-point mounting system enables fast installation without complex structural work. We manage the entire project — we visit, measure, manufacture the detector to the required width of your line, install, commission, and train your operators; authorised warranty and after-sales service is also included.
Yes — we carry out tests of your material on our equipment free of charge, with a guaranteed result within three days. Tests are particularly important for correctly setting the sensitivity and verifying that the detector will fully meet your operational requirements. Simply contact us, we will arrange the sending of samples and prepare a test report.
